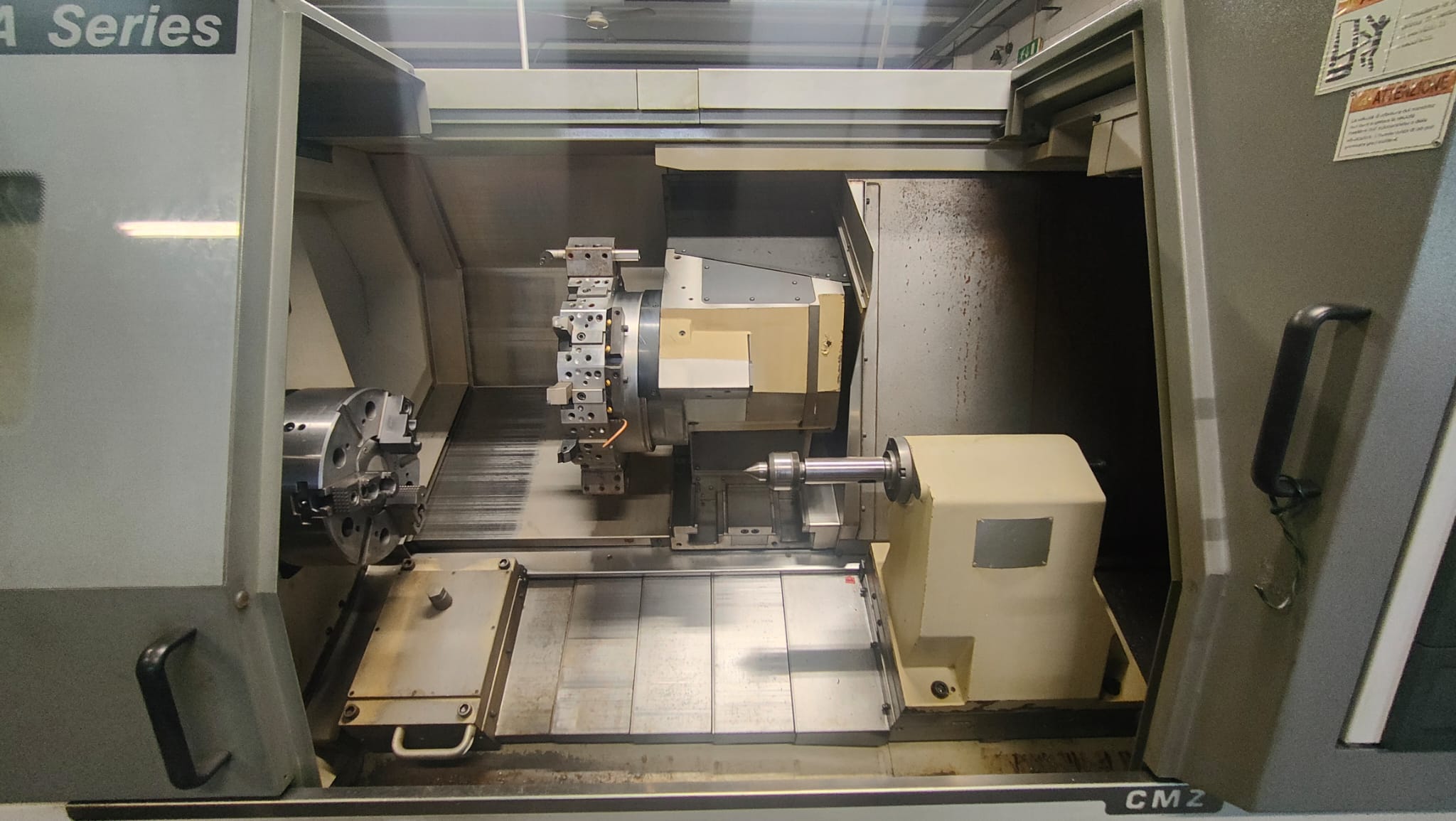

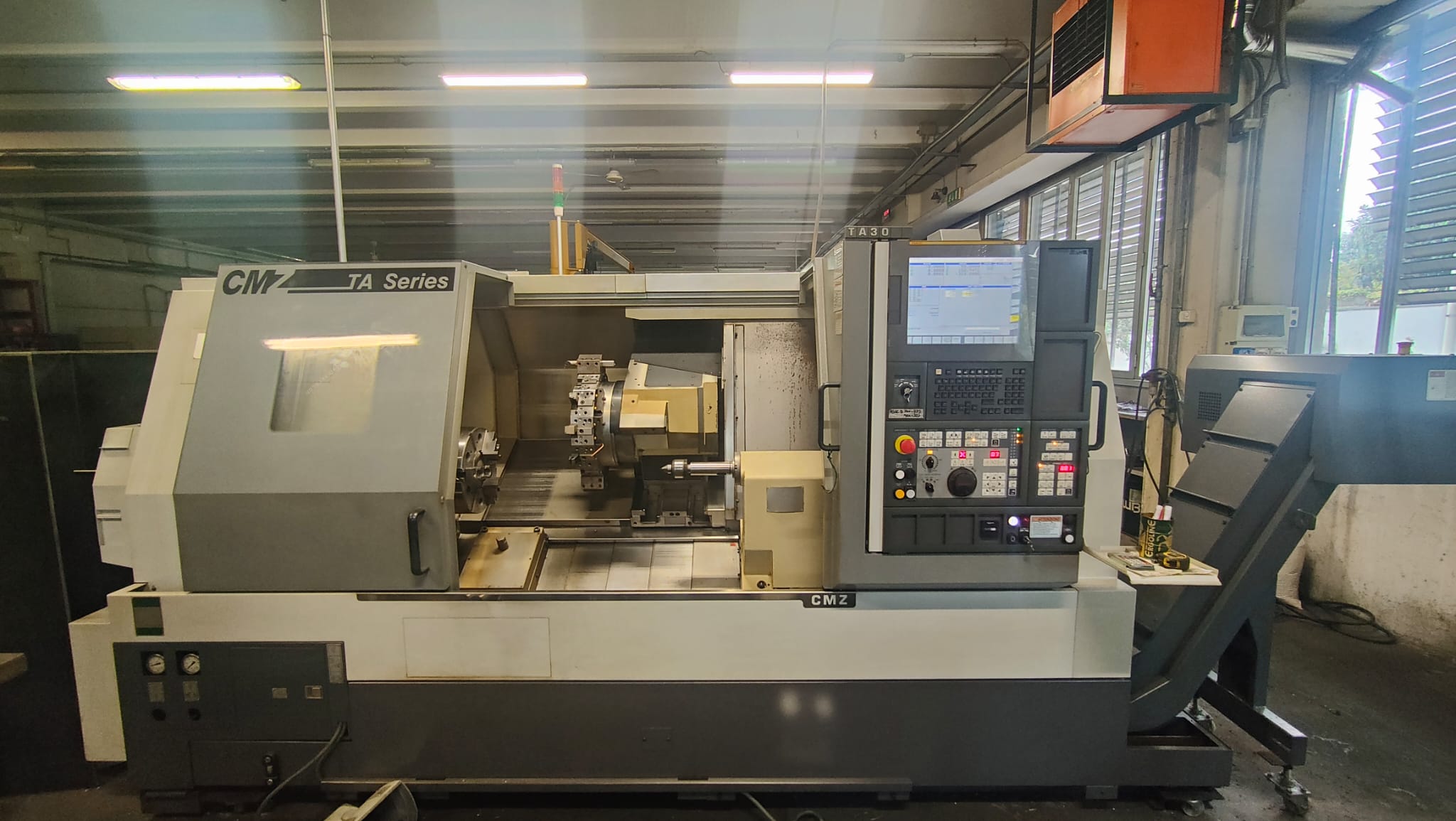

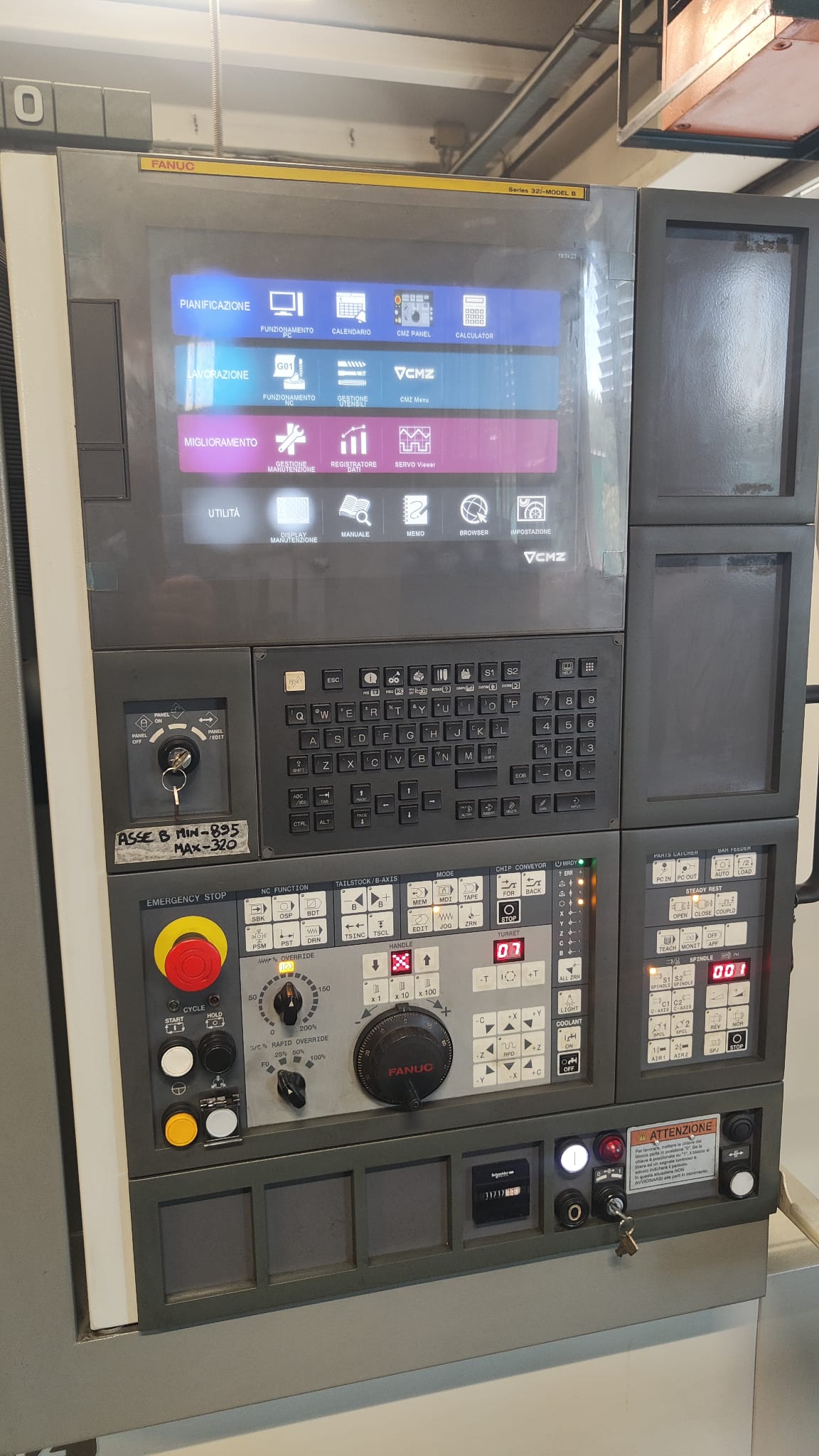

2017 LATHE CMZ model.TA30 with Lunette

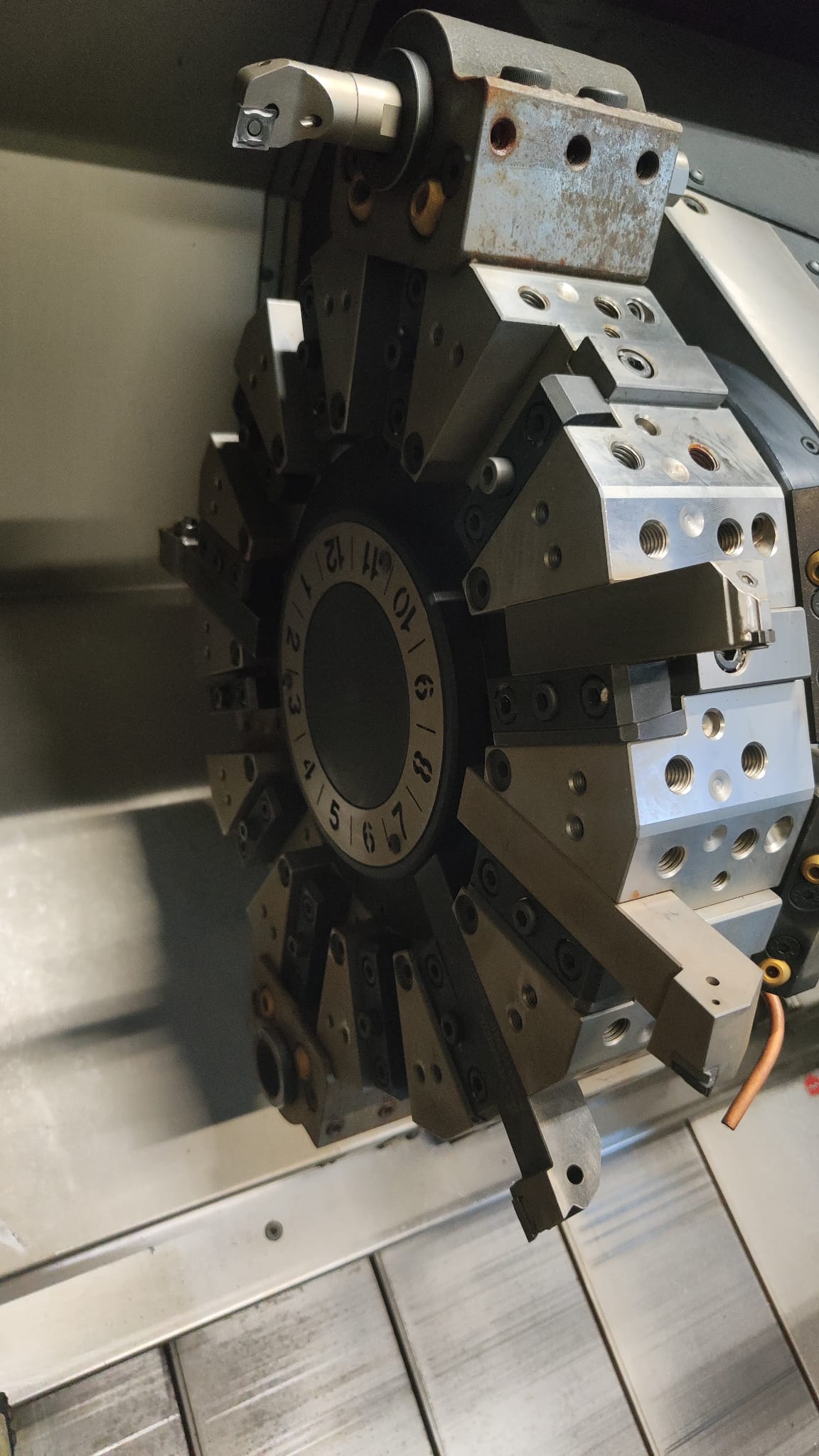

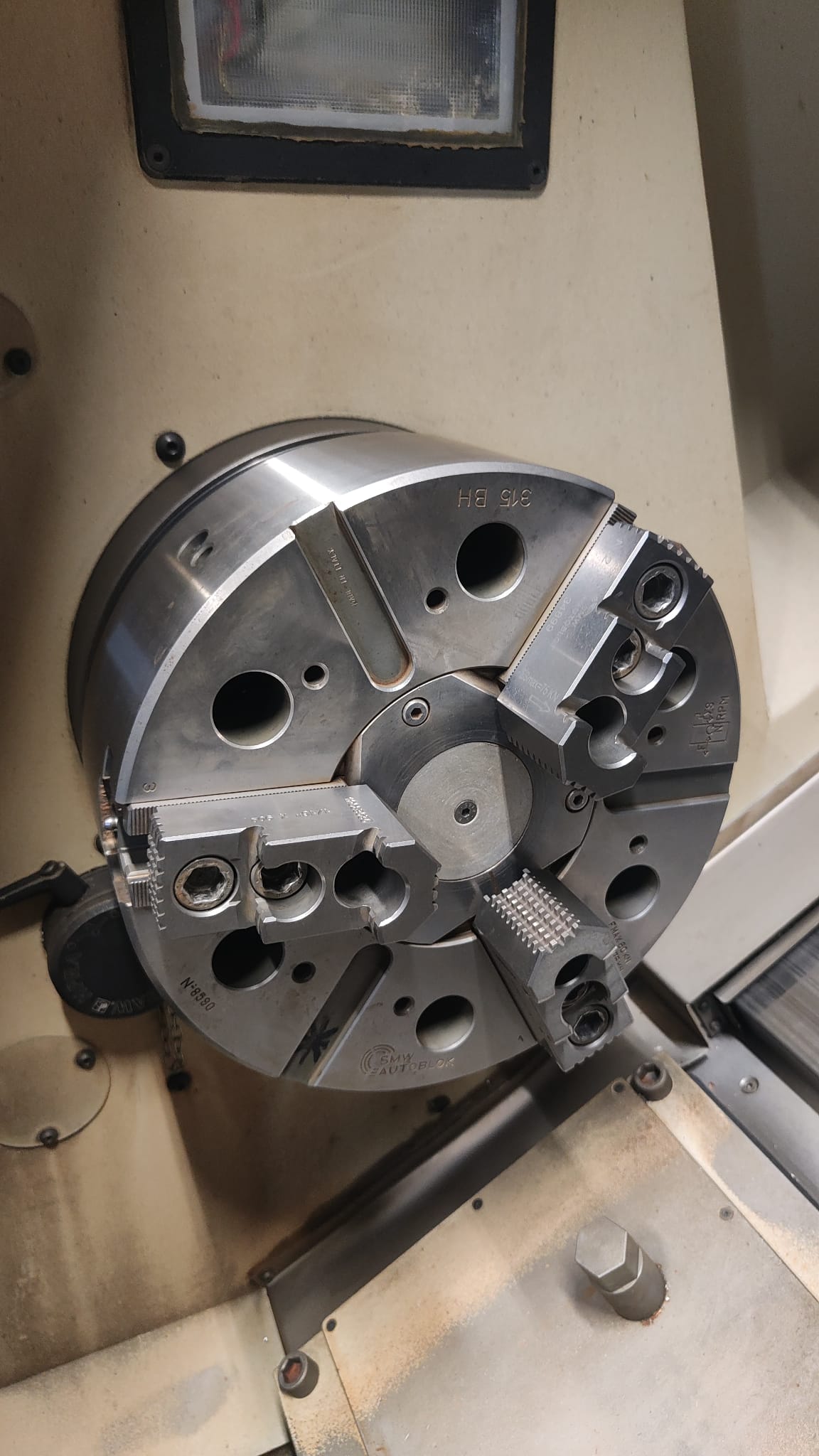

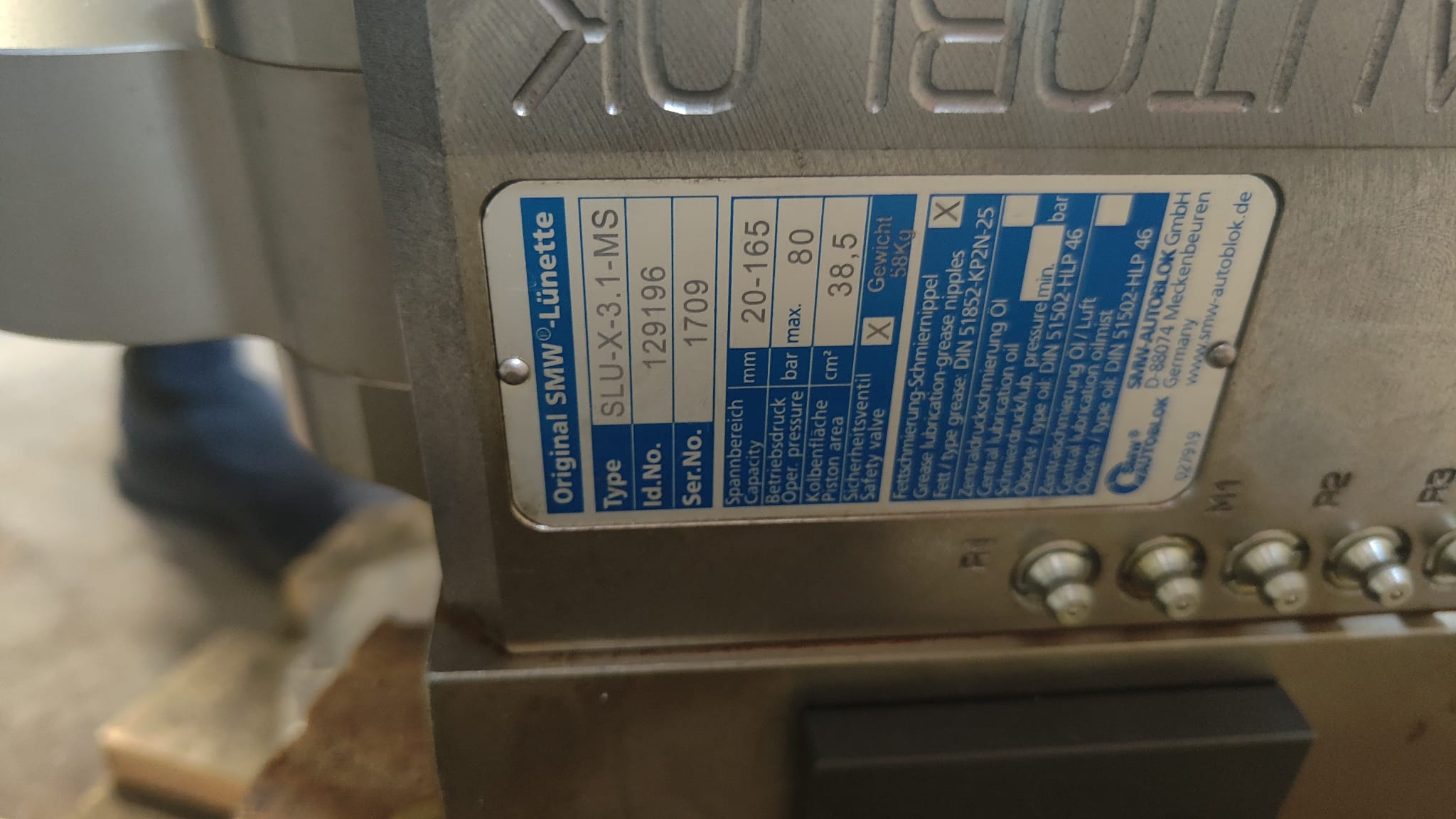

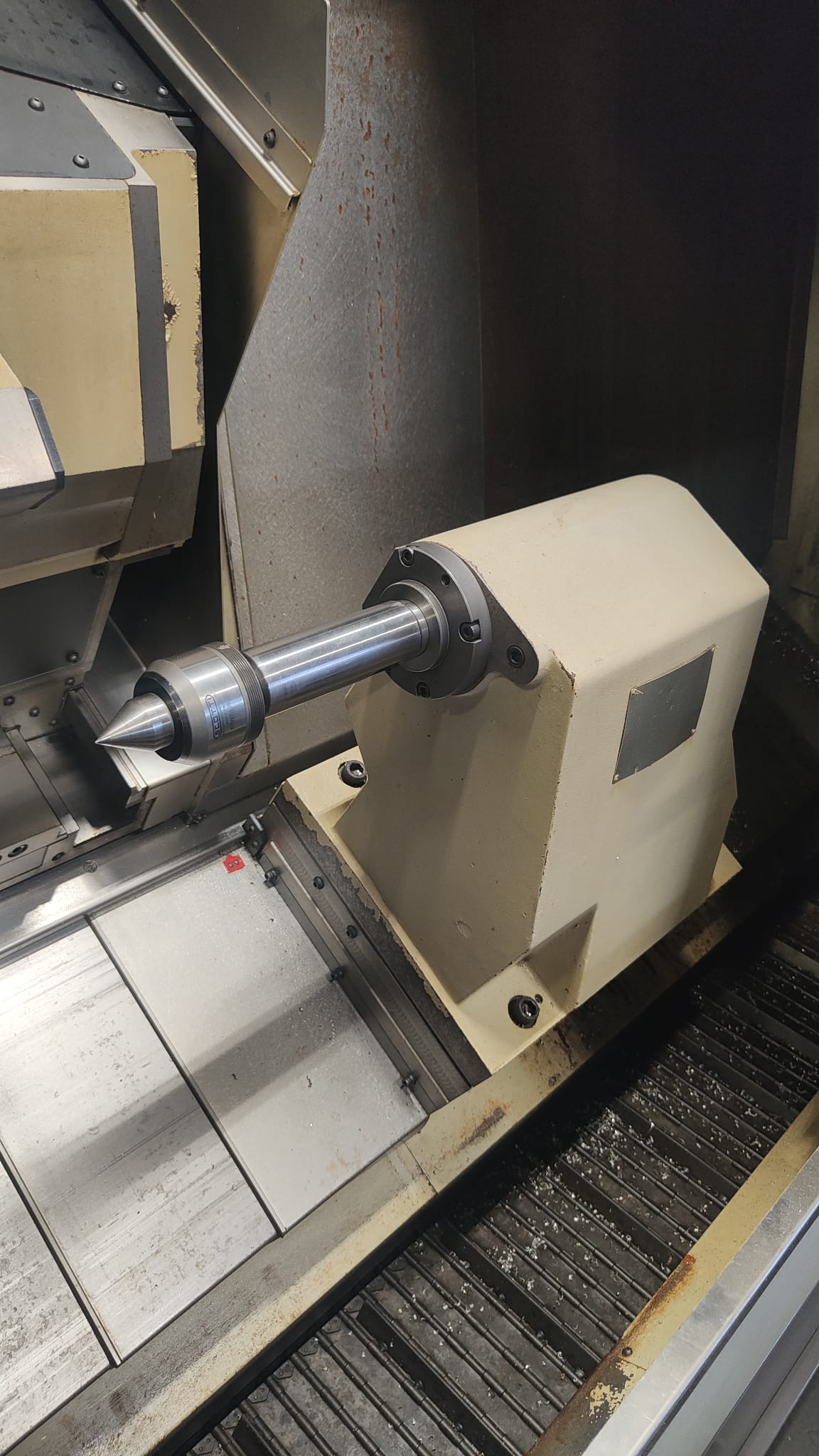

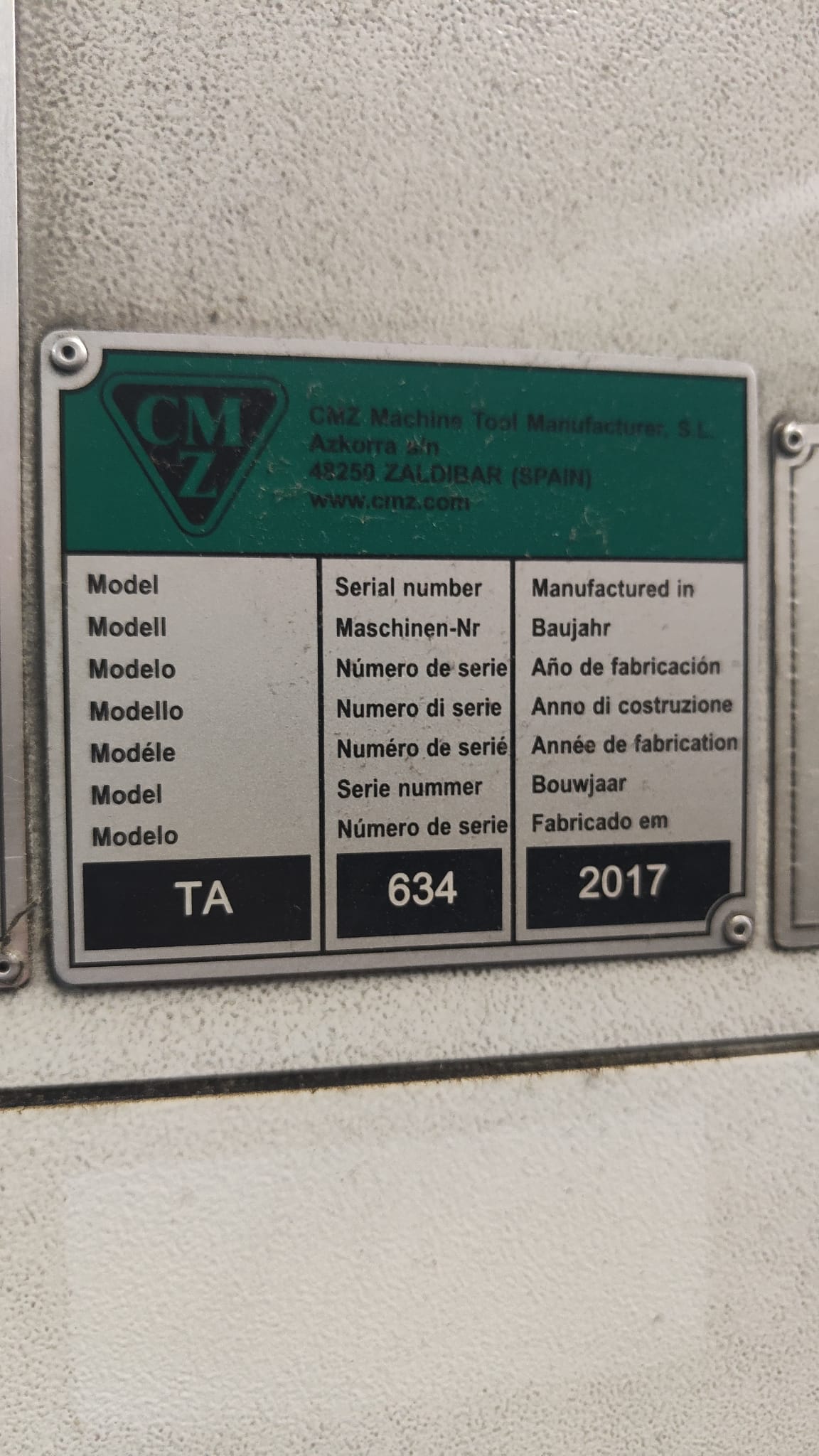

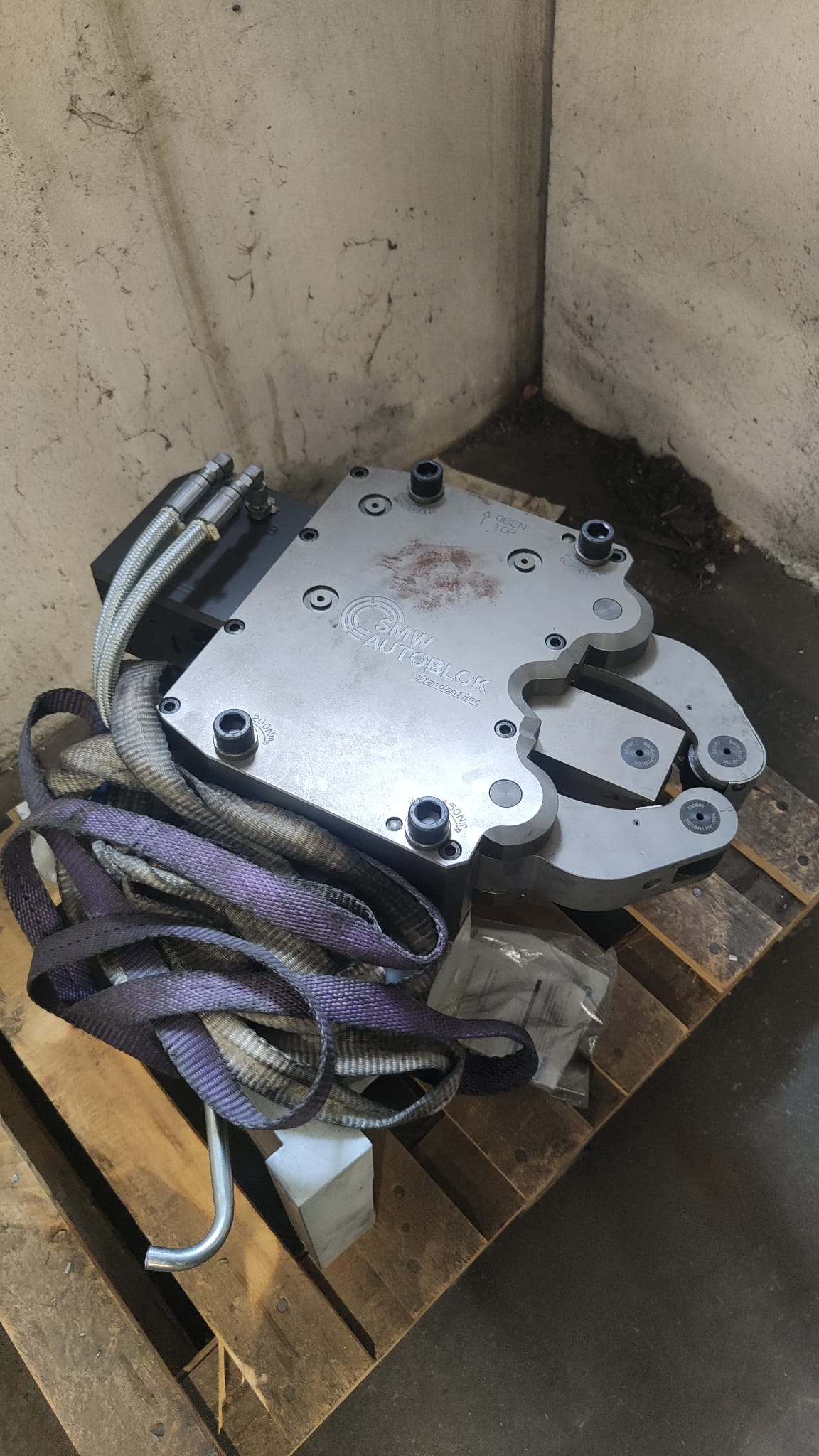

Year 2017 N/S 634 AUTOCENTRING AUTOLOCK Ø 315 mm AUTOLOCKET LUNETTE Opening 20-165 mm/ pressure 80 bar Processing capacity Maximum drilling diameter on the bed (mm) 760 Maximum drilling diameter on the carriage (mm) 600 Maximum turning diameter (mm) 460 Distance between spindle face and tailstock (mm) 1149 mm Spindle Maximum rotational speed (rpm) 3500 Bar passage of the spindle (internal bar diameter) (mm) 82 Spindle diameter (mm) 315 Spindle bar passage autocentering (mm) 82 Spindle power (kW) (max./S6 40%) 42/27 Maximum torque (Nm) 1020 (max.) / 720 (S6 40%) Turret Number of positions 12 Gross weight (kg) 8000
