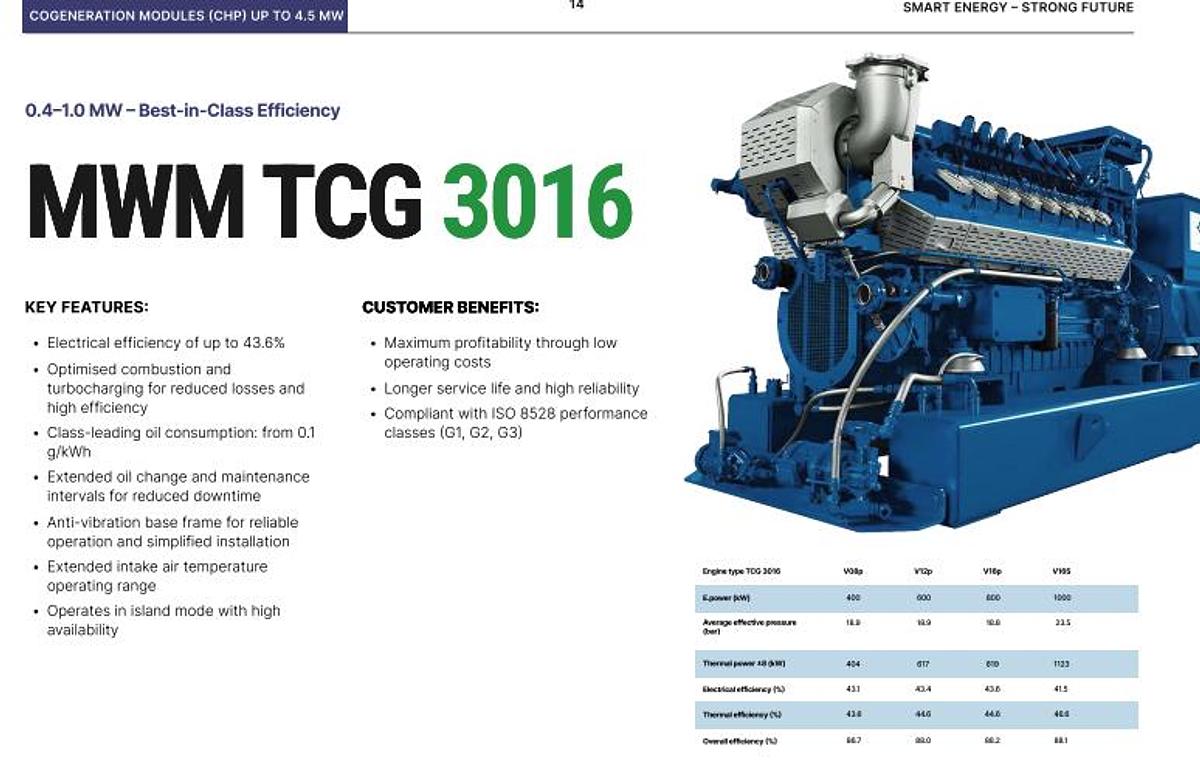

MWM TCG 3016 Natural Gas Engine for Cogeneration and Power Generation 400-1000 kW

Gas engine for generator sets and combined heat and power (CHP) plants, built as a V-engine in 8, 12, and 16 cylinder versions from 400 to 1,000 kW. It runs on natural gas and is used for electricity and heat generation, including island mode operation. Optimised combustion and turbocharging cut losses, and the engine reaches an electrical efficiency of up to 43.6%. Oil consumption starts from 0.1 g/kWh, and extended oil change and maintenance intervals reduce downtime. An anti-vibration base frame simplifies installation, and an extended intake air temperature range widens the sites where it can run. The engine meets ISO 8528 performance classes G1, G2, and G3. Used in cogeneration plants, district heating, industrial plants, greenhouses, hospitals, hotels, and commercial buildings that need electricity and heat from one gas-fired unit.

Suitable for

Gas engine, natural gas engine, CHP engine, cogeneration engine, gas generator set, gas genset, combined heat and power, power generation, district heating, island mode power, biogas engine, V12 gas engine, V16 gas engine, industrial power plant, greenhouse cogeneration

Technical Specifications

• Brand: MWM
• Model: TCG 3016
• Machine type: Gas engine for generator sets and CHP
• Power range: 400 to 1,000 kW
• Fuel: Natural gas
• Electrical efficiency: Up to 43.6%
• Oil consumption: From 0.1 g/kWh
• Performance classes: ISO 8528 G1, G2, G3
• Operation: Island mode capable
• Base: Anti-vibration base frame

V08p

• Cylinders: 8
• Electrical power: 400 kW
• Average effective pressure: 18.9 bar
• Thermal power: 404 kW
• Electrical efficiency: 43.1%
• Thermal efficiency: 43.6%
• Overall efficiency: 86.7%

V12p

• Cylinders: 12
• Electrical power: 600 kW
• Average effective pressure: 18.9 bar
• Thermal power: 617 kW
• Electrical efficiency: 43.4%
• Thermal efficiency: 44.6%
• Overall efficiency: 88.0%

V16p

• Cylinders: 16
• Electrical power: 800 kW
• Average effective pressure: 18.8 bar
• Thermal power: 819 kW
• Electrical efficiency: 43.6%
• Thermal efficiency: 44.6%
• Overall efficiency: 88.2%

V16S

• Cylinders: 16
• Electrical power: 1,000 kW
• Average effective pressure: 23.5 bar
• Thermal power: 1,123 kW
• Electrical efficiency: 41.5%
• Thermal efficiency: 46.6%
• Overall efficiency: 88.1%

Contact for price and viewing.
