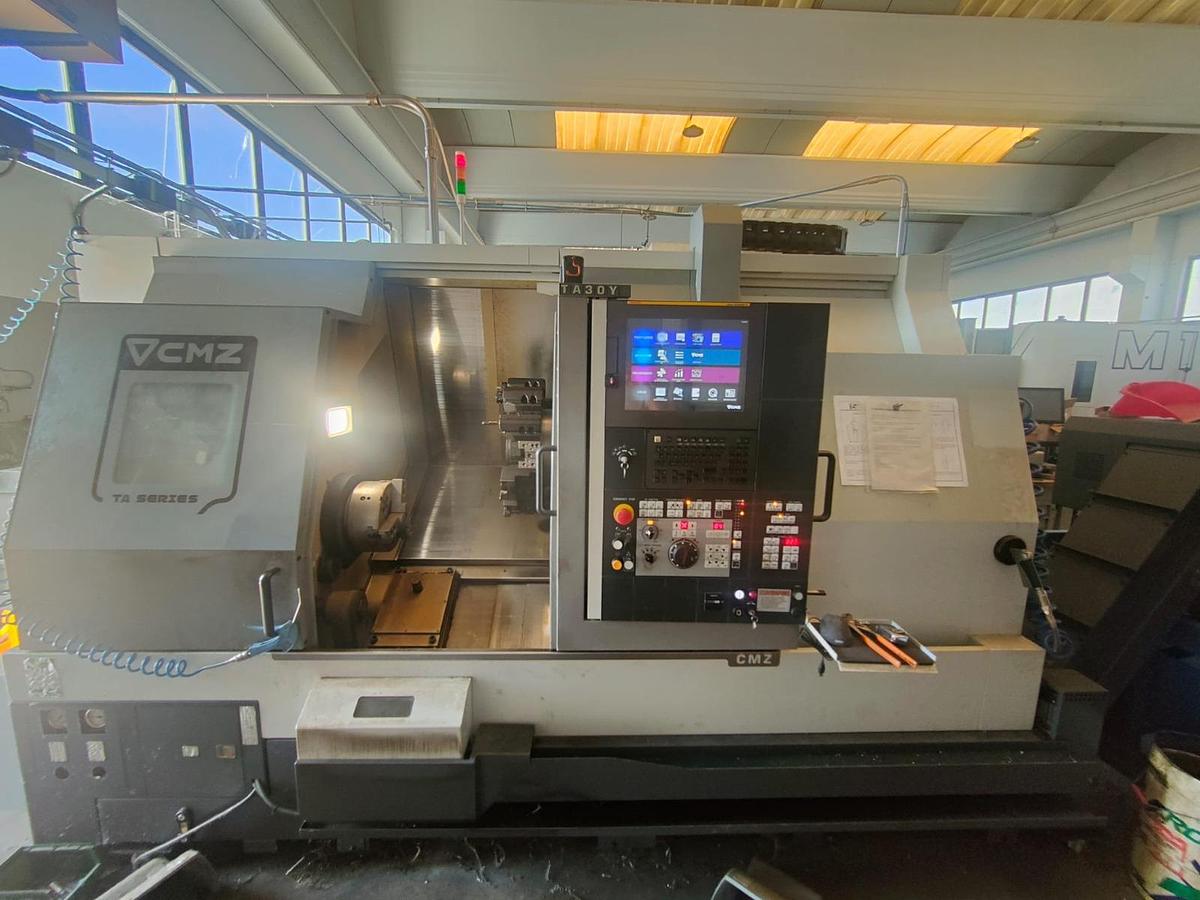

2020 LATHE CMZ model.TA30Y-1100

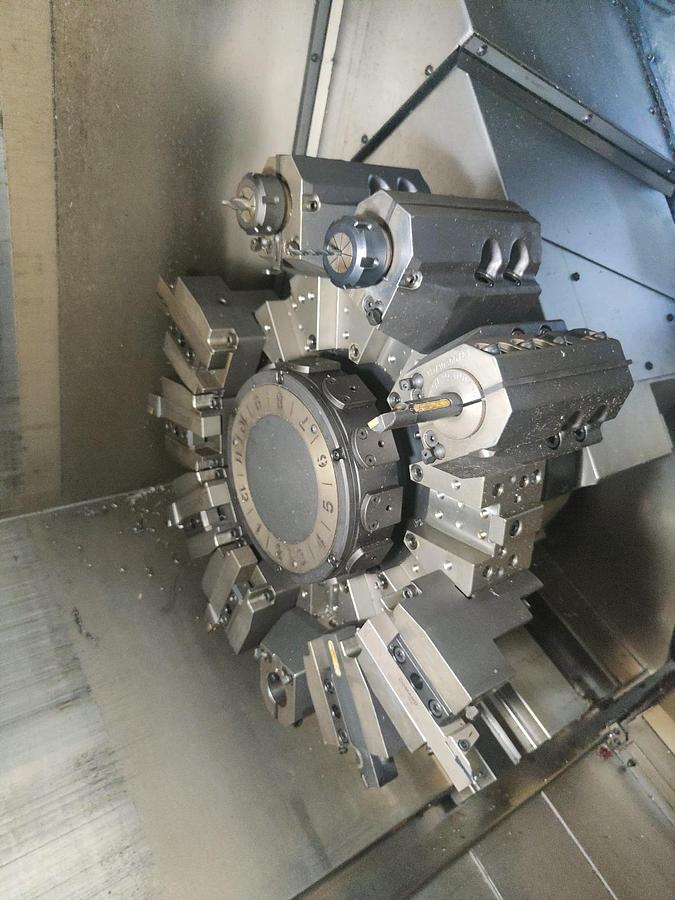

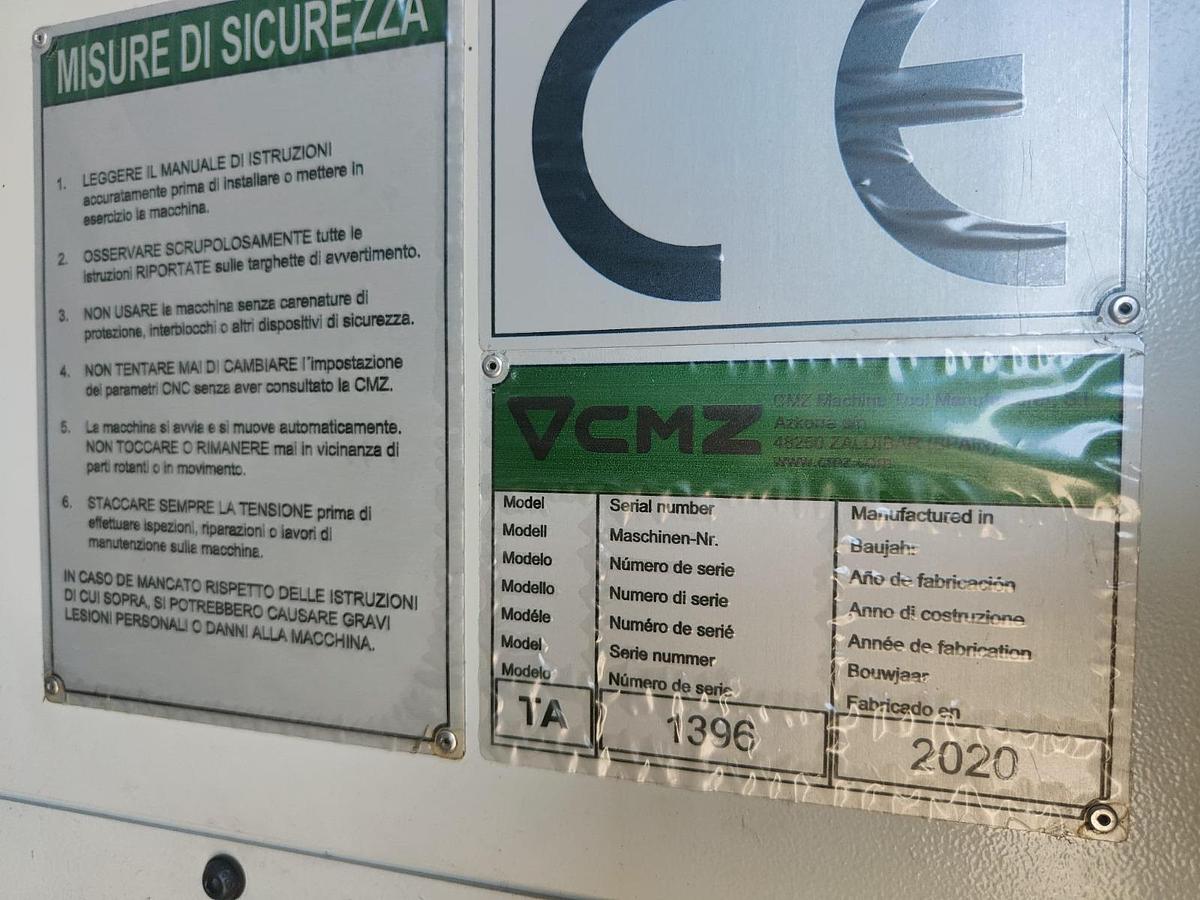

YEAR 2020 N/S 1396 SPARKING WARNING 3530 Maximum diameter of turning on the bench 760 mm Maximum diameter of turning on the carriage 600 mm Maximum turning diameter 460 mm Distance between spindle face and tip X axis travel 310 mm Z axis travel 1100 mm Y axis travel +70/- 50 mm B axis travel 1100 mm X axis rapid feed 30 m/min Z axis rapid feed 30 m/min Y axis rapid feed 15 m/min B axis rapid feed 11 m/min Spindle Maximum speed 3500 rpm Ø external of front bearings 200 mm Ø internal of front bearings 130 mm Spindle nose ASA 8″A2 Internal bore diameter of machine 86 mm Bar passage 77 mm Spindle diameter 250/315 mm Spindle bore/bar passage 77 mm Spindle power 42/27 kW Max torque 1020 max/720 S6 40%) Torretta (Tool Turret) Number of positions 12 Tool holder section 25×25 Ø 50 Tool change time 30° 0,2s- 180° 0,5s Maximum clamping force at 45 bar 5090 kgf Number of motorized positions 12 Maximum rotation speed 12000 rpm Power Kwc (max S1) 11,3/8,1 Maximum torque Nm 75 MACHINE CONFIGURATION: AUTOCENTERING SMW AUTOBLOK PRESETTING No. 1 MOTORIZED AXIAL TOOL HOLDER No. 1 MOTORIZED RADIAL TOOL HOLDER No. 1 PLATE FOR SLIDE SUPPORT Weight 8000 Kg NON-OBLIGATORY DATA TO BE VERIFIED
