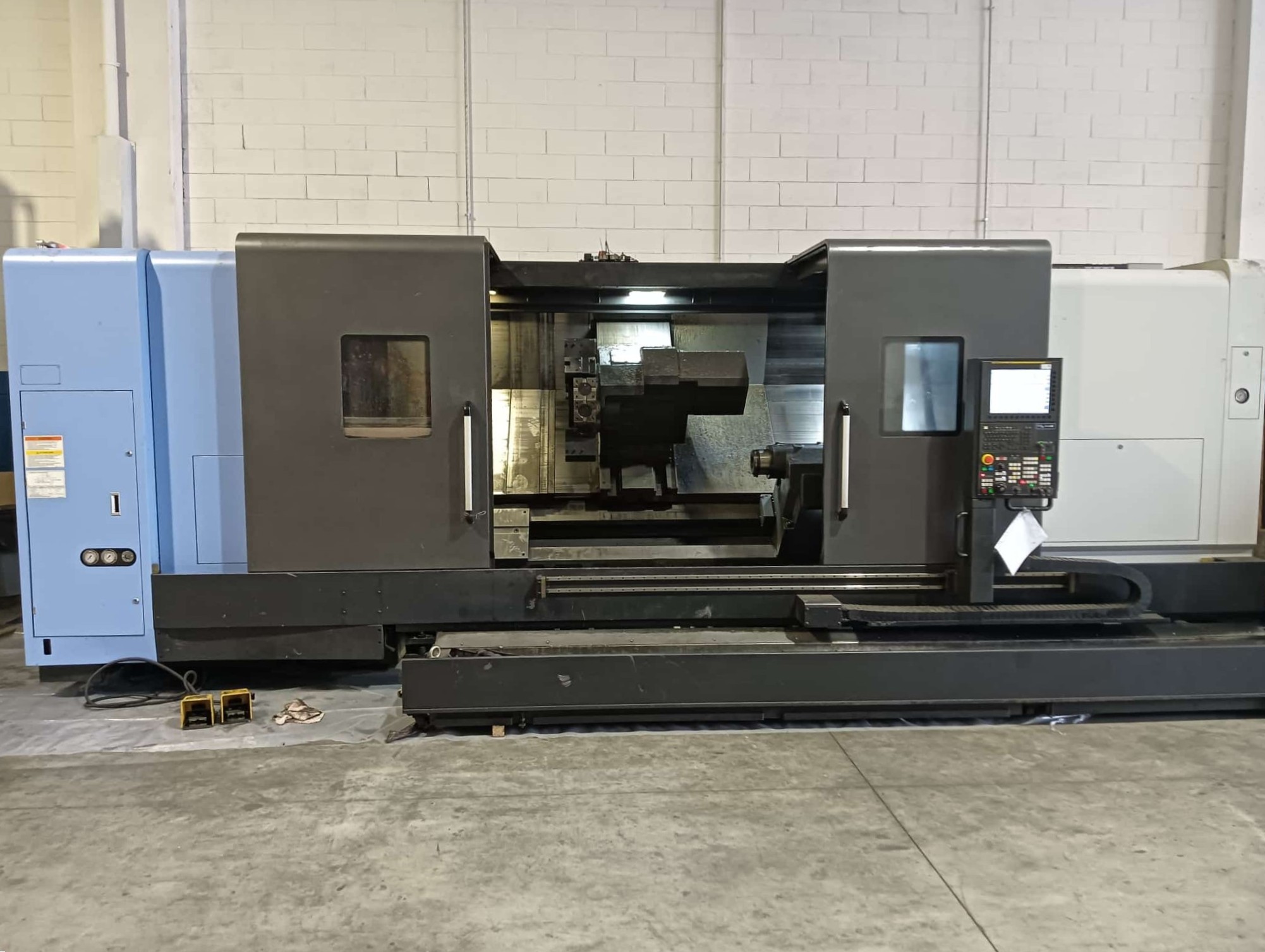

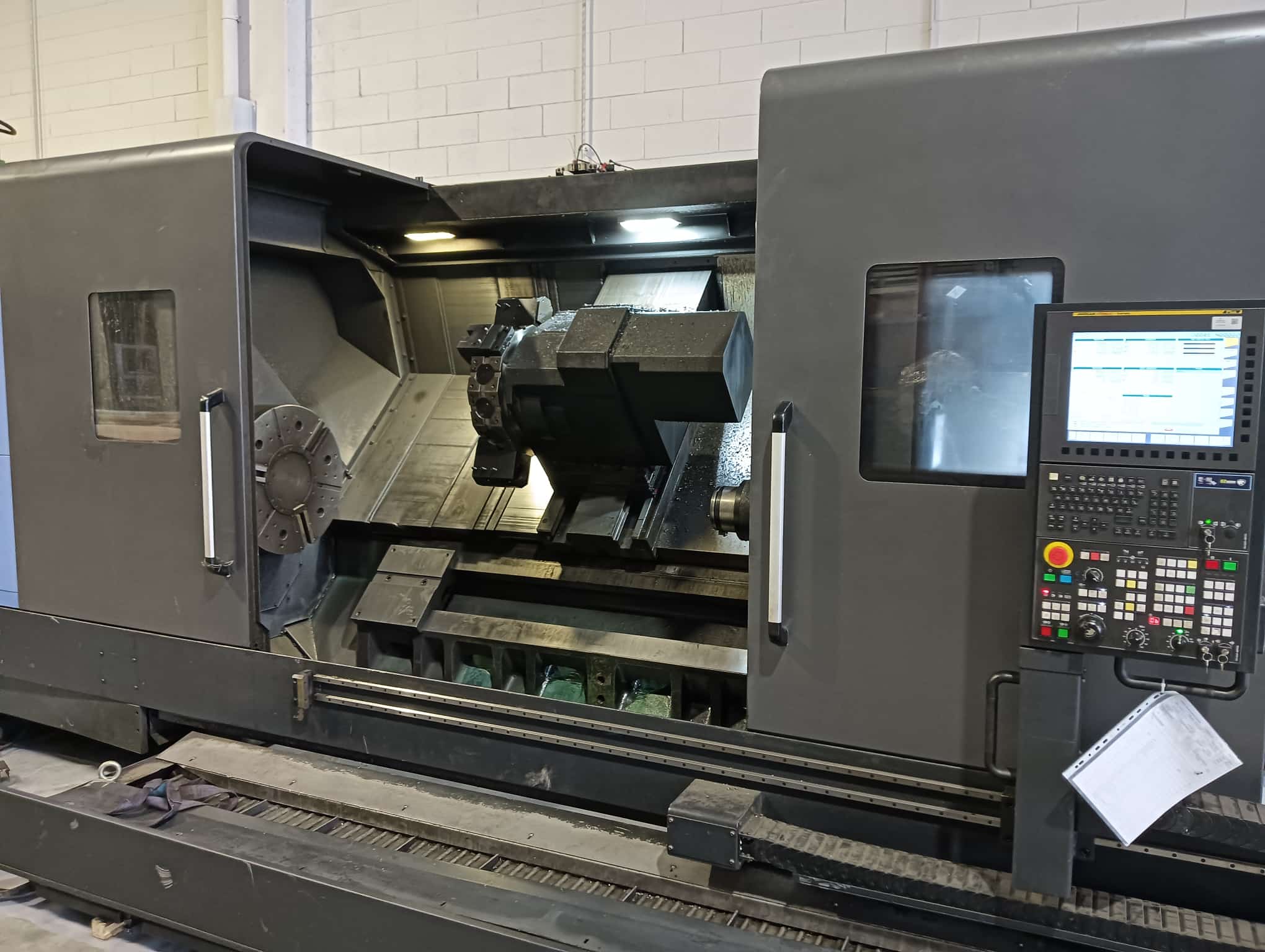

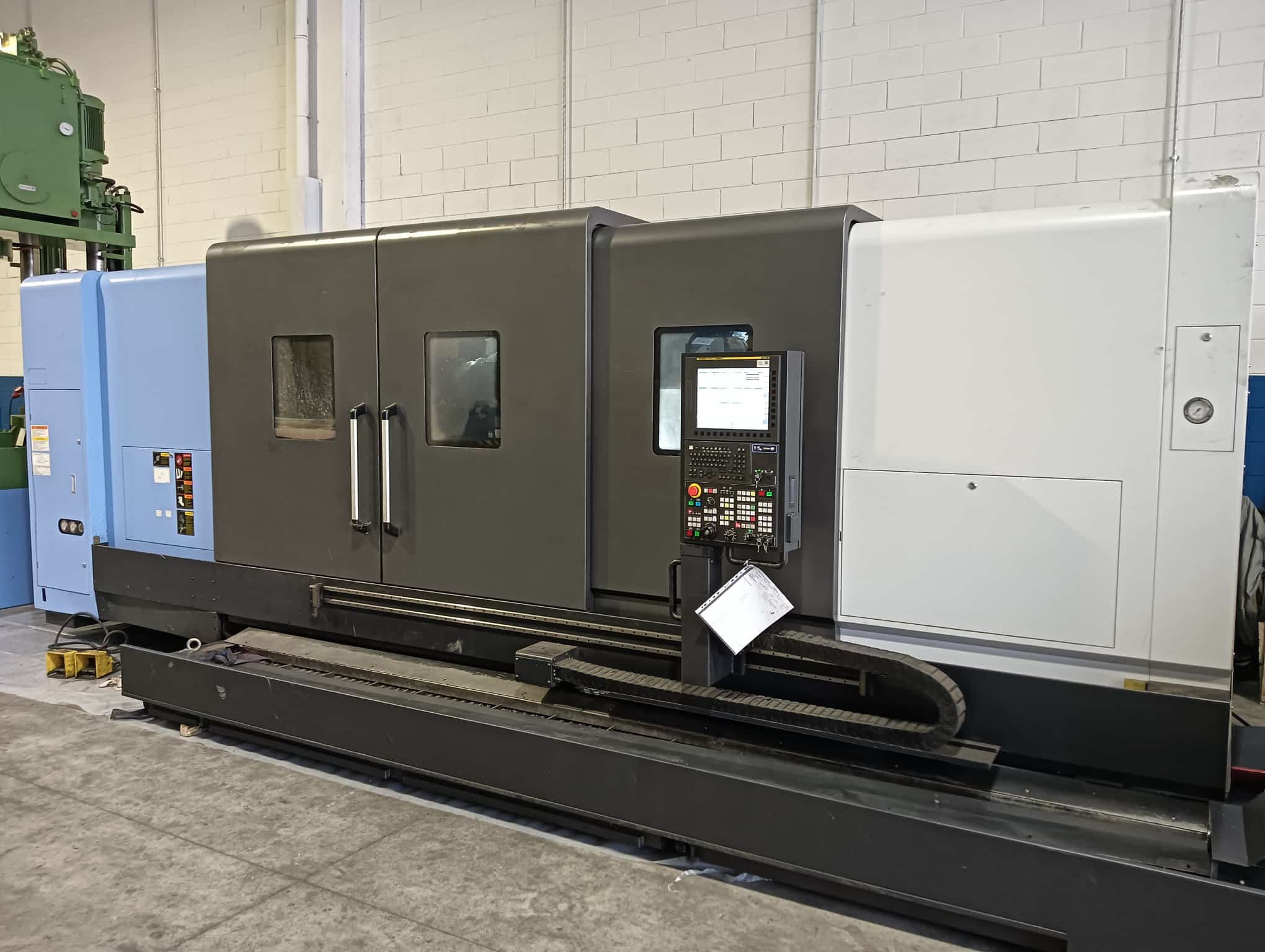

2022 DOOSAN LATHE model PUMA 600 LM II

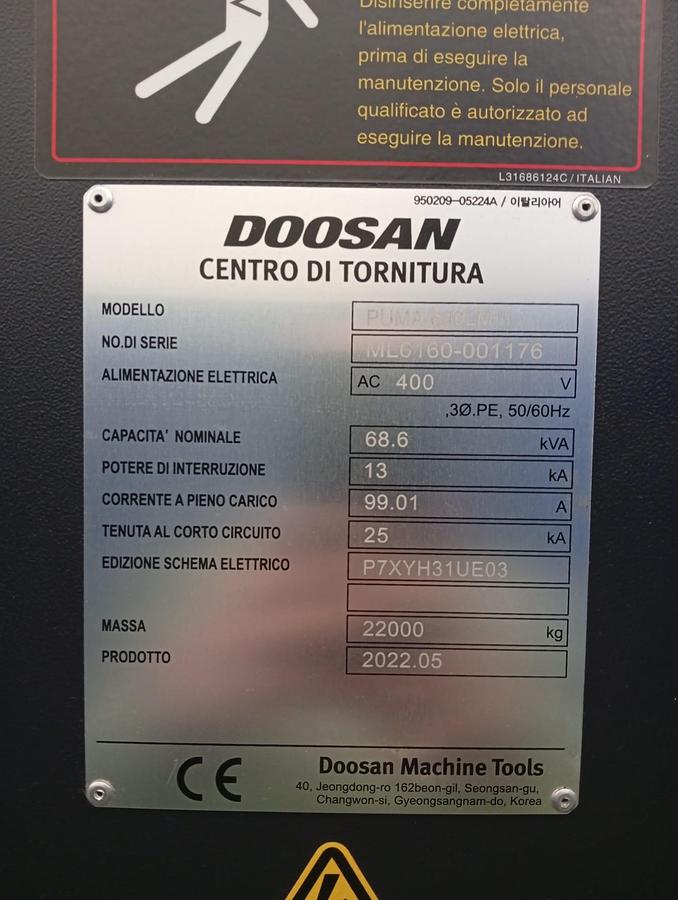

YEAR 2022 N/S ML10160-001176 INCLUDED SPARL Controlled axes             3 Maximum rotary diameter on the pallet      mm      1030 Maximum rotary diameter on the carriage         mm      800 Maximum turnable diameter          mm      900 Maximum turning length        mm      3200 Bar turning diameter mm      117 X-axis travel mm       470 (450+20) Z-axis travel mm       3235 C-axis travel degrees    360° (0.001°) SPINDLE Spindle speed range            rpm            3–1800 Number of speed ranges            3 Spindle bore diameter        mm      152 Spindle nose           ASA       A2-15 Front bearing diameter          mm      200 TURRET Turret stations 12 (type BMT85) Maximum diameter without interference         mm      310 Turret plate thickness       mm      140 External tool height  mm      32 Boring diameter        mm      60 (80) Turret indexing time (1 station)               sec      1.1 MOTORIZED TOOL Maximum spindle speed of motorized tool               rpm            3000 Maximum milling capacity        mm      Ø 34 (ER50) Maximum tapping capacity      mm      M30 FEEDING Rapid traverse X axis  m/min 12 Rapid traverse Z axis  m/min 10 Working feeds X axis             mm/rev            0.001–2.000 Working feeds Z axis             mm/rev            0.001–2.000 NON-ENFORCING DATA TO BE VERIFIED
