2008 ORM F25 CNC Horizontal Drilling Machine for Circular Components (2 units)

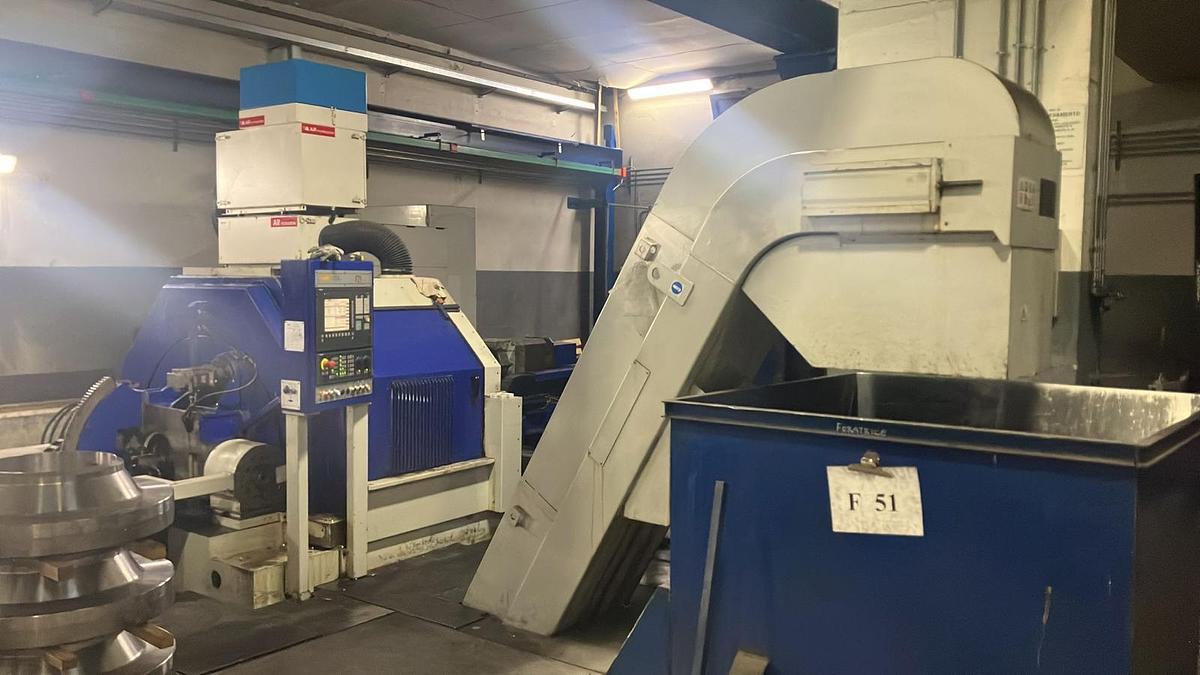

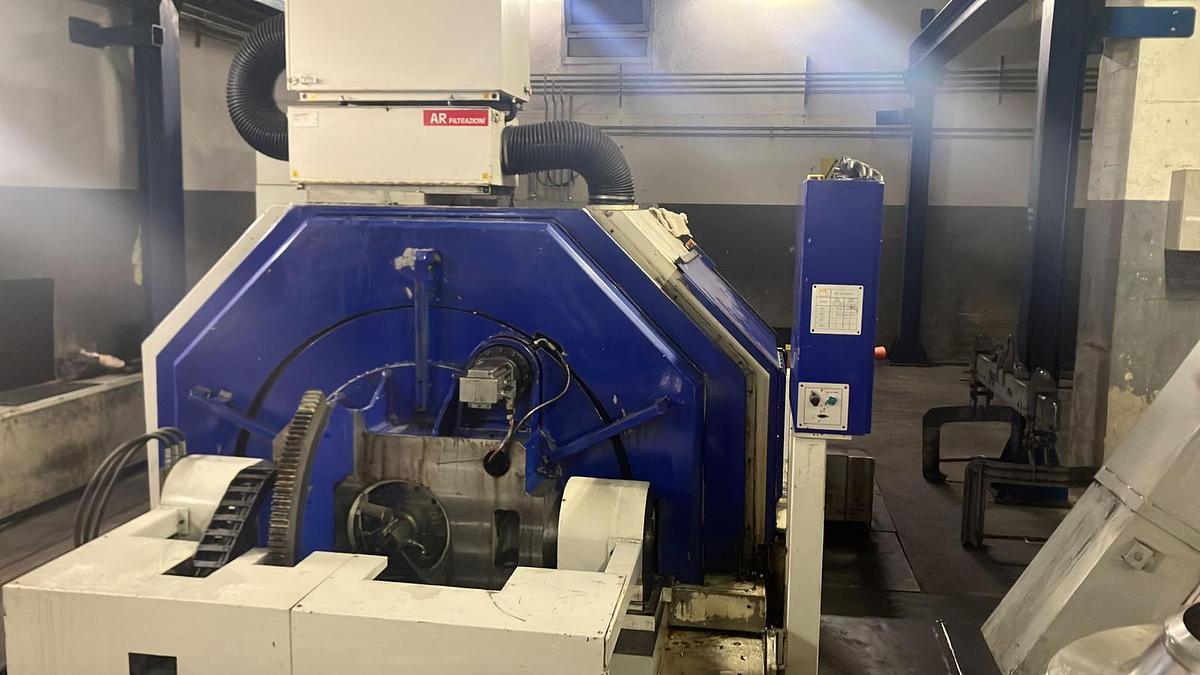

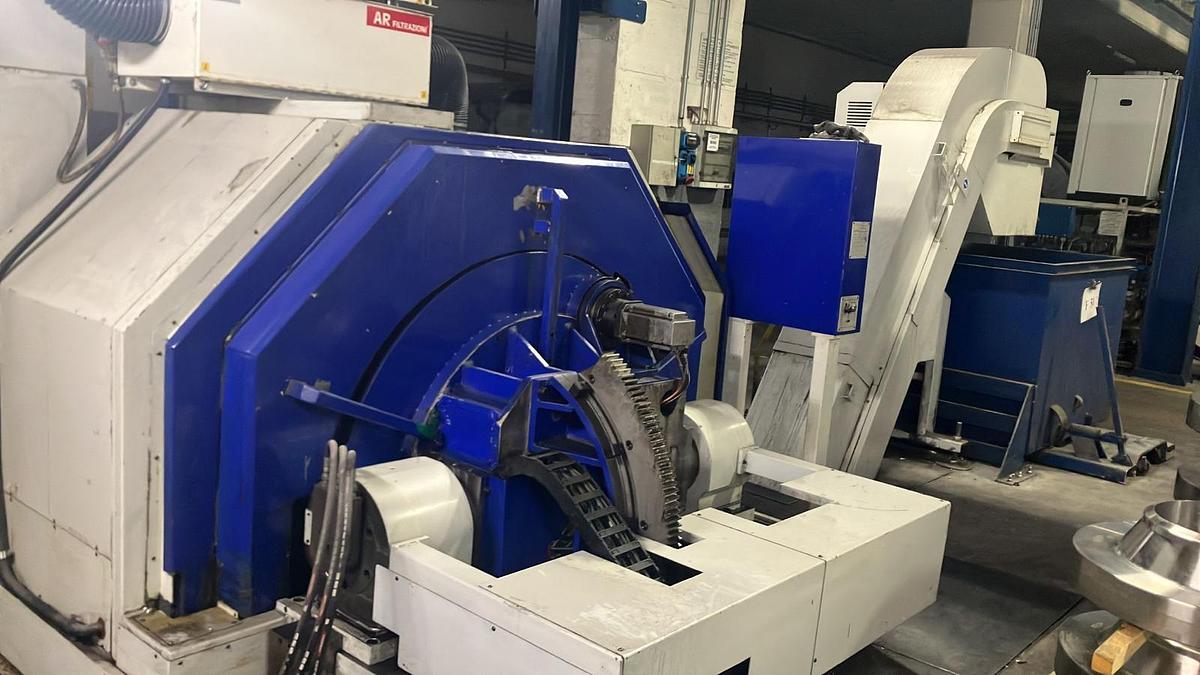

CNC horizontal drilling machines for large circular workpieces, sold as a lot of 2 units or individually. Each machine has a single drilling unit and a rotary table that tilts through 360°, with hydraulic clamping to hold heavy parts during drilling. A chip evacuator and a coolant system support continuous drilling in steel and other metals. Both machines worked before dismantling. They are now dismantled and stored at the seller's plant because production has moved to larger components, so they cannot be seen running. Real photos taken before dismantling and the technical documentation are available. Used in heavy machining, mechanical engineering, and metal fabrication for drilling flanges, rings, discs, hubs, and other large round parts, including bolt-hole patterns and radial holes.

Suitable for

CNC drilling machine, horizontal drilling machine, flange drilling, ring drilling, large diameter drilling, heavy machining, circular component machining, bolt circle drilling, Siemens Sinumerik CNC, heavy duty drilling center, metal fabrication equipment, used drilling machine

Technical Specifications

• Brand: O.R.M.
• Model: F25
• Machine type: CNC horizontal drilling machine for circular components
• Year of construction: 2008
• Quantity: 2 machines

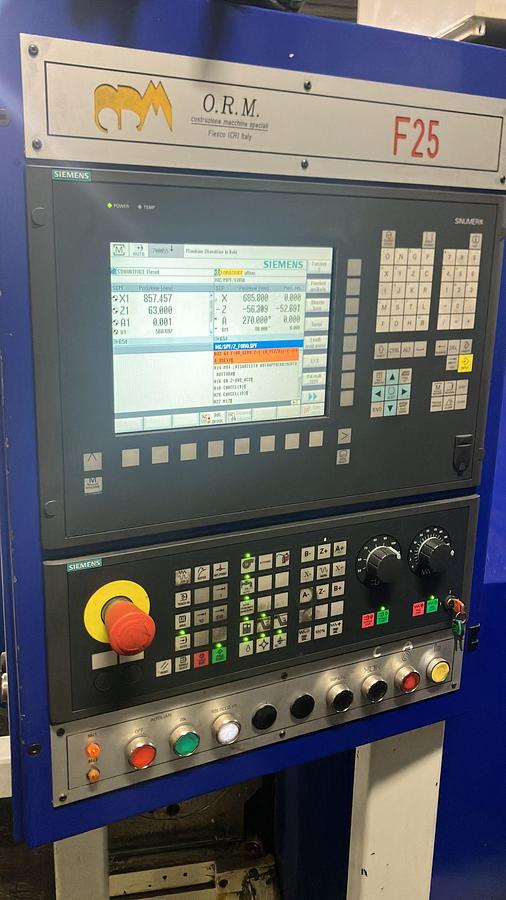

• CNC control: Siemens Sinumerik
• Platform diameter: 1,800 mm
• Maximum drillable diameter: 1,740 mm
• Spindle power: 30 kW
• Spindle speed: Up to 3,200 rpm
• Configuration: One drilling unit per machine
• Platform: Tilting 360°
• Clamping: Hydraulic
• Chip evacuator: Included
• Coolant system: Included
• Approximate weight: 13,000 kg per machine
• Condition: Working before dismantling
• Current status: Dismantled and stored at the seller's plant
• Viewing in operation: Not possible
• Photos: Real photos before dismantling available
• Technical documentation: Available
• Reason for sale: Switch to production of larger components
• Sale option: Available individually or as a lot

Contact for price and viewing.
