2020 Electric Pure Steam Generator

€1 (EUR)
Accepting offers

Location:Italy

Description

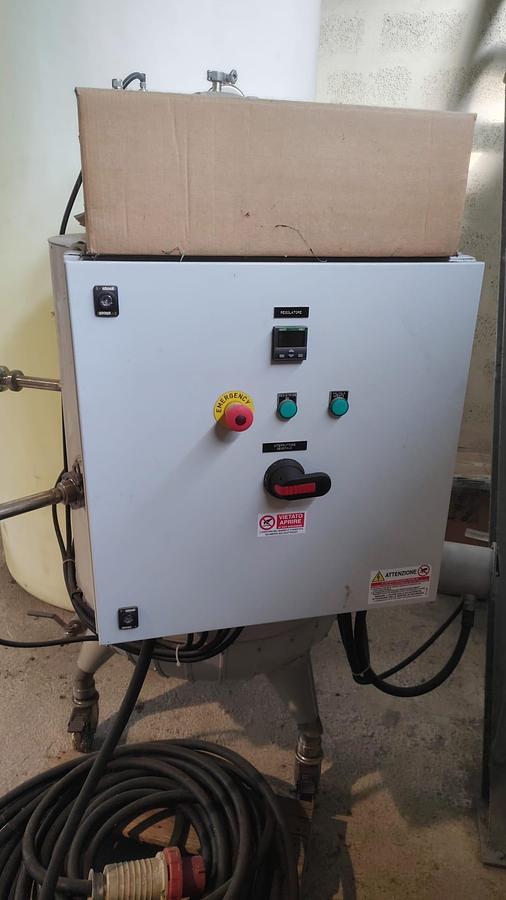

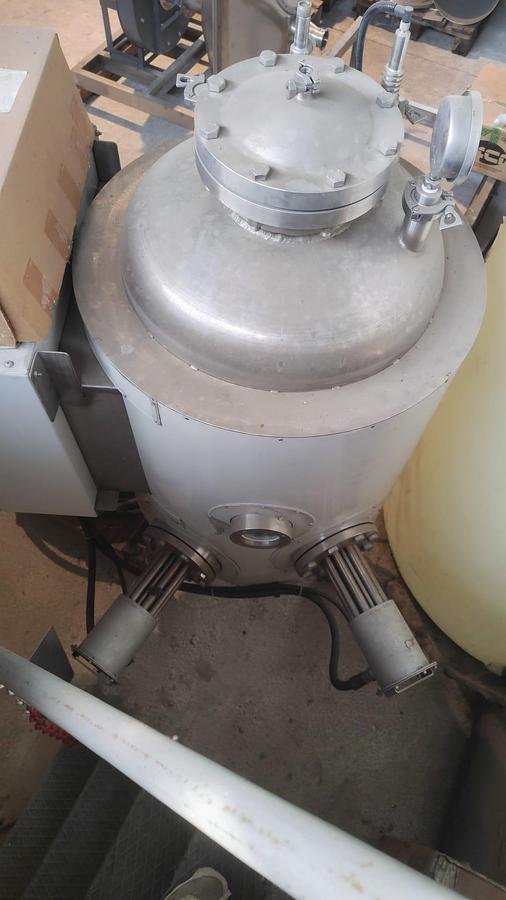

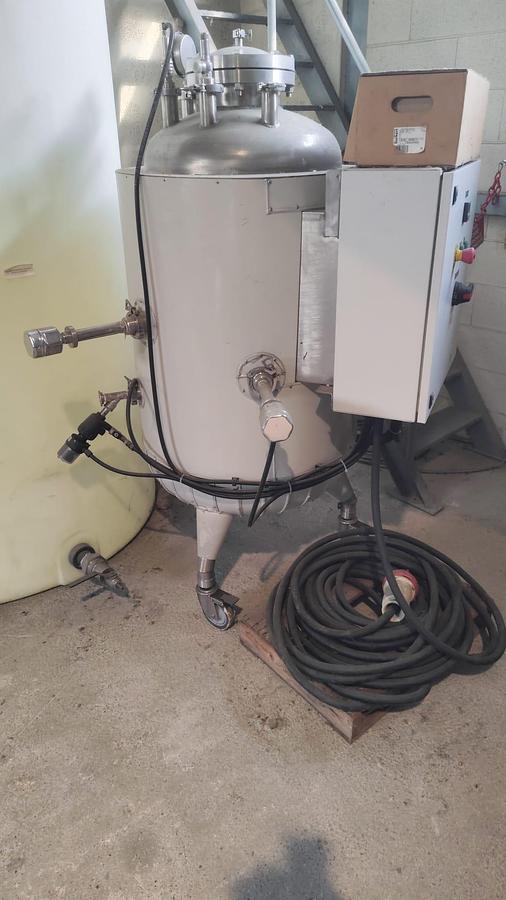

Mobile electric pure steam generator, built by the manufacturer in its own workshop to its own design for internal use. It produces clean steam for sterilisation, steam-in-place (SIP) and humidification in pharmaceutical, biotech, cosmetic, laboratory and food processing applications. The vessel and internal parts are AISI 316L. It is heated by two flanged immersion heater bundles and has a bolted top manway, sanitary tri-clamp connections, a pressure gauge, a sight glass and level sensors, all inside an insulated outer cladding. The control panel is mounted on the unit and has a digital controller, heater and valve status lamps, an emergency stop and a main isolator switch. The unit sits on castors with brakes and comes with a power cable and an industrial plug. A spare gasket set is included.


Condition and documentation

The unit has run about 100 hours and was last used in 2020. The welds were checked by radiography and the seller reports no known defects. The control panel is in near-new condition but needs to be set up again, and the unit should be checked for correct operation before use. The safety valve currently fitted is set at 10 bar and must be replaced with a 5 bar valve before use. The unit was not built for commercial sale. It has no nameplate, no PED marking, no CE declaration of conformity and no certification. It is sold as is, and the buyer is responsible for any certification or compliance needed for use.


Suitable For

Pharmaceutical and biotech pilot plants

Autoclave and sterilizer steam supply

Steam-in-place (SIP) of vessels, lines and filters

Cosmetic and personal care manufacturing

Laboratories and research facilities

Food and beverage processing


Technical Specifications

Quantity: 1

Manufacturer: Tecnologia Meccanica Srl

Year: 2020

Type: electric pure steam generator, custom built

Steam output: approx. 20 to 25 kg/h

Operating pressure: 5 bar

Design pressure: 6 bar

Hydraulic test pressure: 10 bar

Safety valve: to be replaced with 5 bar valve before use

Total vessel volume: 254 litres

Working volume: 120 litres

Heating power: 30 kW, 2 x 15 kW immersion heaters

Power supply: 400 V AC, 3-phase

Material: AISI 316L

Internal finish: satin, Ra 0.8 µm, ground welds

Weld inspection: radiography carried out

Feed water: reverse osmosis water, alternatively purified water

Connections: sanitary tri-clamp

Instrumentation: pressure gauge, sight glass, level sensors

Control: digital controller, heater and valve status lamps, emergency stop, main switch

Mobility: castors with brakes

Operating hours: approx. 100

Included: spare gasket set

Certification: none, no nameplate, no PED or CE marking

Condition: great working condition, used, sold as is


Contact us for more information, additional photos, or to arrange an inspection.

Disclaimer: All information is provided in good faith and should be verified by the buyer. Specifications, condition and availability may change without notice.

Specifications

ManufacturerTecnologia Meccanica
ModelElectric Pure Steam Generator
Year2020
ConditionUsed
Stock Number0731
