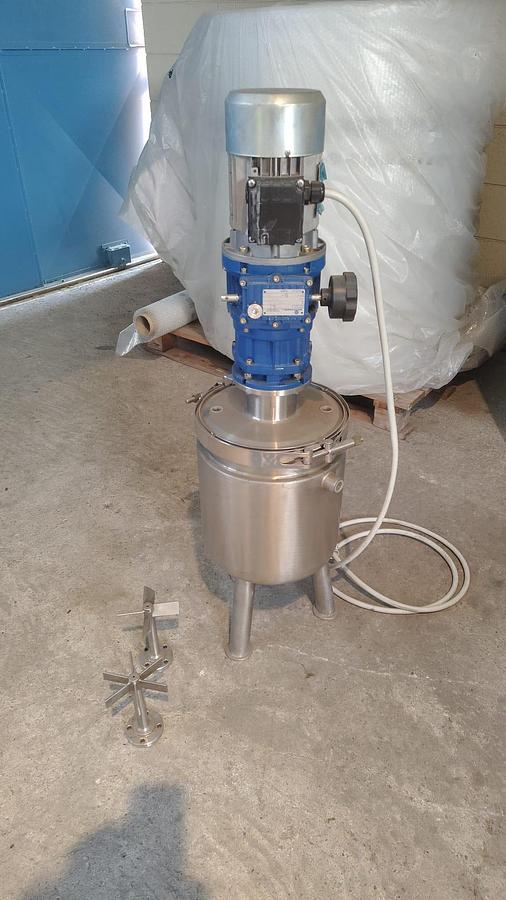

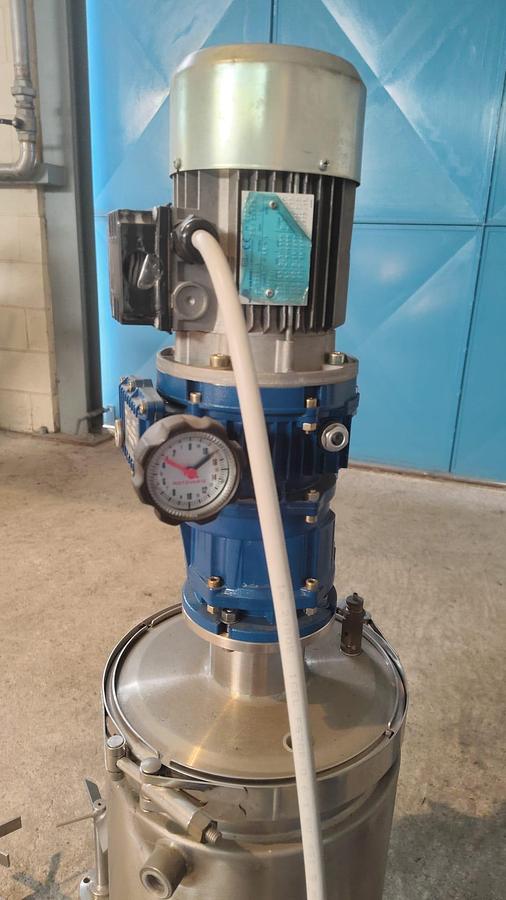

2000 Nemo System Modular Laboratory Mixer

Modular laboratory reaction system for running, controlling, and recording small-scale chemical reaction and mixing processes. The control unit sits in a stainless steel laboratory table and supplies the mixing, heating, heat exchange, and process control for the reactor, with reaction chambers from 0.5 to 5 liters that mount on the unit. It works from full vacuum up to 50 bar and up to 300°C, using a magnetically coupled or mechanically sealed stirrer with interchangeable mixing elements, a tube and shell heat exchanger, and automatic temperature and process control. The reactor can be scaled up by adding larger chambers, and the 5 liter chamber produces batches large enough for market samples and fine-tune production. Process-side surfaces are polished to 0.1 micron roughness. Included monitoring software logs process parameters in real time, numbers each test with a serial ID and operator login, and exports the data to Excel for later evaluation. Unused, supplied with the kit components listed below. Used in pharmaceutical, fine chemical, cosmetic, polymer, resin, and specialty chemical laboratories for process development, pilot batches, reaction scale-up, and research and development.

Suitable for

Laboratory reactor, laboratory mixer, pilot reactor, stirred batch reactor, high pressure reactor, vacuum reactor, process development equipment, scale-up testing, pharmaceutical laboratory equipment, fine chemical synthesis, R&D laboratory equipment, stainless steel reactor, lab-scale production

Technical Specifications

• Brand: Tecnologia Meccanica
• Model: Nemo System
• Machine type: Modular laboratory reaction system with mixer
• Year: 2000
• Condition: Unused
• Reaction chamber: 0.5 to 5 liters
• Working pressure: Full vacuum to 50 bar
• Working temperature: Up to 300°C
• Mixer unit: 0.75 kW, 0 to 1000 rpm
• Stirrer: Magnetically coupled heads or mechanical seal, different mixing elements
• Heater unit: 5 kW
• Heat exchanger: Tube and shell
• Control: Automatic temperature and process control
• Construction material: AISI 316L stainless steel (Hastelloy C-22 and Titanium Gr.2 on request)
• Process-side surface roughness: 0.1 micron
• Software: Windows based, SQL database, real time process records, export to Excel, serial ID and security login per test
• Software memory: 2 GB
• PC interface: RS 232
• PC requirements: Pentium 300 MHz or higher, 40 MB hard disk space, CD-ROM drive, VGA monitor, mouse

Standard kit items

• Modular control unit in laboratory table
• Reactor R1 in AISI 316L stainless steel
• Monitoring software
• Owner's manual and software guide
• Download cable
• Factory test and control certification book

Contact for price and viewing.

Disclaimer

The above description is provided for informational purposes only. Specifications are based on available information. Buyer is responsible for independent verification prior to purchase.
