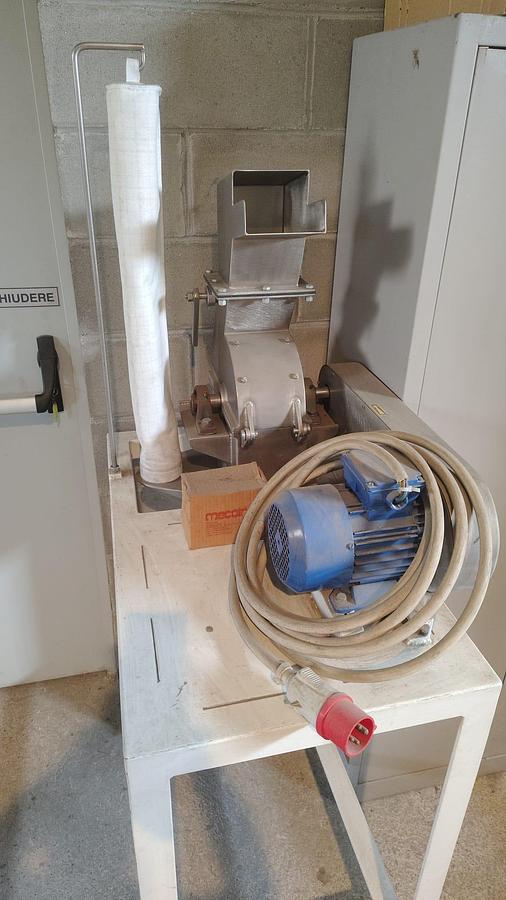

2007 M-10 Hammer Mill

Hammer mill for medium size reduction, grinding and milling dry and semi-dry materials to a controlled particle size. It handles fibrous, tough, and hard materials, crystalline and fragile materials, and moist, fatty, or heat-sensitive products. Particle size is set through the tip speed of the hammers, the perforation size of the classifying screen, and the number and shape of the hammers. For materials that heat up during milling, such as rubbers, elastomers, resins, and products with oily substances, the mill can be run with cryogenic grinding. It is built for foodstuffs, chemical, and pharmaceutical processing, and the standard execution is in stainless steel for hygienic, easy-to-clean operation. Used in pharmaceutical, fine chemical, food, cosmetic, and resin processing for grinding powders, granules, crystals, fibers, and lumps, and for pilot and small-batch production where the grind size has to be adjustable.

Suitable for

Hammer mill, grinding mill, size reduction equipment, pharmaceutical mill, food grinding machine, chemical grinding equipment, cryogenic grinding, stainless steel mill, powder milling, granulation line equipment, fibrous material grinding, heat-sensitive product milling, pilot plant mill

Technical Specifications

• Brand: Tecnologia Meccanica
• Model: M-10
• Machine type: Hammer mill
• Year: 2007
• Condition: Used
• Construction material: AISI 316L stainless steel (standard execution of the M-10 to M-150 range)
• Grinding adjustment: Hammer tip speed, classifying screen perforation size, number and shape of hammers
• Cryogenic grinding: Possible, for heat-sensitive materials
• Materials processed: Fibrous, tough, hard, crystalline, fragile, moist, fat, heat-sensitive
• Application sectors: Foodstuffs, chemical, pharmaceutical

Contact for price and viewing.
