2024 DS50 Twin Screw Feeder for Fluid Jet Micronizers

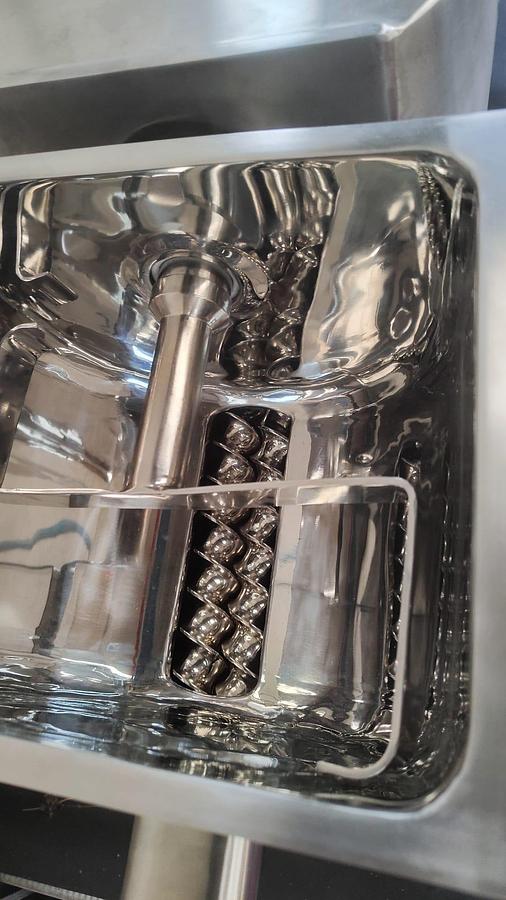

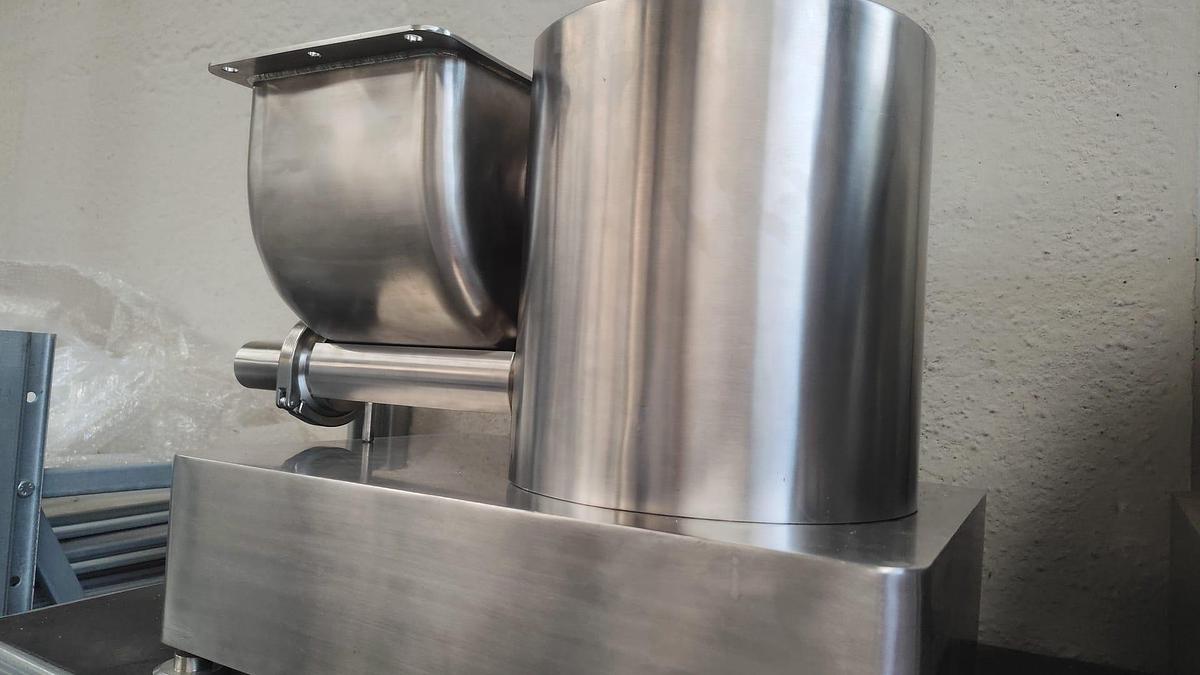

Twin screw volumetric feeder for dosing, prefeeding, and batching dry bulk materials into fluid jet mills and other powder process lines. Twin screws with exchangeable designs handle materials that single screw feeders struggle with, including pigments, sticky powders, bridging or flooding powders, fiber, and fiberglass. Material is held in a hopper and delivered at a constant rate per unit of time, and the feed rate is calibrated by weighing a timed sample and adjusting screw speed. The feeder has no internal stirring system, which limits stress on the product, and a welded stainless steel housing with detachable side parts keeps maintenance low. A gravimetric (loss-in-weight) execution is available for materials with variable bulk density. The pharmaceutical version has no oil or grease on mechanical parts, quick screw and bridge breaker disassembly, and low residual product after discharge, which supports validation. A brushless motor with resolver gives constant drive at any speed, with an ATEX version available. Used in pharmaceutical micronization, fine chemical, cosmetic, pigment, and food powder processing for continuous feeding and batching of powders and granules.

Suitable for

Twin screw feeder, volumetric feeder, gravimetric feeder, loss-in-weight feeder, fluid jet mill feeder, micronization line, pigment dosing, sticky powder feeding, bridging powder feeder, pharmaceutical powder dosing, batching equipment, ATEX feeder, powder feeding system

Technical Specifications

• Brand: Tecnologia Meccanica
• Model: DS50
• Machine type: Twin screw feeder
• Feeding modes: Volumetric or gravimetric
• Control: PLC driven
• Drive: Brushless motor with resolver, ATEX version available
• Screw material: POMc
• Construction material: AISI 316L stainless steel (EN 1.4404) or Hastelloy, mirror polished to Ra 0.25 micron
• Housing: Welded stainless steel with detachable side parts
• Design: Modular, with product-oriented screw pitch and horizontal driven bridge breaker
• Assembly: Quick assembly and disassembly with a limited number of clamped components
• Available version: DS50-PH, pharma execution

Contact for price and viewing.

Disclaimer

The above description is provided for informational purposes only. Specifications are based on available information. Buyer is responsible for independent verification prior to purchase.
