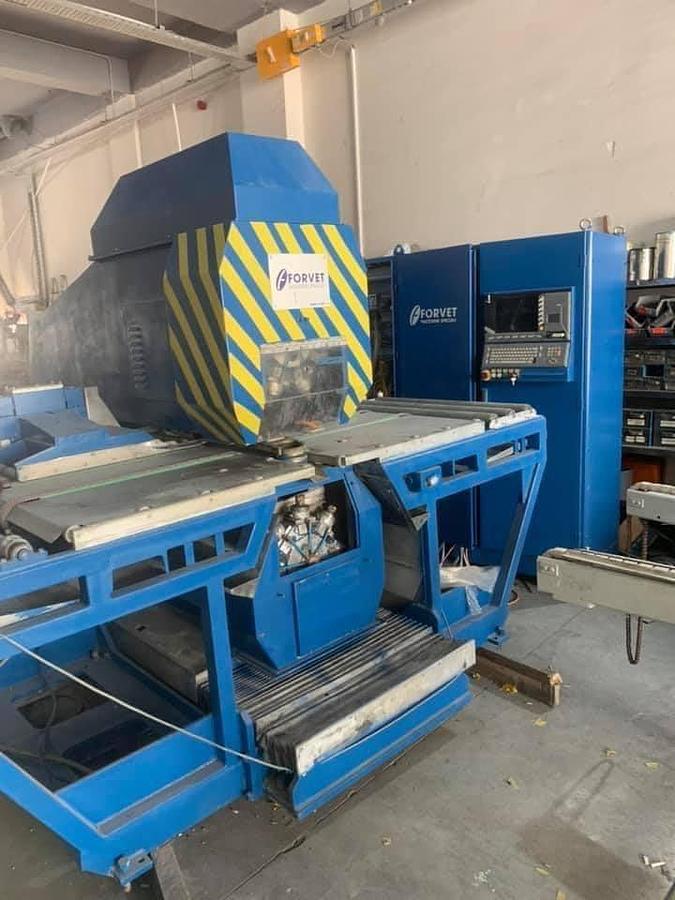

2007 Forvet Francesca 1250 CNC Glass Drilling and Milling Machining Center

CNC glass drilling and milling machining center with 16 working heads, configured for the automated drilling and milling of flat glass sheets in continuous production, with unlimited working length and 1250 mm working width. The machine processes glass thicknesses from 3-19 mm, performing hole drilling up to 65 mm in diameter and edge/profile milling operations through multi-spindle heads (4 or 8 spindles per head), with spindle rotation speed up to 10,000 rpm and hole positioning tolerance of ±0.25 mm. Used in flat glass processing for drilling and milling of glass panels destined for architectural glazing, furniture glass, shower enclosures, balustrades, and glass doors requiring precise hole placement and edge shaping for hardware, fittings, and fixings.

Suitable for

Glass drilling and milling, CNC glass machining, flat glass processing, architectural glass fabrication, furniture glass processing, shower enclosure glass, balustrade glass, glass hole drilling and milling equipment

Technical Specifications

• Brand: Forvet
• Model: Francesca 1250 (16 heads)
• Model range: 8M 1000 / 16M 1000 / 8M 1250 / 16M 1250
• Machine type: CNC glass drilling and milling machining center
• Year: 2007
• Number of heads: 16
• Working field length: Unlimited
• Working field width: 1250 mm
• Glass thickness range: 3-19 mm
• Maximum drilling diameter: 65 mm

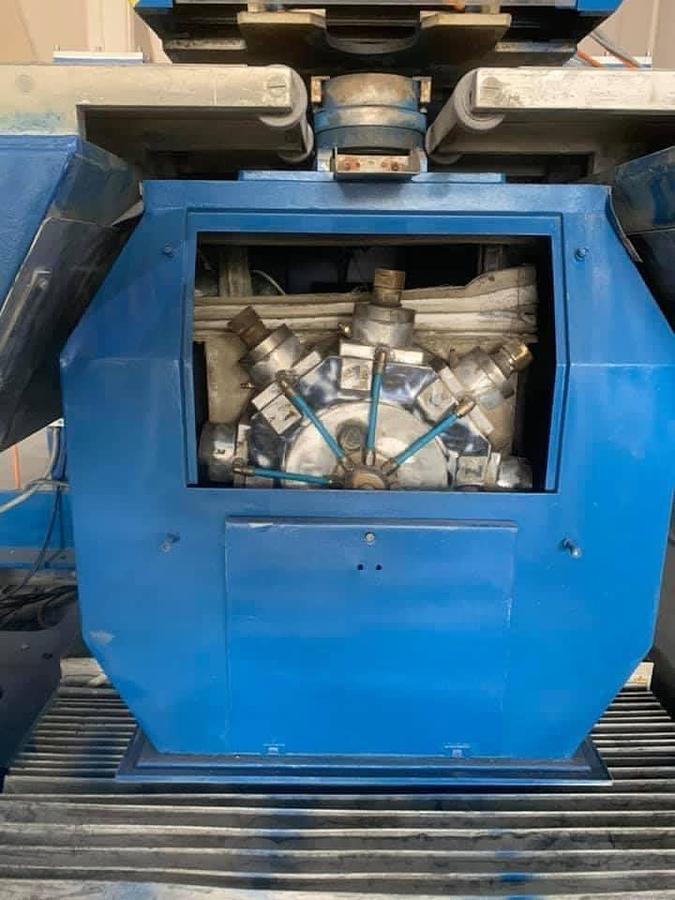

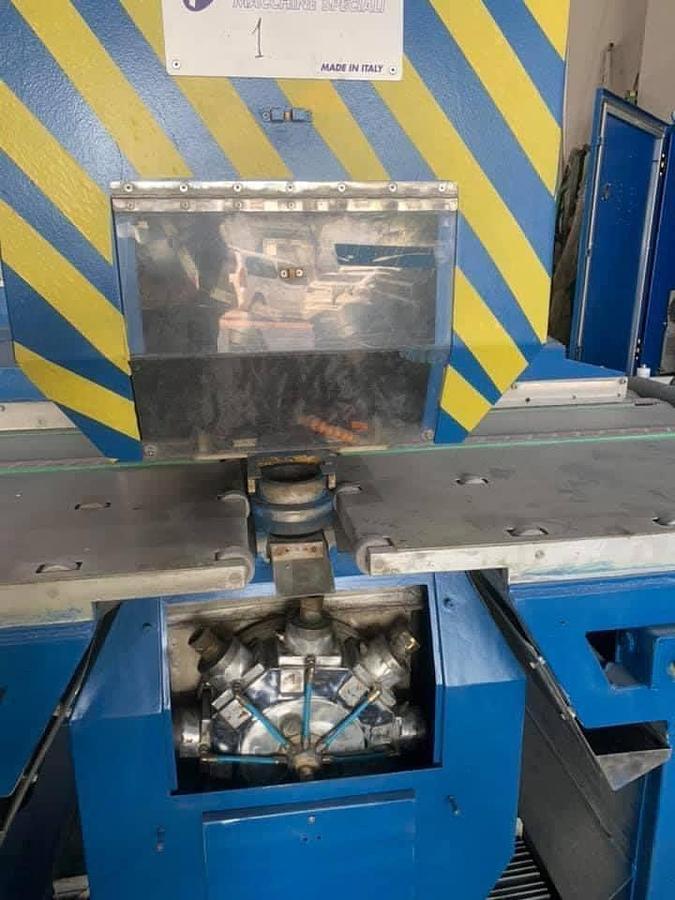

• Number of spindles: 4 or 8 per head
• Spindle rotation speed: 0-10,000 rpm
• Spindle feed speed: 0.5-3 mm/sec
• Axis feed speed: 15 m/min
• Rotating head speed: 20 mm/sec
• Hole positioning tolerance: ±0.25 mm
• Compressed air pressure: >6 bar
• Water pressure: >2 bar
• Installed electrical power: 15 kW
• Machine length: 3,830 mm
• Machine width: 3,900 mm
• Machine height: 2,500 mm
• Machine weight: 5,300 kg
•


Contact for price and viewing.
