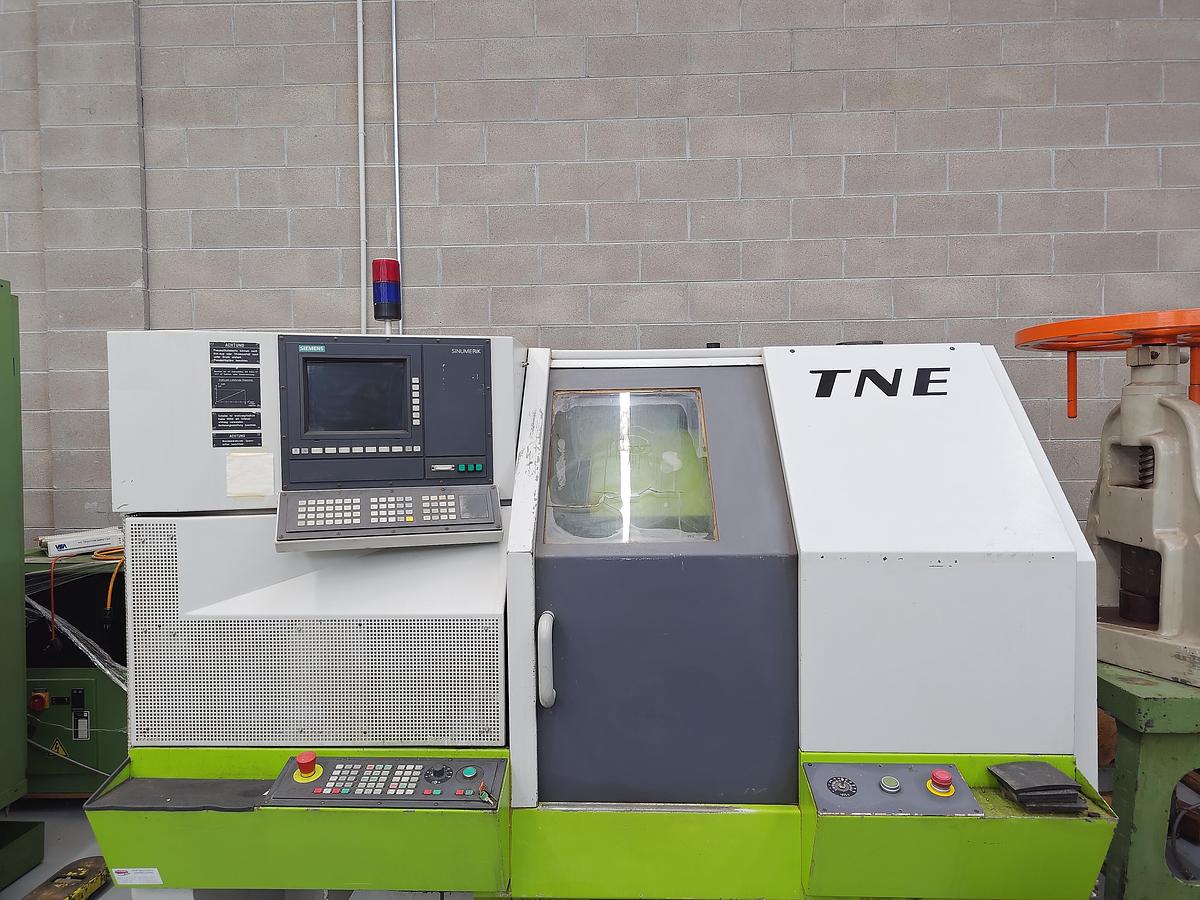

1997 Benzinger TNE-2 CNC Turning Center

This is a CNC turning center with a main spindle and a counter spindle. It is built for complete machining of small turned parts in one clamping: the part is finished on both ends and falls ready to use. Work is held in collets on both spindles. The tool turret is a disc type, and the counter spindle sits on its own slide opposite the main spindle, so the part can be passed across for back-side work. A pneumatic gripper handles part removal. The panel shows keys for X1, Z1, Y1, C1, Z2 and C2 axes, which points to a multi-axis setup with C-axis positioning on both spindles. The machine runs a Siemens Sinumerik CNC control.

The machine suits turning, facing, drilling, boring, threading, grooving and cut-off on small bar and chucked parts. Typical materials are stainless steel, free-cutting steel, brass, bronze, titanium, aluminium, precious metals and engineering plastics. It fits watch and clock parts, screws, pins, shafts and bushings, medical and dental components, connector and electrical contact parts, hydraulic and pneumatic fittings, and small-batch or series subcontract turning.

Suitable For

• Watchmaking and micromechanics
• Medical and dental component manufacturing
• Electronics, connector and contact part production
• Precision turned parts and subcontract turning shops
• Hydraulic, pneumatic and instrument fittings
• Jewelry and precious metal turning
• Small-batch and series production of turned parts

Technical Specifications

• Machine type: CNC turning center with counter spindle

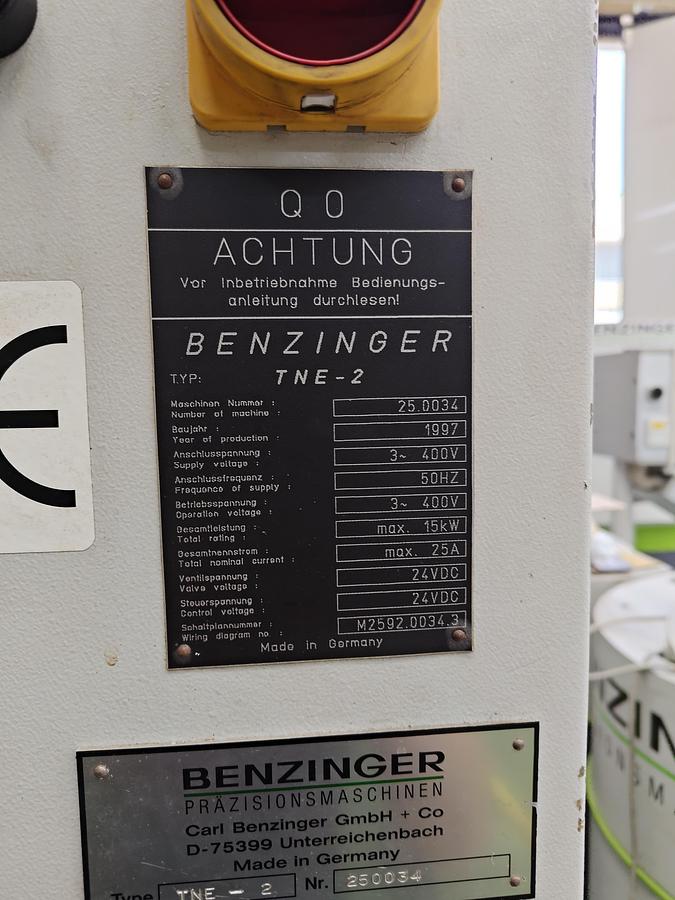

• Year of production: 1997
• Machine number: 25.0034

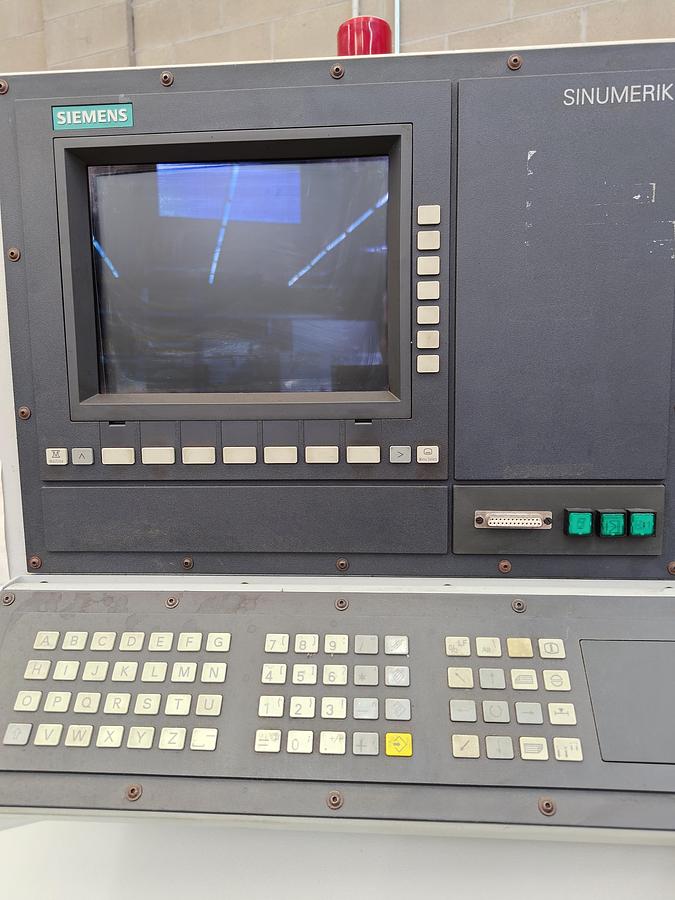

• CNC control: Siemens Sinumerik

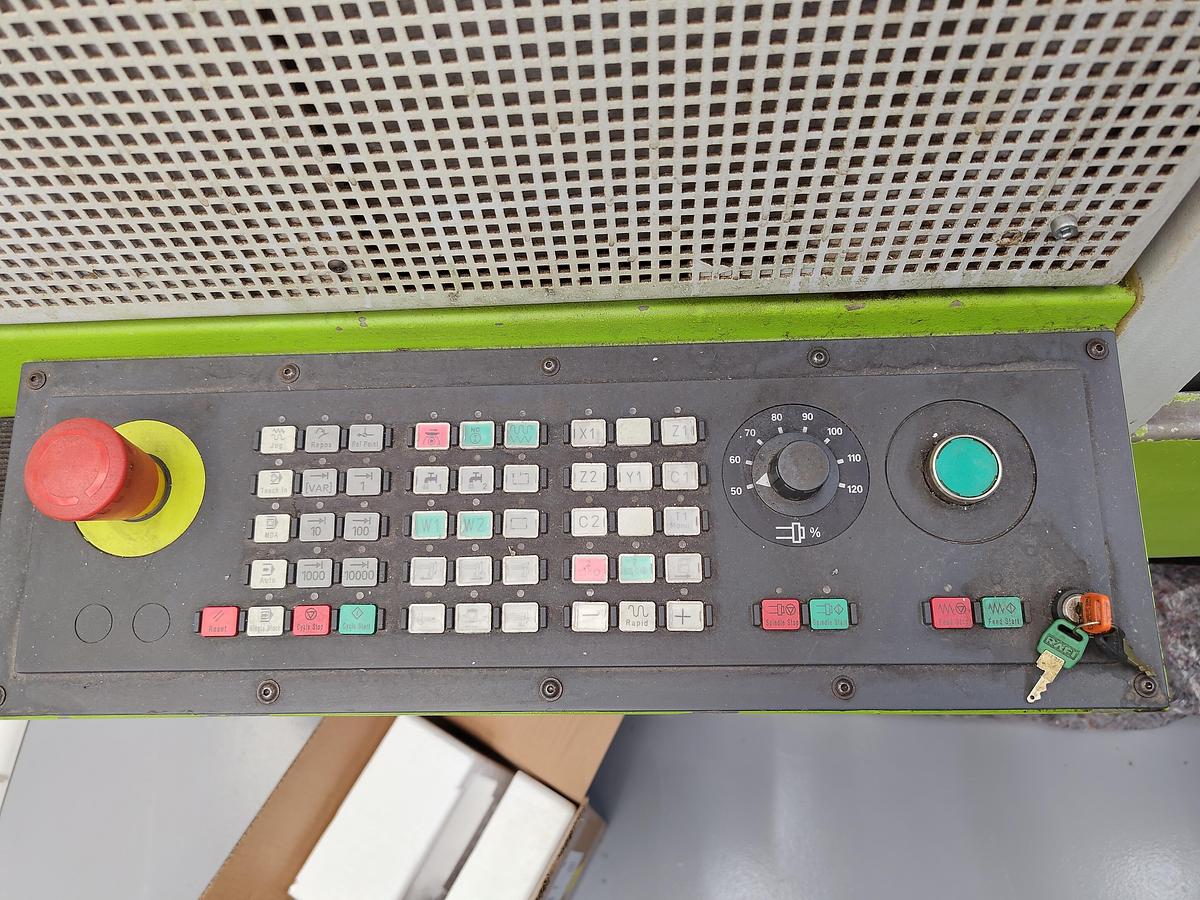

• Axes shown on the panel: X1, Z1, Y1, C1, Z2, C2

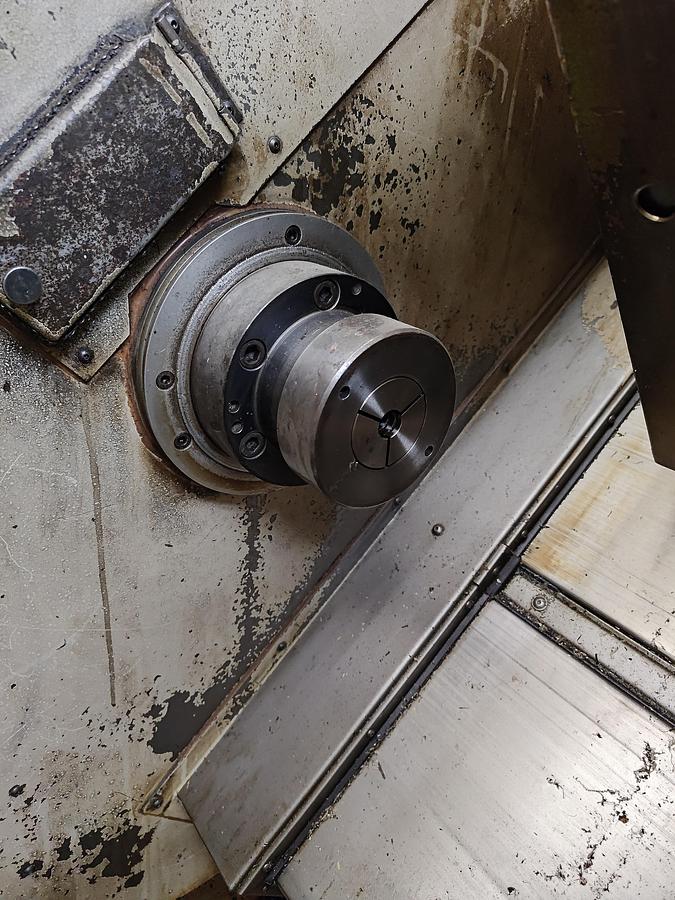

• Main spindle: collet chuck

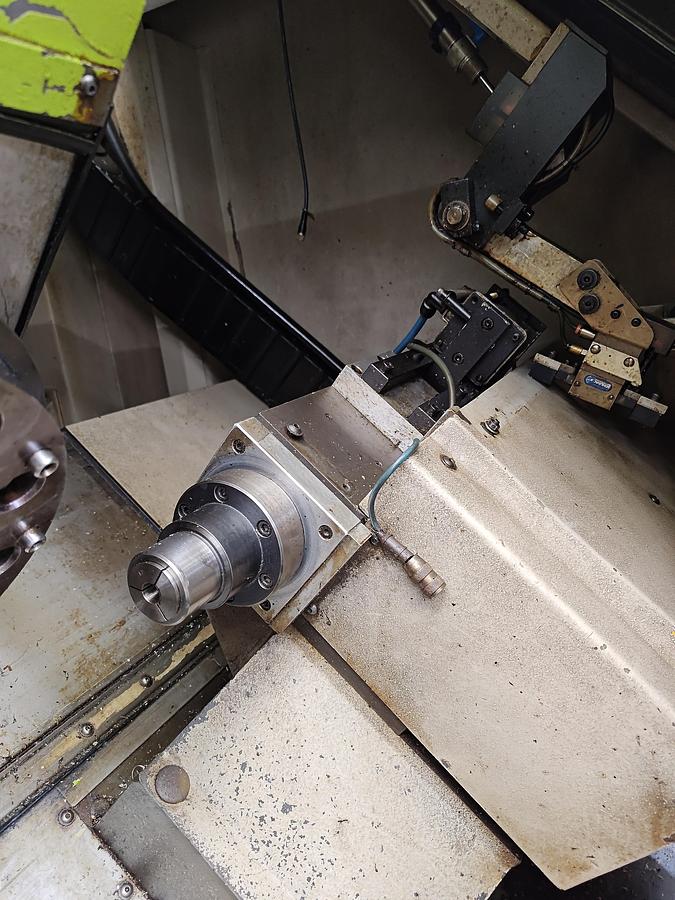

• Counter spindle: collet chuck, on its own slide

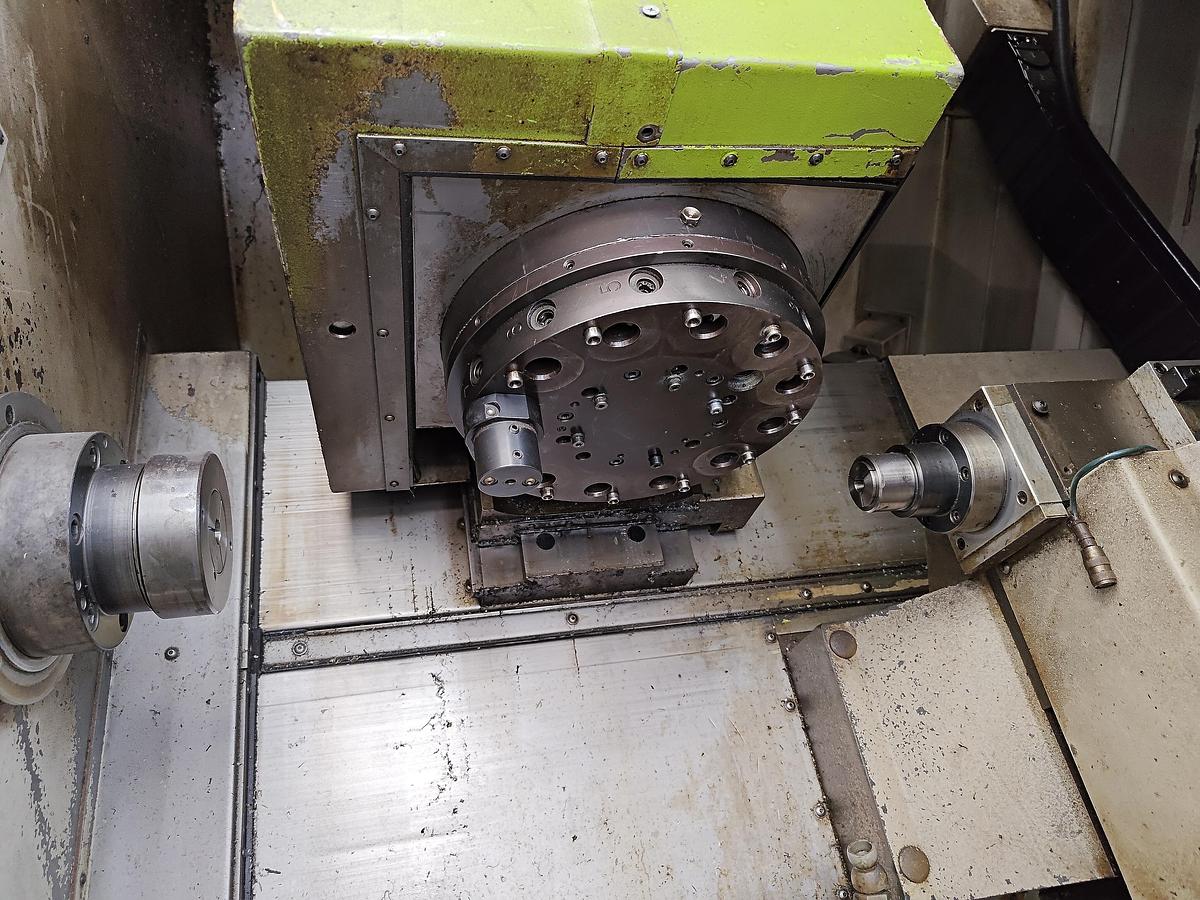

• Tool turret: disc type
• Parts handling: pneumatic gripper unit
• Coolant circuits: 2 (per the M1/M2 panel keys)
• Supply voltage: 3~ 400 V, 50 Hz
• Operating voltage: 3~ 400 V
• Total rating: max. 15 kW
• Total nominal current: max. 25 A
• Valve and control voltage: 24 VDC
• Wiring diagram no.: M2592.0034.3
• CE marking visible on the machine
• Signal light tower

Contact for price and viewing.

The above description is provided for informational purposes only. Specifications are based on available information. Buyer is responsible for independent verification prior to purchase.
