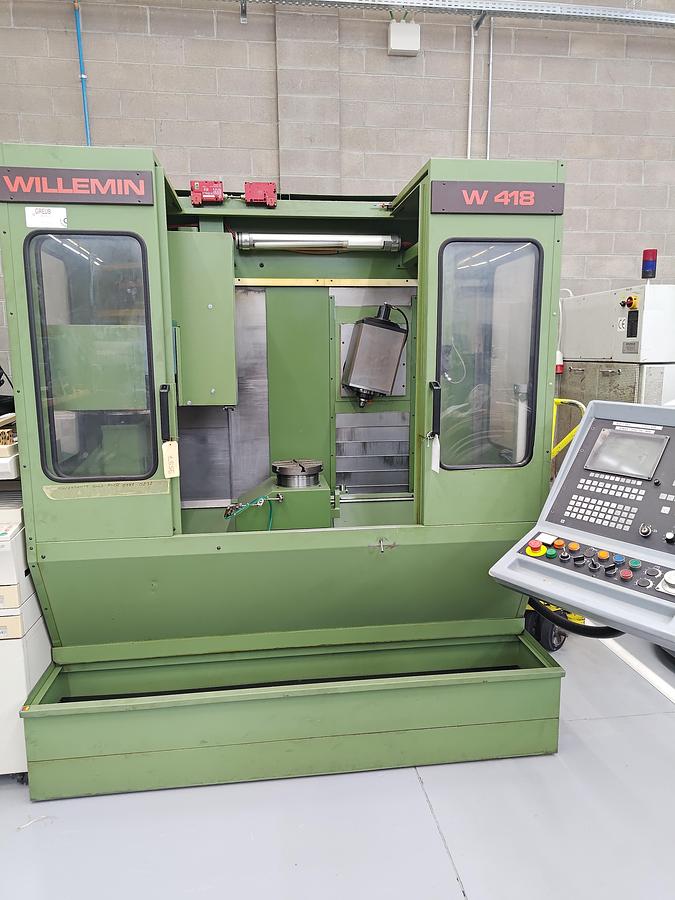

Willemin W418 CNC Machining Center

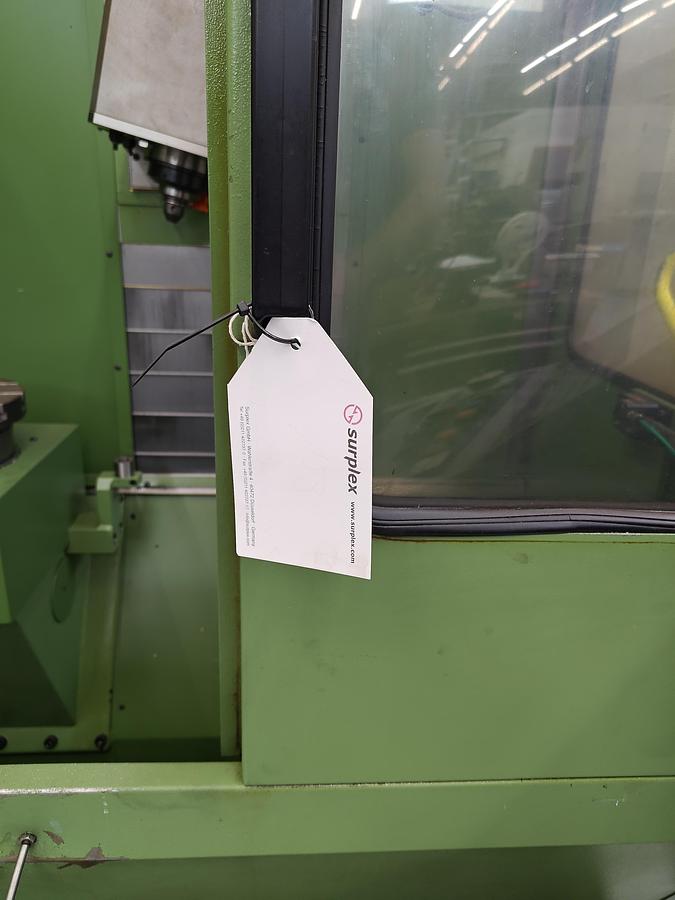

This is a compact vertical CNC machining center for milling, drilling, tapping and boring small, complex parts. It has an enclosed work area and a rotary table with T-slots for indexed and multi-side machining. The spindle head is visibly inclined, so features can be machined at an angle without refixturing. A disc-type automatic tool changer supports unattended cycles. The machine runs a NUM 760 CNC control and has an electronic handwheel, and a probe receiver is fitted inside the enclosure.

The machine is suited to small components in stainless steel, brass, titanium, aluminium, tool steel, precious metals and engineering plastics. Typical work includes watch cases, watch movement parts and dials, and parts for micromechanics and medical instruments. It also fits connector and electronics housings, small moulds and inserts, and prototype or short-run subcontract work. The machine comes with a spindle cooling unit, a set of steep taper toolholders, a tool presetter and the original French documentation for the machine and control.

Suitable For

• Watchmaking and clock component manufacturing
• Micromechanics and small-part machining
• Medical and dental instrument components
• Jewelry and precious metal machining
• Electronics, connector and sensor housing production
• Toolmaking, small moulds and electrodes
• Subcontract machine shops, prototyping and small-batch production

Technical Specifications

• Machine type: CNC machining center (milling, drilling, tapping, boring)

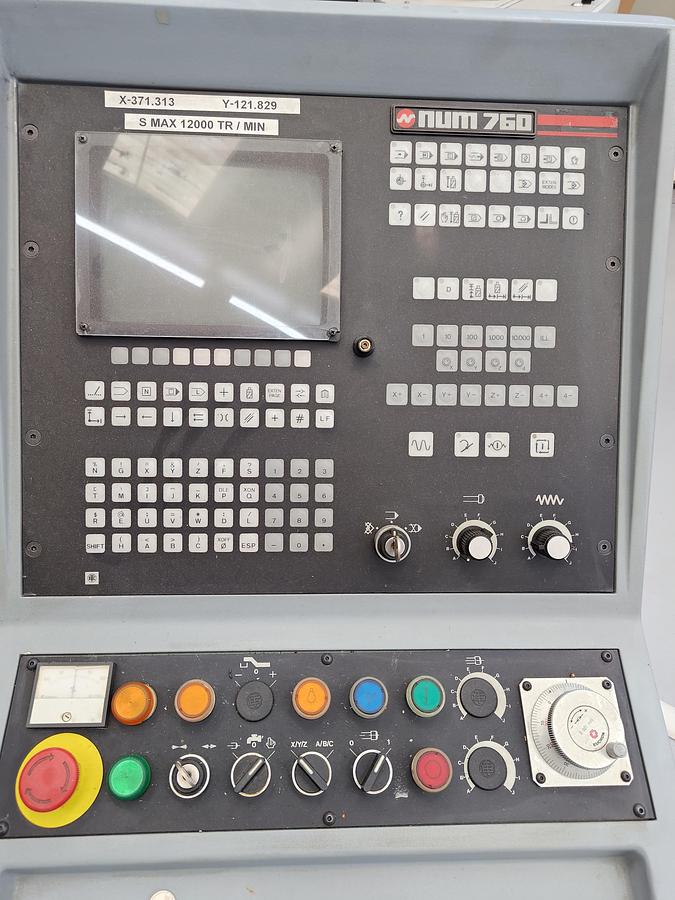

• CNC control: NUM 760 (NUM 760 F-MX operator manual included)
• Max. spindle speed: 12,000 rpm (per label on the control panel)
• Axes: X / Y / Z plus a 4th axis (per the control panel jog keys)

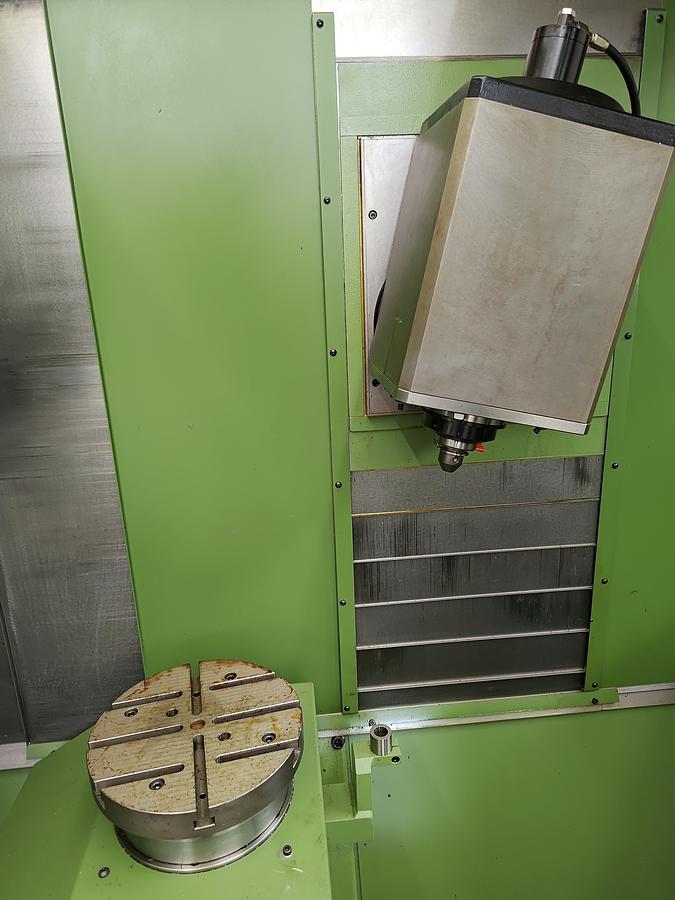

• Rotary table with T-slots
• Inclined spindle head

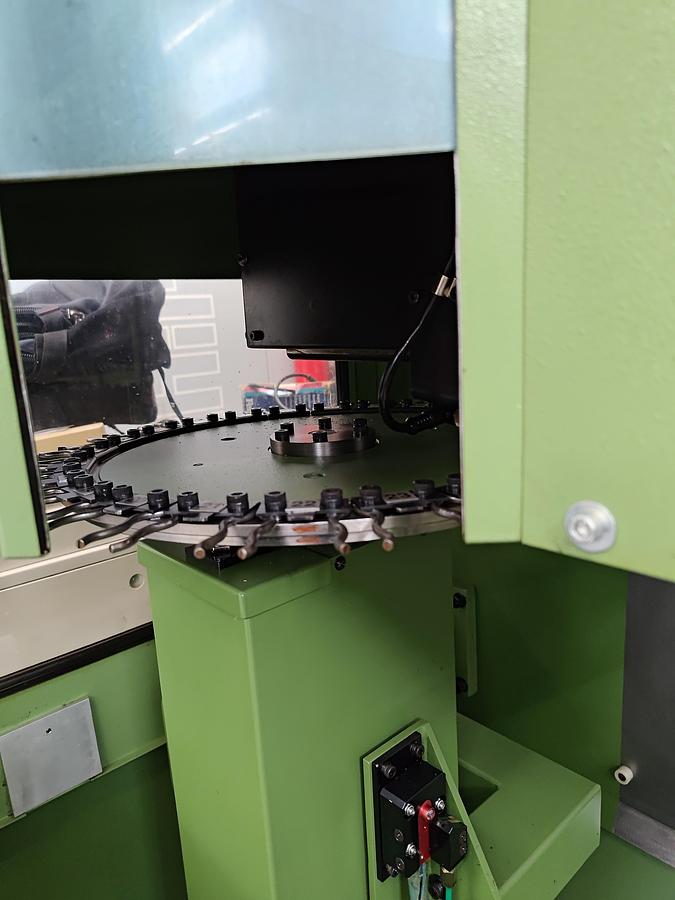

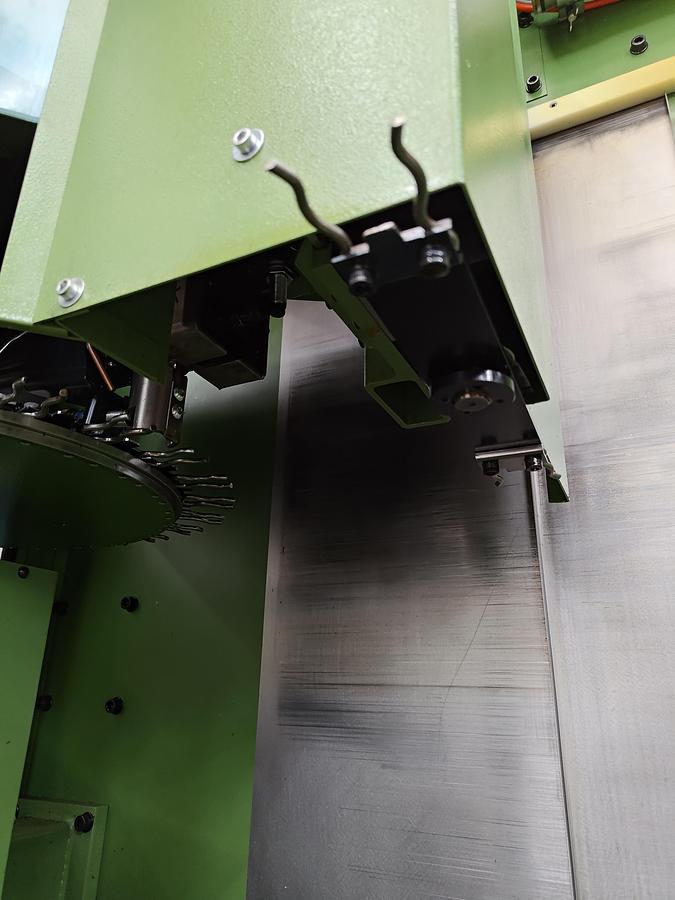

• Automatic tool changer: disc-type magazine
• Electronic handwheel, 0.001 mm increment

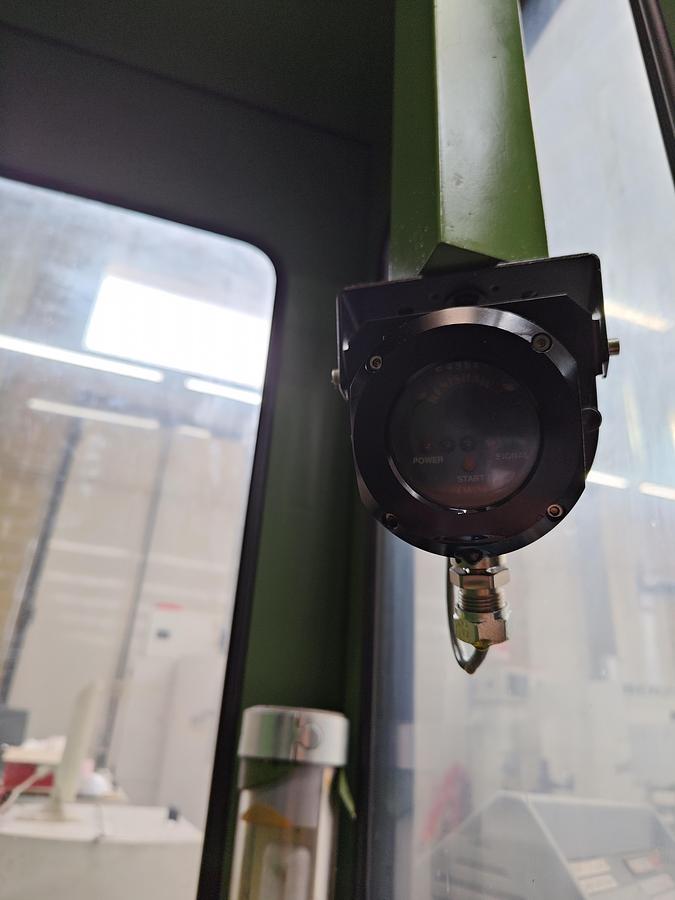

• Probe receiver unit (Power / Start / Signal indicators)

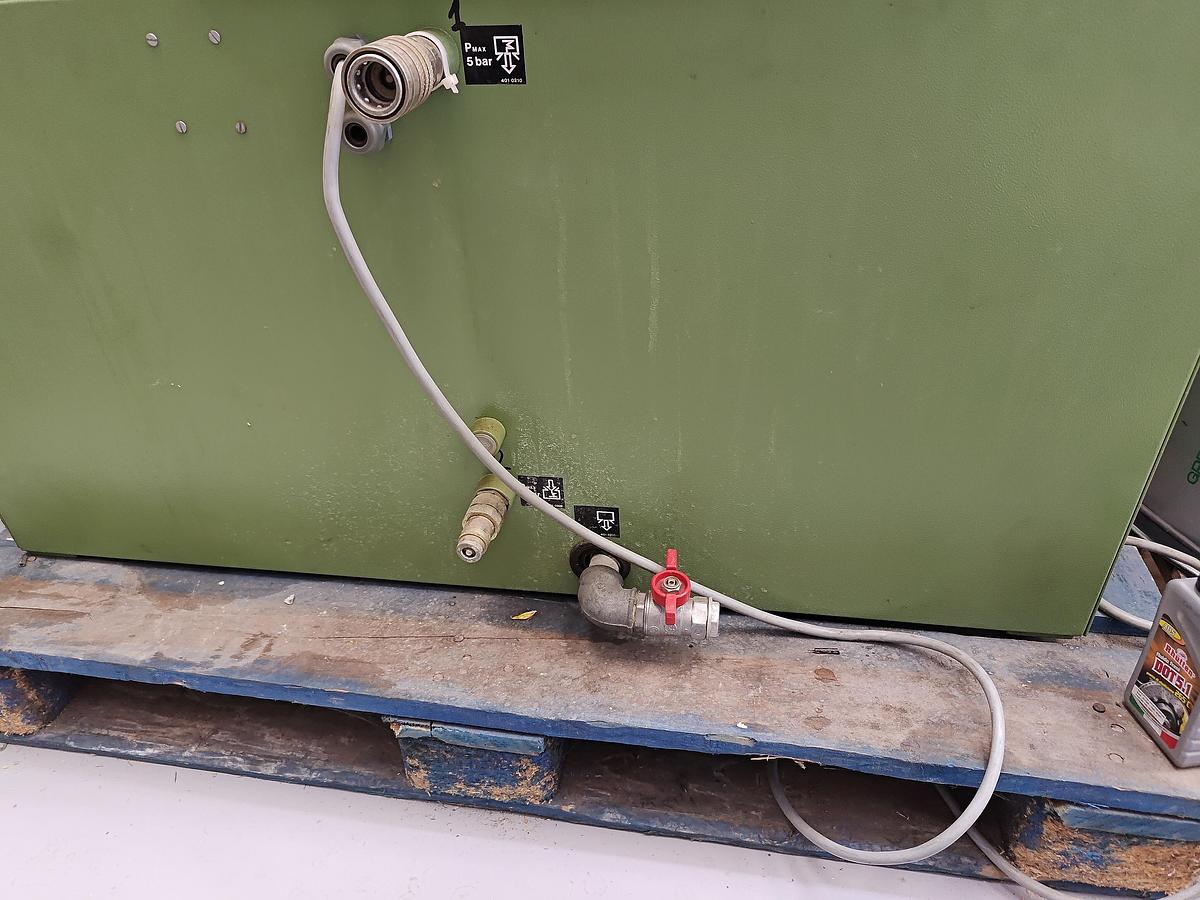

• Compressed air connection: max. 5 bar

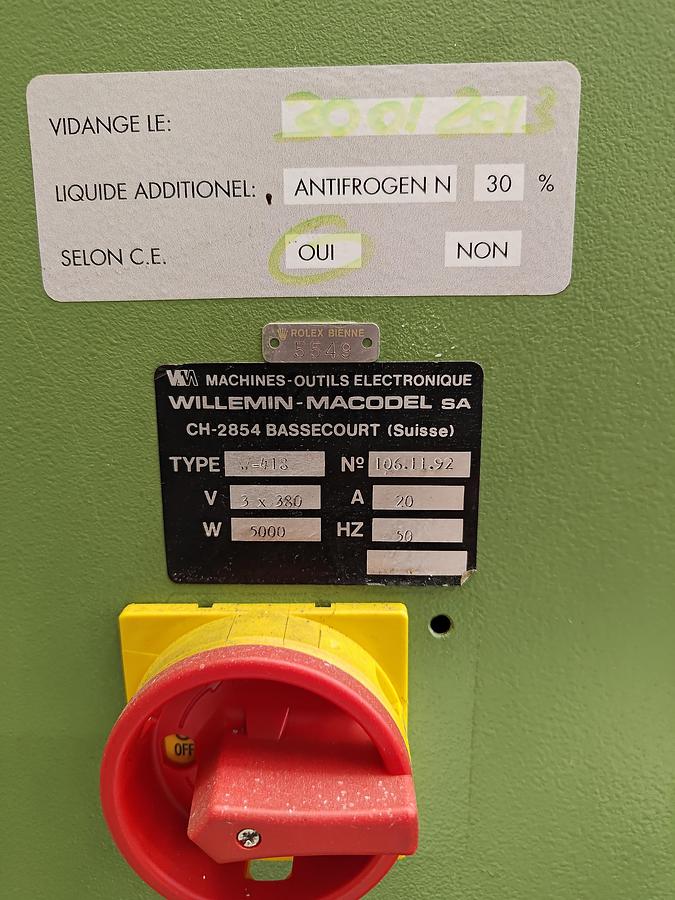

• Power supply: 3 x 380 V, 50 Hz, 20 A, 5,000 W
• Serial number: 106.11.92
• Chip and coolant collection tray

Included equipment:

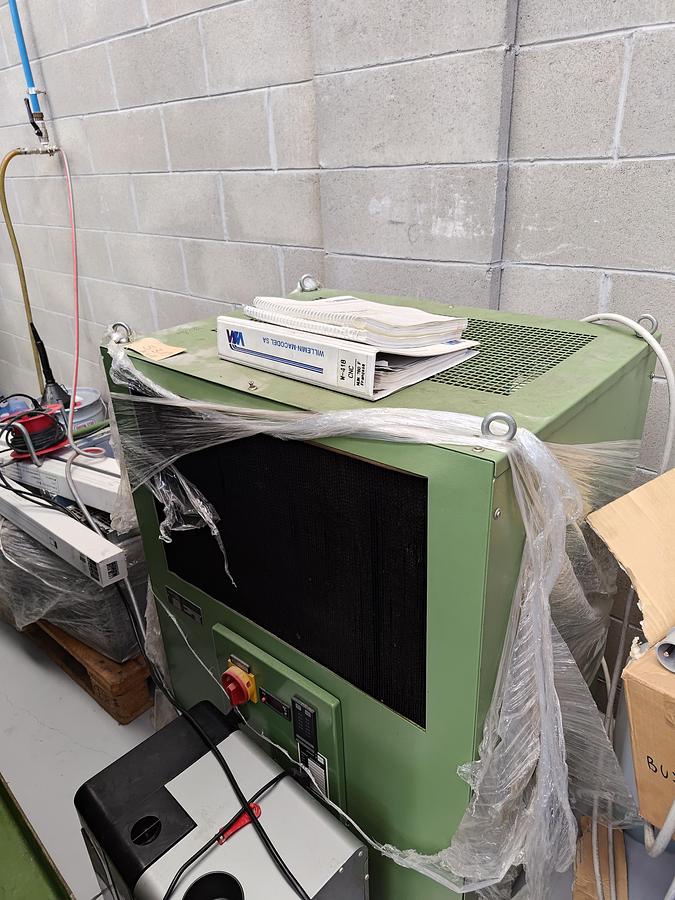

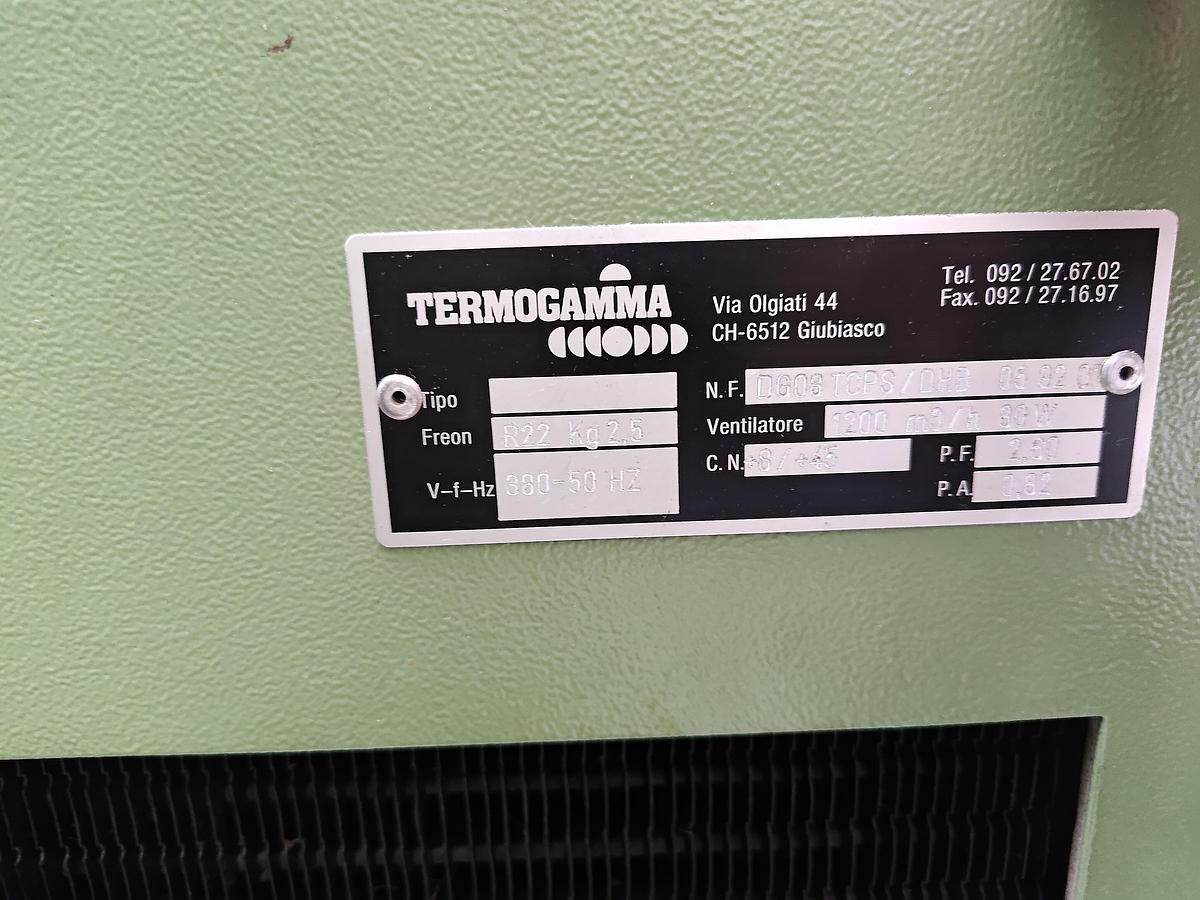

• Spindle cooling unit: Termogamma, refrigerant R22 (2.5 kg), 380 V 50 Hz, fan 1,200 m³/h 80 W, operating range +8 / +45 °C

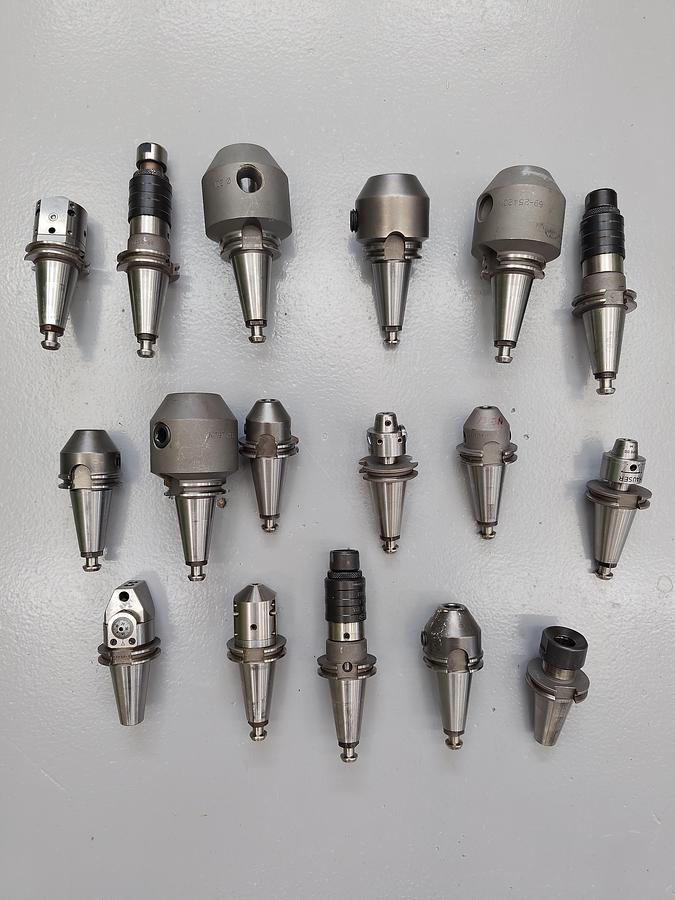

• 17 steep taper toolholders, including a boring head, tapping chucks, collet chucks and side-lock holders

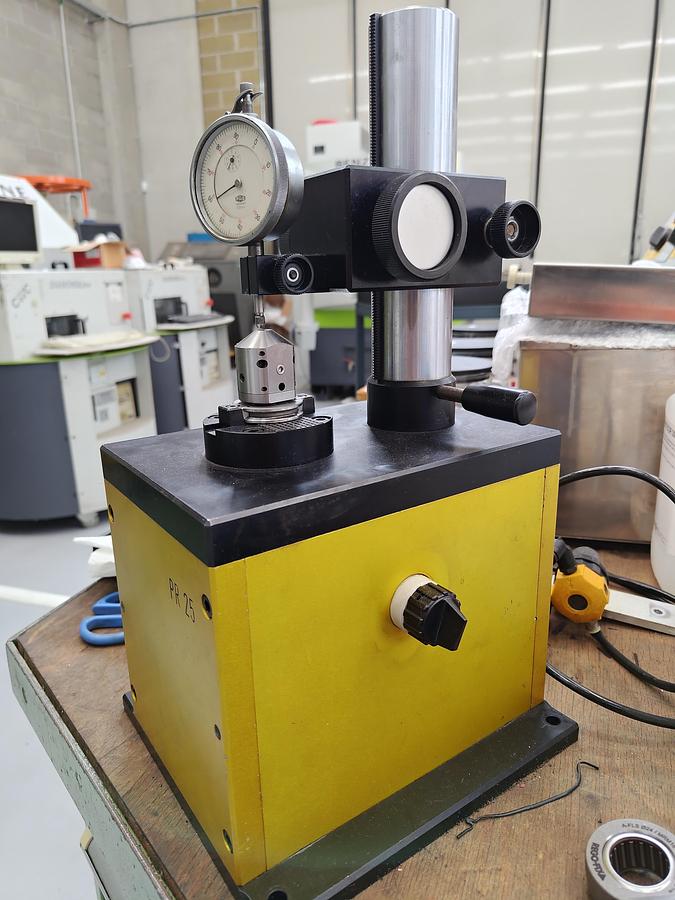

• PR 25 tool presetter with dial indicator
• Documentation (French): W-418 CNC / NUM 760 F machine manual, NUM 760 F-MX operator manual, NUM 750/760F programming manual

Contact for price and viewing.
