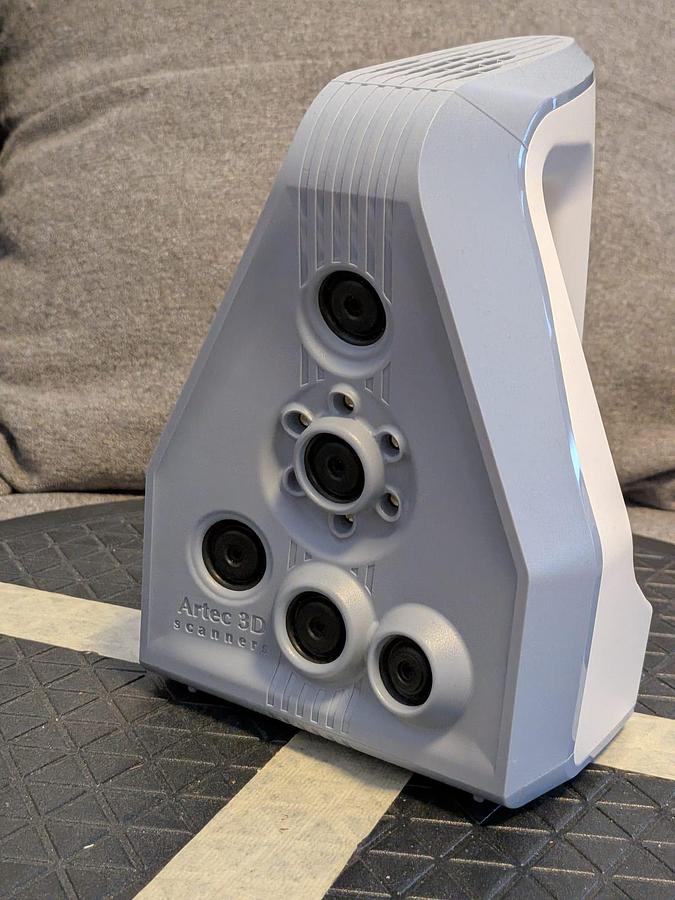

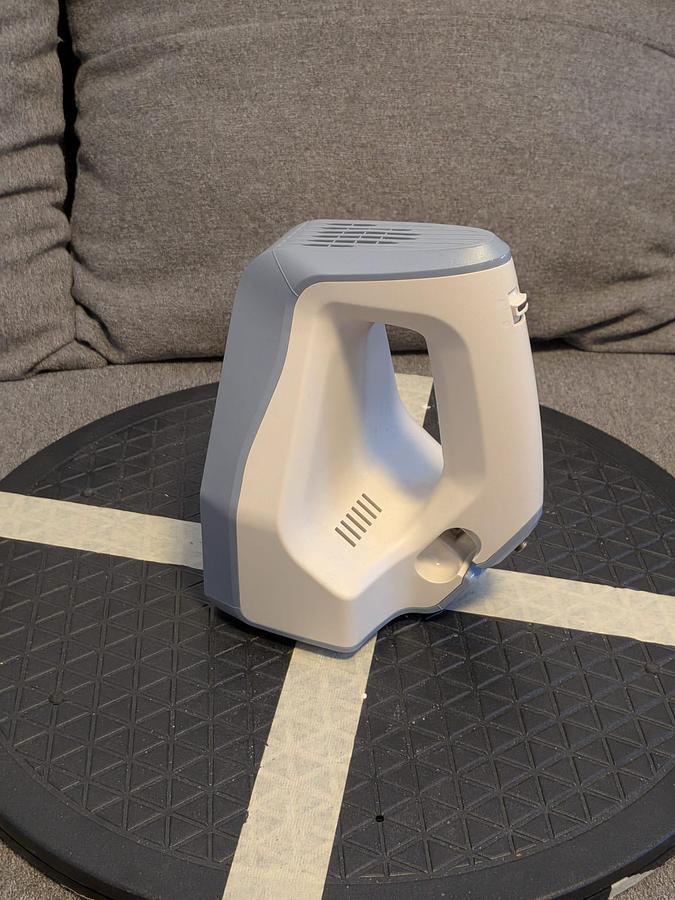

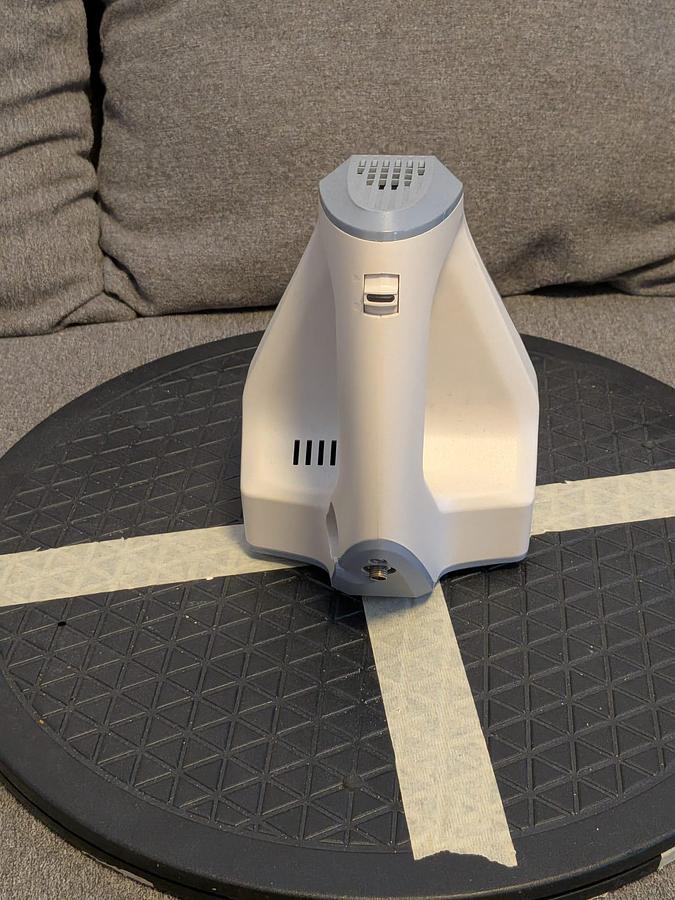

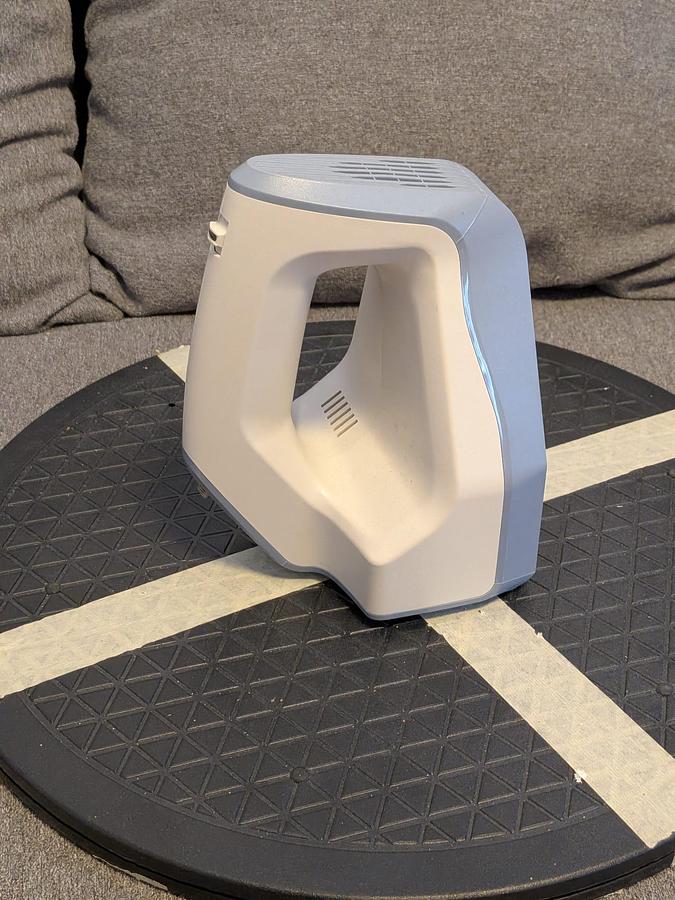

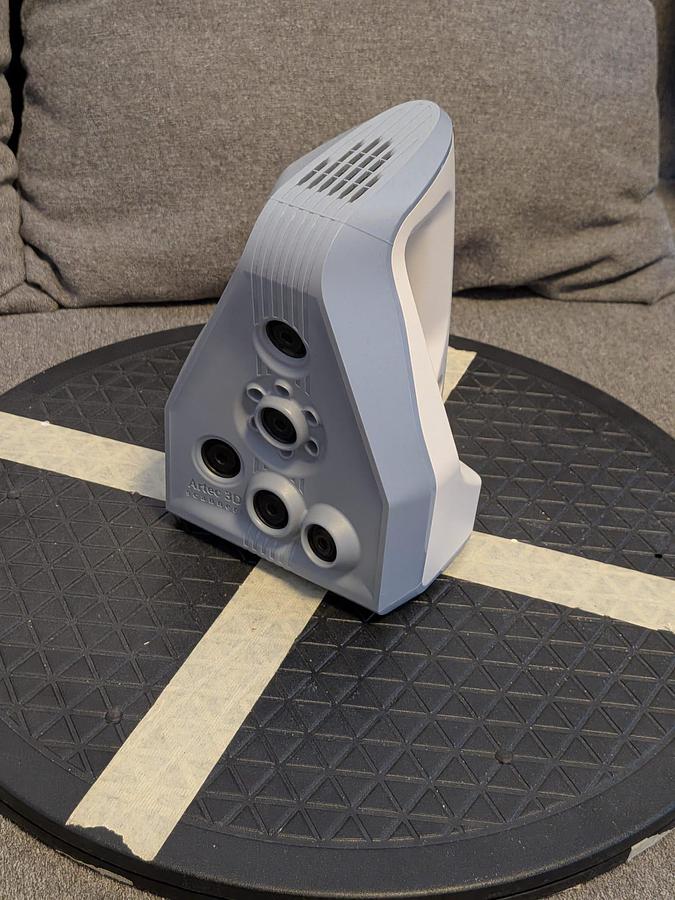

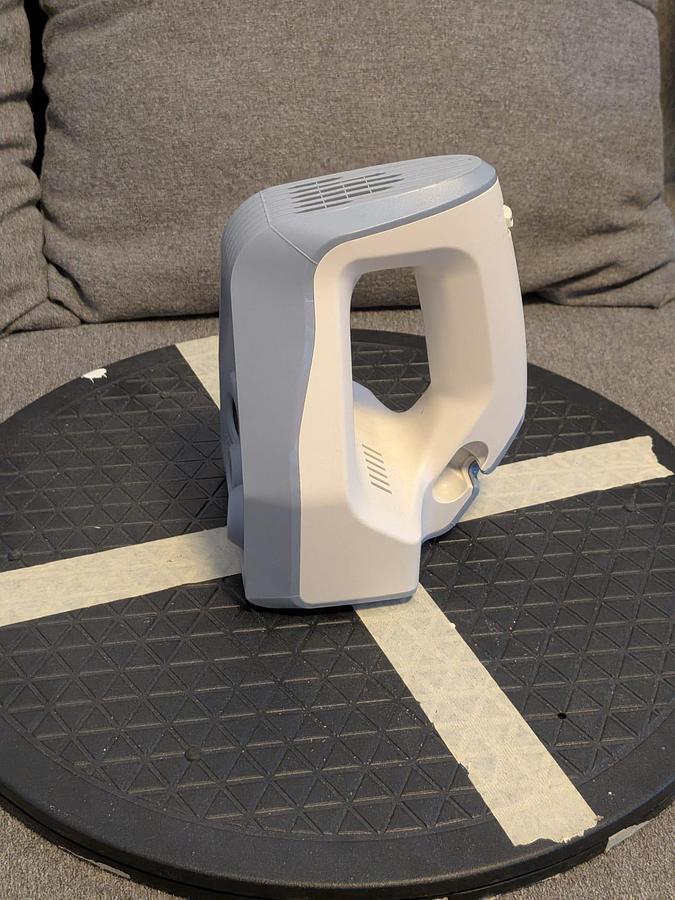

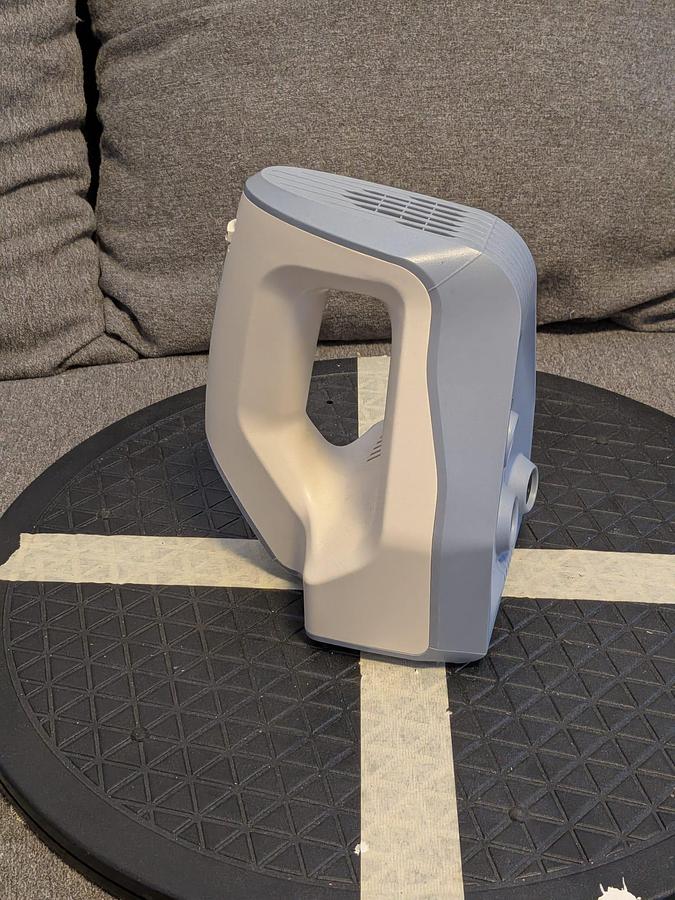

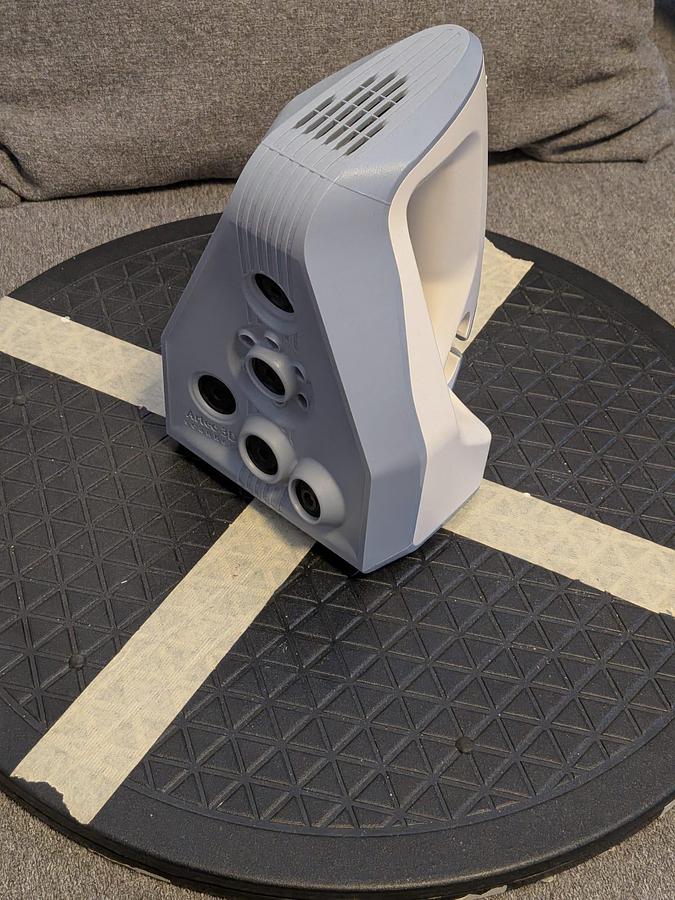

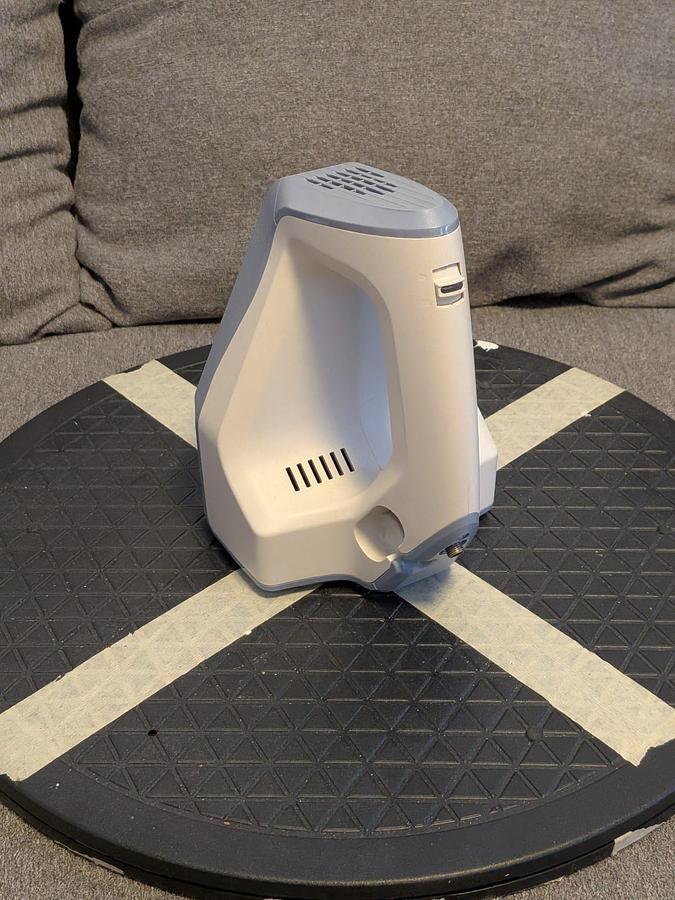

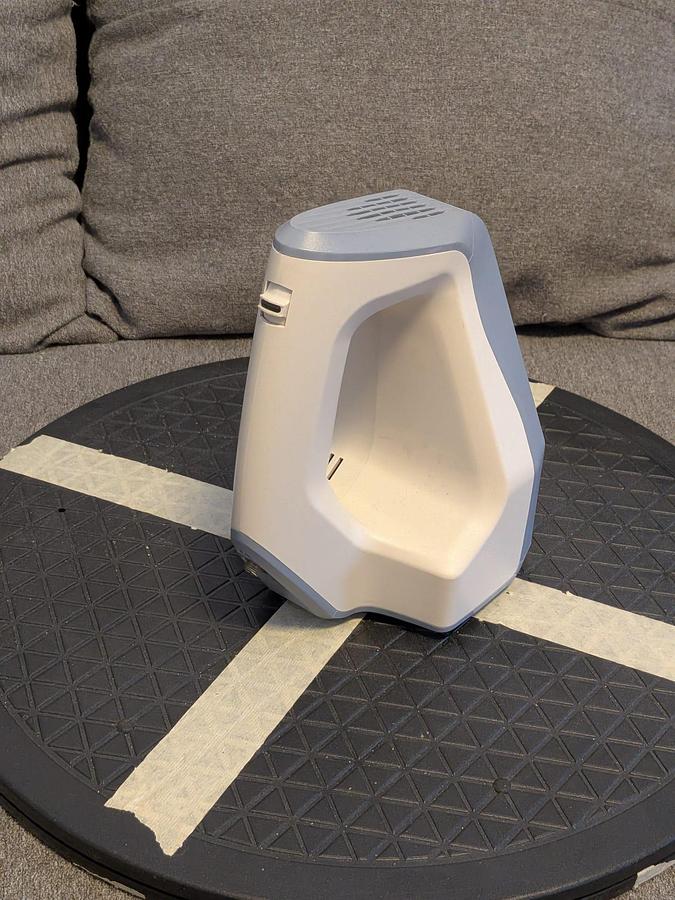

2022 Artec Spider Professional 3D Scanner (Serviced with Certificate)

Handheld 3D scanner using structured light (blue LED) technology, optimized for high-precision metrology, reverse engineering, cultural heritage preservation, and micro-detailed digital sculpting. Fully serviced and recertified by Artec 3D in 2022, with official service and calibration documentation included. The scanner captures 3D geometry and color texture simultaneously with real-time fusion, supporting output in multiple mesh, point cloud, and measurement file formats compatible with CAD, inspection, and 3D modeling software. Sold complete with heavy-duty Artec hard transport case, original power supply and USB/data cables, and original Artec diagnostic and calibration kit; Artec Studio software not included. Used in industrial metrology, quality inspection, reverse engineering, museum and heritage digitization, dental and medical applications, and digital sculpting for the precise 3D capture of small to medium-sized objects and fine surface detail.

Suitable for

3D scanning, handheld 3D scanner, metrology equipment, reverse engineering, cultural heritage digitization, quality inspection, digital sculpting, structured light scanning, 3D data capture

Technical Specifications

• Brand: Artec 3D
• Model: Spider (Space Spider)
• Machine type: Handheld 3D scanner
• Scanning technology: Structured light (blue LED)
• 3D point accuracy: up to 0.05 mm
• 3D resolution: up to 0.1 mm
• 3D accuracy over distance: up to 0.03% over 100 cm
• Working distance: 0.2-0.3 m
• Volume capture zone: 2,000 cm³
• Linear field of view (H x W): 90 x 70 mm (closest range), 180 x 140 mm (furthest range)
• Angular field of view (H x W): 30 x 21°
• Color and texture capture: Yes
• Texture resolution: 1.3 MP
• Color resolution: 24 bpp
• 3D reconstruction rate (real-time fusion/video): up to 7.5 fps
• Data acquisition speed: up to 1 million points/second
• Exposure time (3D/2D): 0.0002 s
• Light source (3D): Blue LED
• Light source (2D): White 6 LED array
• Interface: 1x USB 2.0, USB 3.0 compatible
• Power source: AC power or external battery pack
• Supported OS: Windows 7/8/10, 64-bit
• PC requirements: Intel Core i5 or higher, 18GB RAM or higher, USB 2.0/3.0
• 3D mesh output formats: OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB
• 3D point cloud formats: BTX, PTX
• Measurement formats: CSV, DXF, XML
• Scanner body weight: 0.8 kg
• Dimensions (H x D x W): 190 x 140 x 130 mm

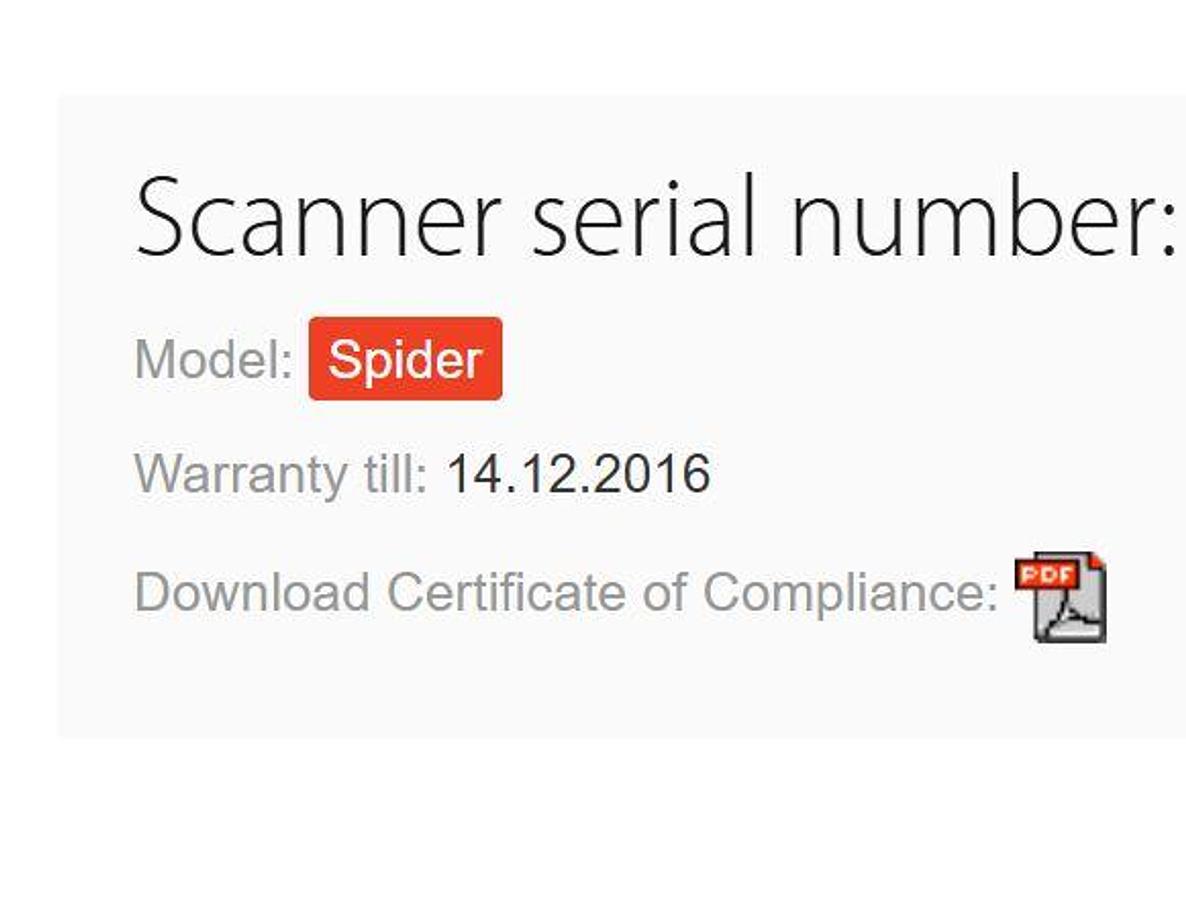

• Servicing: Fully serviced and recertified by Artec 3D, 2022, certificate included

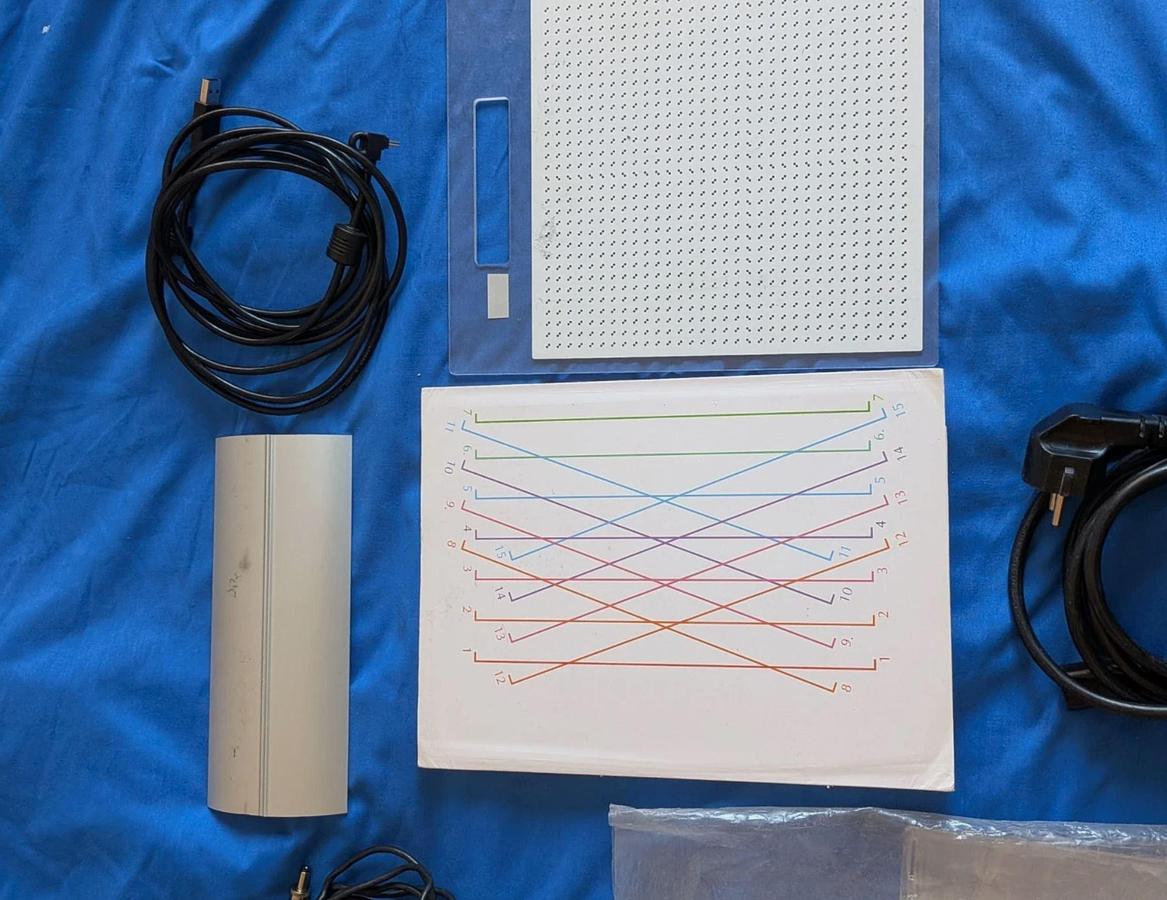

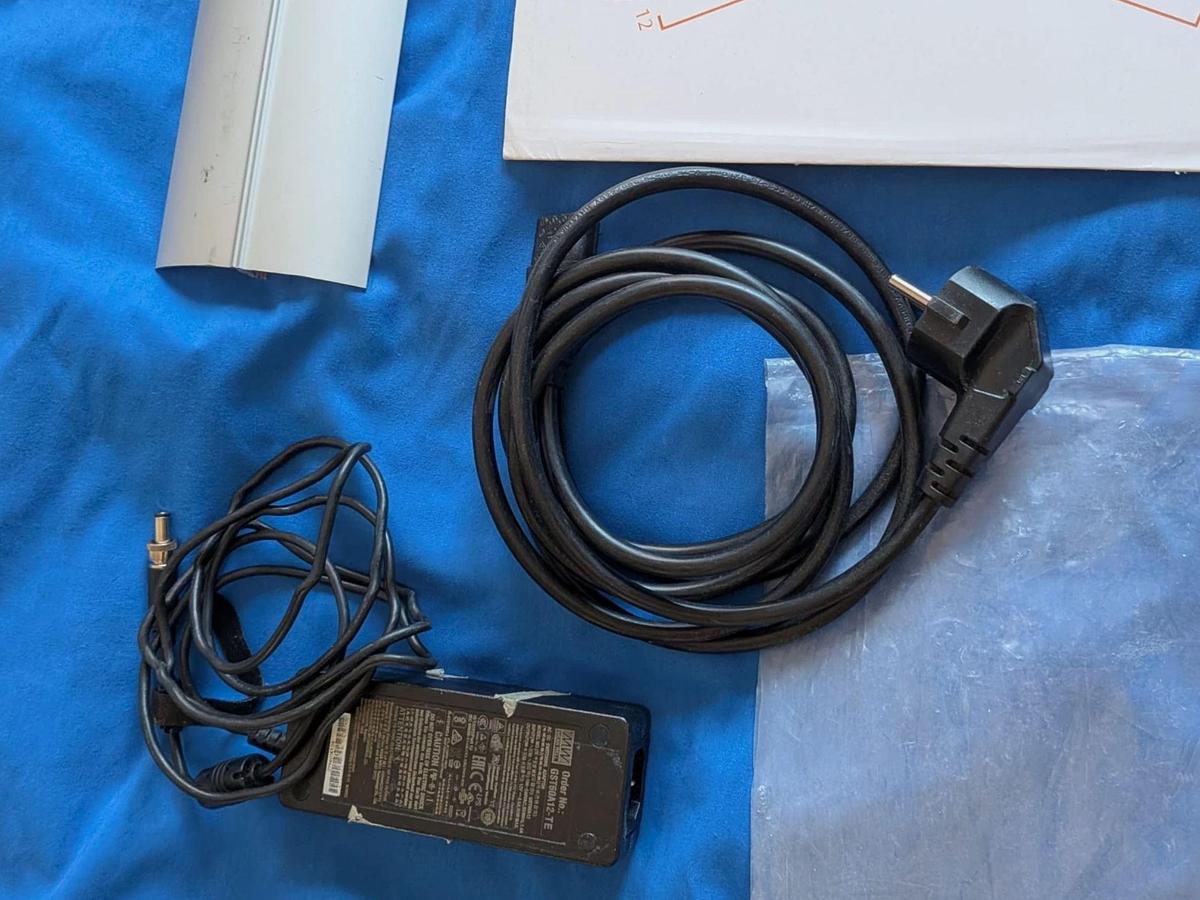

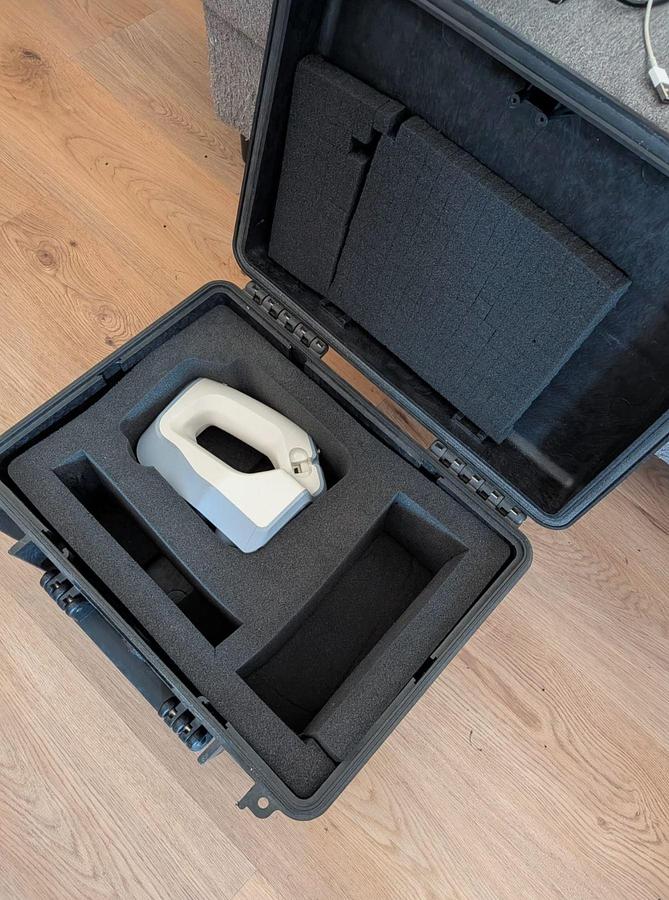

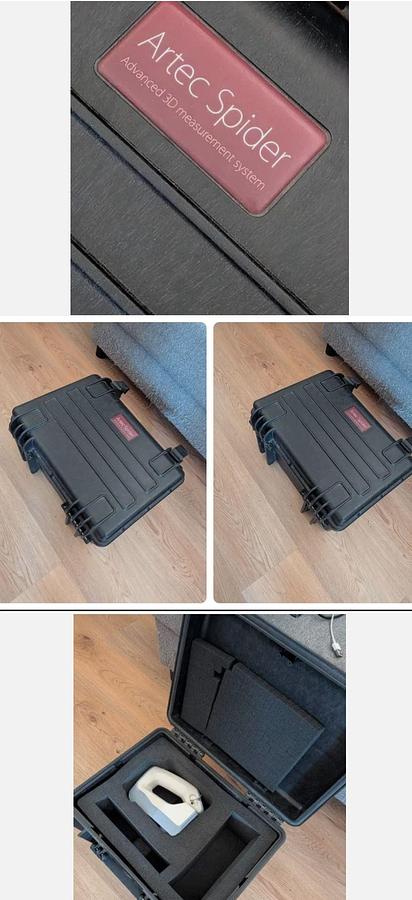

• Included: Hard transport case, power supply, USB/data cables, diagnostic and calibration kit
• Not included: Artec Studio software
• Condition: Used, excellent cosmetic and mechanical condition, fully functional
• Location: Rome, Italy (local pickup available)
• Shipping: Insured express courier, EU and worldwide, tracked
•


Contact for price and viewing.
