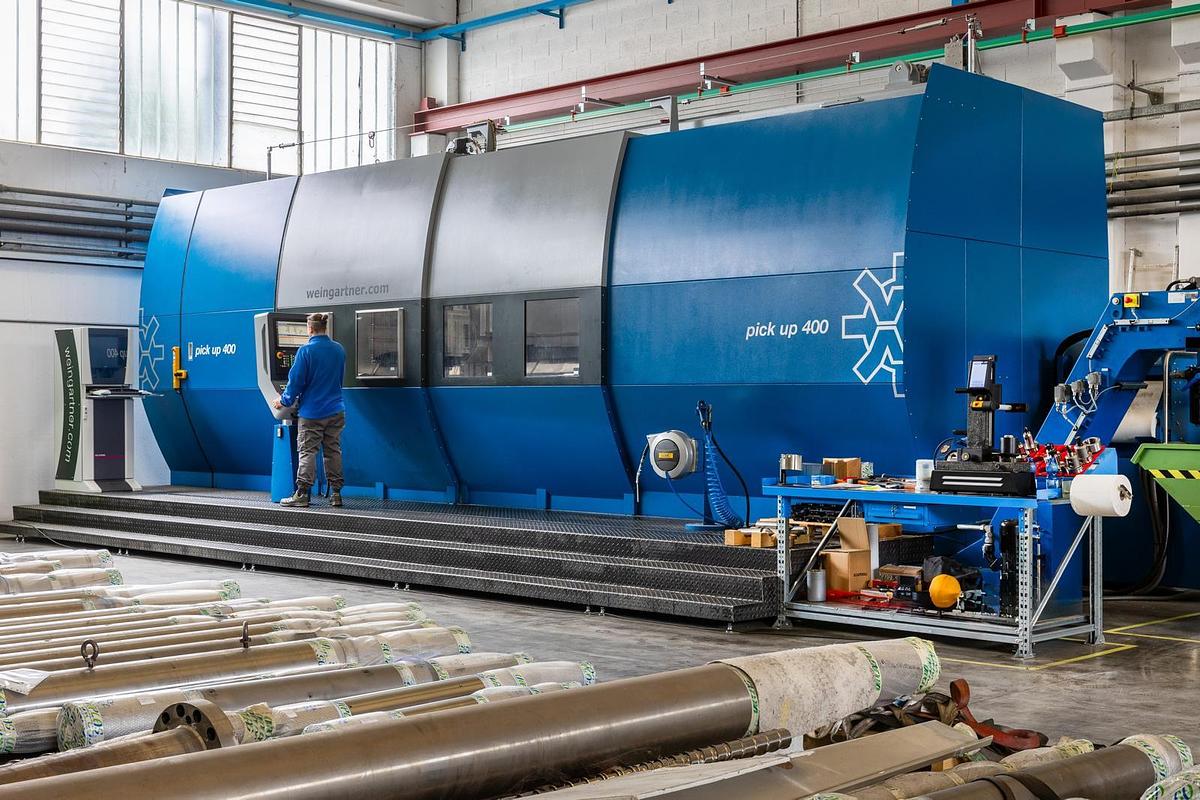

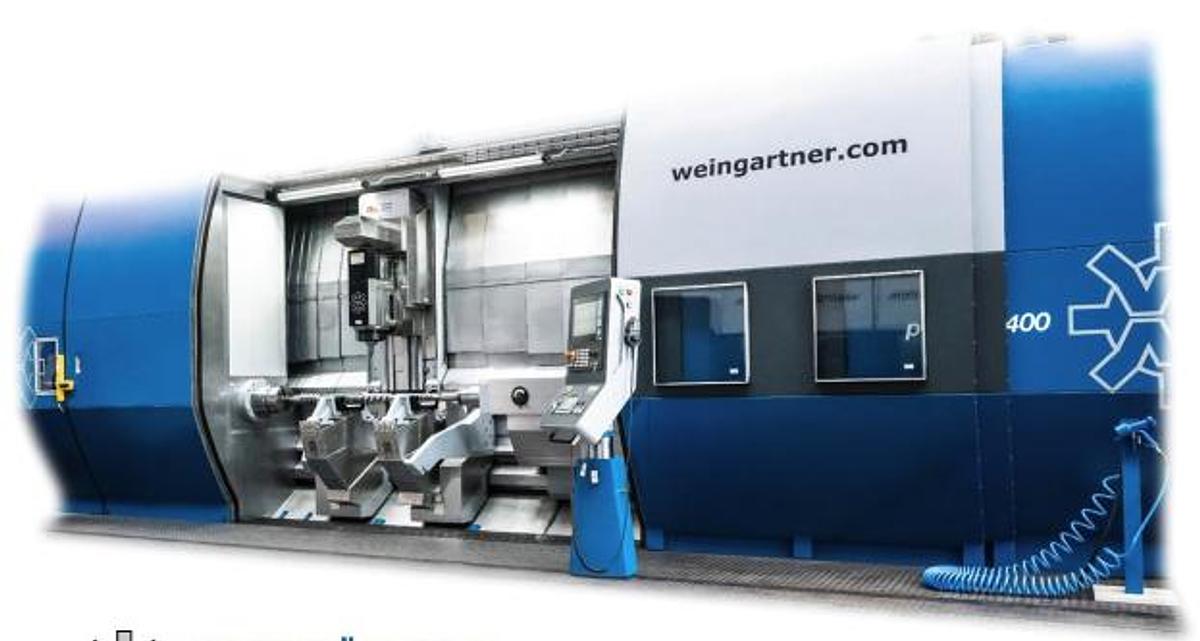

2023 Weingärtner Pick-Up 400M-4000 CNC Turning-Milling Center

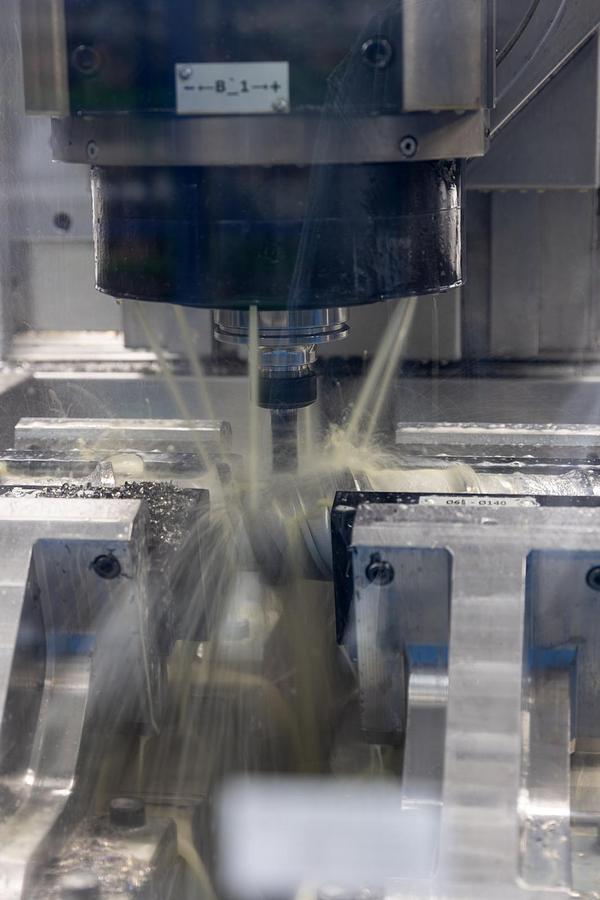

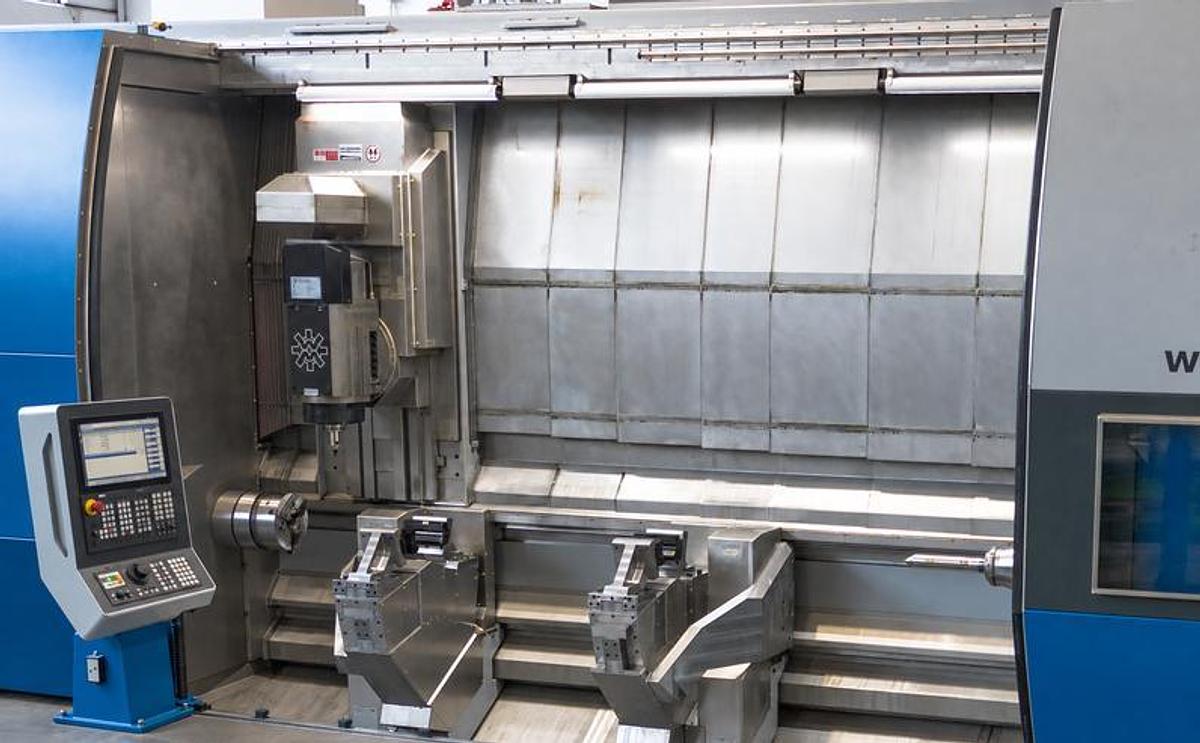

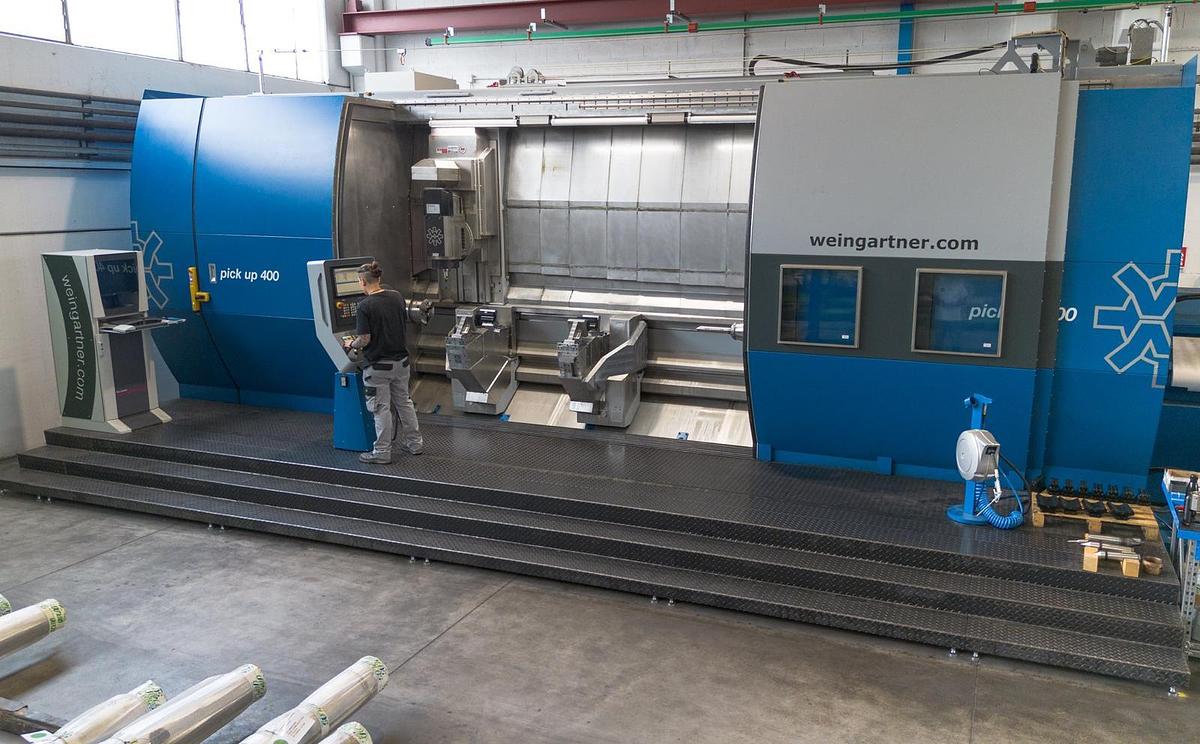

CNC turning-milling center with single slide machine base and CNC control capable of 5-axis linear interpolation, controlled via Siemens 840D solutionline with digital axis drives. The machine features a vertical slide with precision ball screw spindle and hydraulic counterbalance, horizontal slide with precision ball screw spindle, and a headstock with oil-mist lubricated spindle bearings and dual drive design supporting both turning and milling operation modes. The turning-milling unit includes main and swiveling drive for interchangeable machining heads on the B-axis, complemented by front and rear self-centering steady rests independently positioned via CNC drives, a chip conveyor with coolant recirculation, and a fully enclosed machine housing with driven guard doors and inspection windows meeting DIN EN 23125 resistance class C3. Additional equipment includes hydraulic power chuck with quick jaw change, prismatic steadies for screw milling with exchangeable jaws across multiple diameter ranges, coolant filtration system, oil mist extraction unit, and operating platform with stairs and railing. Installed in September 2023, with approximately 3,500 spindle hours to date, fully visible and operational, sold complete with accessories and a set of consumable tooling (new inserts). Used in heavy machining and precision component manufacturing for turning, milling, drilling, and thread/spline production on long shafts, rotors, screws, extruder components, and other large cylindrical workpieces up to 4,000 mm between centers.

Suitable for

CNC turning-milling center, 5-axis machining, large shaft machining, extruder screw production, rotor machining, thread milling, spline hobbing, heavy-duty precision machining, machine tool manufacturing, aerospace and energy component production

Technical Specifications

• Brand: Weingärtner Maschinenbau
• Model: Pick-Up 400M-4000
• Machine type: CNC turning-milling center
• Installation date: September 2023
• Spindle hours: approx. 3,500
• Control: Siemens 840D solutionline, NCU 720.3 digital drives
• Milling diameter: 180 mm
• Length between centers: 4,000 mm
• Total machine weight: 32,000 kg
• X-axis travel: 450 mm
• X-axis rapid feed: 20 m/min
• Y-axis travel: -80/+150 mm
• Y-axis rapid feed: 20 m/min
• Z-axis rapid feed: 25 m/min
• C-axis max. spindle speed: 50 rpm
• Chuck size: ø260 mm
• Tool spindle power: 45 (70) kW
• Tool spindle max. speed: 14,000 rpm
• Tool interfaces: HSK 100-T / HSK 100-A, Capto C8
• B-axis swivel range: ±45°
• Tailstock quill diameter: 190 mm
• Tailstock quill stroke: 200 mm
• Electrical supply: 3 x 400V, 50Hz, ~200A main fuse
• Coolant filter tank capacity: 1,400 L
• Accessories included: Hydraulic power chuck (SMW KNCS-N 260), prismatic steadies (multiple diameter ranges), dead centers, coolant filtration system, oil mist extraction unit, operating platform with stairs/railing
• Condition: Used, fully operational, sold with accessories and new consumable inserts
•


Contact for price and viewing.
