PowerMaX® 1250kVA containerized generator (QSK60G5 gas engine)

Natural gas generator set built around a Cummins GQSK60G5 engine, a 4-cycle, 60-degree Vee, 16-cylinder configuration, paired with a CGT PE734E or LS LSA 50.2 VL10 alternator regulated by MX321 (CGT) or R450 (LS) AVR with ±0.5% regulation. The engine features an electronic governor meeting ISO 8528 Performance Class G1 steady-state frequency requirements, and a wet sump lubrication system with external electric priming pump for pre-start lubrication and engine-driven mechanical oil pump for normal operation, supported by on-engine full-flow filtration and remote bypass filtration. The package consists of two custom-built 20ft ISO containers: the Genset container (G-Drive) houses the gas-powered generator set and controls in one compartment and the high-temperature cooling radiator with low-speed roof-mounted fans in the other; the Gas Ancillary Module (GAM) container houses the exhaust silencing system, low-temperature cooling radiators/fans, header tanks, and storage for the gas train and external items. Both containers feature compartment walls fully lined with non-combustible mineral fibre acoustic linings retained by galvanised perforated steel sheet, with noise-attenuated ventilation air inlets and outlets. Containers are CSC certified with corner castings for handling, lockable doors, and internal lighting. Used in power generation, cogeneration, and remote/off-grid electricity supply for natural gas fueled electrical power production in industrial, commercial, and oil & gas applications.

Suitable for

Gas generator set, natural gas power generation, containerized genset, cogeneration, industrial power plant, remote power generation, oil and gas power supply, Cummins gas engine, standby and continuous power generation

Technical Specifications

• Engine model: Cummins GQSK60G5
• Engine type: 4-cycle, 60-degree Vee, 16-cylinder
• Displacement per cylinder: 3.75 L
• Total displacement: 60 L
• Bore: 159 mm
• Stroke: 190 mm
• Speed: 1,500 rpm (50Hz) / 1,800 rpm (60Hz)
• Governor type: Electronic
• Fuel type: Natural gas
• Alternator: CGT PE734E or LS LSA 50.2 VL10
• AVR & regulation: MX321 (CGT) or R450 (LS), ±0.5%
• Continuous power: 1,120 kW (50Hz) / 1,300 kW (60Hz)
• 3-phase rating: 1,156/1,352 kW/kVA
• Insulation class: H
• Number of poles: 4
• Battery voltage: 24V
• Circuit breaker: Merlin Gerin NW25
• Trip unit: Micrologic 5.0
• Overload protection range: 1,000-2,500 A (adjustable)
• Short circuit protection range: 1,500-25,000 A (adjustable)
• Steady state frequency: ISO 8528, Performance Class G1
• Noise sound power (EEC): 107 dB
• Noise at 1m (50/60Hz): 87/90 dB
• Noise at 7m (50/60Hz): 73/77 dB
• Single step load application: 30%
• Ambient rating: Up to 35°C before derate
• CE mark: Compliant (post-January 1995)

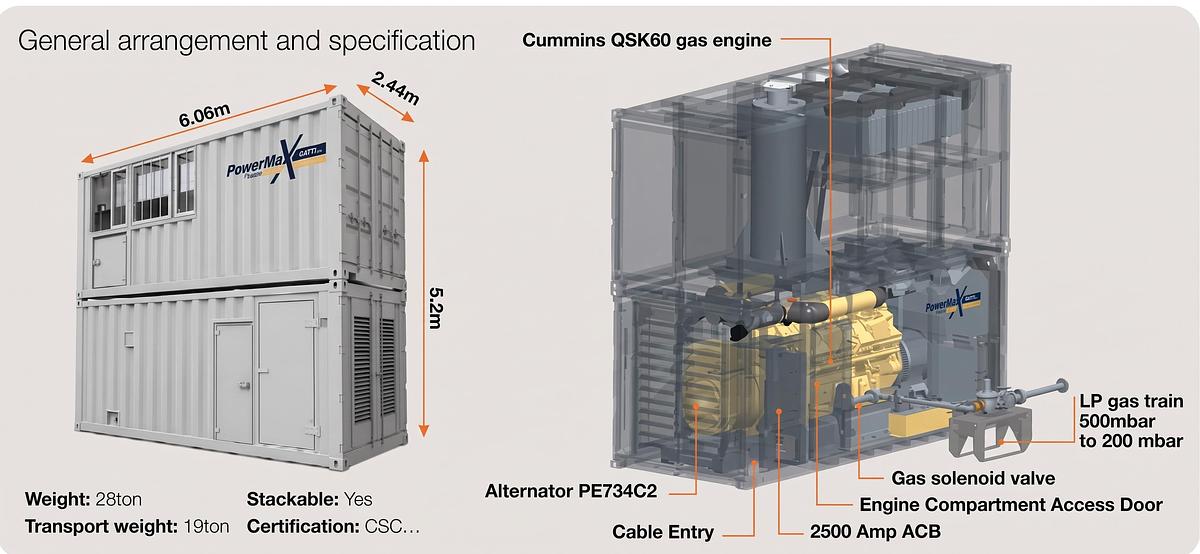

• Container configuration: 2x 20ft ISO containers (Genset/G-Drive + Gas Ancillary Module/GAM)
• Container certification: CSC certified, corner castings
• Doors: 2, lockable
• Internal lights: 4
• Lubrication system: Wet sump, electric priming pump + engine-driven mechanical pump, full-flow + bypass filtration
• Total lubrication system capacity: 384 L (101.5 US gal)
• Oil pressure at idle: 1.79 bar (25 psi)
• Oil pressure at governed speed: 3.1-4.83 bar (45-70 psi)
• Maximum oil temperature: 120°C (248°F)
• Oil capacity (OP6130-04 pan, high/low): 378.5-348.5 L (100-92 US gal)

Contact for price and viewing.

Disclaimer

The above description is provided for informational purposes only. Specifications are based on available information. Buyer is responsible for independent verification prior to purchase.
