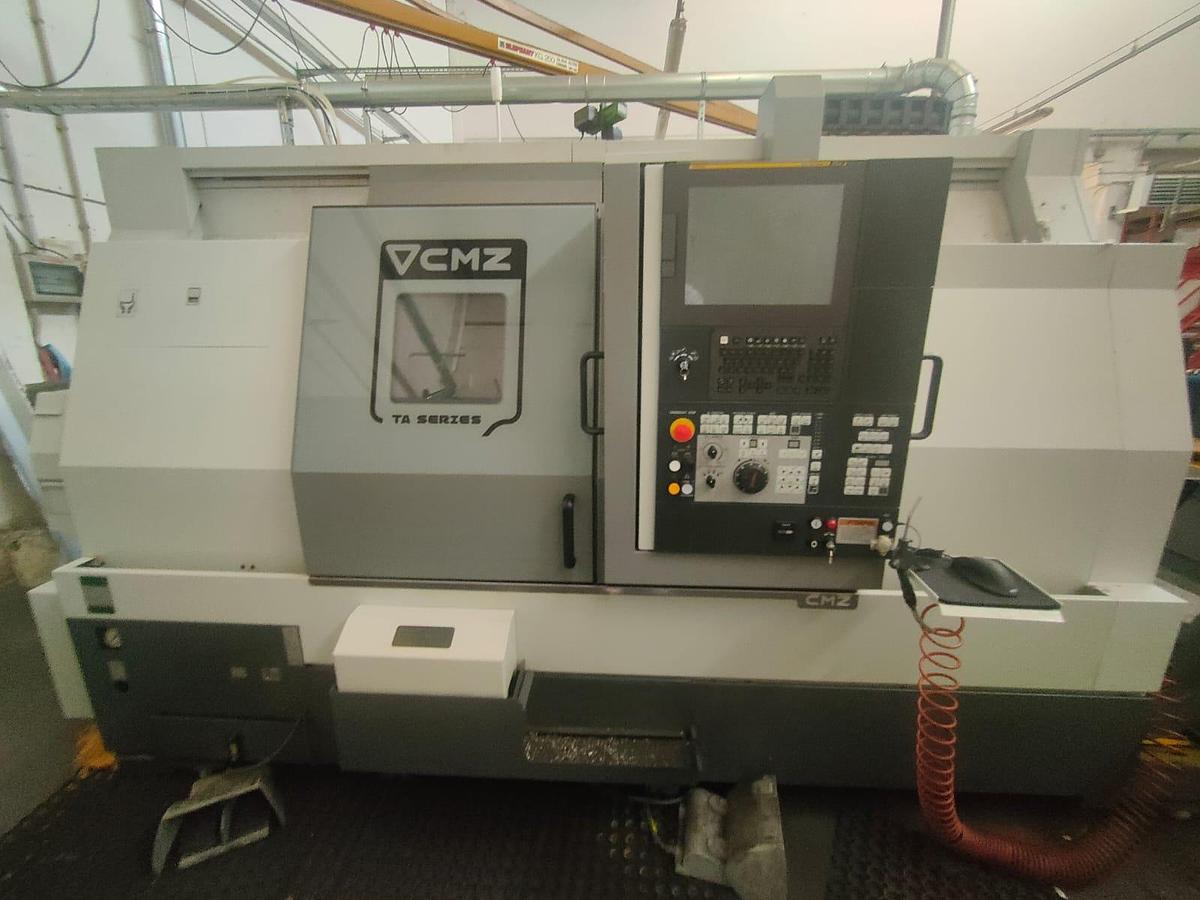

2021 CMZ TA-30-TY-1100 LATHE

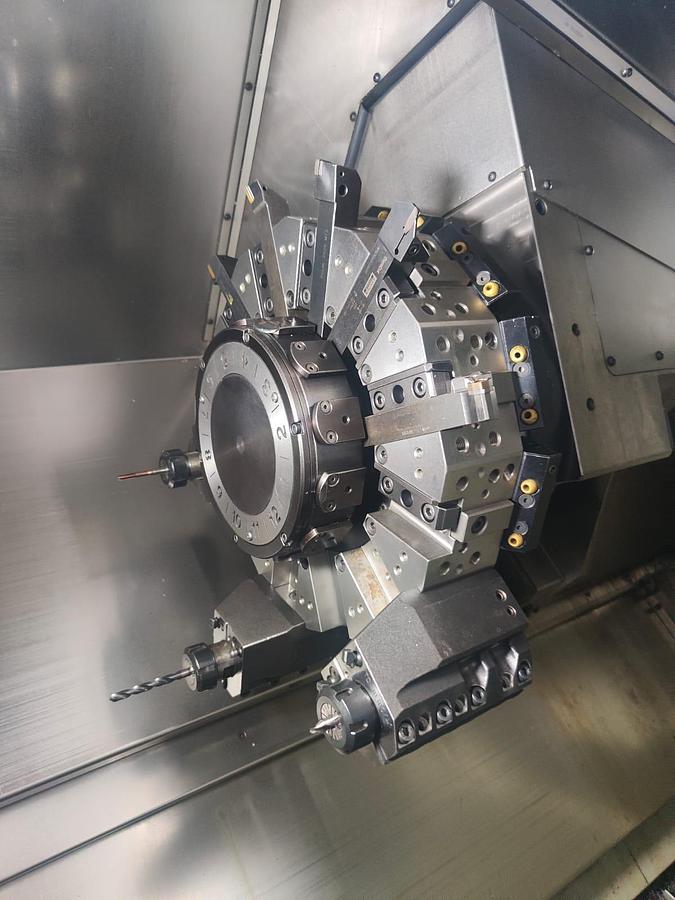

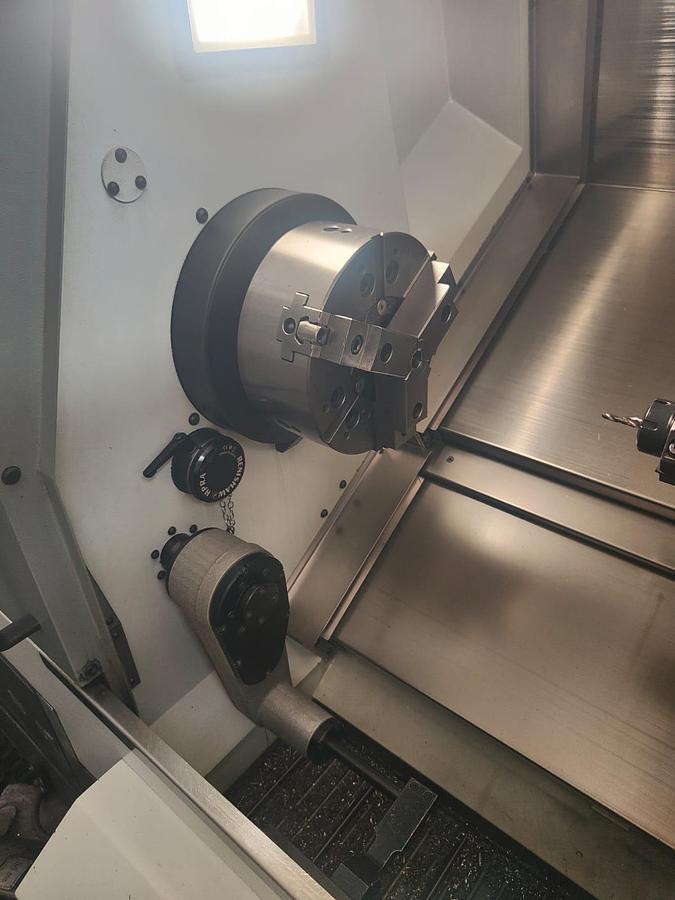

YEAR 2021 N/S 1720 Maximum turning diameter on the bench 760 mm Maximum turning diameter on the carriage 600 mm Maximum turning diameter 460 mm Distance between spindle face and tip X-axis travel 310 mm Z-axis travel 1100 mm Y-axis travel +70/- 50 mm B-axis travel 1100 mm X-axis rapid feed 30 m/min Z-axis rapid feed 30 m/min Y-axis rapid feed 15 m/min B-axis rapid feed 11 m/min Chuck Maximum rotation speed 3500 rpm Ø external front bearings 200 mm Ø internal front bearings 130 mm Spindle nose ASA 8″A2 Machine spindle bore diameter 86 mm Bar passage 77 mm Spindle bore diameter 250/315 mm Bar passage spindle 77 mm Spindle power 42/27 kW Max torque 1020 max/720 S6 40%) Turret Number of positions 12 Tool section 25×25 Ø 50 Tool change time 30° 0.2s- 180° 0.5s Maximum clamping force at 45 bar 5090 kgf Number of motorized positions 12 Maximum rotation speed 12000 rpm Power Kwc (max S1) 11.3/8.1 Maximum torque Nm 75 Weight 8000 Kg NON-BINDING DATA TO BE VERIFIED
