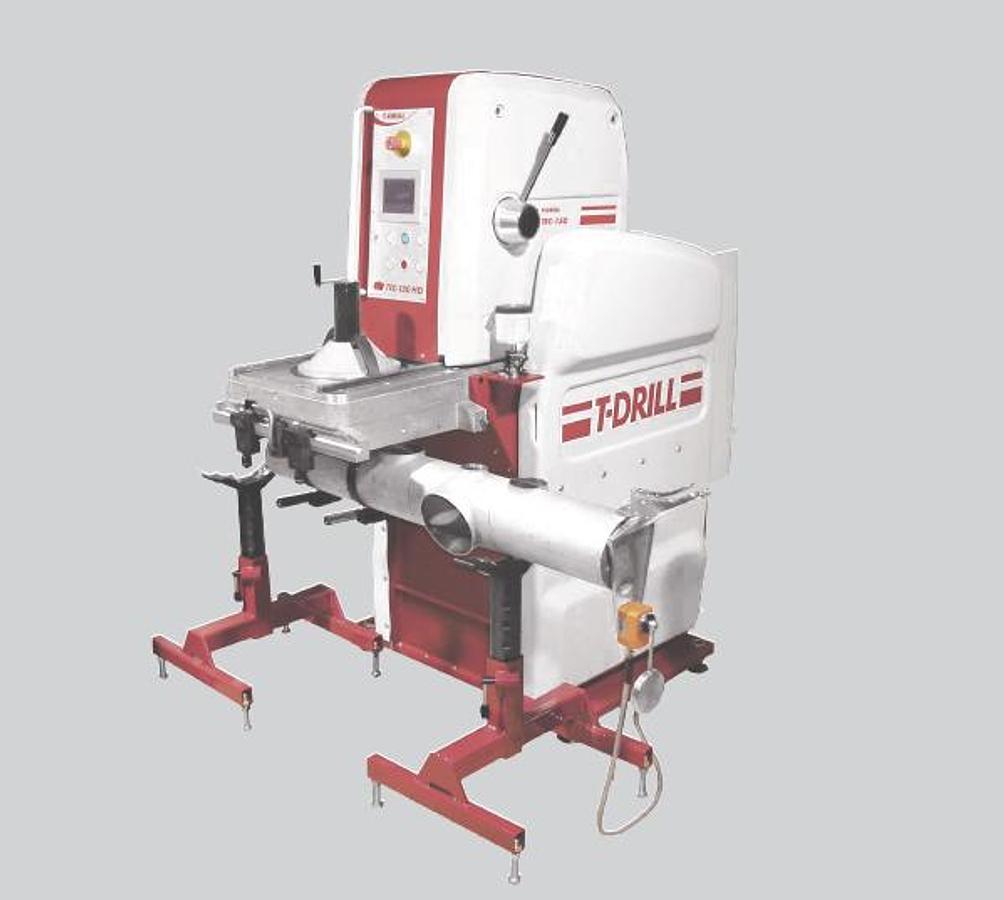

COLLARS MACHINE T-DRILL model TEC-150
COLLARS MACHINE T-DRILL model TEC-150
Contact us for price
Location:Bergamo, Italy
or
Call +39 02 9475 0001
Description
NONCOMMITTAL DATA TO BE VERIFIED
Specifications
| Condition | Used |
| Stock Number | VA0640 |
| Diameter of the collar | 21.3 – 168.1 (219.1) mm |
| Diameter of the tube subjected to collaring forming | 33.7 – 560 mm |
| Max wall thickness | |
| Spindle speed of the drill for elliptical pilot holes | 300 rpm |
| Pilot hole min. | Ø 11 mm |
| Pilot hole max. | 144 x 122 mm |
| Material suitable for collaring forming | Fe, stainless steel, Al, Cu, CuNi |
| Compressed air supply | 6 bar |
| Compressed air consumption | 150 l/min |
| Connected power | 6 kW |
| Fuses dimensions | 3 x 63 (max) A |
| Operating voltage | 3 x 400-480 V/50/60 Hz3 x 200-240 V/50/60 Hz |
| Machine dimensions in w x l x h | 1850 x 980 x 1678 mm |
| Machine weight | 1.000 kg |
| Noise level | Max. 85 dBi |
