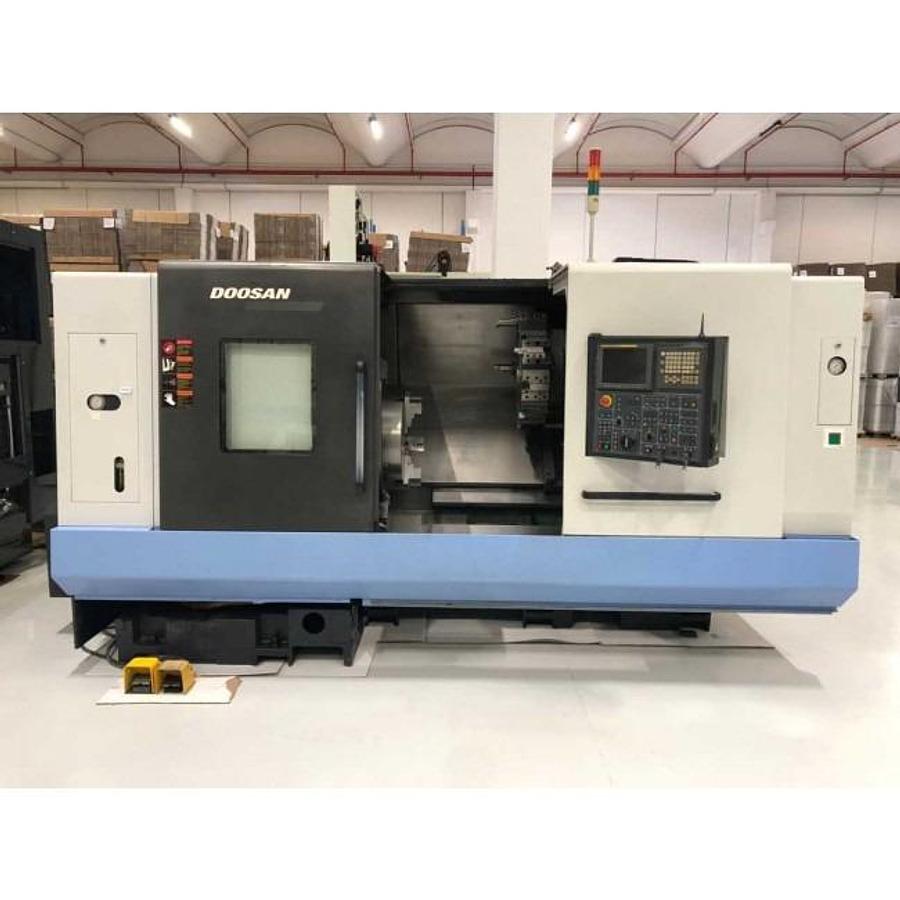

2009 DOOSAN PUMA 480 LATHE

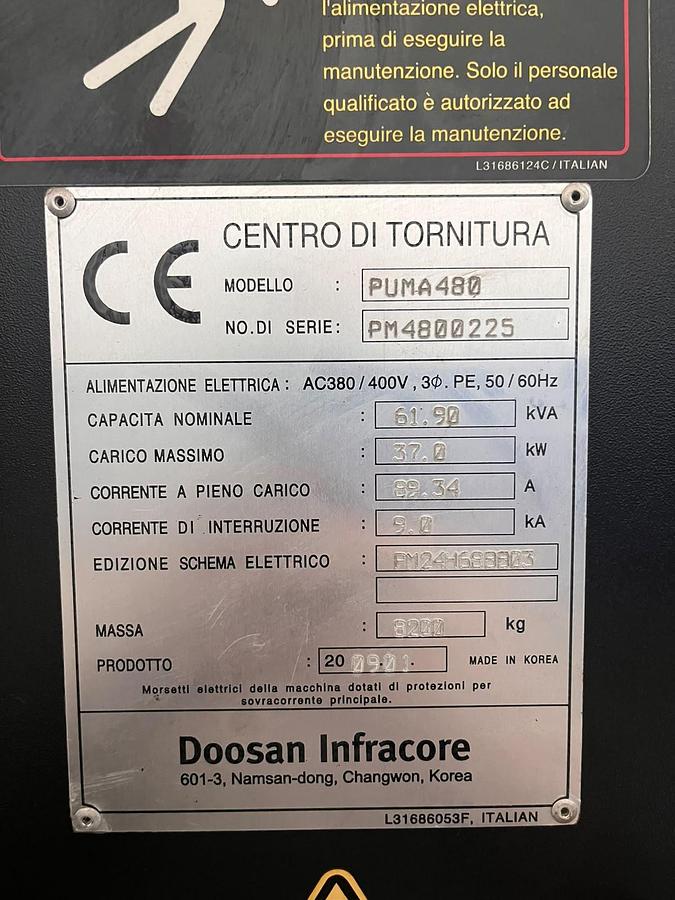

Year 2009 N/S PM4800225 Chuck Chuck nose           ASA       A1-15 Standard hydraulic self-centering chuck with 3 jaws, diameter      mm      533 Chuck spindle rotation speed with continuous variation      min⁻¹   15–1500 Speed ranges with automatic gear shift           nr.          2 Spindle motor power (continuous/30 min.)               kW         37/45 Maximum available power from the regime of        min⁻¹   145 Maximum spindle motor torque (continuous/30 min.)    Nm        2431/2957 Front bearing diameter          mm      240 Spindle bore diameter        mm      181 Internal diameter of the drawbar               mm      166.5 Travel X axis travel  mm       362 Z axis travel  mm       1105 Rapid traverses for X/Z axes m/1′     16/20 Machining traverses for X/Z axes in linear interpolation (max.) mm/rev            500/500 X/Z ball screw diameter         mm      40/50 Automatic bidirectional turret with hydraulic clamping Turret stations           nr.          10 Indexing time (1 station)          s             0.9 Coupling disc diameter mm      320 Clamping force   kg          16000 Tool sizing for turning / boring       mm      32×32 / Ø80 Tailstock Tailstock body in cycle (via automatic carriage clamping) Tailstock quill in cycle Integrated tailstock rotor with Morse taper 5 Tailstock diameter / travel   mm      Ø120/120 Maximum rotating diameter on the bed          mm      900 Maximum rotating diameter on the carriage             mm      720 Maximum turning diameter on the bed        mm      650 Maximum turning length from self-centering    mm       992 Maximum turning diameter from bar           mm      165.5 Maximum allowed overhang weight kg          900 (Including self-centering) Maximum allowed weight using tailstock        kg          2200 (including self-centering) Automatic tool setting by descent / ascent (with button and M code) High-pressure automatic cooling system               bar        6 Coolant sump capacity, liquid capacity           liters        280 Weight    kg           8550 NON-OBLIGATORY DATA TO BE VERIFIED
