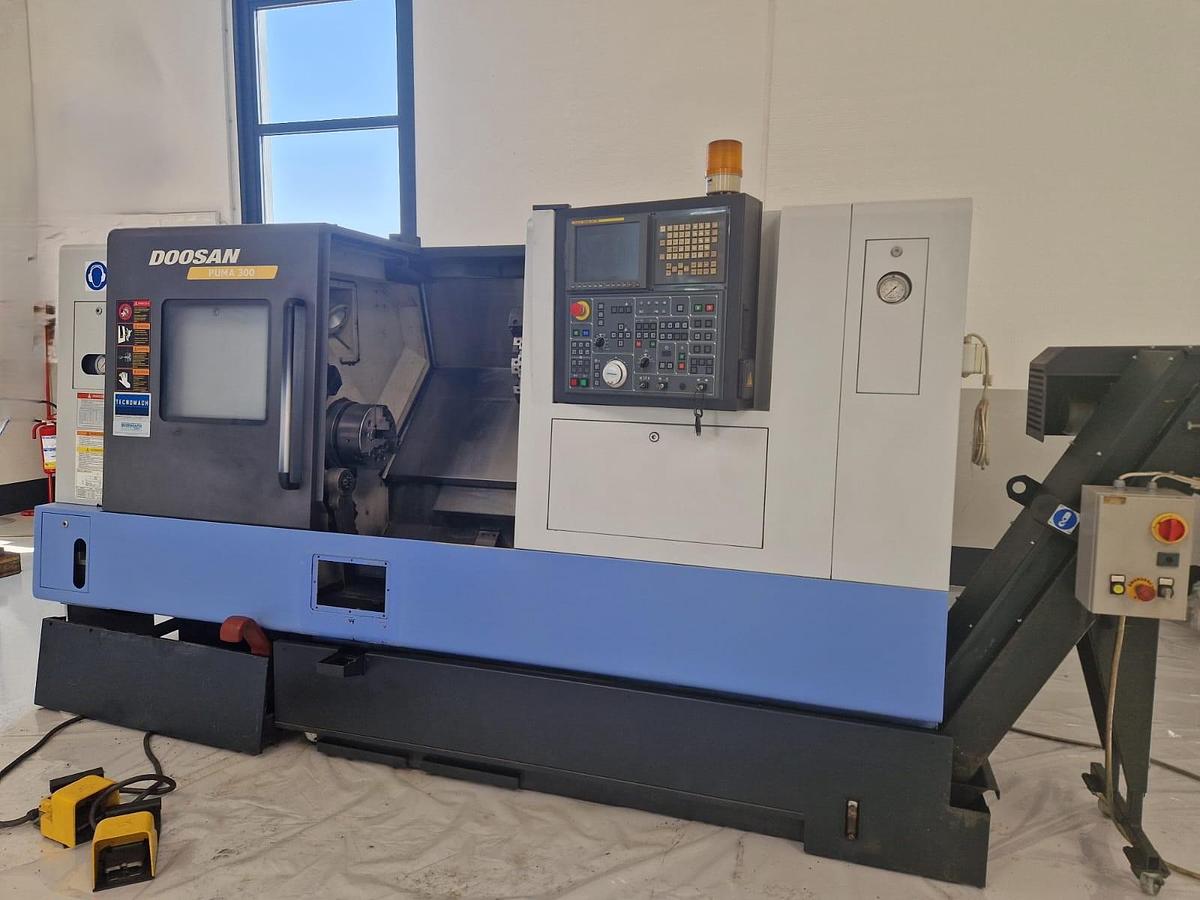

2007 DOOSAN PUMA LATHE model 300 B

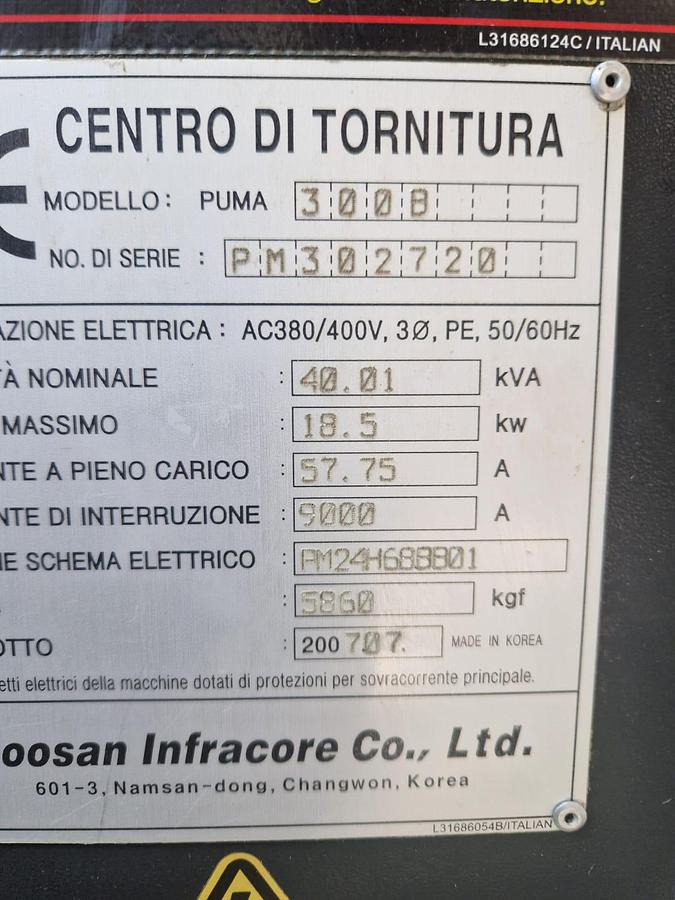

YEAR 2007 N/S PM302720 MAXIMUM ROTATING DIAMETER ON THE STAND 670 mm MAXIMUM SPINNING DIAMETER ON THE CARRIAGE 450 mm MAXIMUM TURNING DIAMETER ON THE STAND 400 mm MAXIMUM TURNING LENGTH FROM AUTO-CENTERING 648 mm CHUCK ATTACHMENT ASA-A2 8” HYDRAULIC AUTO-CENTERING Ø 250 mm DIAMETER OF CHUCK LINE HOLE 86 mm DIAMETER OF TOOL BAR PASSAGE 77 mm SPINDLE SPEED rpm 35-3,500 SPEED RANGE CONTINUOUS VARIATION 2 MAXIMUM AVAILABLE POWER kw 18.5/22 LONGITUDINAL SLIDE STROKE Z AXIS mm 680 CROSS SLIDE STROKE X AXIS mm 282 APPROXIMATE WEIGHT Kg 5860 NON-COMMITMENT DATA TO BE VERIFIED
