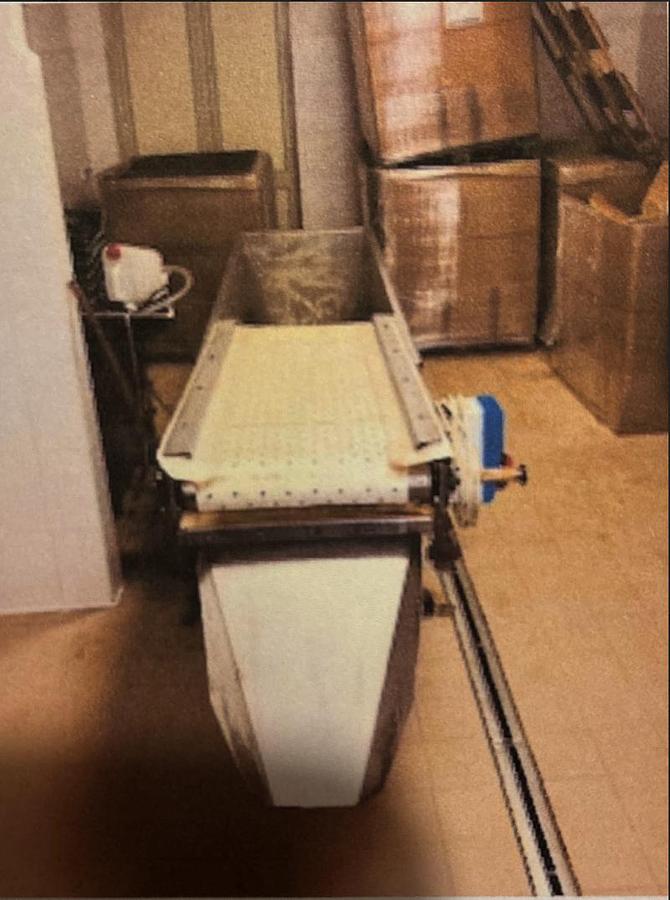

2018 Custom-Built Fruit Arils Separation Tank with Conveyor Belt

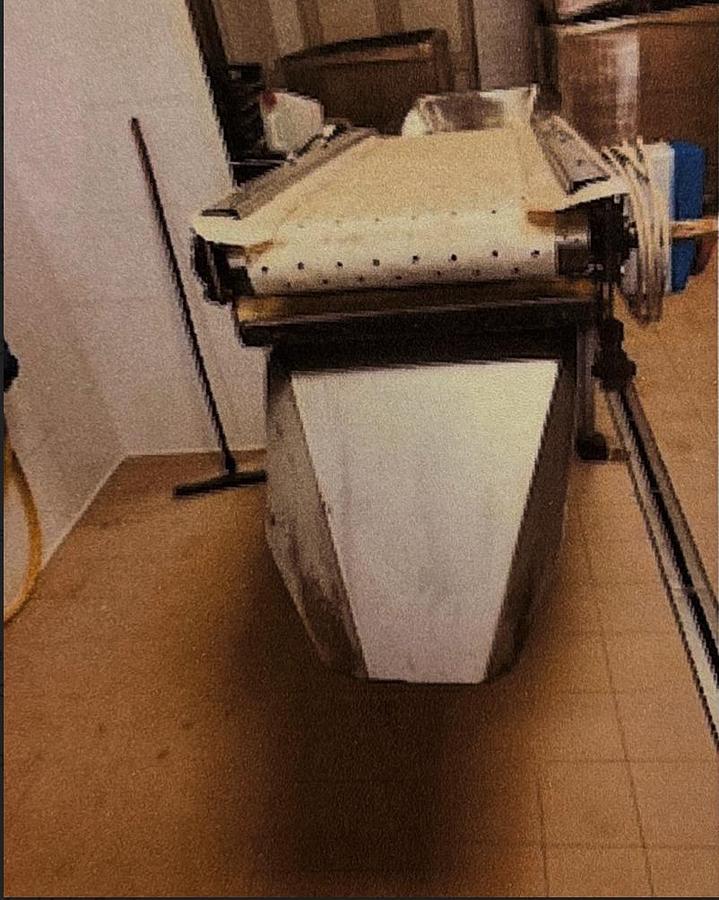

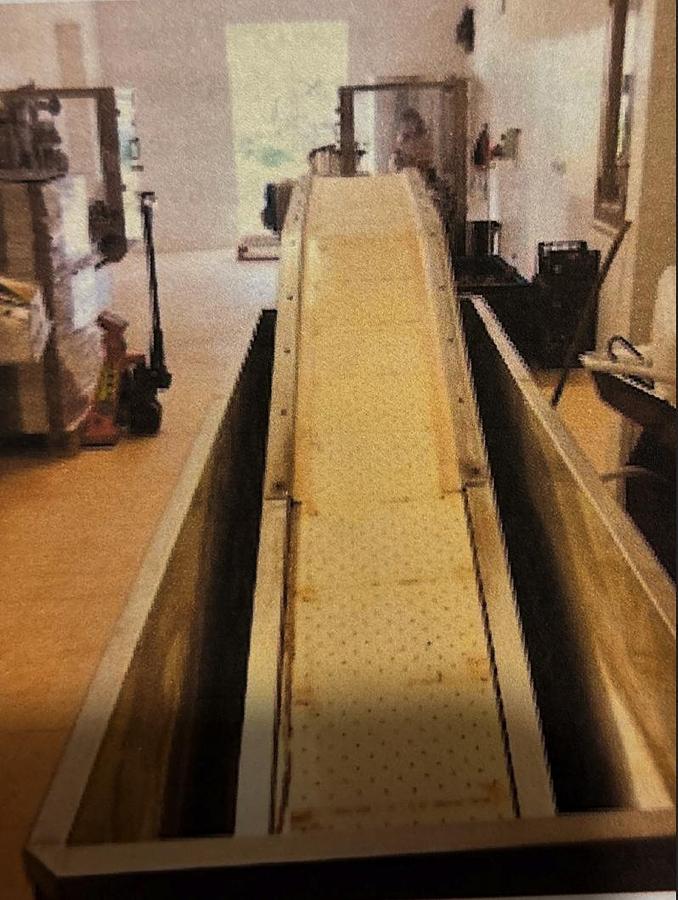

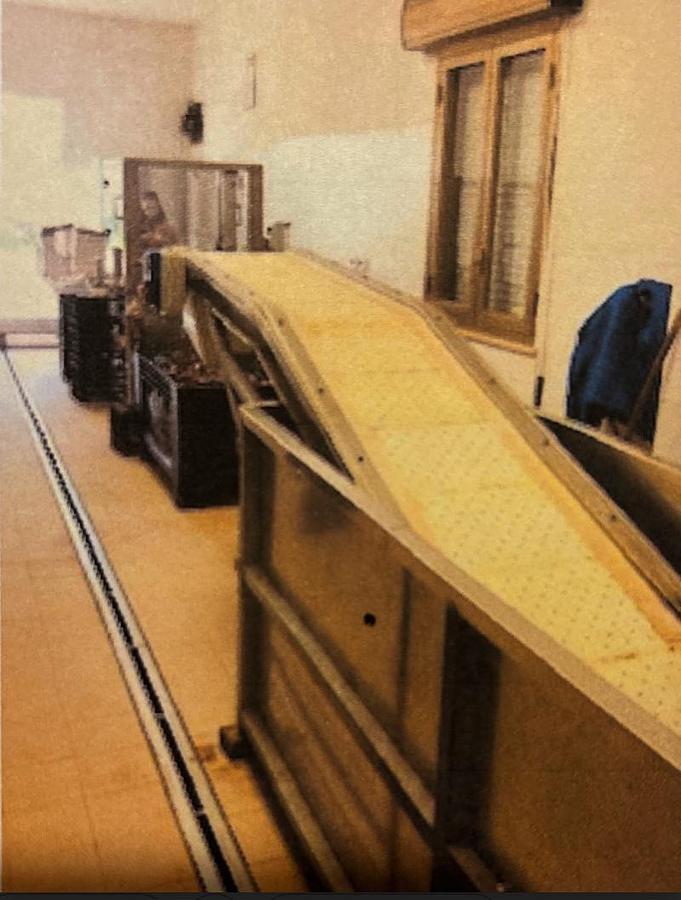

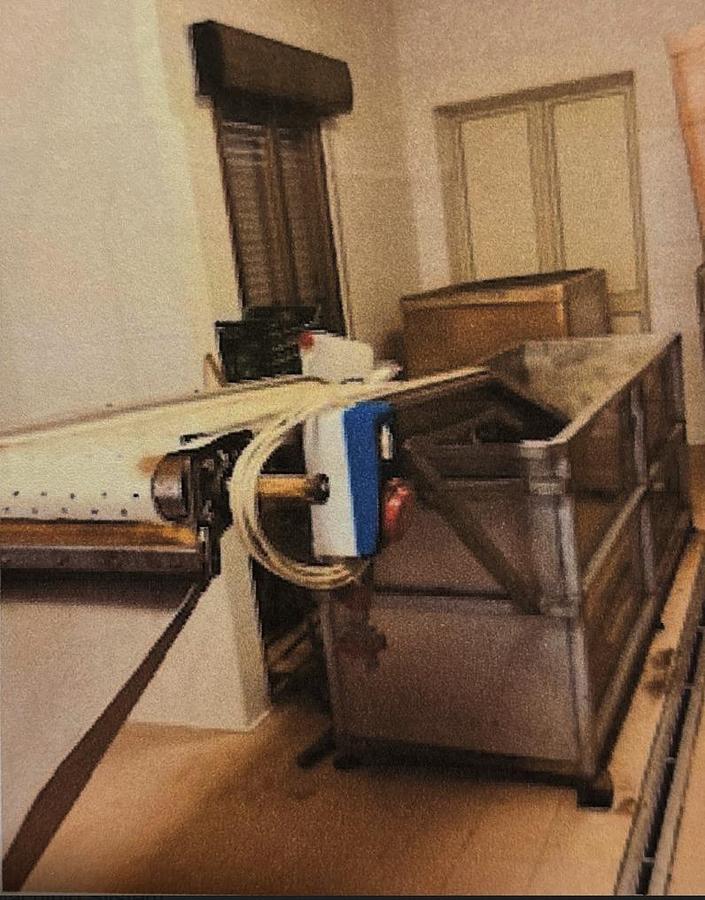

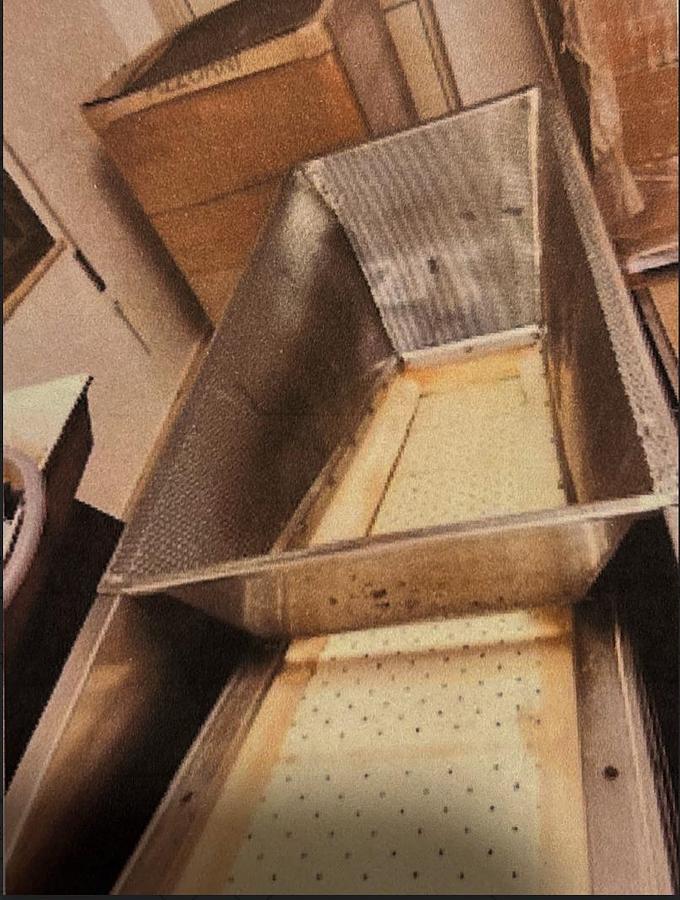

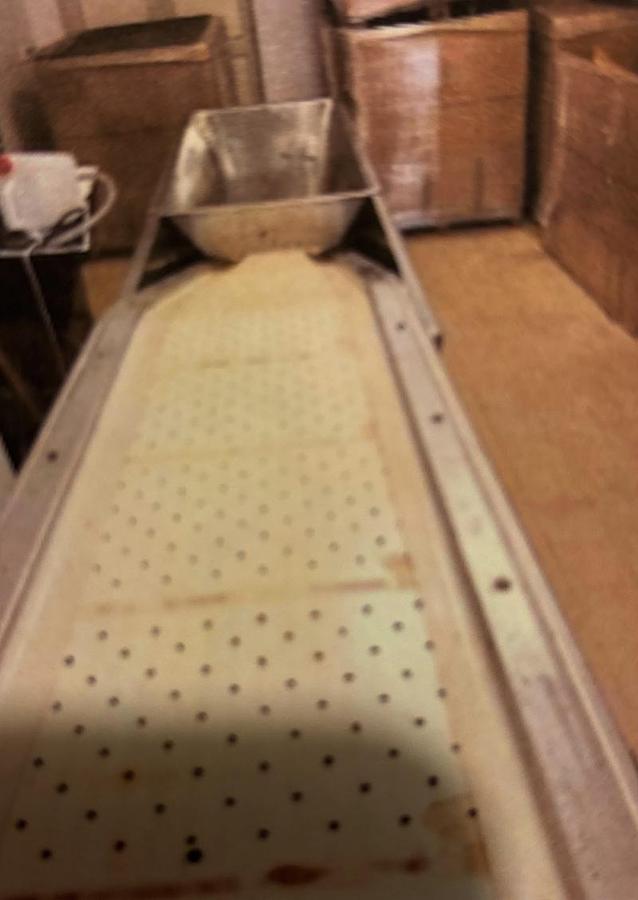

Custom-designed fruit (pomegranate) processing system used to separate arils from the white tannic pith of the fruit through a flotation method, where the pith rises to the surface for removal while arils are conveyed away for collection. The system consists of a stainless steel tank for the flotation process, connected to an inclined and straight-section conveyor belt fitted with a perforated PVC belt, stainless steel structure, slats, rollers, perforated sheet metal cladding, gear reducer, and electrical control panel. An operator platform and an elevated access platform with stairs and safety railing are included for supervision and maintenance access. Used in fruit processing facilities for pomegranate arils extraction and separation ahead of packaging or juice production.

Technical Specifications

• Manufacturer: Metalmeccanica Renda Srl (Marsala, TP, Sicily)
• Year of construction: 2018
• Machine type: Custom flotation separation system with conveyor
• Conveyor belt width: 480 mm
• Conveyor belt length: 4.00 m
• Belt material: Perforated PVC, 400 mm
• Conveyor structure: Stainless steel, inclined + straight sections
• Tank material: Stainless steel 304

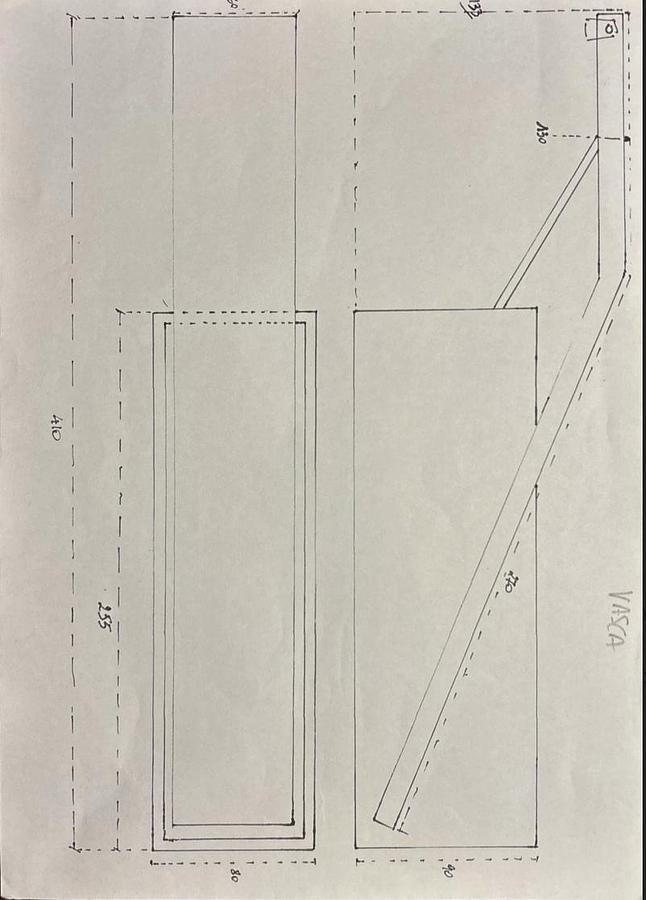

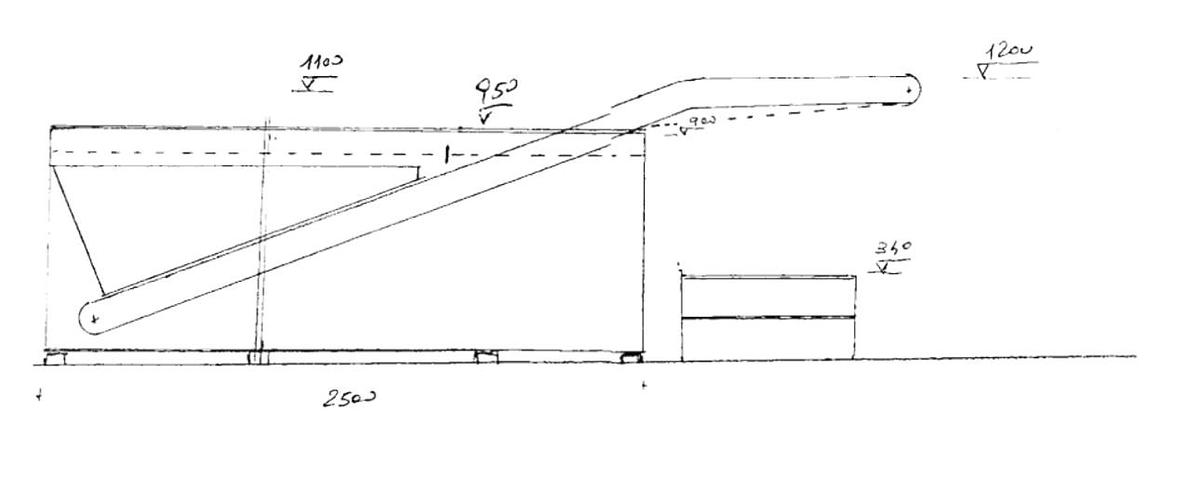

• Tank dimensions: 700 x 2,500 x 900 mm
• Operator platform: Iron, 700 x 340 mm
• Access platform: Iron, 1,600 x 2,500 mm, height 1,100 mm, with stairs and safety railing
• Operating hours: Approx. 600 hours since purchase
• Condition: Used, regularly maintained and cleaned, excellent technical condition

Suitable for

Fruit (pomegranate) processing, arils separation, fruit flotation separation, juice production equipment, fruit processing machinery, custom food processing equipment, arils extraction, fruit packing line

Contact for price and viewing.
