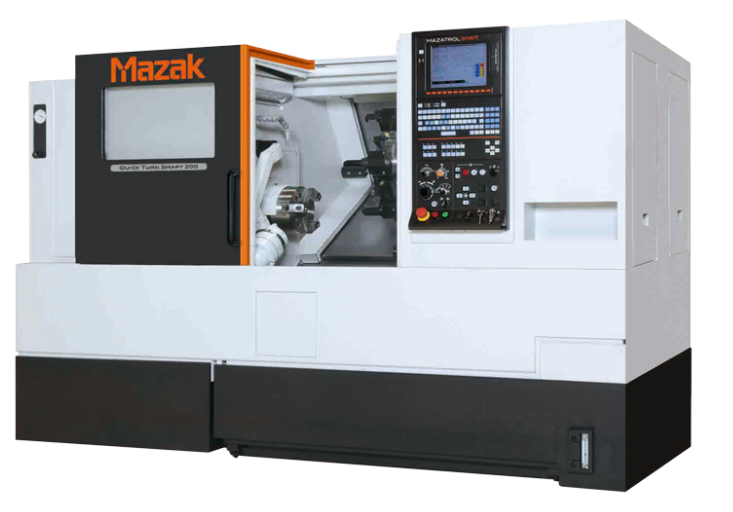

2015 MAZAK LATHE model QUICK TURN SMART 200M L

Year 2015 N/S 263522 Self-centering size Ø 203 mm Maximum workable diameter Ø 660 mm Standard workable diameter Ø 235 mm Maximum machining diameter Ø 360 mm Bar processing capacity 65 mm Distance between spindle nose and Turret 81-681 mm SPINDLE Speed 5000 rpm Spindle nose end shape JIS A2-6 Hole Ø76 mm Motor power 18.5/15 Kw Maximum torque 358 Nm COUNTER-TAILSTOCK Central hole MT No.5 Tailstock travel 565 mm Minimum thrust 1000*8 N Maximum thrust 5000 N TURRET No. of tools 12 Tool size Turret external 25 mm Turret internal 40 mm Drilling 20 mm Boring 20 mm Indexing time next/opposite position 0.23/0.62 s Spindle milling motor power 5.5/3.7 kW Spindle milling speed 4500 rpm Maximum milling spindle torque 47 Nm FEED AXES Rapid traverse X/Z 30 m/min Feed constant RT X/Z 65 ms X travel 225 mm Z travel 605 mm Overall dimensions 2630x1680x1700 mm WEIGHT 4900 KG NON-BINDING DATA TO BE VERIFIED
