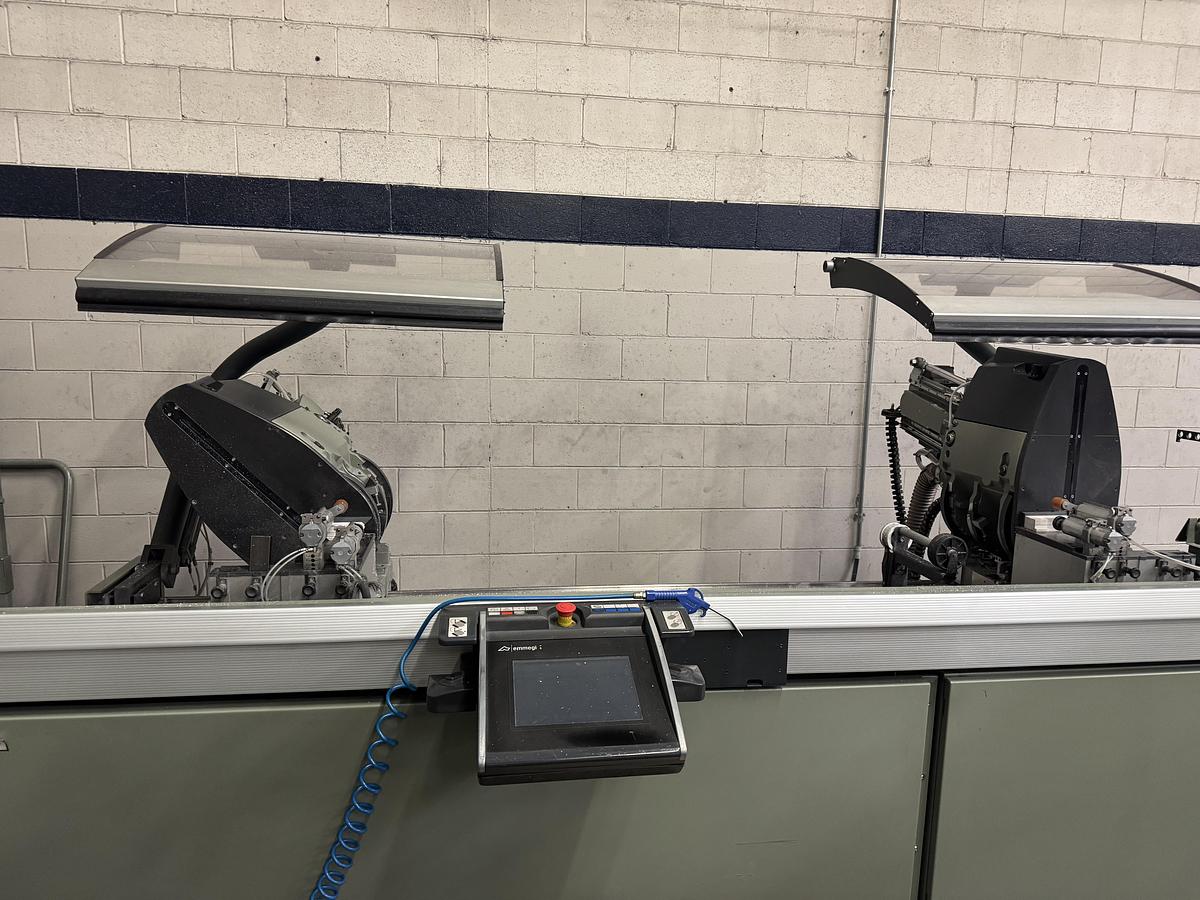

2015 Emmegi Precision TS2 Double Head Electronic Miter Saw

Electronic double-head miter saw manufactured by Emmegi, model Precision TS2, built for industrial cutting of aluminum, PVC, and light alloy profiles used in window and door frame production. The machine operates on 3 CNC-controlled axes: the X axis positions the mobile cutting head automatically along the bed at a set length, using an absolute magnetic band measuring system for direct position feedback without recalibration; the Y and Z axes control independent motorized tilting of both cutting heads across a range from 45° internal to 15° external, with electronic control dividing each degree into 280 discrete positions for angle precision. The tilting mechanism uses a patented virtual rotation axis rather than a central pivot pin, keeping the cutting area free of mechanical obstructions and allowing consistent profile positioning on the cutting table regardless of profile height or geometry. Cutting units are equipped with two 550mm diameter tungsten carbide (Widia) disc blades, each driven by a dedicated 2.64 kW motor, with hydro-pneumatic front-feed cylinders controlling blade advance for smooth, adjustable cutting motion. The control console features a 10.4" orientable touchscreen running on a Windows-based operating system with proprietary Emmegi cutting list management software, supporting automatic import of work lists via LAN or USB directly from window/door design software.

Technical Specifications:

Brand: Emmegi

Model: Precision TS2

Type: Double-head electronic miter saw, 3 CNC-controlled axes

Year of manufacture: 2015

Cutting length capacity: 5m / 6m (to be confirmed)

Blade diameter: 550 mm

Blade material: Tungsten carbide (Widia)

Blade motors: 2x, 2.64 kW each

Head positioning speed (X axis): 25 m/min

Position measurement: Absolute magnetic band

Tilting angle range: 45° internal to 15° external

Angle resolution: 280 positions per degree

Blade advance: Hydro-pneumatic cylinders, front feed

Control panel: 10.4" orientable touchscreen, Windows-based OS, proprietary Emmegi software

Data import: LAN or USB connection

Documentation: CE certification and original manuals included

Condition: Regularly maintained, fully functional

Suitable for: aluminum profile cutting, PVC window and door fabrication, CNC miter cutting, industrial window frame production, precision profile cutting equipment

Contact for price and viewing.

The above description is provided for informational purposes only. Specifications are based on available information. Buyer is responsible for independent verification prior to purchase.

Non-binding information to be verified at purchase.
