2000 Ausonia PEO500SWD, Diesel Generator Set 500 kVA / 400 kW

Ausonia PEO500SWD three-phase industrial diesel generator set, manufactured 2000, serial number 12677, performance class A1. Powered by a Perkins 3008-TAG4 six-cylinder inline diesel engine producing approximately 400 kW mechanical power at 1,500 RPM, liquid-cooled with direct injection. Alternator by Marelli Motori, model M7B 315 MB 4, rated 500 kVA / 400 kW at cos φ 0.8, 400V, 721.7A, 50 Hz, insulation class F, IP23. Ausonia analogue control panel with engine start/stop, voltage, current and frequency measurement, oil pressure, water temperature and fuel level indicators, plus electrical and thermal protection relays. Fixed installation with integrated Ausonia NCA-50E fuel tank. CE compliant at time of manufacture. Total weight 4,500 kg.

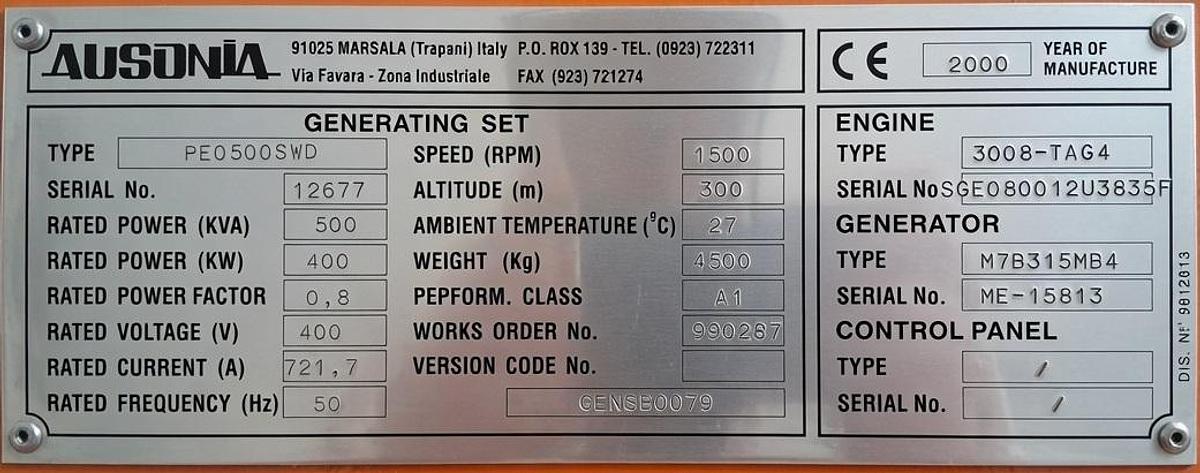

Brand: Ausonia

Model: PEO500SWD

Serial no.: 12677

Year: 2000

Performance class: A1

Rated apparent power: 500 kVA

Rated active power: 400 kW

Power factor: 0.8

Voltage: 400V

Current: 721.7A

Frequency: 50 Hz

Speed: 1,500 RPM

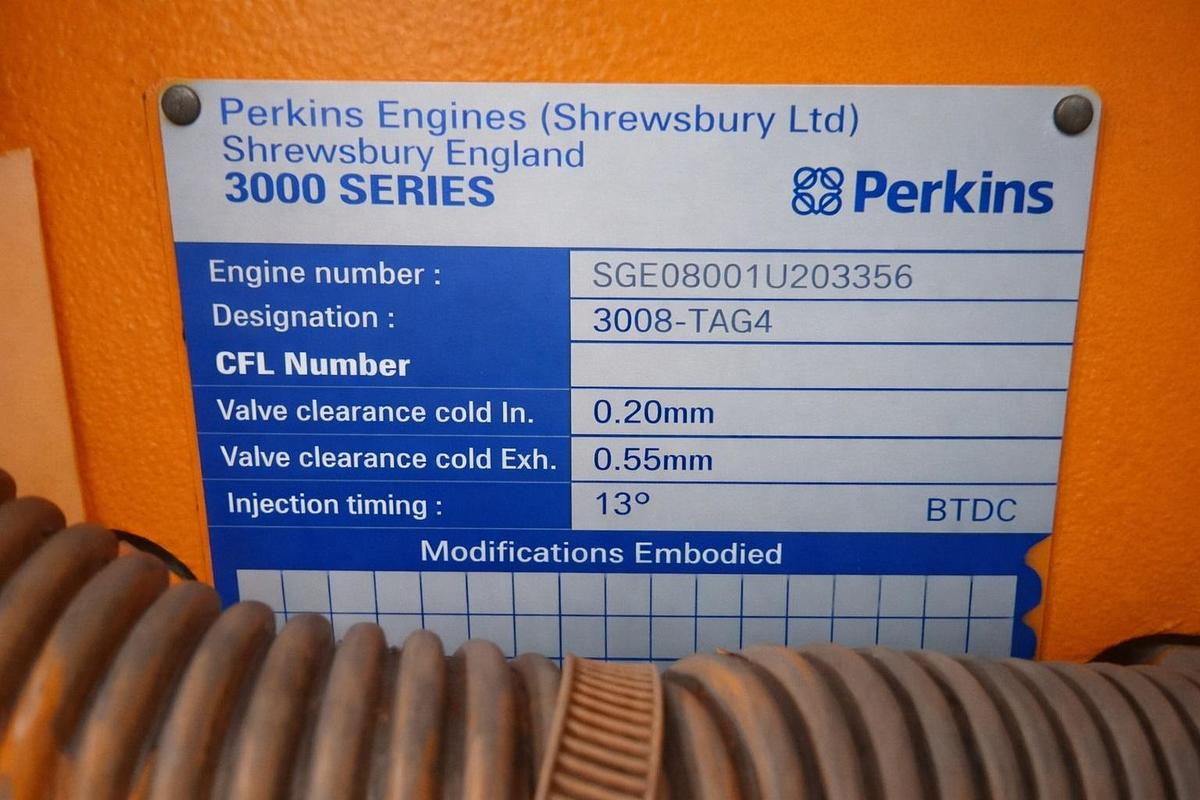

Engine: Perkins 3008-TAG4 — 6-cylinder inline diesel, liquid-cooled

Engine serial no.: SGE08001U203356

Engine power: approx. 400 kW mechanical

Injection timing: 13° BTDC

Valve clearance (cold) intake: 0.20 mm

Valve clearance (cold) exhaust: 0.55 mm

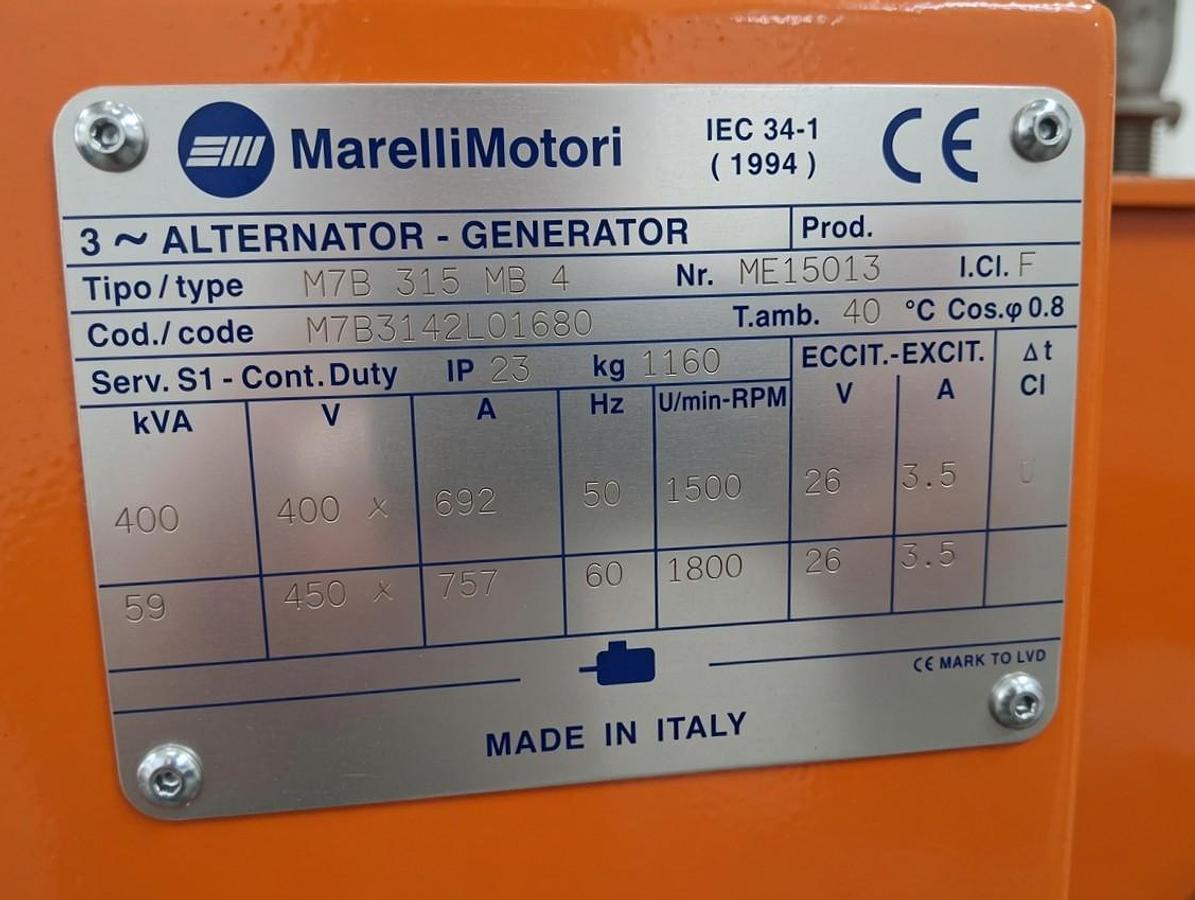

Alternator: Marelli Motori M7B 315 MB 4

Alternator serial no.: ME15013

Alternator weight: 1,160 kg

Insulation class: F

Protection grade: IP23

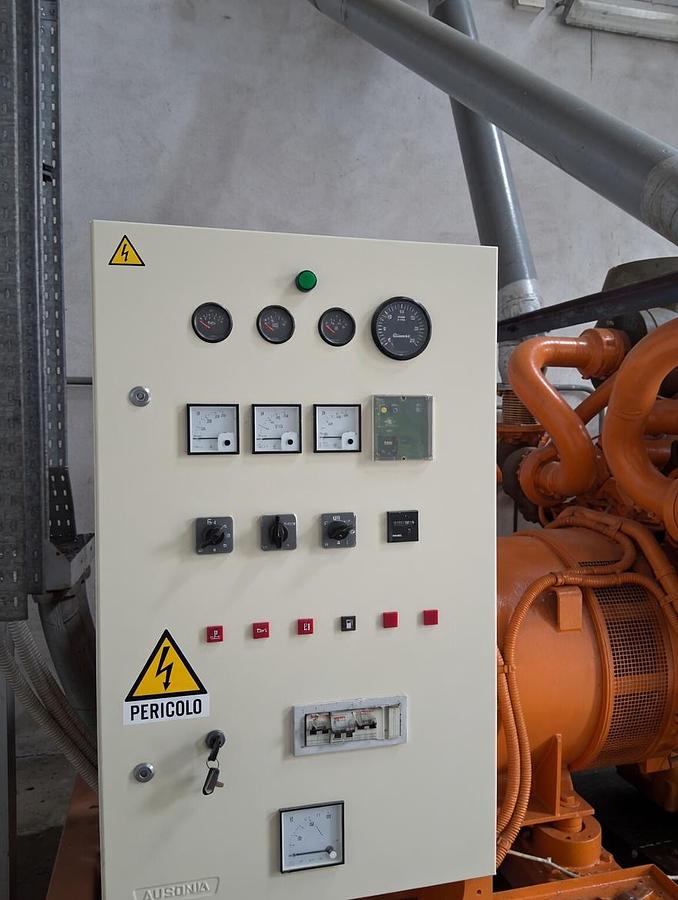

Control panel: Ausonia analogue — manual commands and measurement instruments

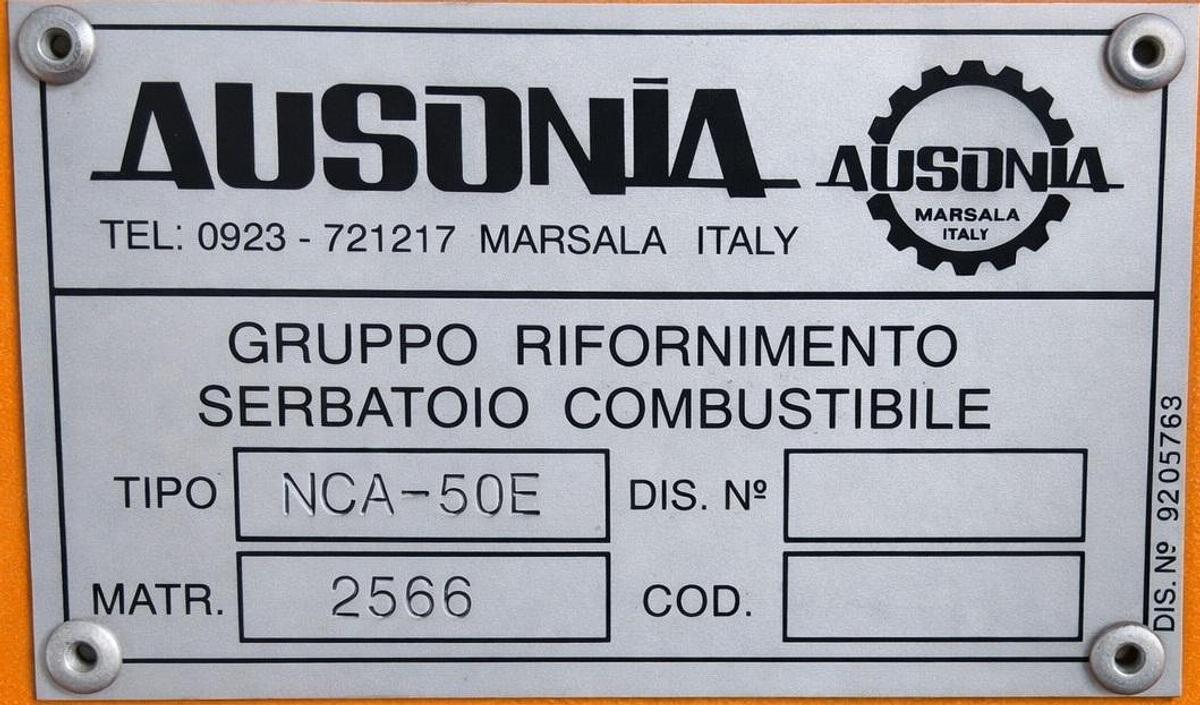

Fuel tank: Ausonia NCA-50E integrated

Total weight: 4,500 kg

Ambient temperature: 27°C nominal

Reference altitude: 300 m a.s.l.

Certification: CE

Condition: Used — contact for hours and operational status

Suitable for: industrial standby power, emergency power supply, off-grid power generation, construction site power, industrial plant backup power, data centre backup, water treatment and utility plant backup generation.

Contact for price and viewing.
