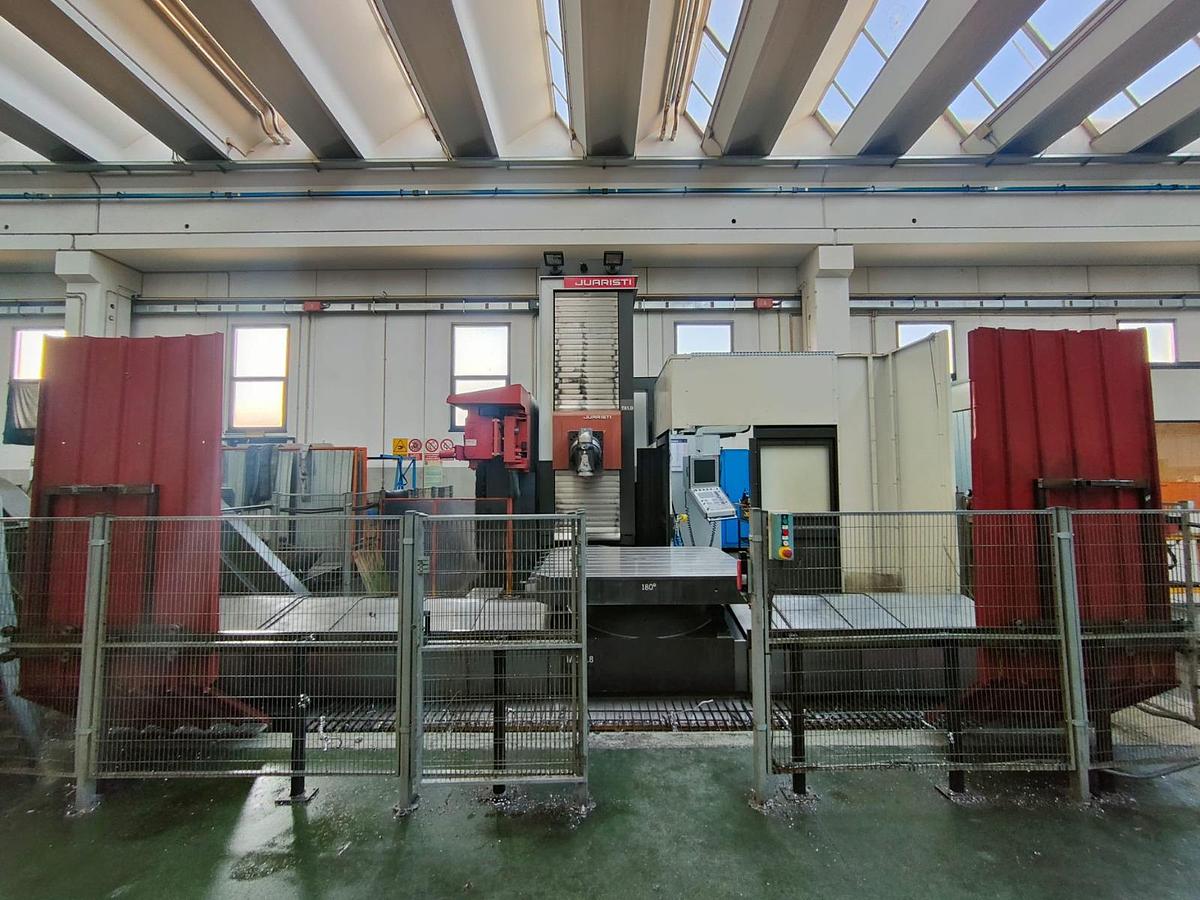

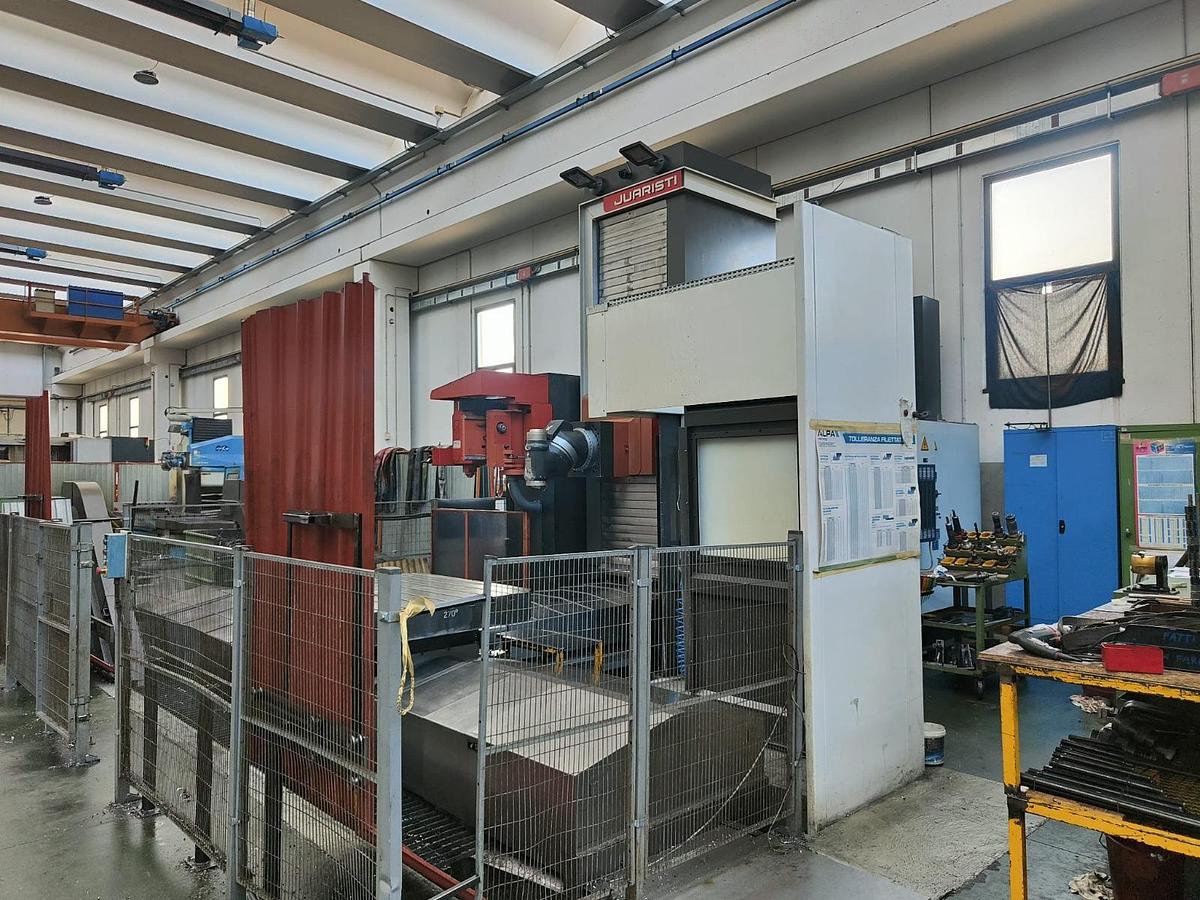

2019 MILLING MACHINE JUARISTI model.TX1-D

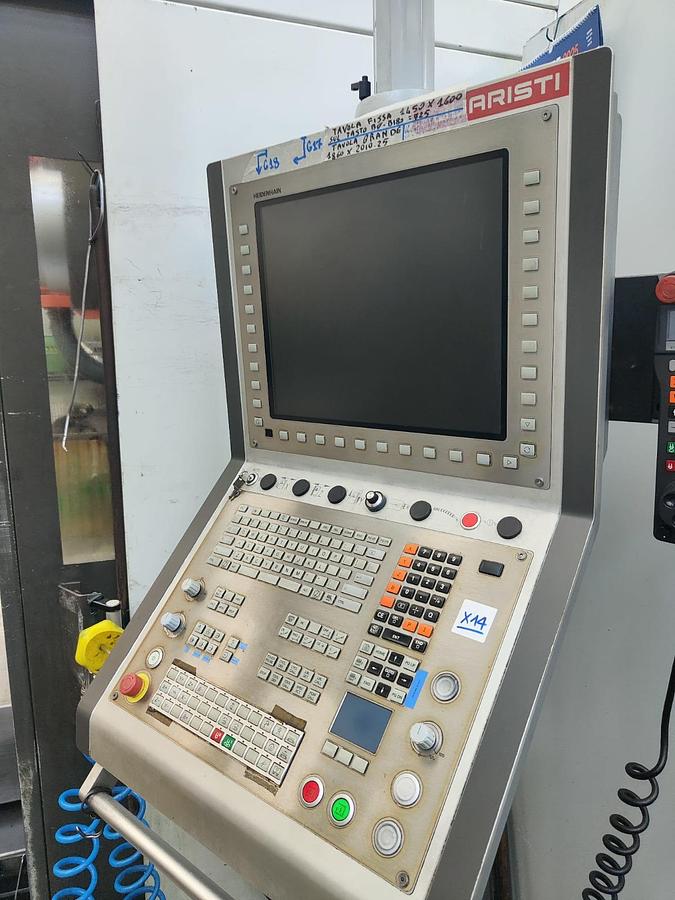

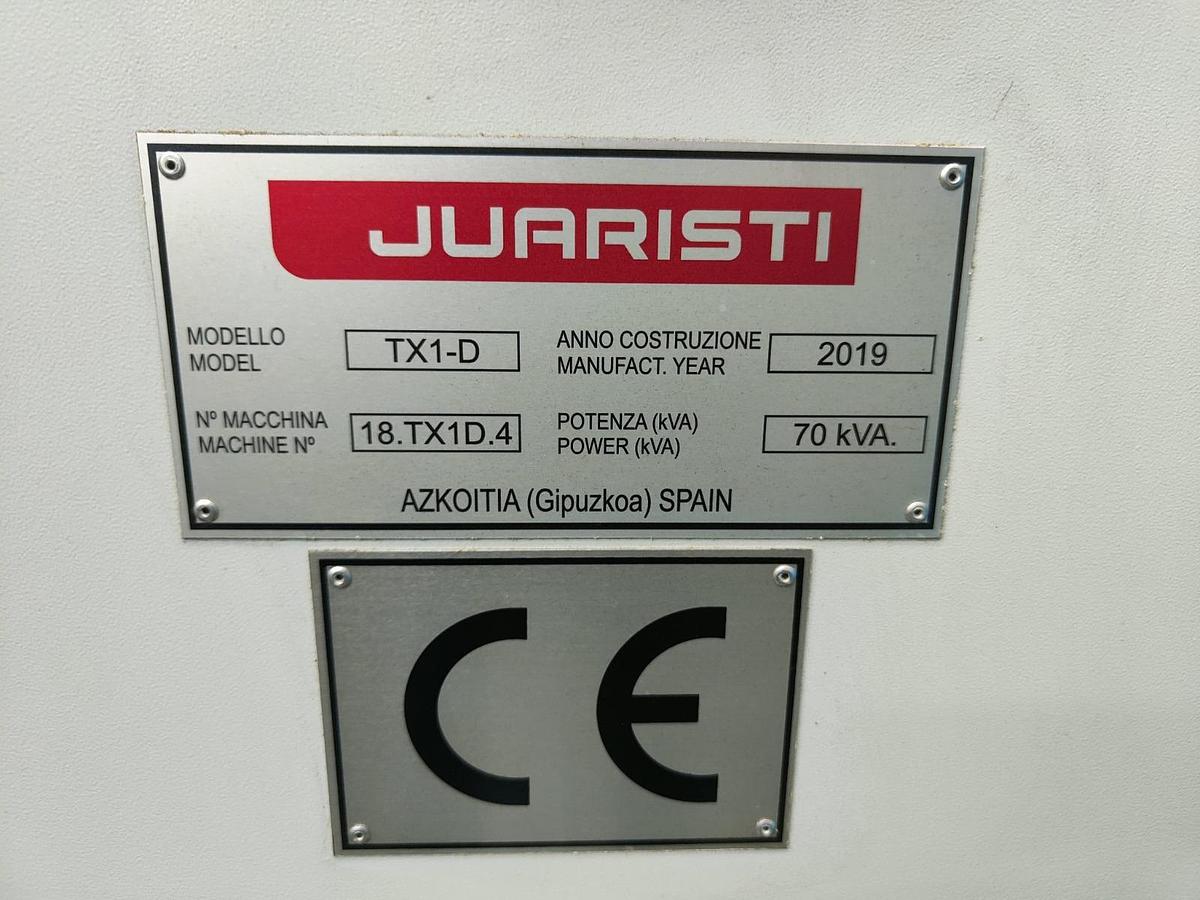

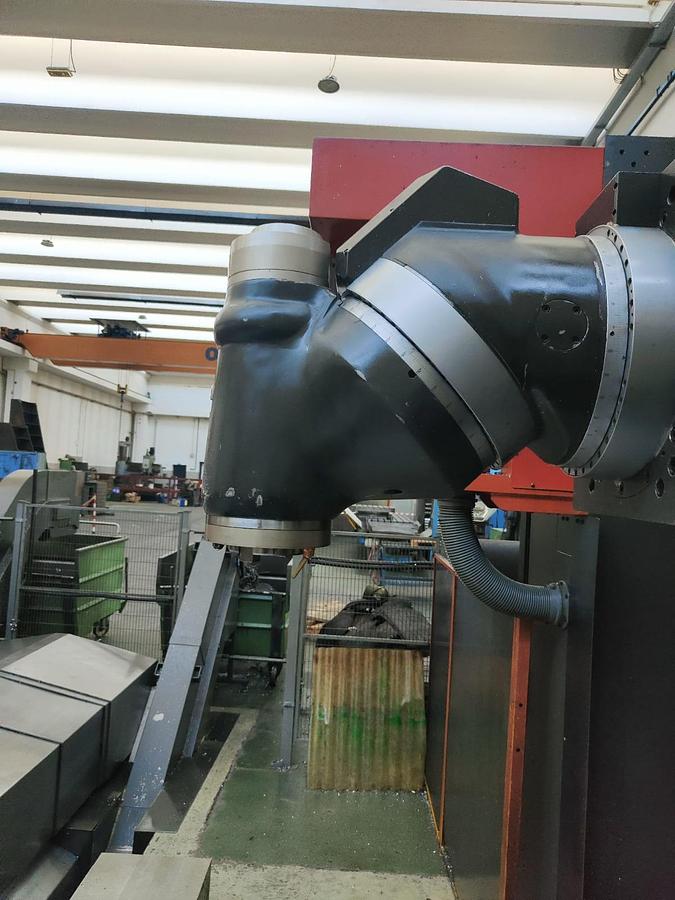

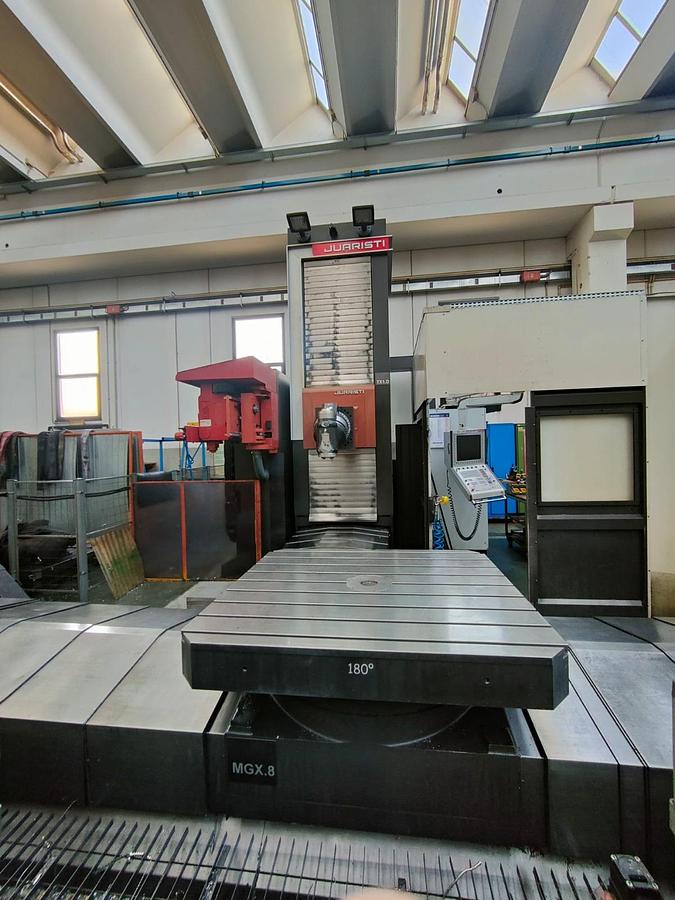

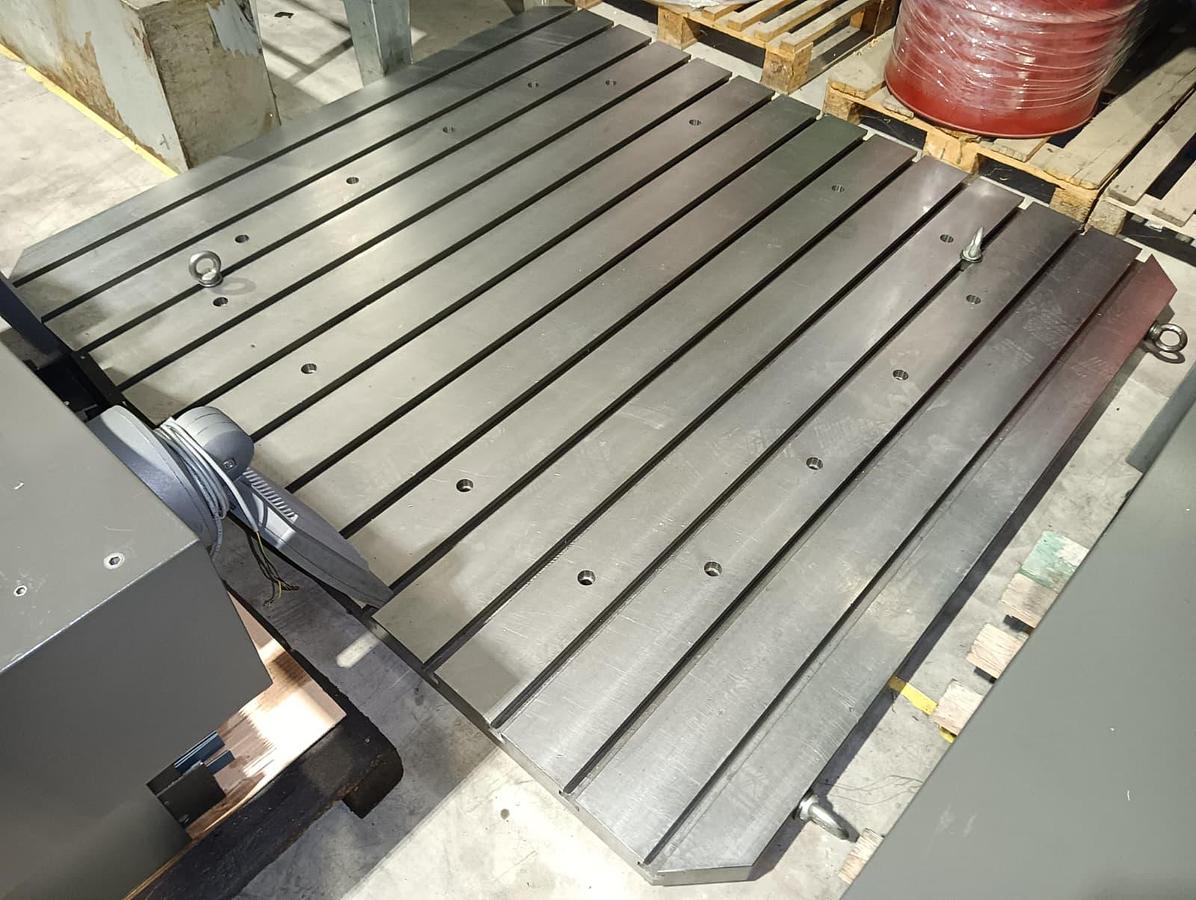

Year 2019 N/S 18.TX1 D.4 Working hours 9335 CNC Heidenhain TNC640 19″ Swivel table dimensions 1450 x 1600 mm Over-table 2000 x 1800 x 60 mm Swivel table load 8 Ton Axis Travel X 3000 mm Axis Travel Y 2000 mm Axis Travel Z 2000 mm ISO 50 spindle Maximum spindle power 40 Kw Maximum torque 2000 Nm Spindle speed 6000 RPM Automatic head millesimal acd2 40 KW Tool changer 60 positions Chip evacuator Internal/external spindle coolant X/Y/Z travel feeds 3-10 m/min Table travel feeds 0.1-1.5 rpm/min Rapid traverse X/Y/Z 30 m/min Table rotation rapid traverse 5 rpm/min MACHINE INSTALLED IN JANUARY 2020 MACHINE ORIGIN FROM CLOSURE OF ACTIVITY NON-BINDING DATA TO BE VERIFIED
