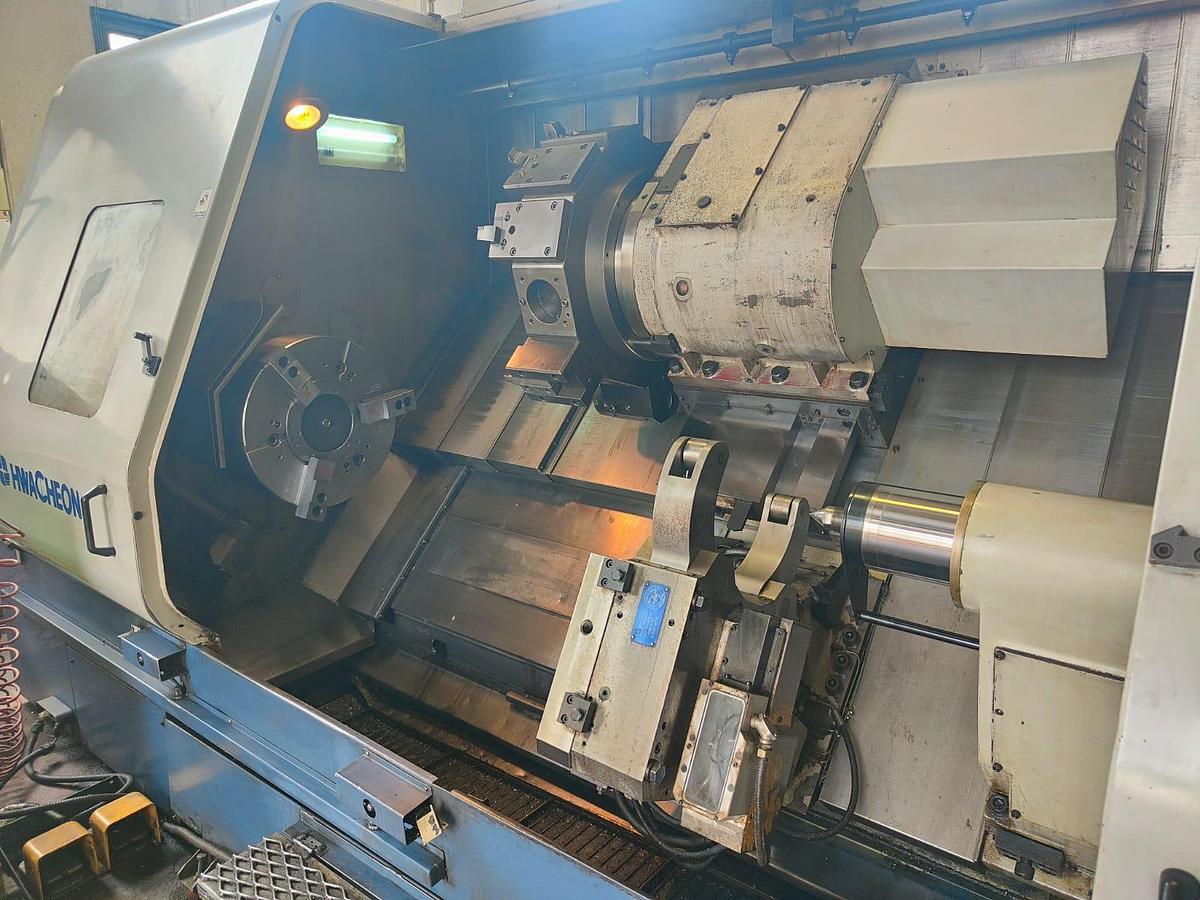

2004 HWACHEON LATHE MODEL HI-TECH 700
2004 HWACHEON LATHE MODEL HI-TECH 700
Contact us for price
Location:Bergamo, Italy
or
Call +39 02 9475 0001
Description

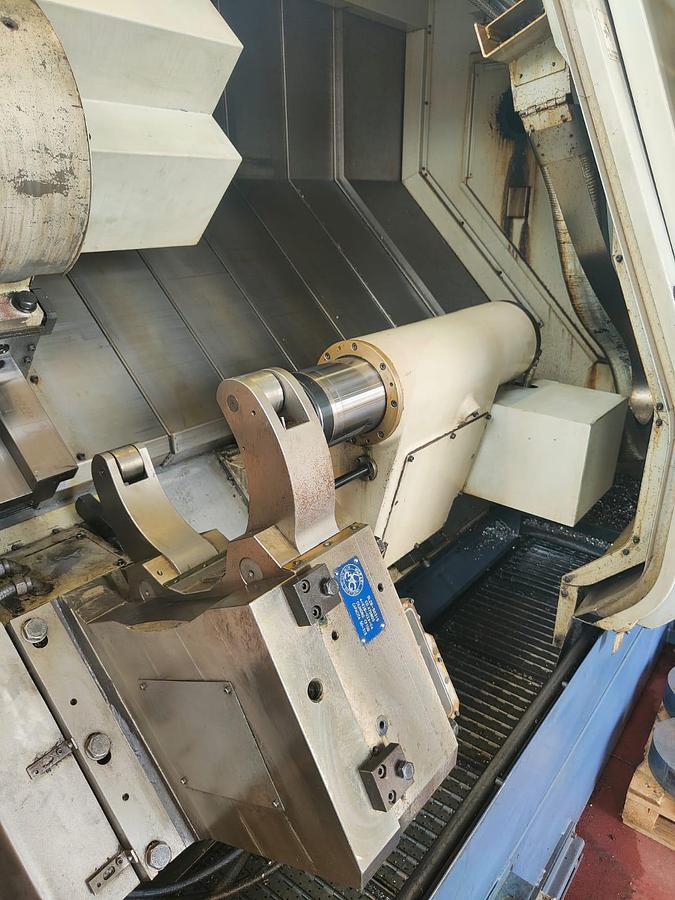

Complete with C-axis assembly, motorized and hydraulic tailstock

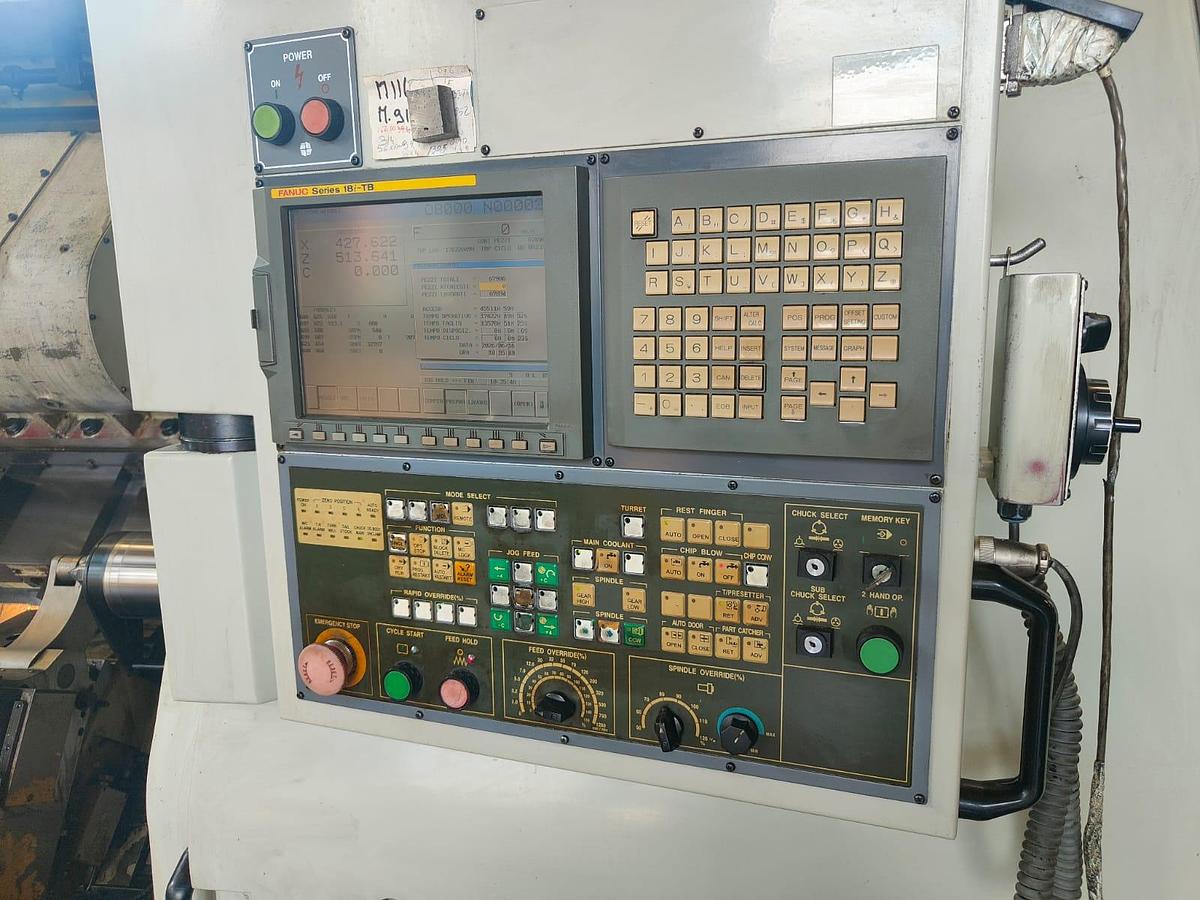

Cnc Fanuc 18i
⌀
max rotating on bed mm 900
⌀
max turning diameter mm 700
⌀
bar passage mm 115
X-axis rapid feed: M/Min: 24
Gauges no. 2

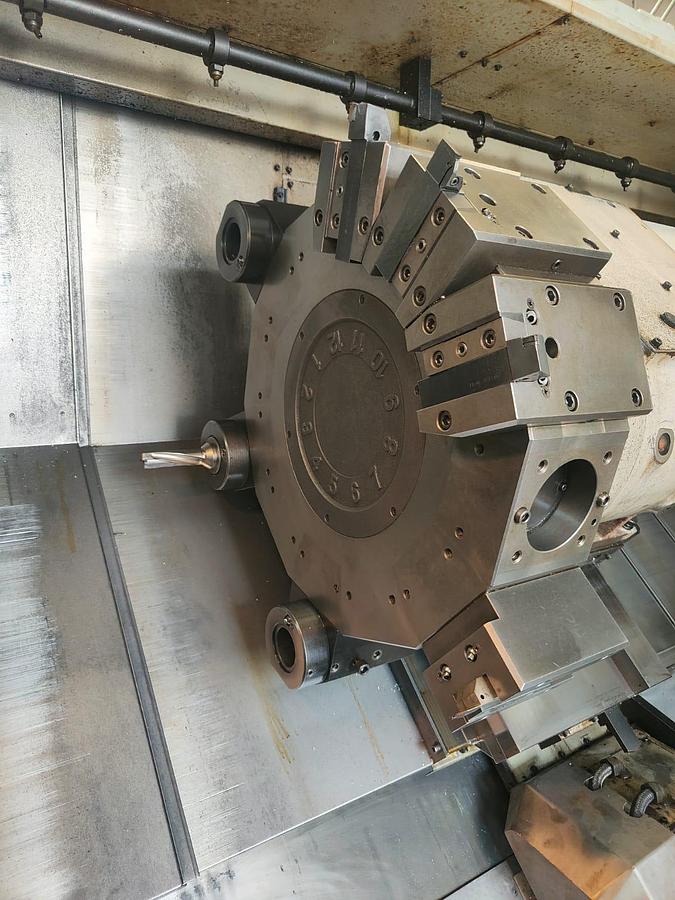

Tool positions no. 12
⌀
63
⌀
NON-BINDING DATA TO BE VERIFIED
Specifications
| Year | 2004 |
| Condition | Used |

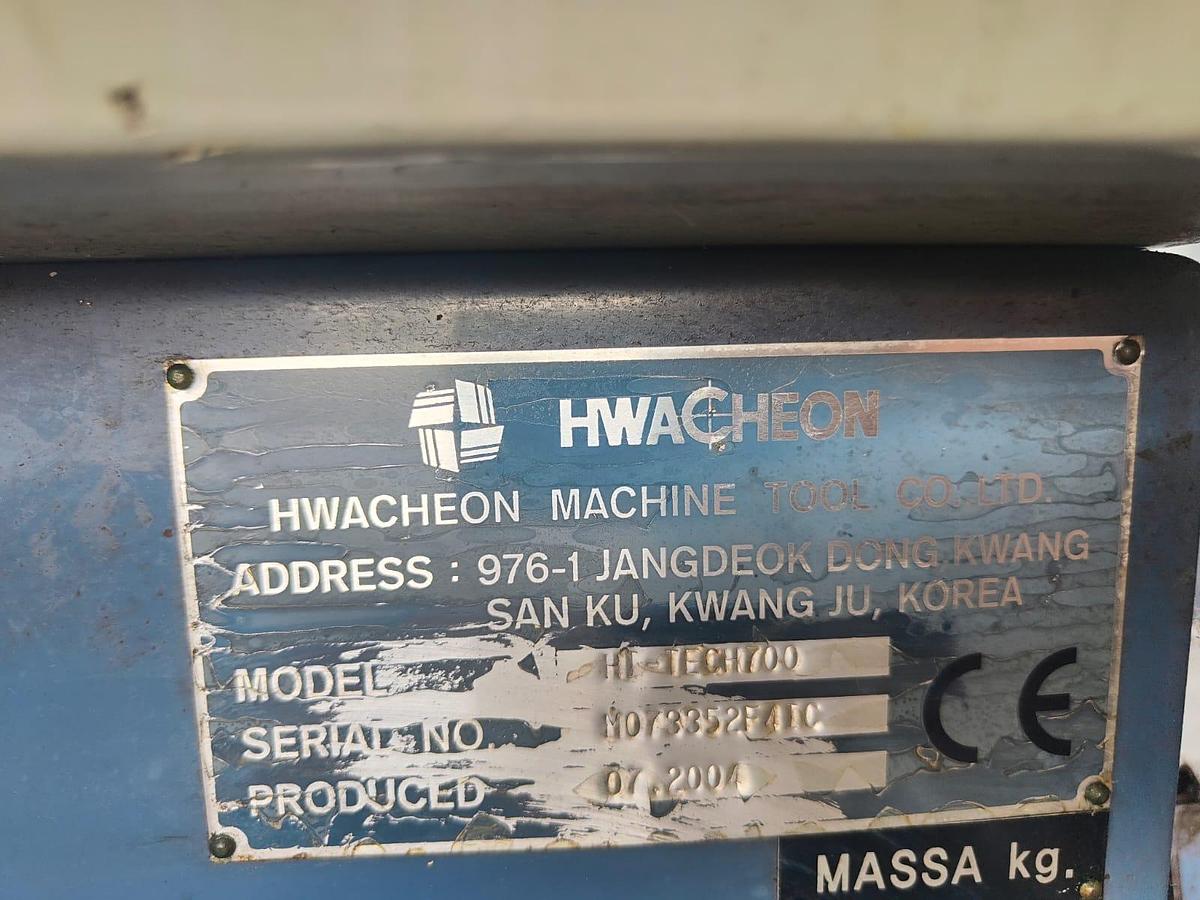

| Serial Number | MO73352F410 |
| Stock Number | TC0537 |
| Max turning length | 2000 mm |
| Distance between the tips | 2000 mm |
| Stroke x axis | 385 mm |
| Travel axis z | 2070 mm |
| Rapid z-axis | M/Min 24 |
| Spindle rotation speed | RPM 1800 |
| Spindle nose attachment | Asa 11 |
| Spindle motor power kw | 37 |
| Max tool size | Mm 32 |
| Tailstock sleeve | 150 mm |
| Race dinghy | 150 mm |
| Tailstock cone type | 5 Mt |

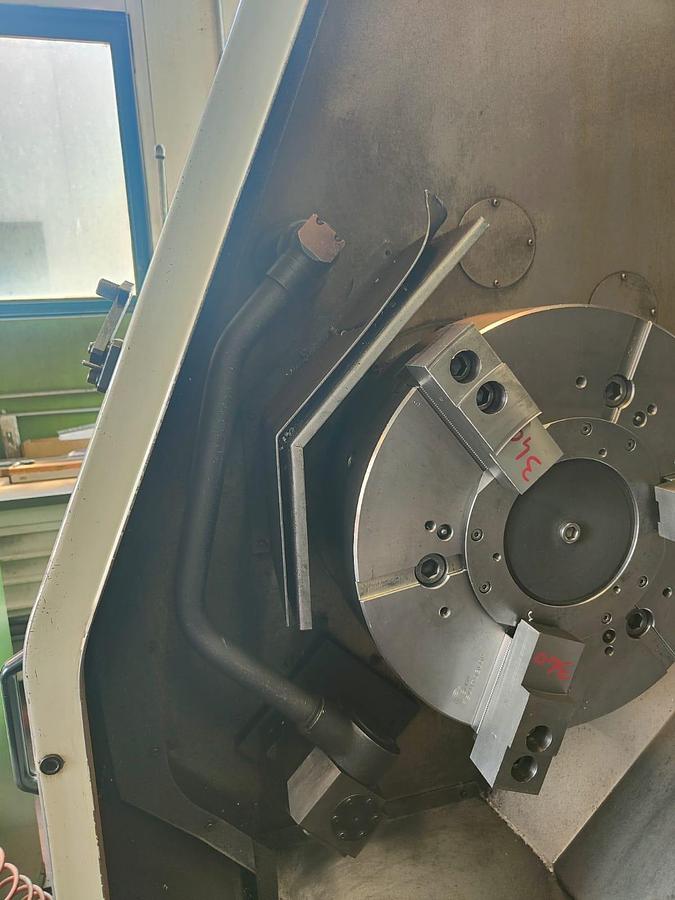

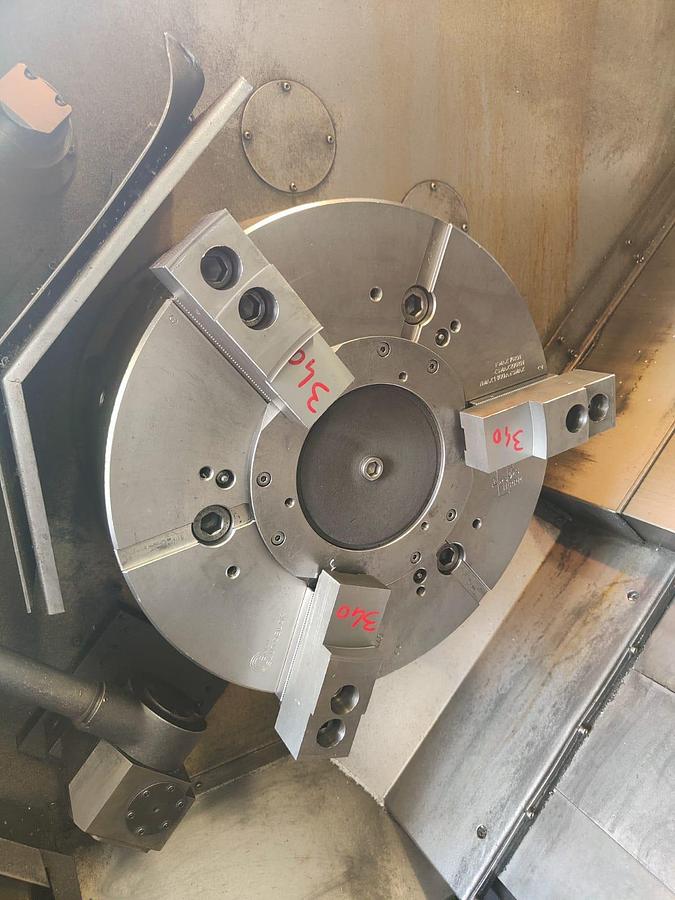

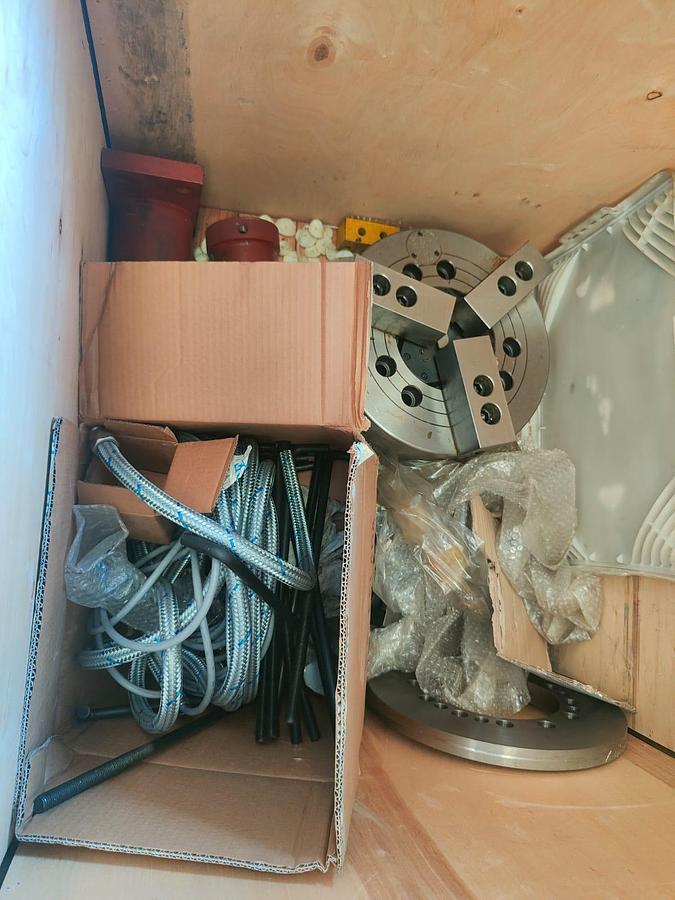

| Self-centering autoblock | diameter 400 mm |
