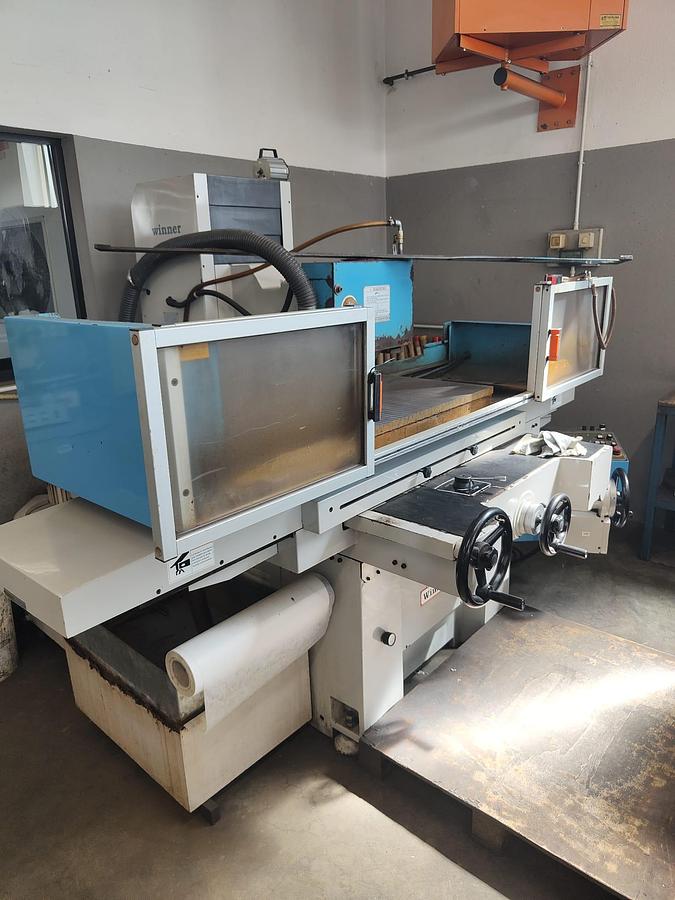

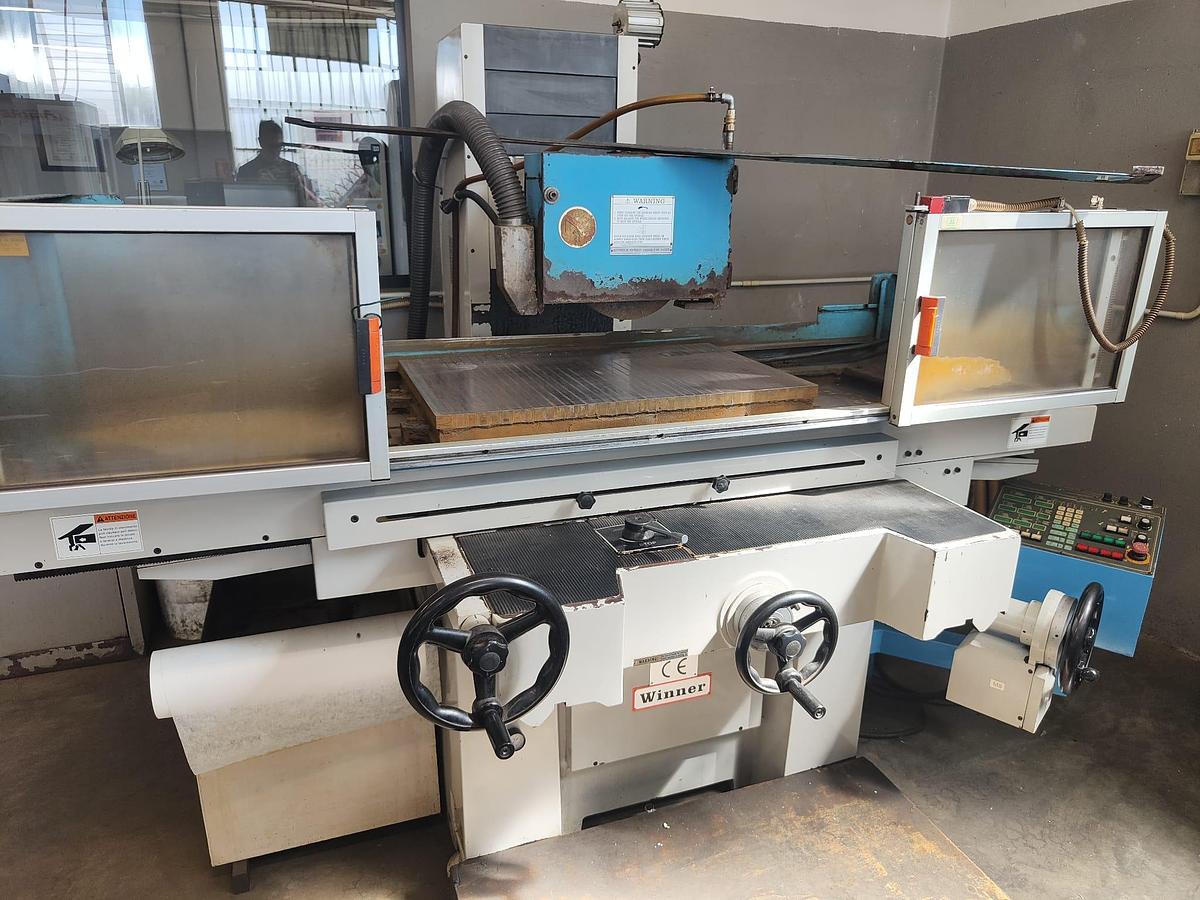

2003 WINNER MOD. CR 4080 AMR AT 5

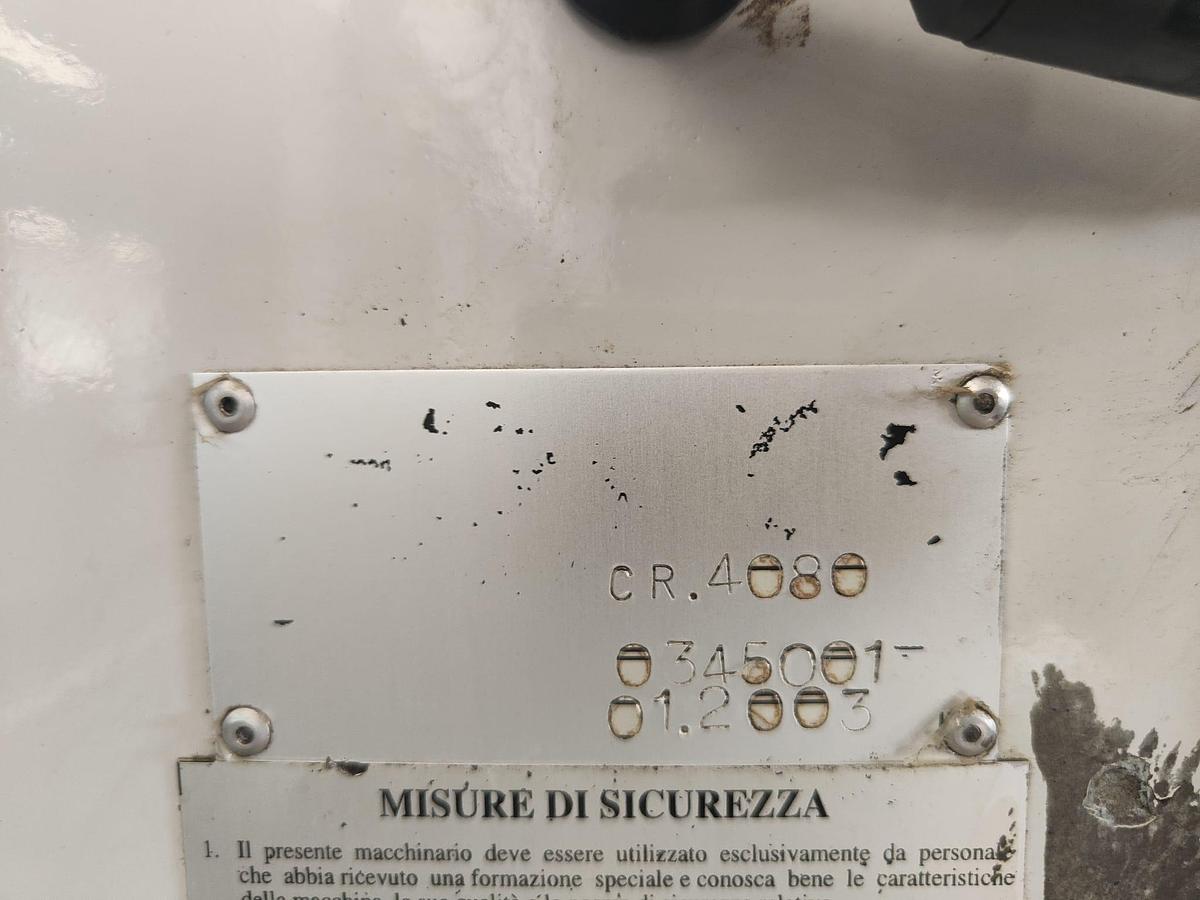

YEAR 2003 N/S 0345001 AXIS X RUN 800 mm AXIS Y RUN 400 mm Table dimensions 500 x 800 mm Retractable length 800 mm Maximum table width retractable 400 mm Standard magnetic table dimensions 500×800 mm Longitudinal manual travel 850 mm Hydraulic travel 820 mm Table speed 5-25 m/min Transverse manual travel 420 mm Rapid travel (2A/3A/AD) 410 mm Automatic increments 0.1-20 mm Graduation increments with handwheel 0.02 Increment with handwheel revolution 4 mm Rapid vertical feed advances 3A 180 mm Automatic movement (AD) 0.001-0.999 mm Graduation increments with handwheel 0.0005 mm Revolution increments with handwheel 1 mm Wheel diameter 406x51x127 mm Spindle speed 1740/1500 rpm Spindle motor power 5 HP Feed motors power 150 W Vertical feed motors power 1/2 HP Hydraulic motor power 2 HP Net weight 2300 Kg Packing size 2280x2280x2150 mm NON-BINDING DATA TO BE VERIFIED
