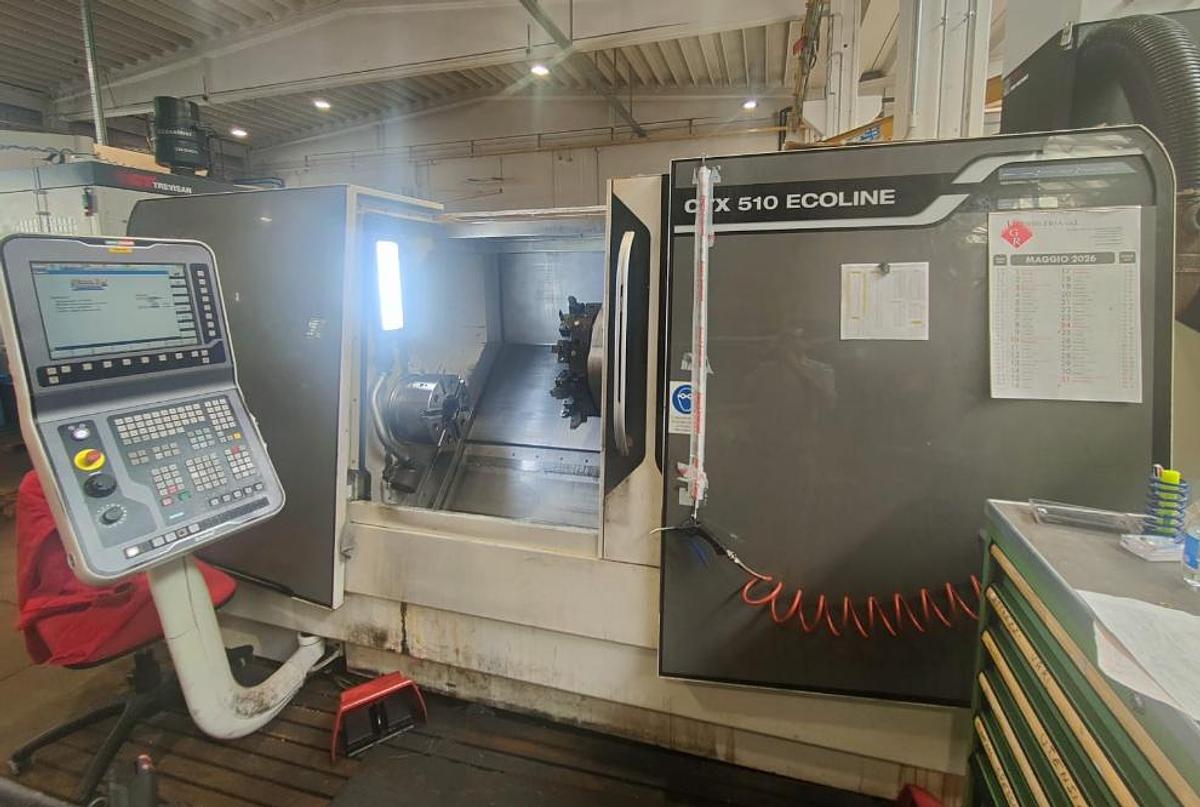

2012 TURNING MACHINE GILDEMEISTER modelCTX 510

YEAR 2012 N/S 8045000433E TECHNICAL SPECIFICATIONS: CNC SIEMENS WORKING CAPACITY: Maximum diameter on the bed: mm 680 Diameter on cross slide: mm 465 X-axis travel: mm 300 Z-axis travel: mm 1,050 SPINDLE: Spindle nose: mm 220h5 Bar passage: mm 76 Inner diameter on front bearing: mm 150 Self-centering: mm 315 Motor power (40/100 % ED): Kw 42/31 Maximum torque (40/100 % ED): Nm 670/495 FEED MOTOR: Rapid X,Z: m/min 30/30 TOOLING SYSTEM: Number of motorized tool stations: 12 Shank diameter: mm 40 Motor power: kW 12.5 Maximum torque: Nm 30 Maximum spindle speed: rpm 4,000 Maximum clamping diameter of motorized tools : mm 20 TAILSTOCK: Tailstock travel: mm 850 Tailstock holder: MK 5 Barrel diameter/travel: mm 120/150 Tailstock thrust max: daN 1,200 Machine weight: kg 7,900 Machine complete with: C-axis Tailstock Instruction manuals and CE declaration Fixed VDI tool holder 3 motorized radial VDI tool holders 1 motorized axial VDI tool holder Chip conveyor with belt Hydraulic Autoblock tailstock MACHINE AVAILABLE FROM OCTOBER 2026 NON-COMMITMENT DATA TO BE VERIFIED
