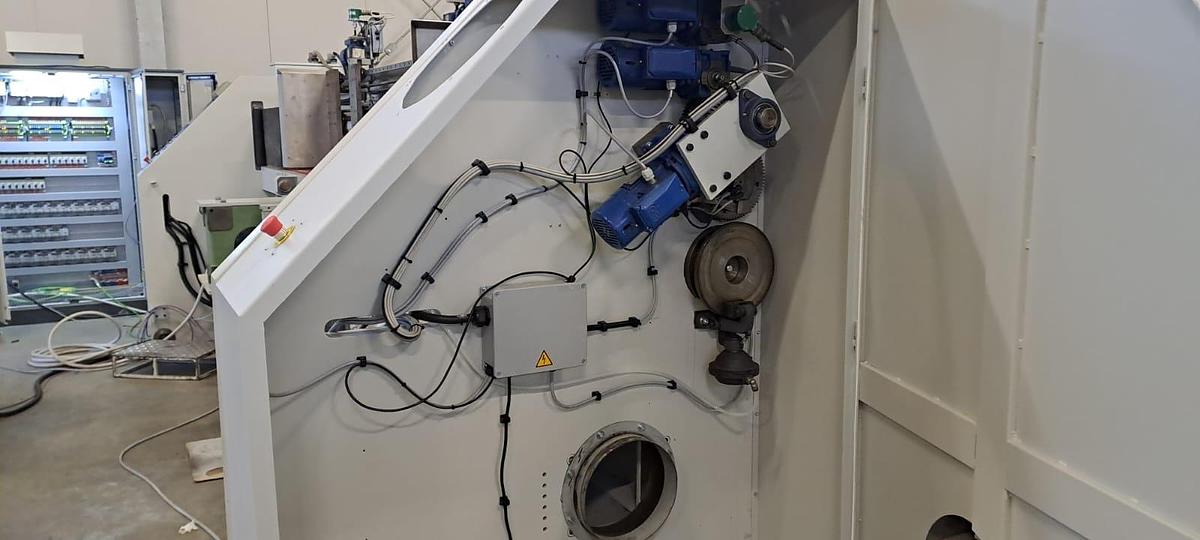

Printer Slotter Bendazzoli 4800 CE - Printer Slotter for Corrugated Cardboard Packaging

Used Bendazzoli NBB186/48 CE Printer Slotter (2001) – fully overhauled 2025, 1860mm circumference, 5000 boxes/hr, auto preset, touchscreen console. Corrugated packaging machinery.

Built in 2001 by Bendazzoli Costruzioni Meccaniche, this unit has undergone full mechanical and partial electrical revision in 2025, including sandblasting and repainting of all machine groups.

2025 Mechanical Overhaul — Key Interventions

The machine has been extensively rebuilt, with the following work completed:

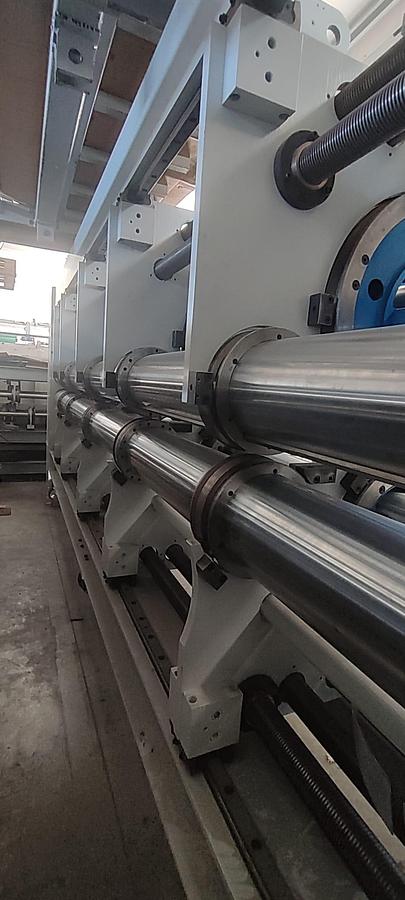

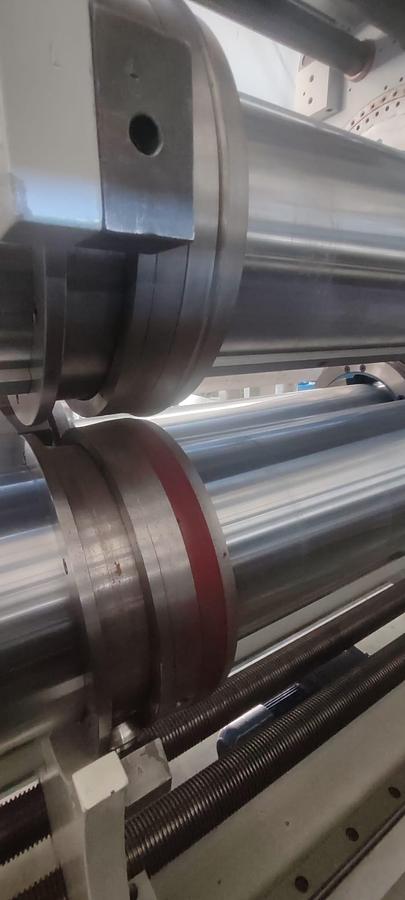

• Slotter group: fully rebuilt to new condition

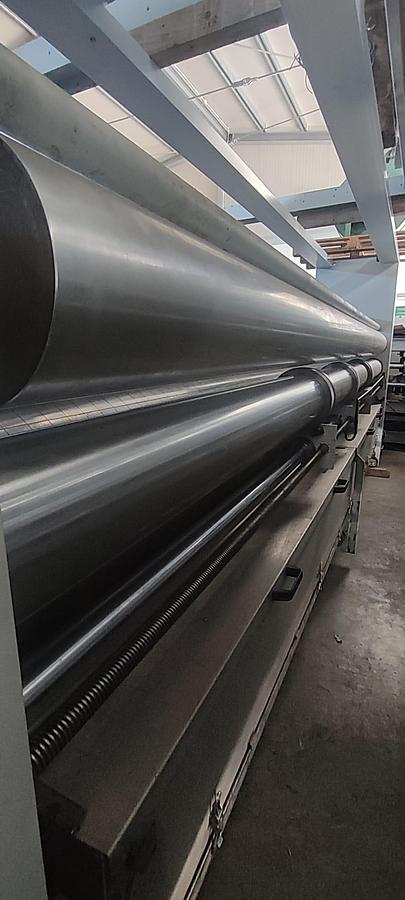

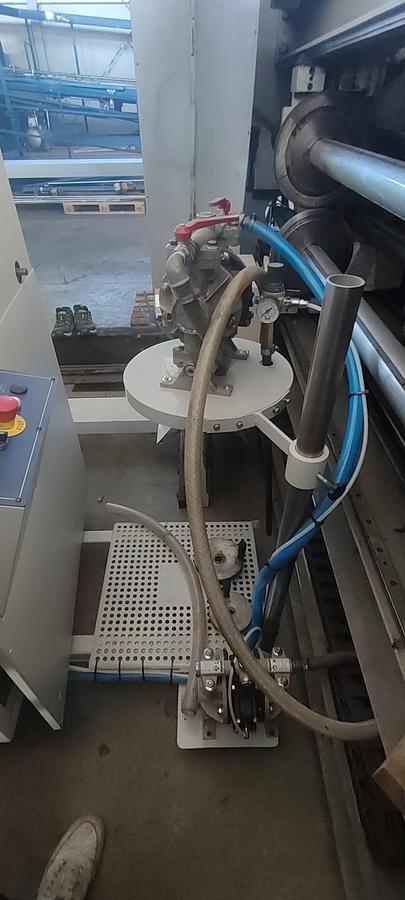

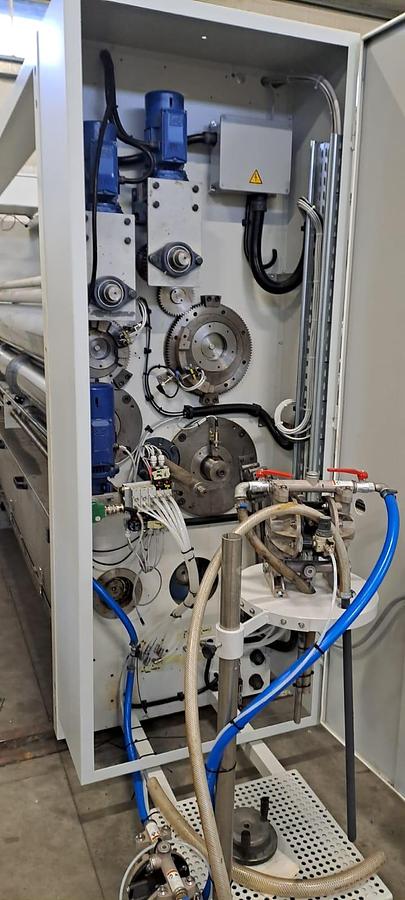

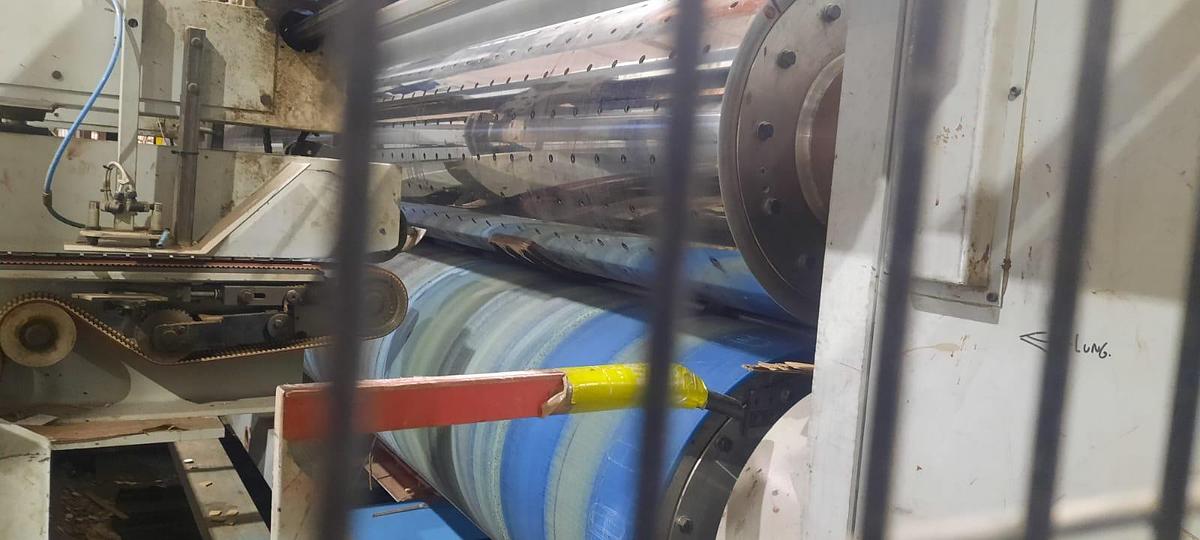

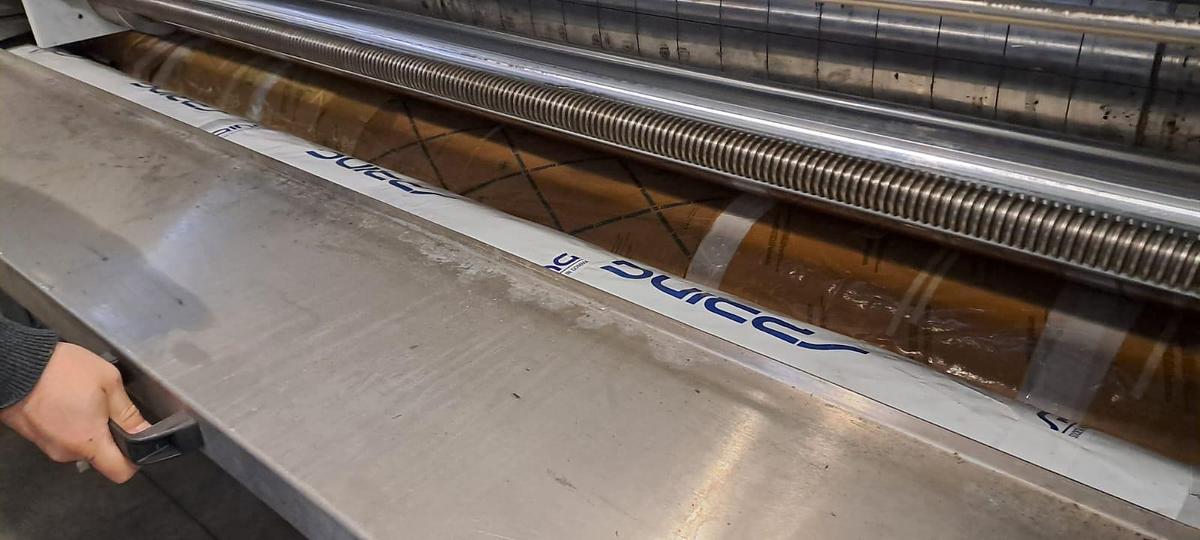

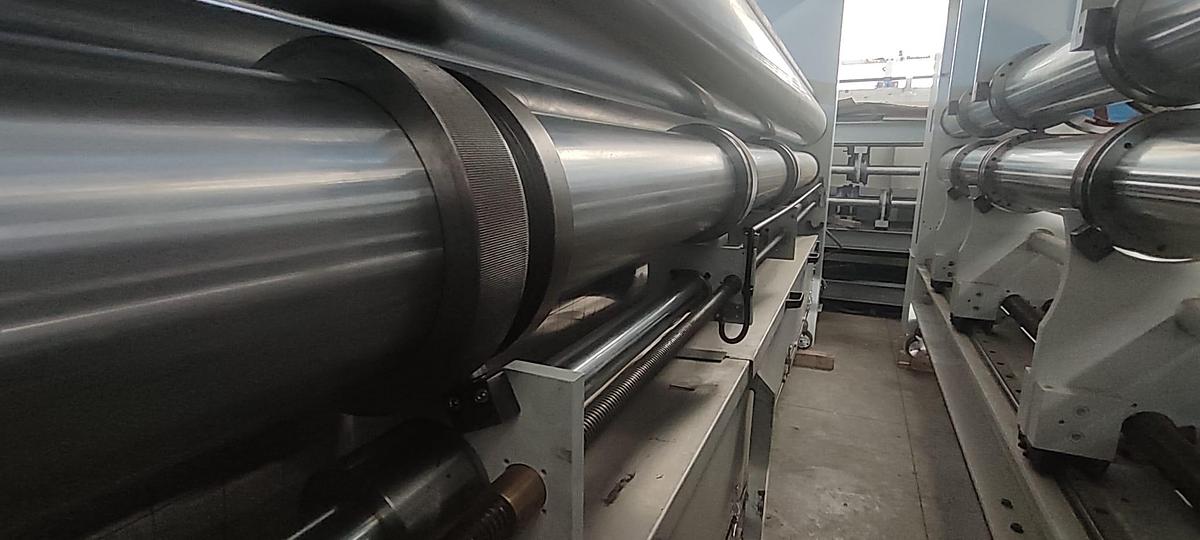

• Print group: partial revision including new anilox and rubber cylinders, new compensator, new bearings, new lubrication pump, and overhauled ink delivery pump

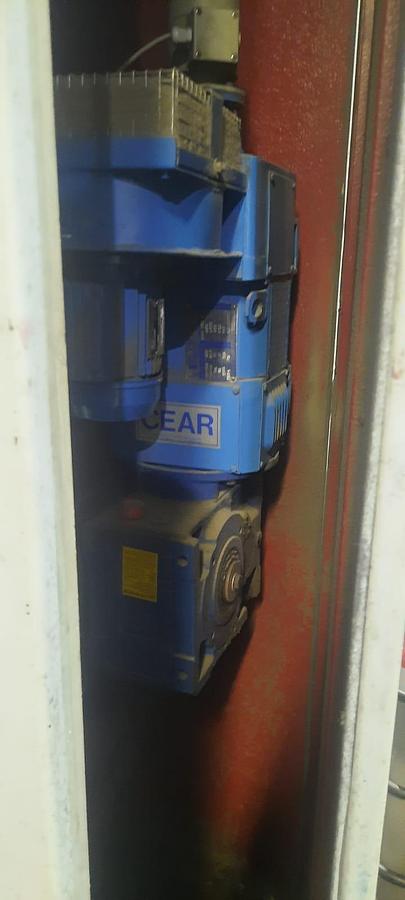

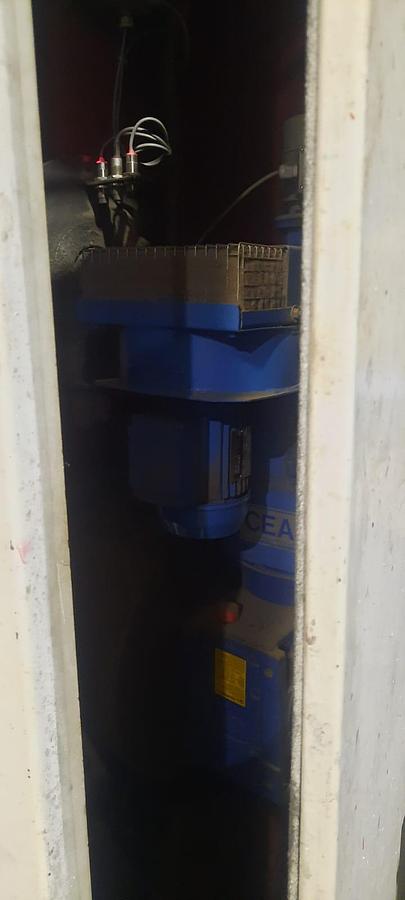

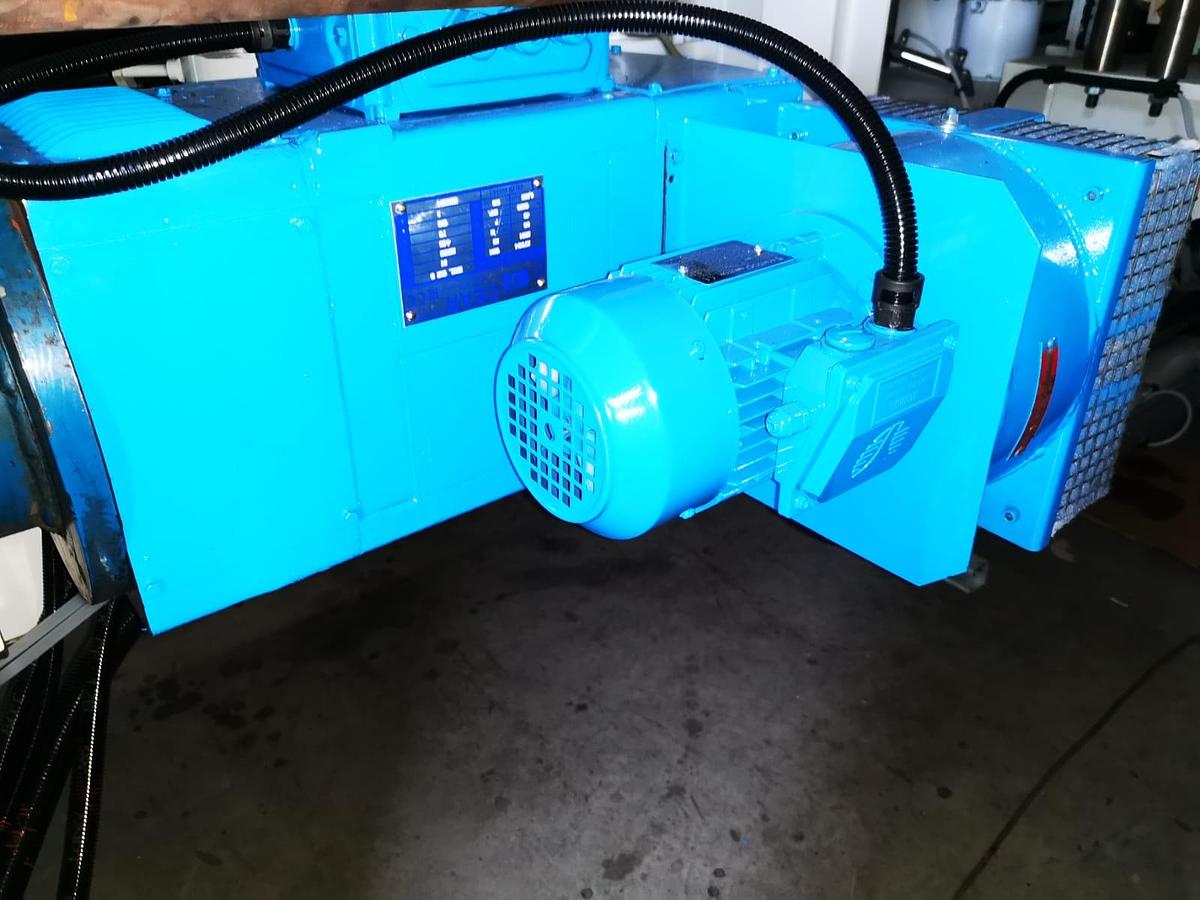

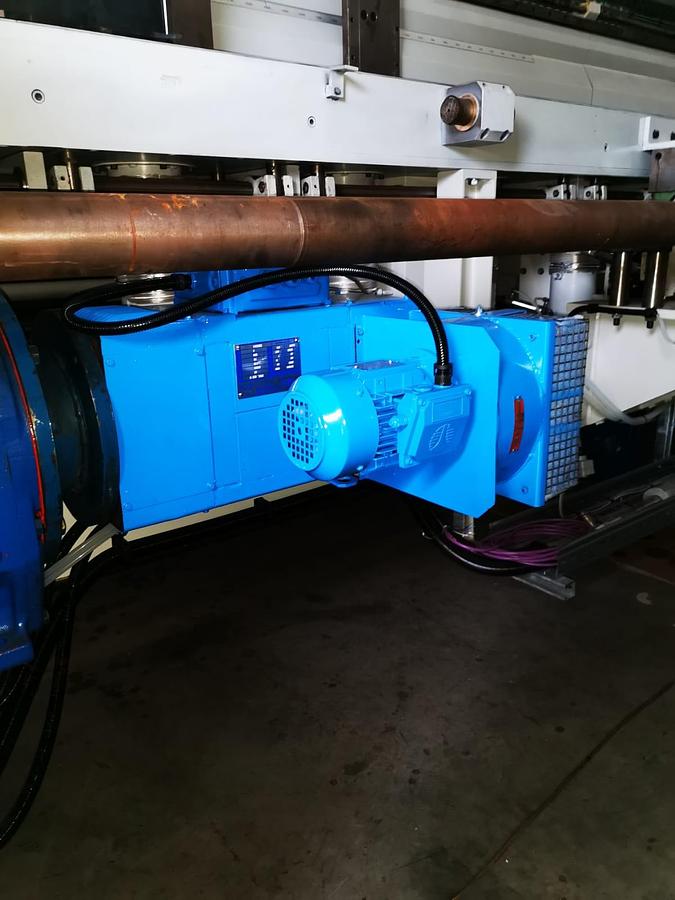

• Feeder group: partial revision including new feed rollers, new lubrication pump, main motor fully rebuilt by CEAR, and new CAM bearing
• Static group: fully rebuilt to new condition
• Full sandblasting and repainting of all machine groups

2025 Electrical Revision

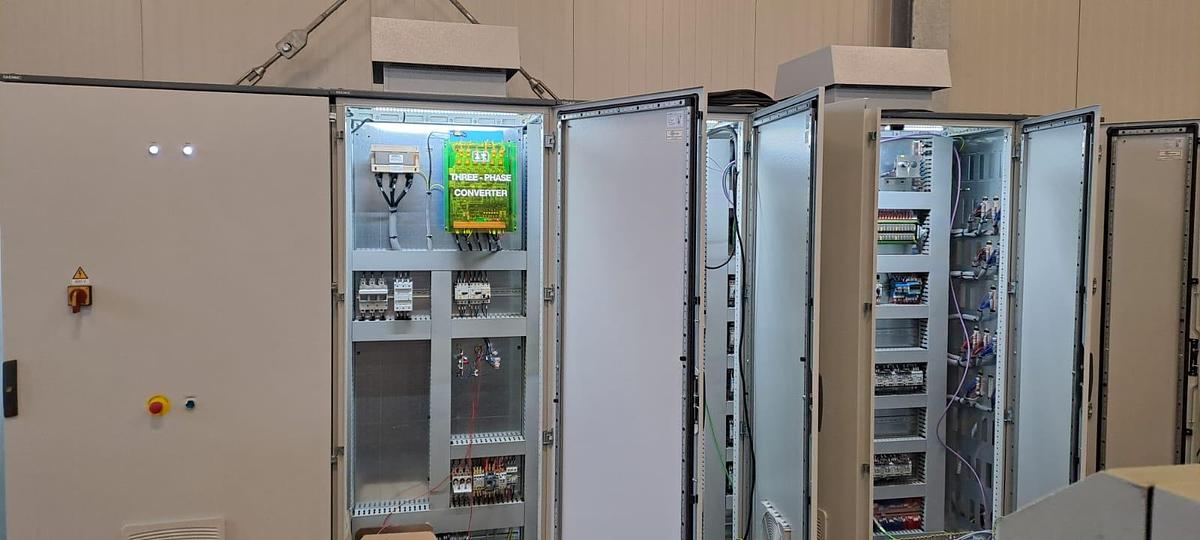

Partial electrical overhaul completed, including replacement of sensors, push buttons, on-board cabling, solenoid valves, and electrical group panels.

Technical Specifications

• Machine development: 4,800 mm
• Machine circumference: 1,860 mm
• Minimum shaft center distance: 450 mm
• Maximum rotation speed: 5,500 cycles/hour (optimal conditions)
• Production speed: approx. 5,000 boxes/hour (synchro mode) / approx. 2,500 boxes/hour (extended mode)
• Power supply: 400V AC, Three-phase 3P+PE
• Nominal power: 70 kW | Absorbed power: 57 kW
• Nominal current: 102A | Operating current: 82A
• Noise level (feed zone): 85 dB(A) | Noise level (extraction zone): 82 dB(A)

Main Components

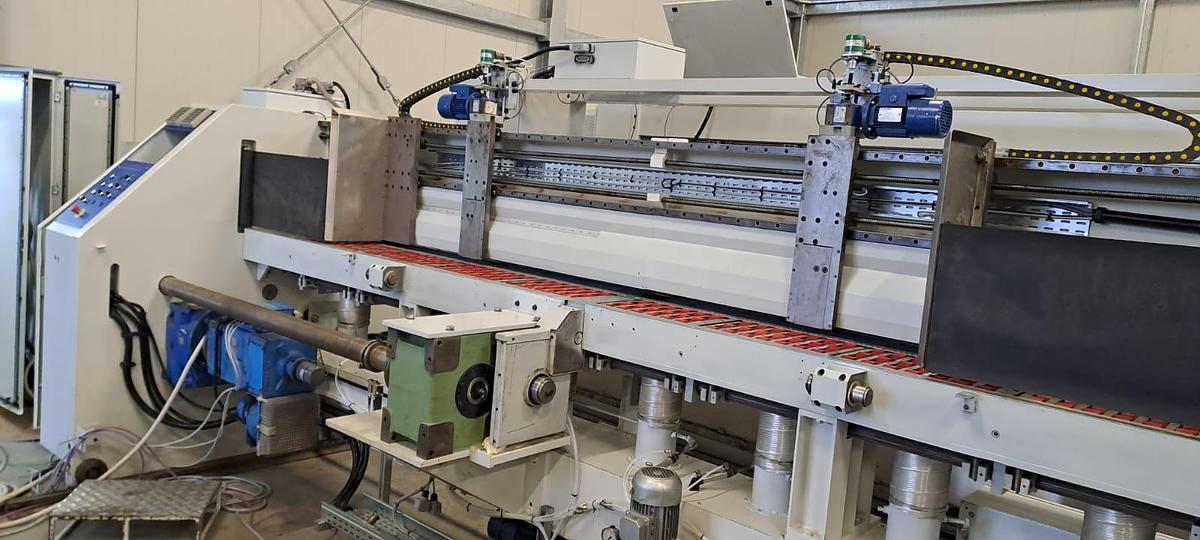

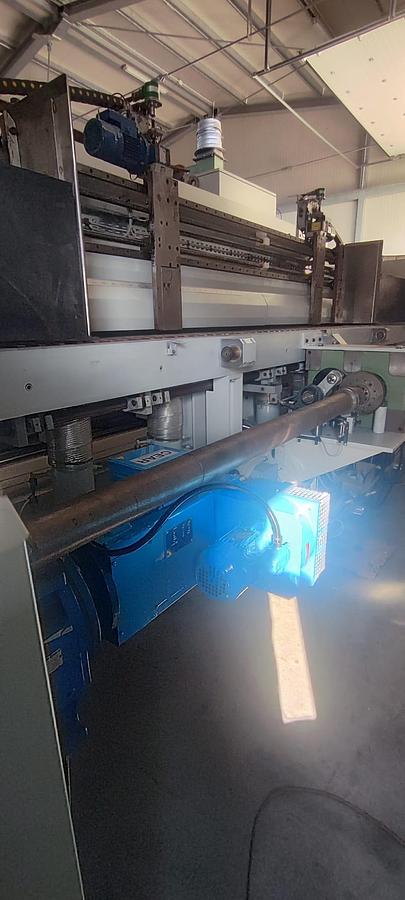

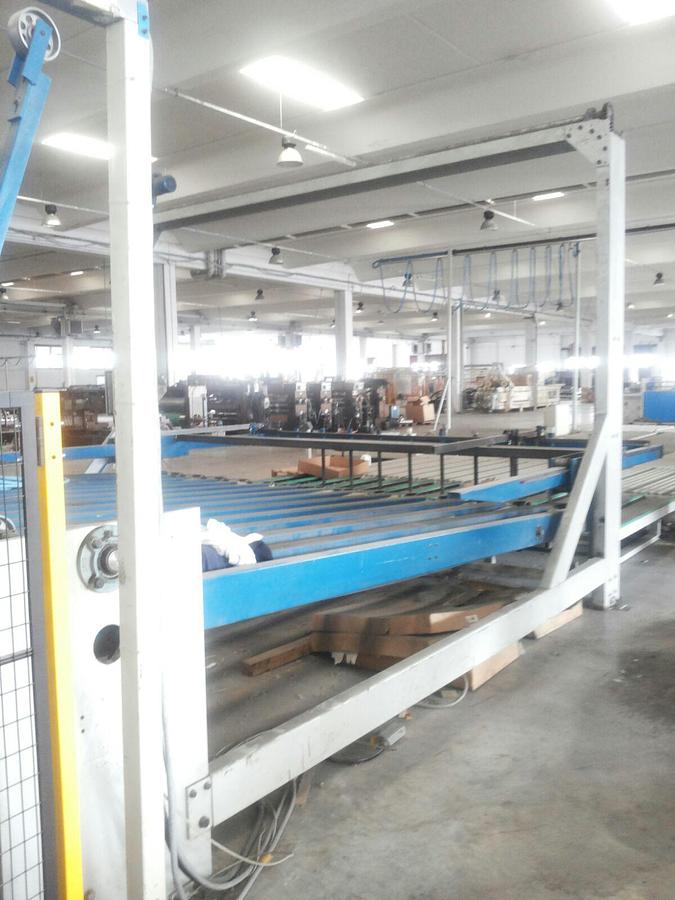

• Cronofit Feeder Unit with automatic positioning of lateral gates and pack support gate
• Print Group with automatic print preset

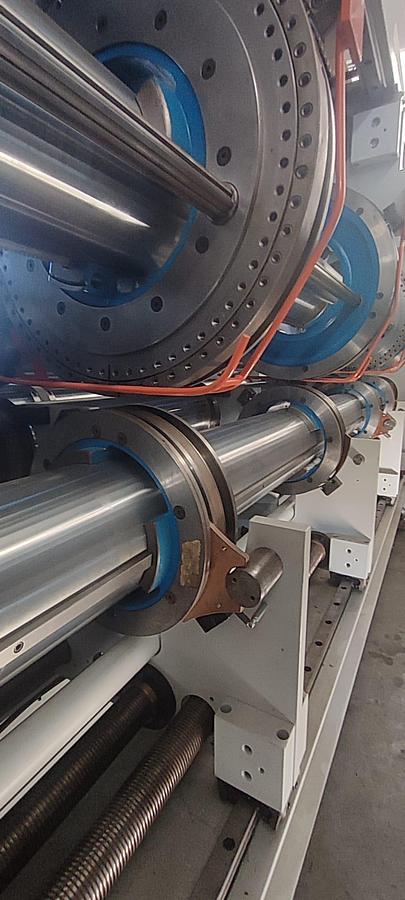

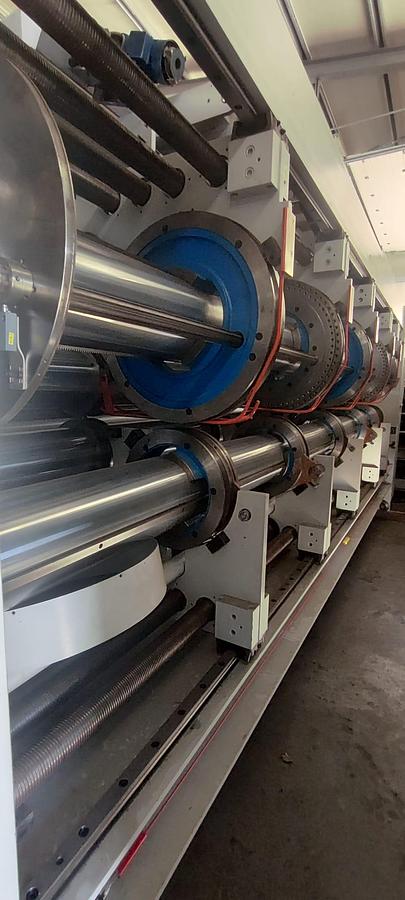

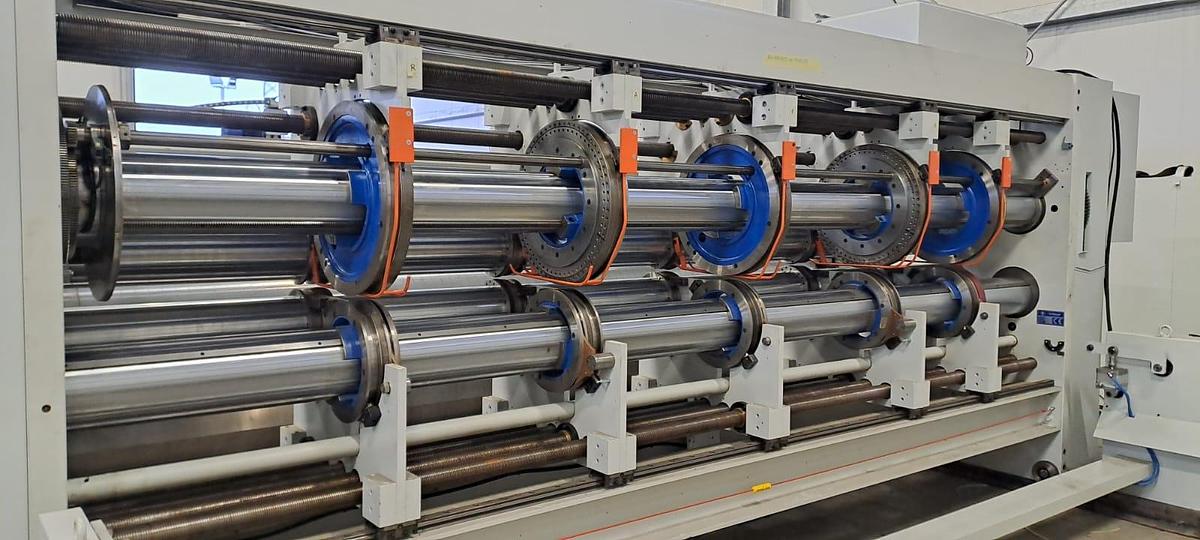

• Slotter Group with extending, automatic preset (knife heads), and box height adjustment
• Static Group

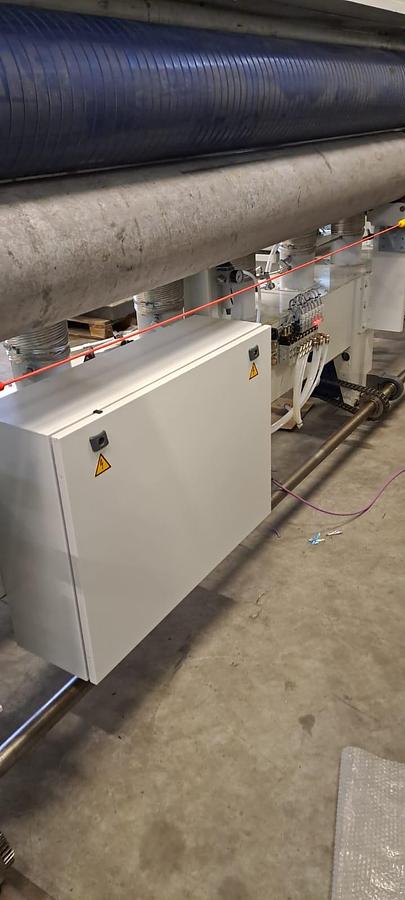

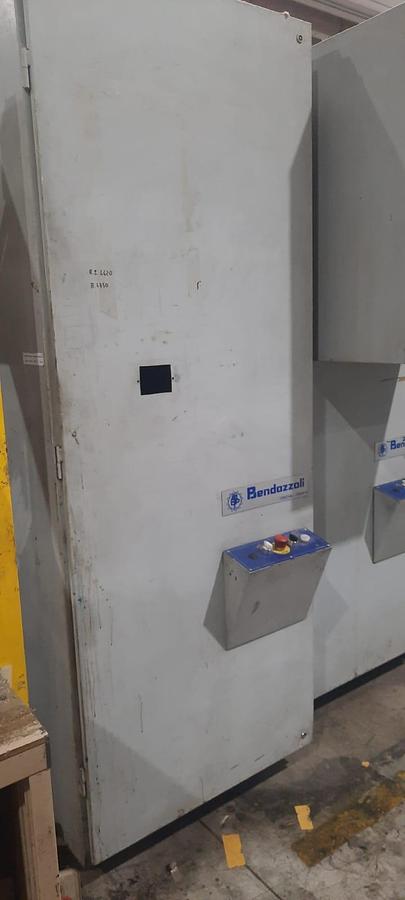

• Main electrical panel for control and power distribution components

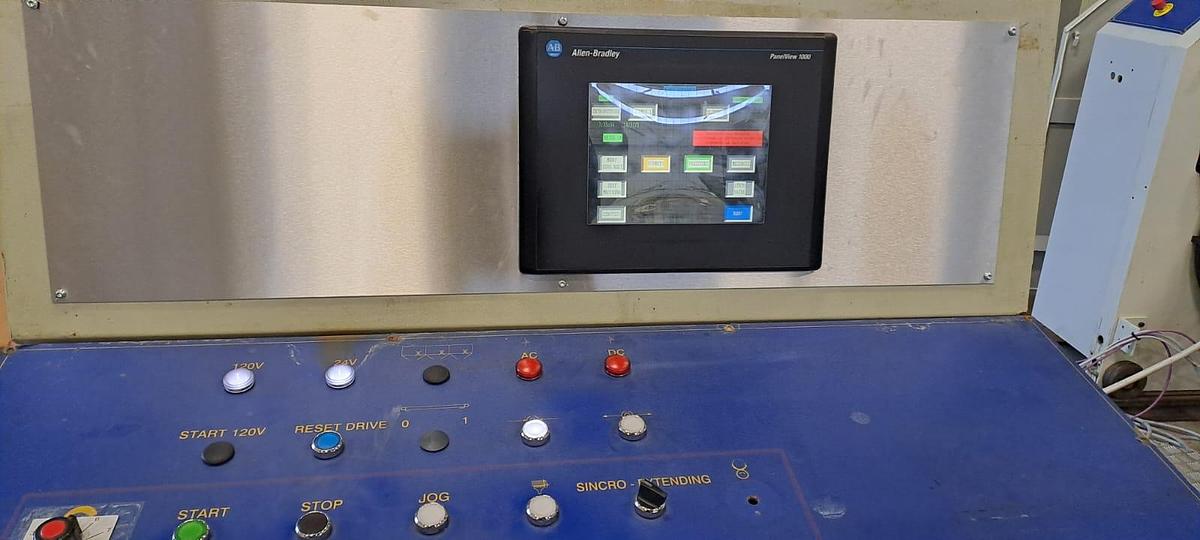

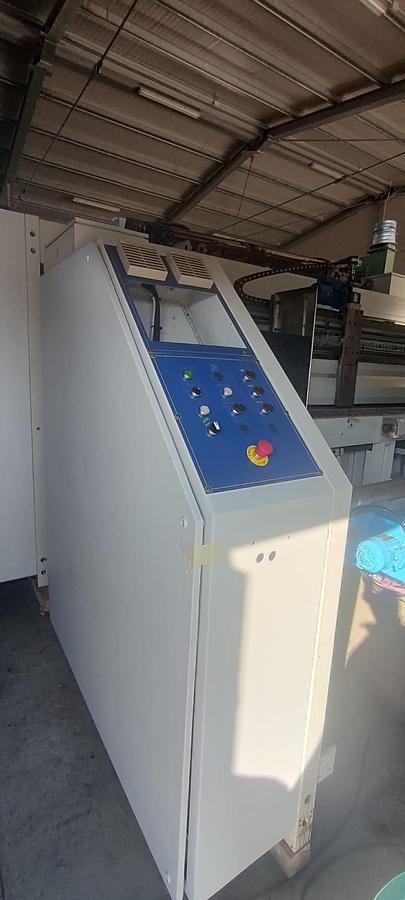

• Full operator console with touchscreen operator panel
•


Safety

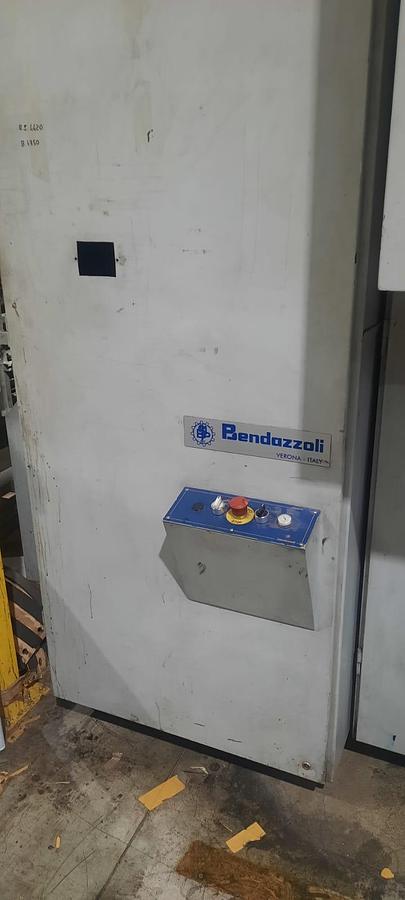

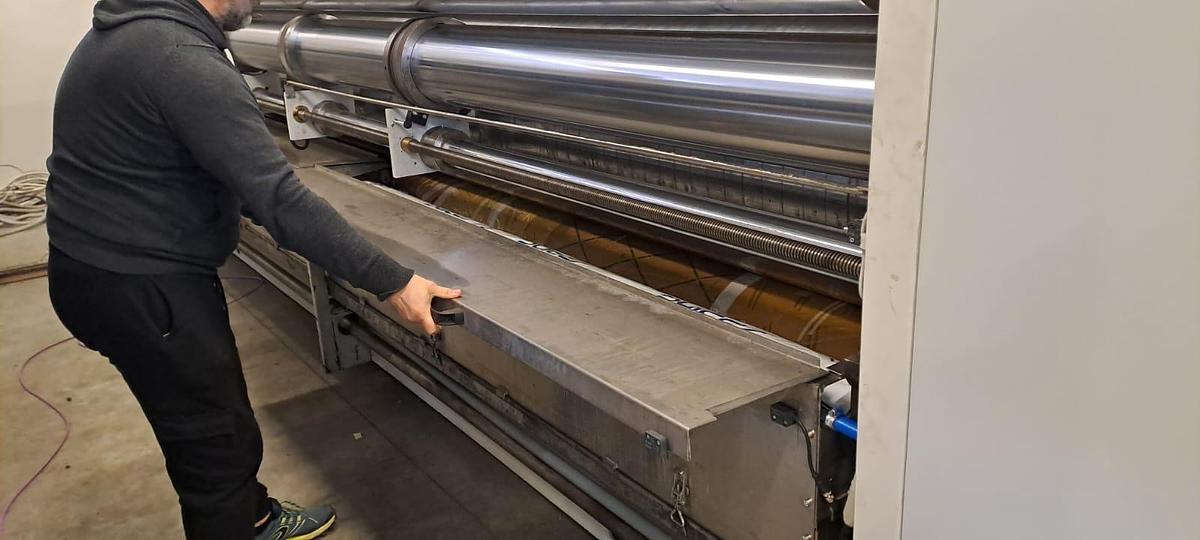

The machine is equipped with protective guards on all moving parts, sensors for guard-open detection, emergency mushroom buttons on each group, and cable pull stops for movement blocking across all units.

Note on Missing Components

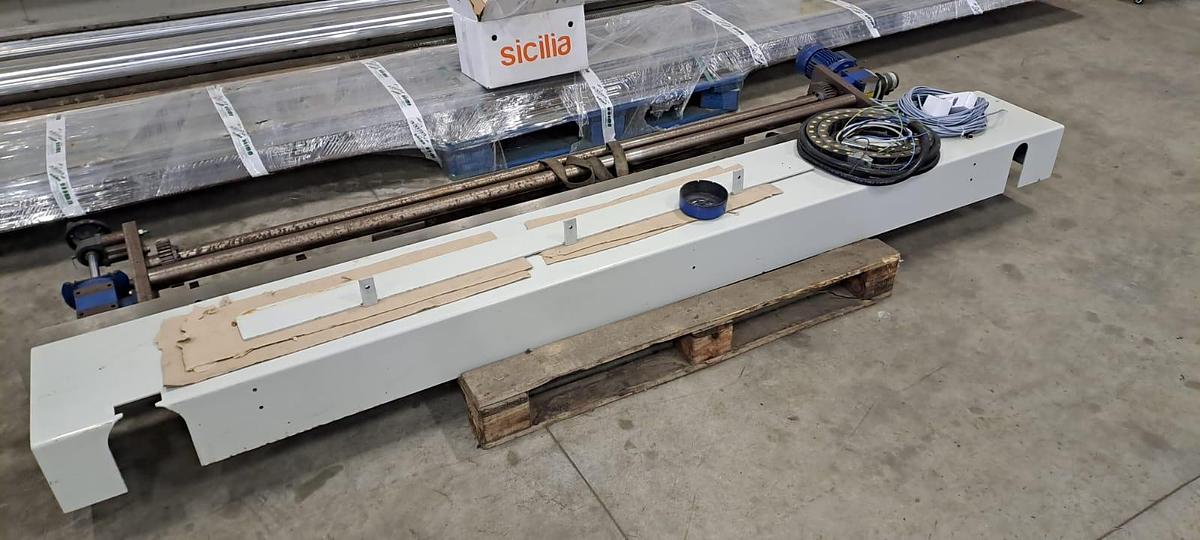

The following components are not included and would require installation: cable trays and accessories, command and power cables between panel/console/machine groups, and fieldbus network cables.

Optional Add-On

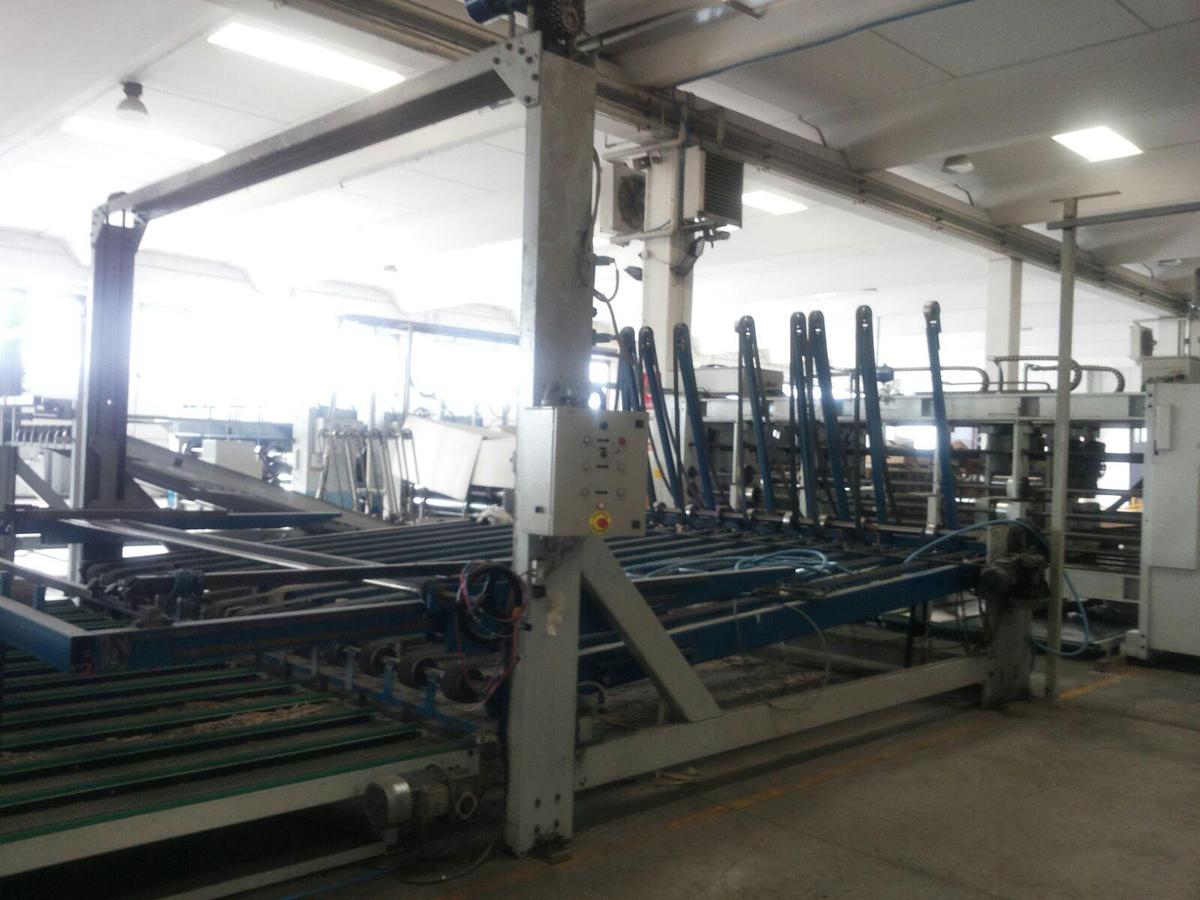

A 2008 Die-Cutter and Stacker unit is available for separate purchase (requires revision) - not included in this offer.

Non-binding information to be verified at purchase.
