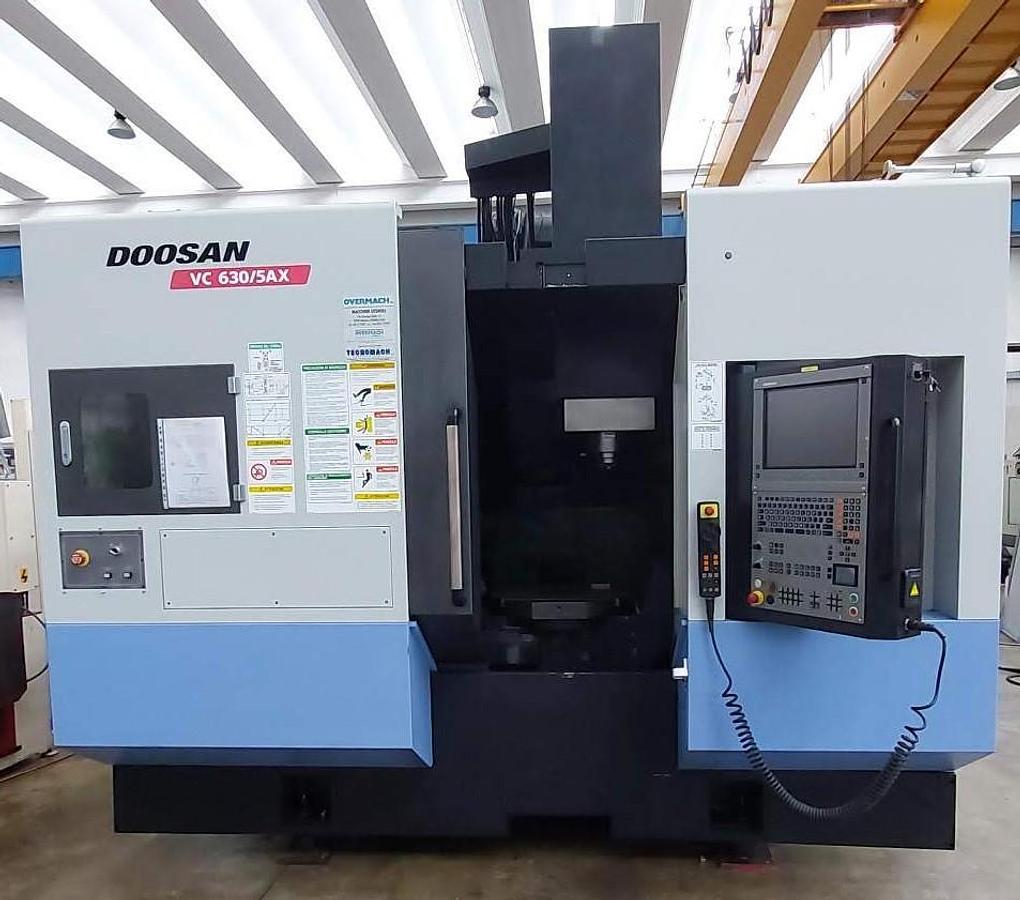

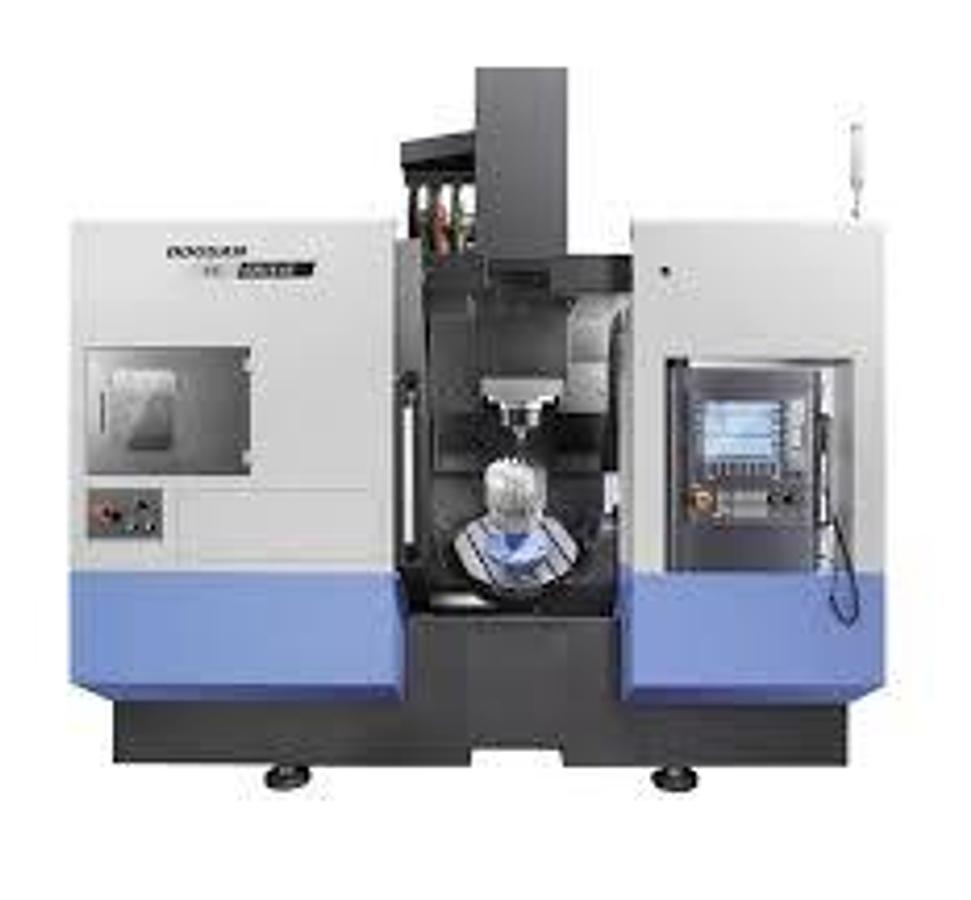

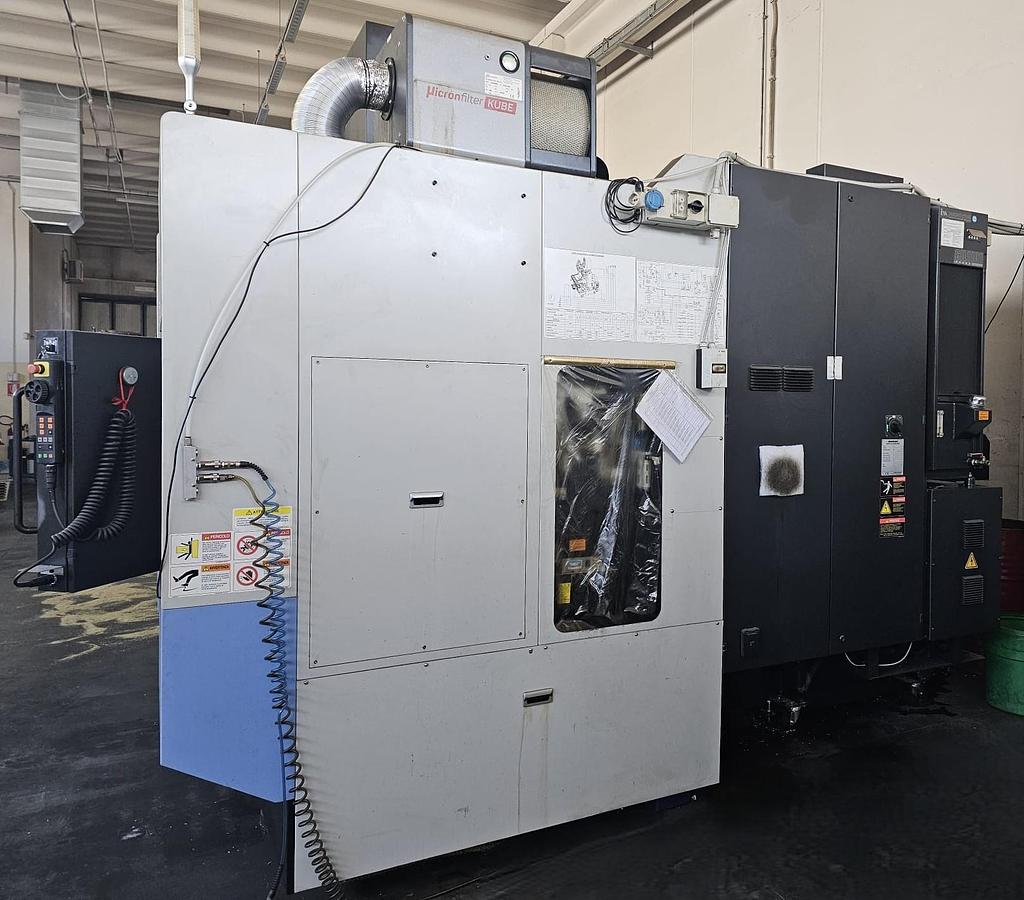

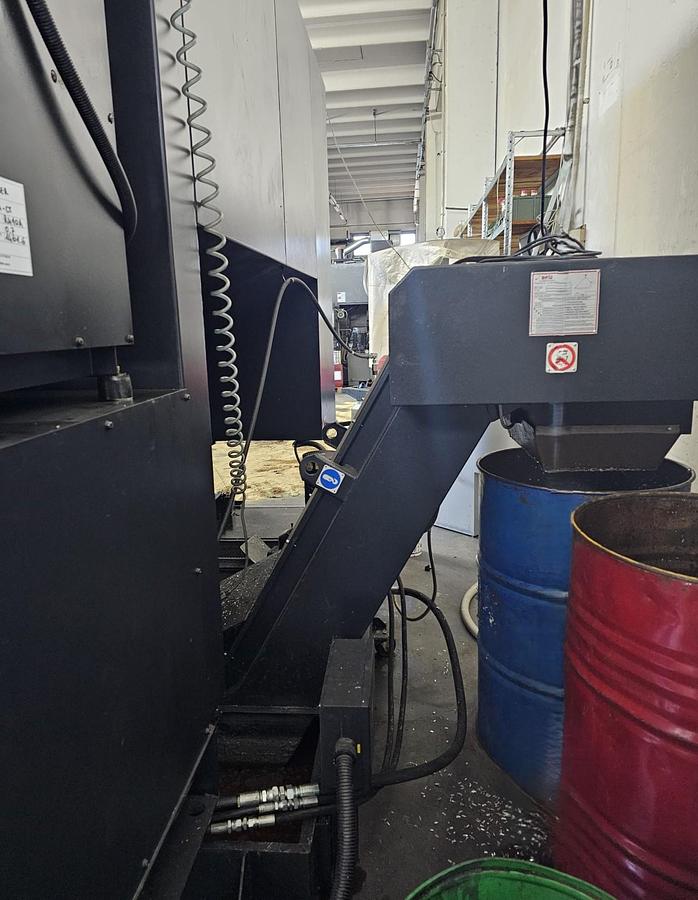

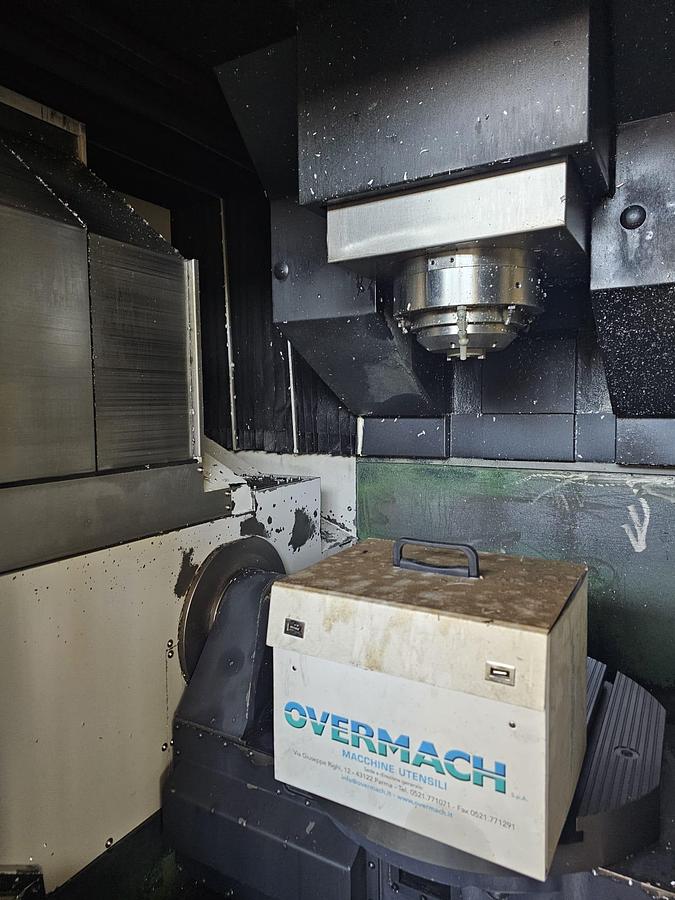

2015 VERTICAL CENTER DOOSAN 5-AXIS Model VC 630/5AX
2015 VERTICAL CENTER DOOSAN 5-AXIS Model VC 630/5AX
Contact us for price
Location:Bergamo, Italy
or
Call +39 02 9475 0001
Description
Year 2015

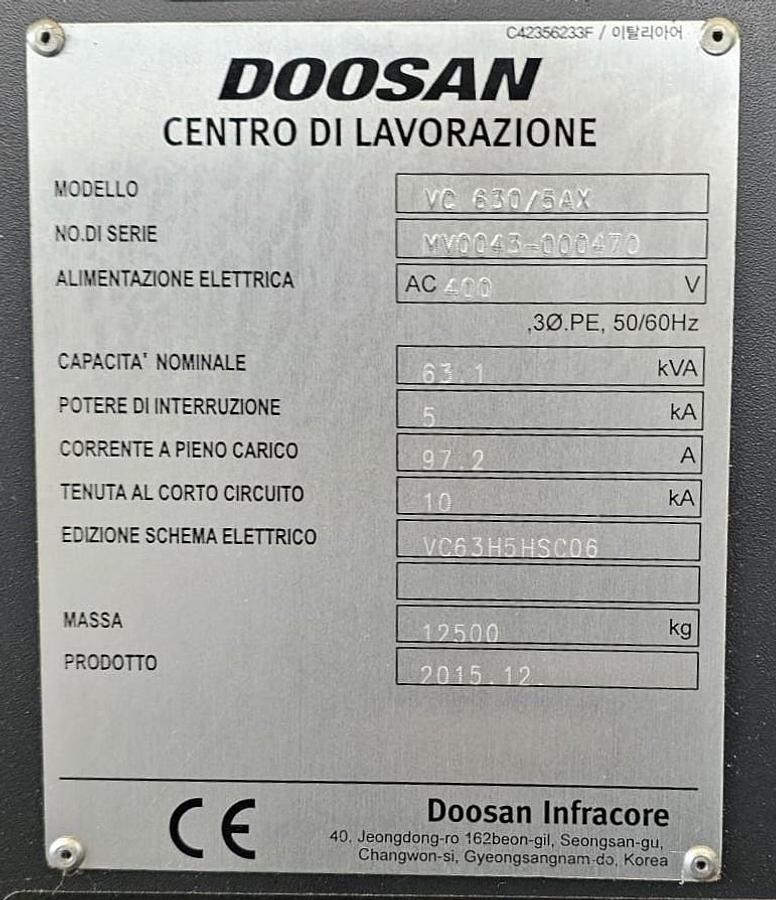

N/S MV0043-000470
MANDREL
Tool holder ISO 40 cone
Spindle speed (optional) rpm 12000
Motor power AC (continuous/30 min) kW 18.5/22 (24/32 with the TNCs)
Strokes
X axis mm 650
Y axis mm 765
Z axis mm 520
C axis degrees +/- 360°
Table
Table dimensions mm Ø 630
Tool Change
No. of tools 60
Control

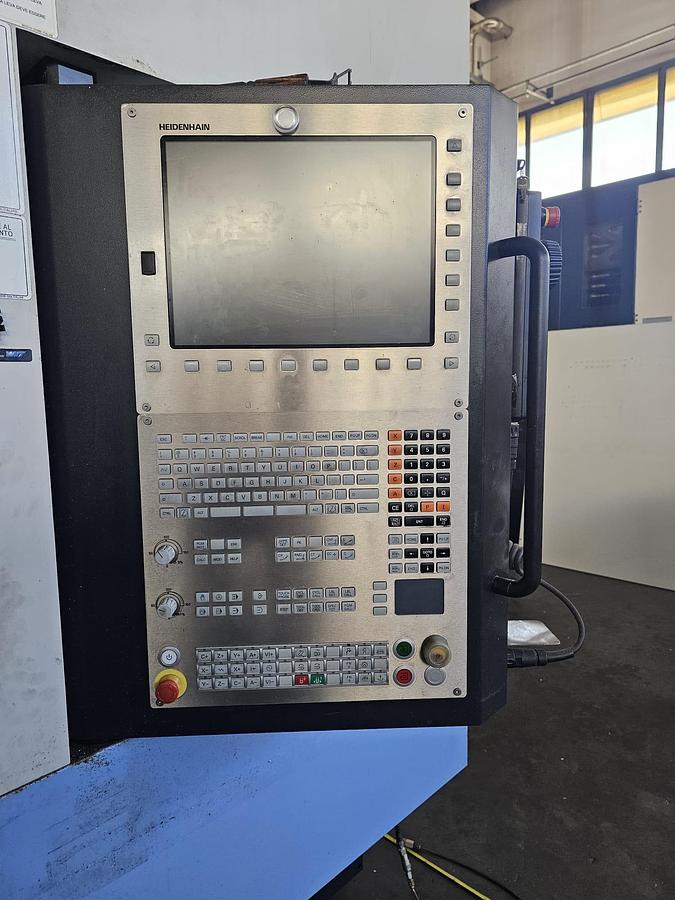

Heidenhain iTNC 530 HSCI
NON-OBLIGATORY DATA TO BE CHECKED
Specifications
| Year | 2015 |
| Condition | Used |
| Stock Number | CV0474 |
| Axis at degrees 150° (+30° | 120°) |
| Dimensions øxl mm 80 | 125 dim. x 300 |
