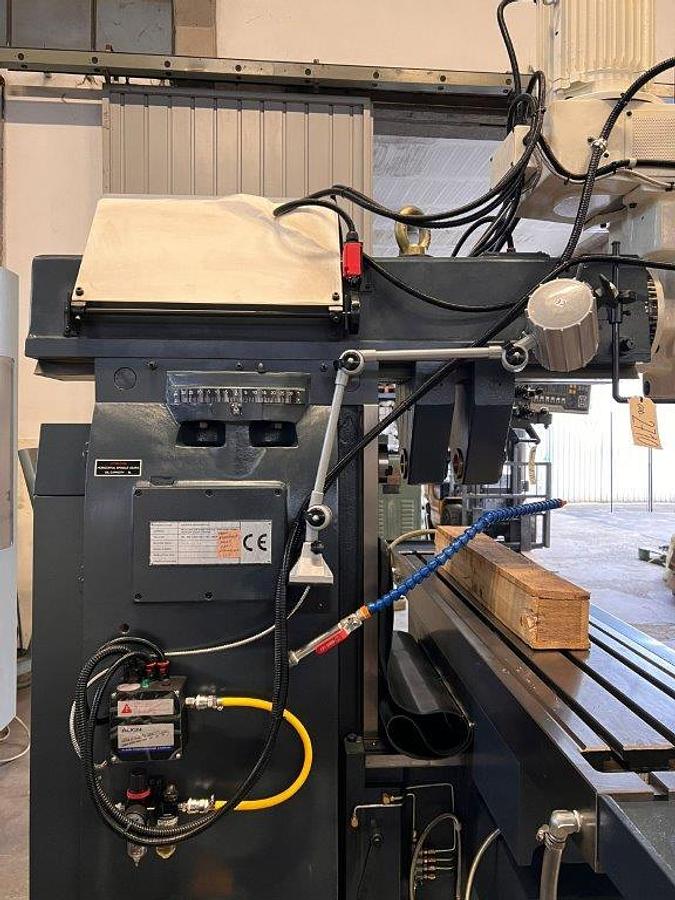

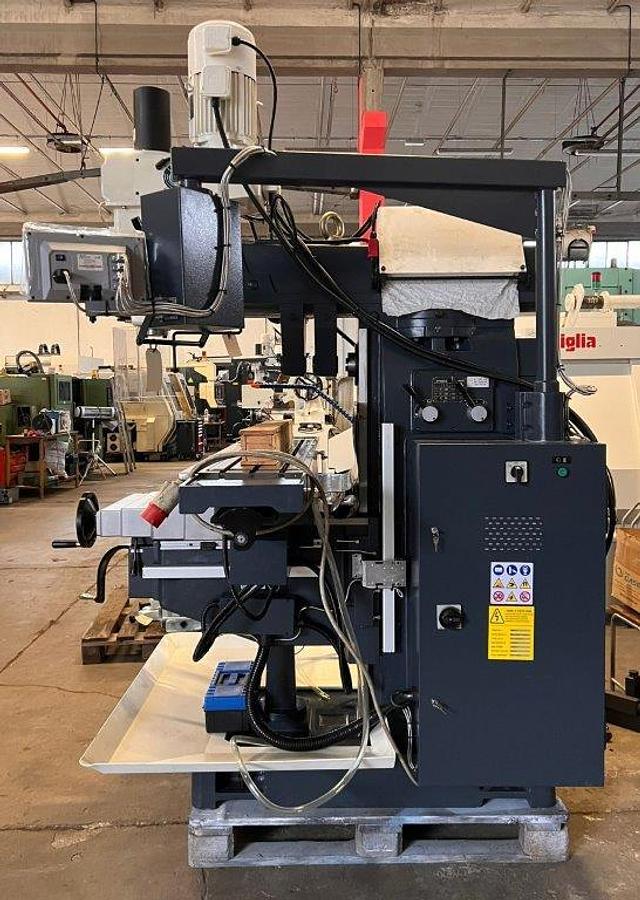

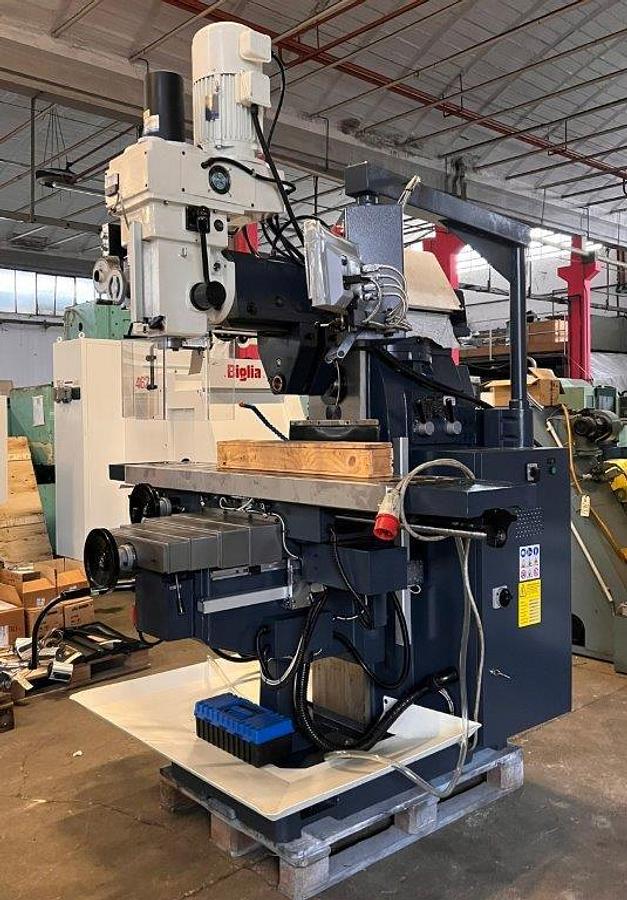

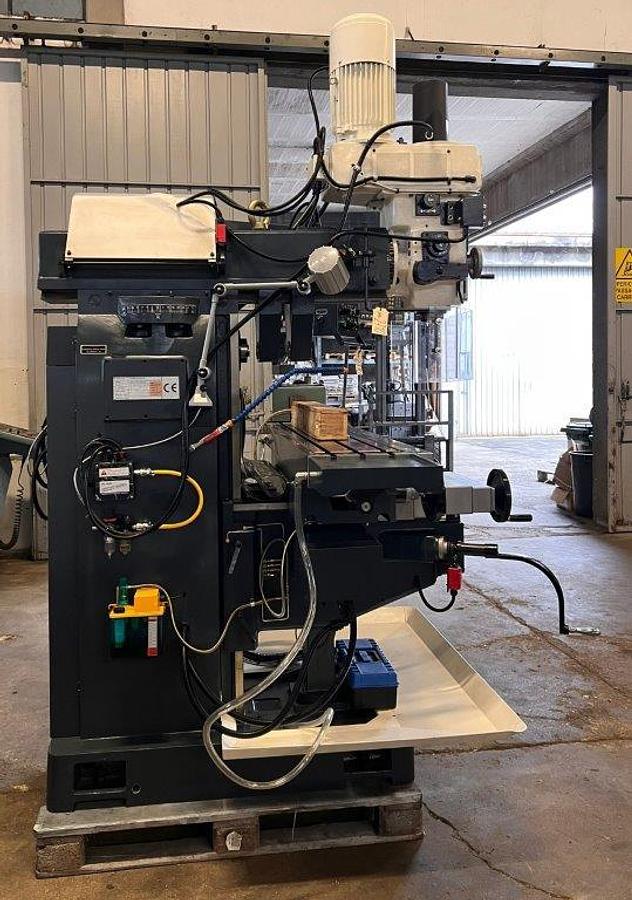

NEW TURRET MILL WITH HIGH-SPEED VERTICAL AND HORIZONTAL HEAD MODEL 250L

NEW MACHINERY VIEWED AT 4 AXES WITH INVERTER PISTON STARTER MOTOR Spindle speed VERTICAL adjustable by Inverter with two speed ranges Ball screw drives on X and Y axes X Y Z axis speeds adjusted by ELECTRONIC POTENTIOMETERS WITH SERVOMOTORS AND YASKAWA BRUSHLESS MOTORS Manual longitudinal travel (X Axis) electric 1280 mm Vertical and Horizontal spindle ISO 40 Head rotation right-left 45° Spindle distance to table 20-475 mm Horizontal spindle motor 5 HP Horizontal spindle speed BY GEARS FROM rpm 65-1500 Number of spindle speed gears horizontal 9 Vertical spindle taper ISO 40 Maximum allowed weight on table 550 kg Spindle center to column distance 130-550 mm Horizontal rotation SLIDE 360 ° Longitudinal and transverse feed ¾ HP Rapid vertical ½ HP Cooling system 1/8 HP Machine compliant with CE regulations NON-BINDING DATA TO BE VERIFIED
