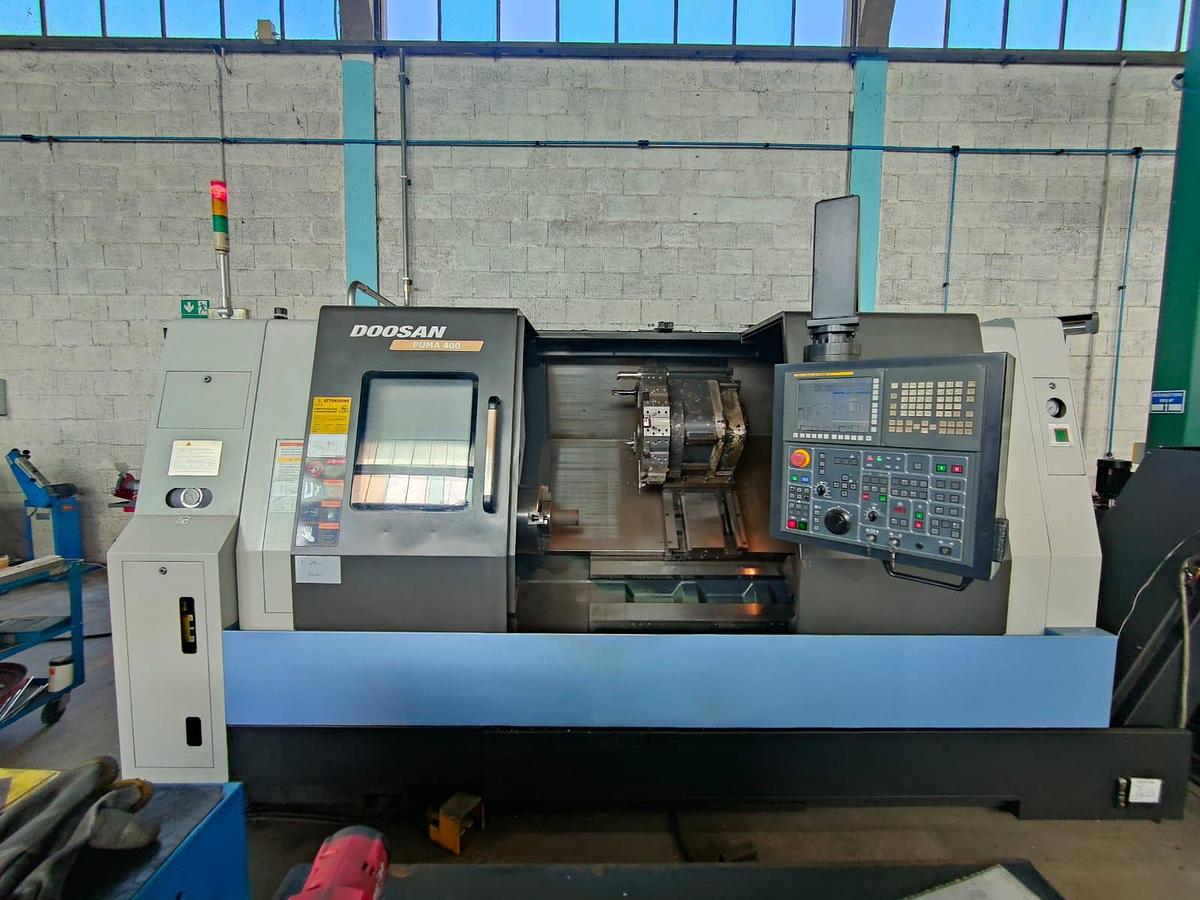

2011 DOOSAN PUMA TURNING LATHE model 400 A

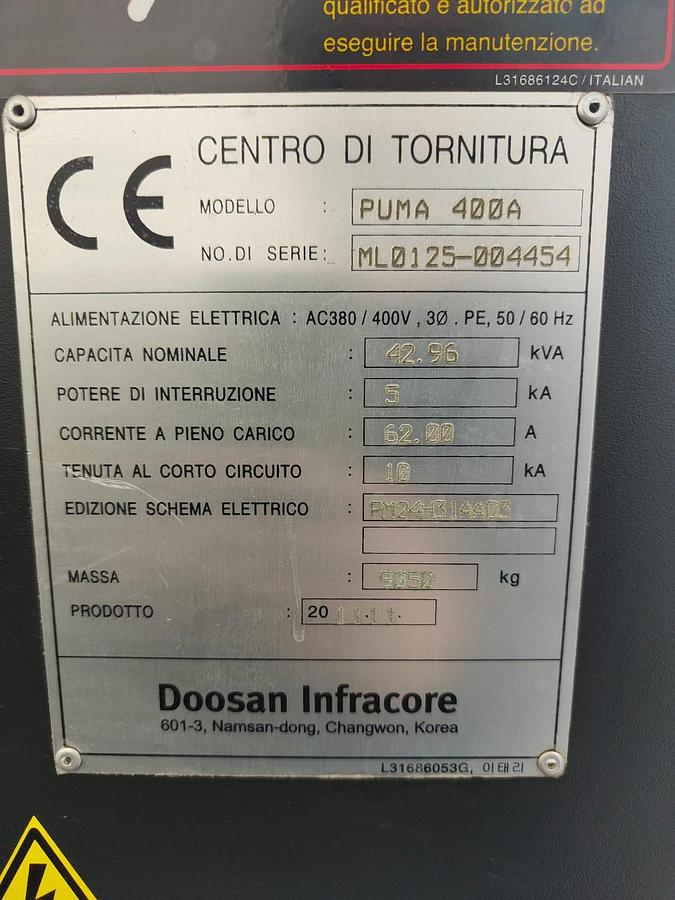

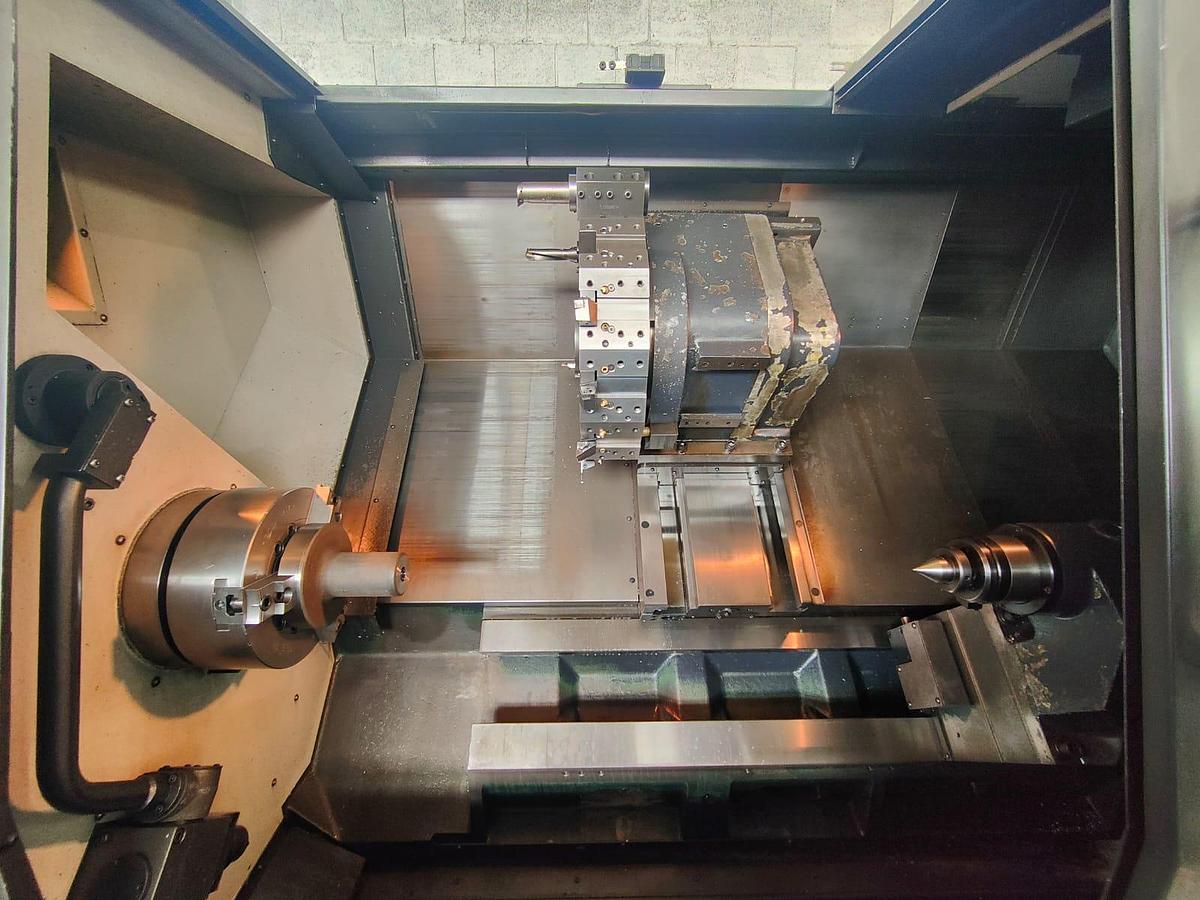

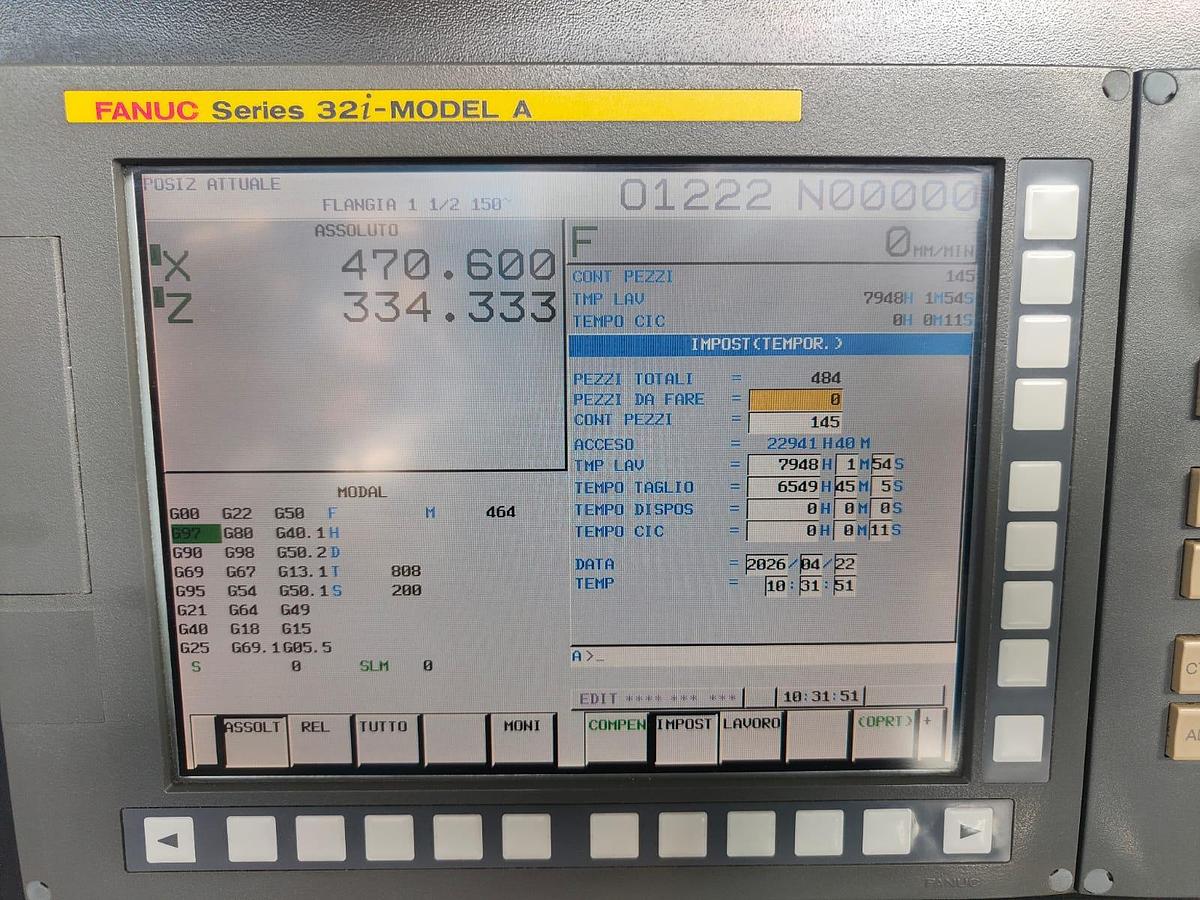

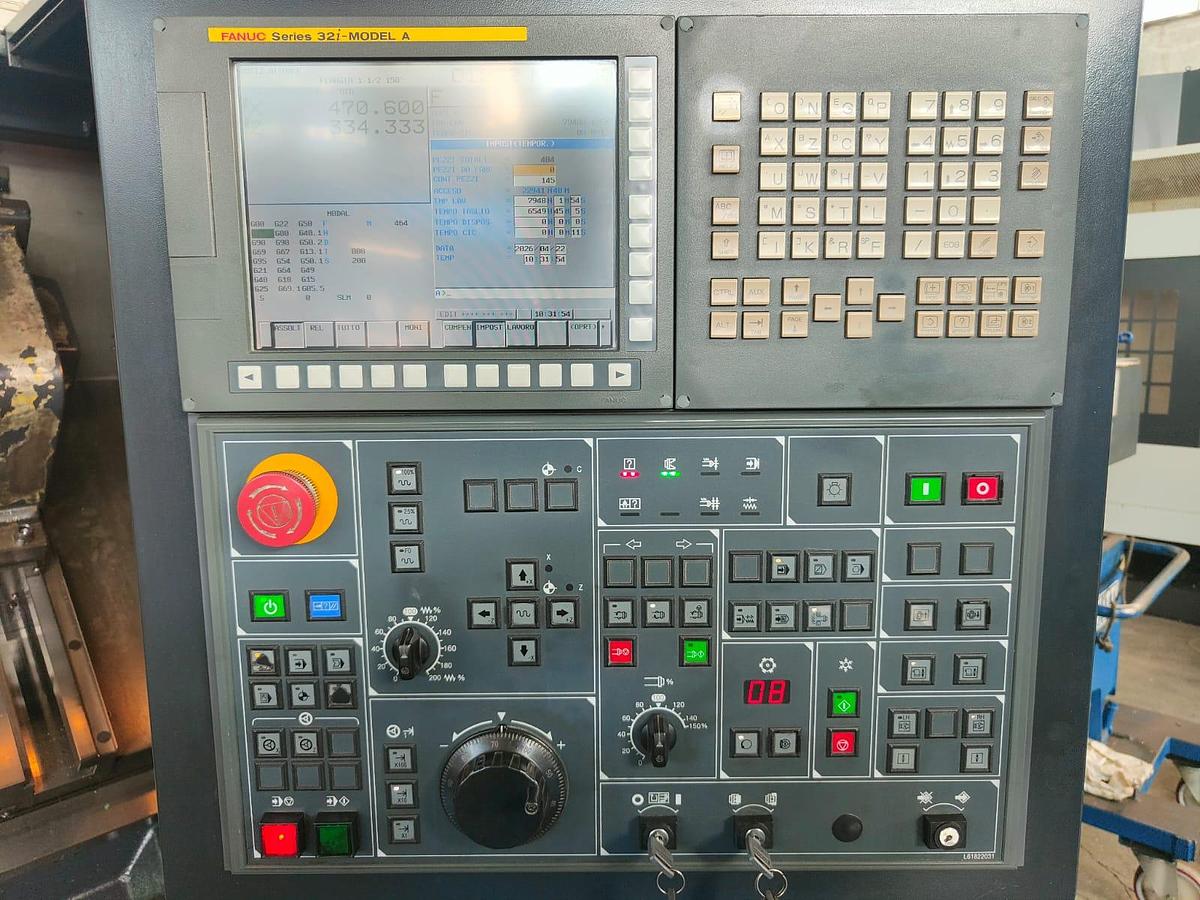

YEAR 2011 N/S ML0125-004454 FANUC 32i MODEL A CNC CONTROL MACHINE WEIGHT 8.2 tons MACHINE DIMENSIONS Capacity Max rotating diameter on the bed Ø 770 mm Max rotating diameter on the carriage Ø 590 mm Max turning diameter on the bed Ø 550 mm Max turning length from live center 1,079 mm Bar passage diameter Ø 90 mm Travel X axis travel 362 mm Z axis travel 1,105 mm Chuck Live center diameter Ø 305 mm Spindle speed 30-3,000 rpm Spindle nose ASA A2-8 Spindle motor power (continuous/30 min) 22/26 kW Turret Turret stations 12 stations Turning/boring tool dimensions 32×32 mm / Ø 50 mm Feedrates Rapid feed X axis 16,000 mm/min Rapid feed Z axis 20,000 mm/min Tailstock Tailstock spindle bore Ø 120 mm Tailstock Morse taper 5 Tailstock travel 120 mm Accessories Tool presetting with automatic lowering and raising (with button and M-code) Chip conveyor Coolant tank 280 L capacity and 6 bar pump Static tools and tool holder variations NON-BINDING DATA TO BE CHECKED
