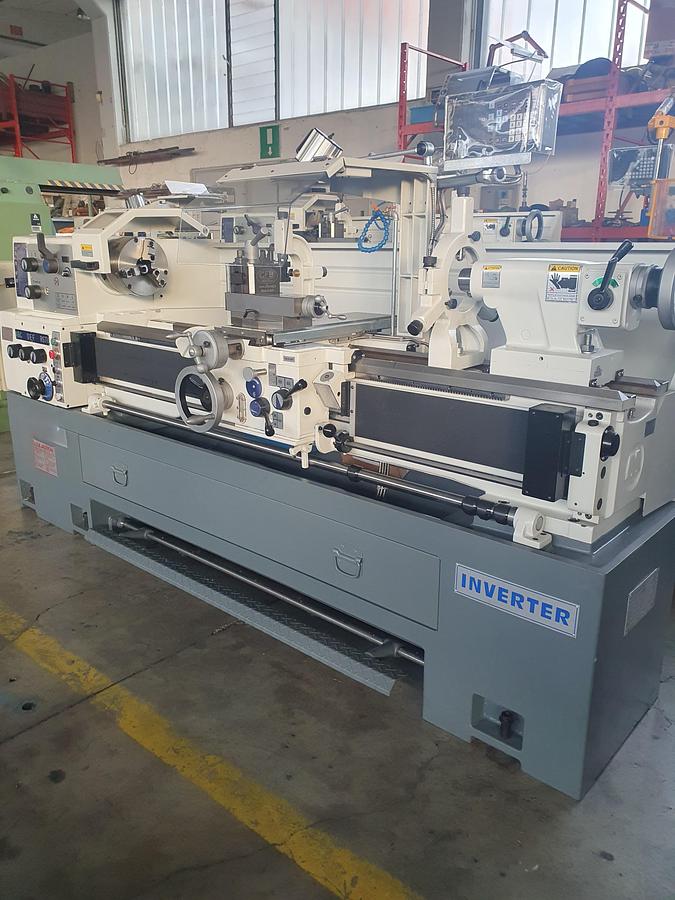

NEW PARALLEL LATHE

NEW MACHINE Spindle rotation capacity on the table up to 458 mm Rotation capacity on the carriage up to 288 mm 3 spindle speed ranges rpm 12-2000 Spindle bore 60 mm Main motor power controlled by inverter kW 7.5 Distance between centers 1500 mm BASE MACHINE AND STANDARD ACCESSORIES Cast iron bed MONOLITHIC Guides induction hardened and ground Head with hardened and ground gears Spindle nose DIN 55027 cam-lock no.6- Electrical panel/wiring identifiable, general switch door lock, motor protection thermal relay with emergency stop mushroom button, low voltage 24 V system Carriage with transverse and longitudinal feeds Chuck with dead-length bar Coolant system with electric pump Lubrication system for carriage by manual pump Lighting system Self-centering flange Four-position Quick-Tower GFB with 4 tool holders Fixed dead-center with rollers, mobile dead-center Longitudinal stop Self-centering chuck Ø 230 mm 3 reversible jaws Mitutoyo display on 2 axes Rear chip guard, protection screens for turret and self-centering User and maintenance manual for the machine, CE certificate Machine compliant with CE Machinery Directive 2006/42/CE and subsequent amendments. NON-BINDING DATA TO BE VERIFIED
