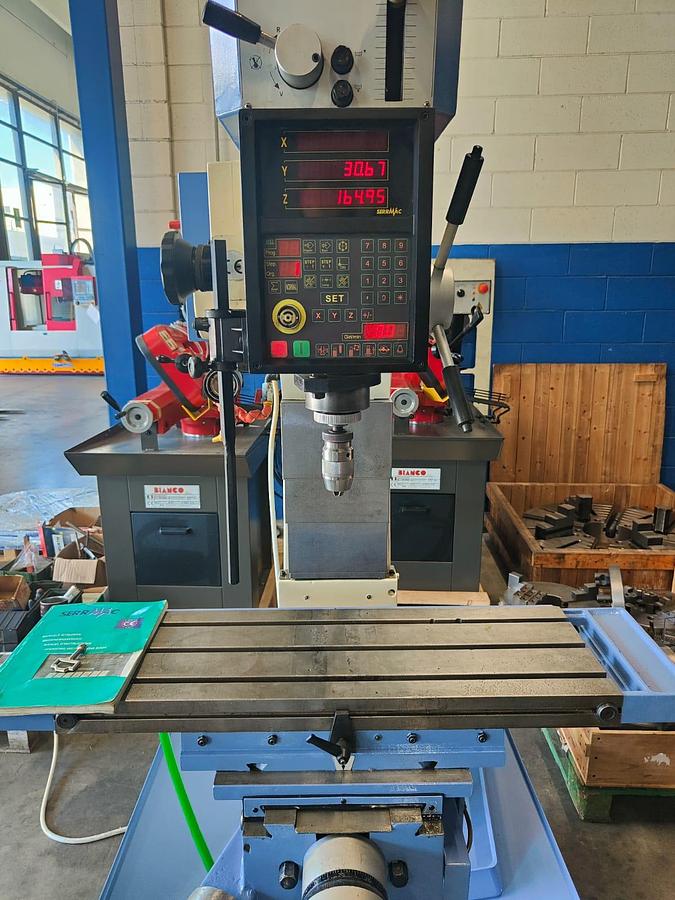

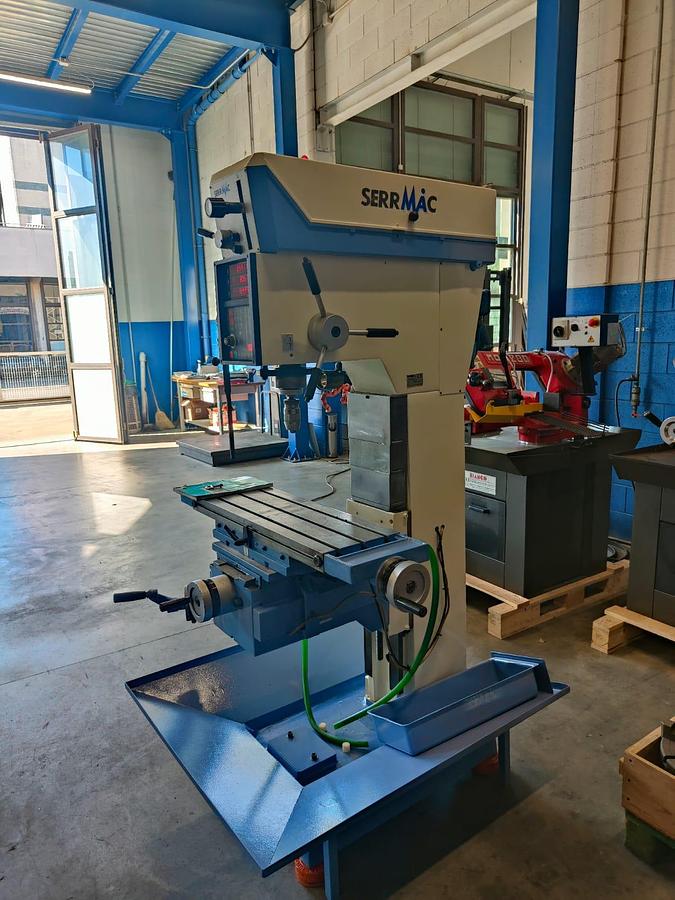

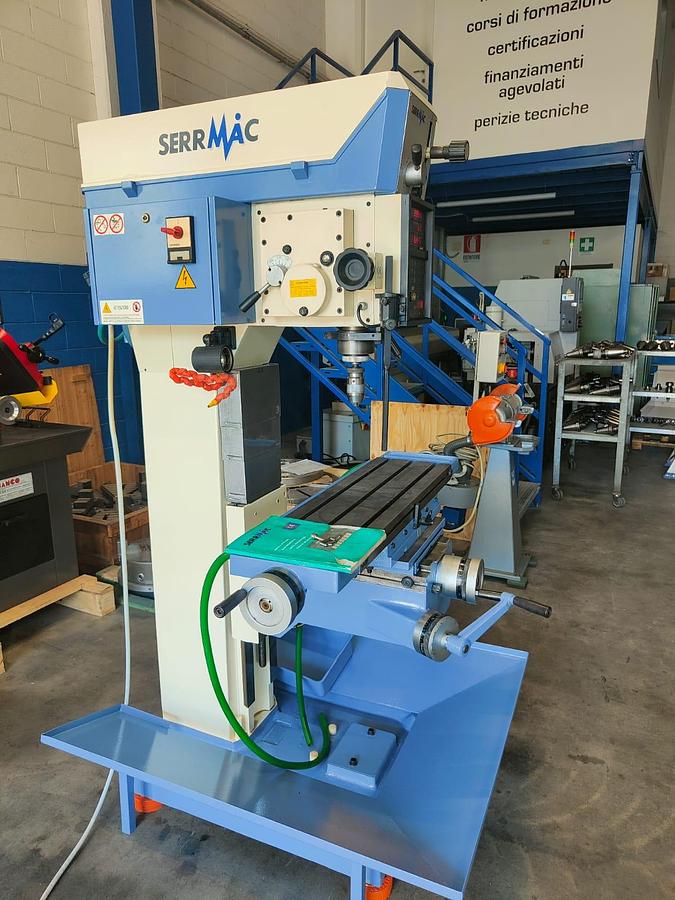

2001 DRILLING-MILLING MACHINE SERRMAC model.TCS 40

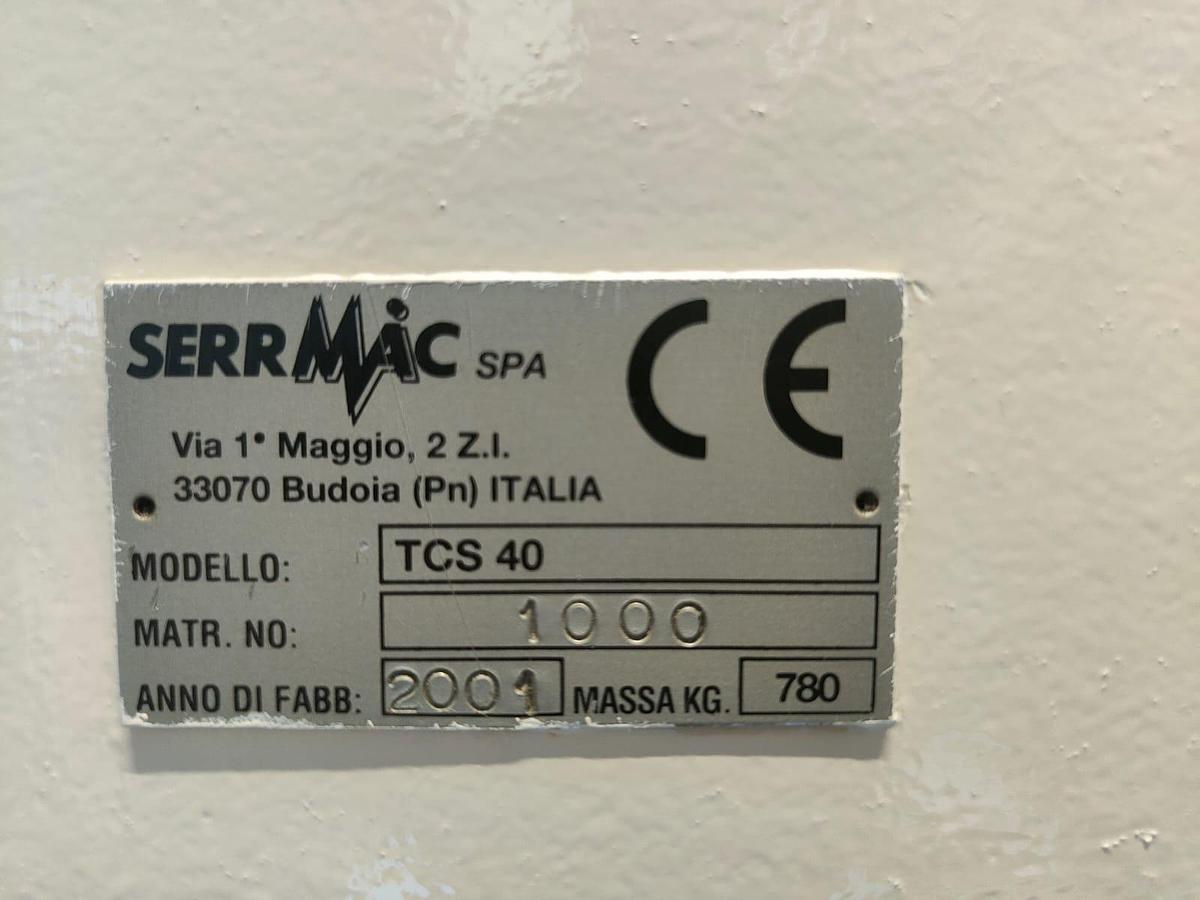

YEAR 2001 N/S 1000 Spindle travel 145 mm Milling spindle taper 4 cm Milling spindle taper (option) ISO 40 DIN 2080 Drilling Ø Max (steel HR 60) 40 mm Drilling Ø Max (cast iron HR 60) 50 mm Tapping M (on steel HR 60) 26 mm Tapping M (on cast iron HR 60) 32 mm Milling (on steel HR 60) Ø Max milling cutter 80 mm Maximum depth of cut 2.5 mm Maximum tool length 100 mm Maximum tool weight 5 Kg Spindle motor power (VS) 2.25/3 kW Spindle speed MIN-MAX 1/min 100-1620 Spindle motor power (VR) 2.25 kW Spindle speed MIN-MAX 1/min 64-2340 NON-BINDING DATA TO BE VERIFIED
