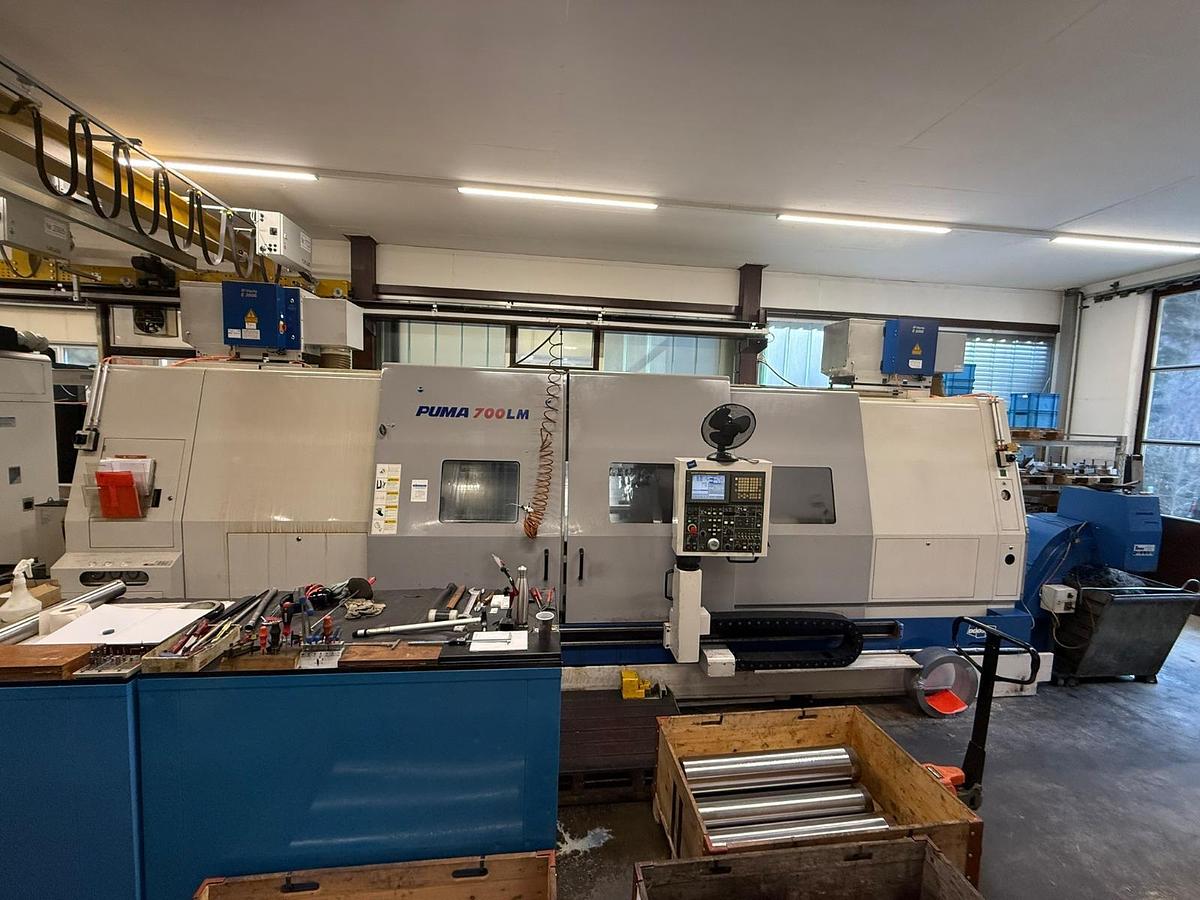

2006 DOOSAN PUMA 700 LM LATHE

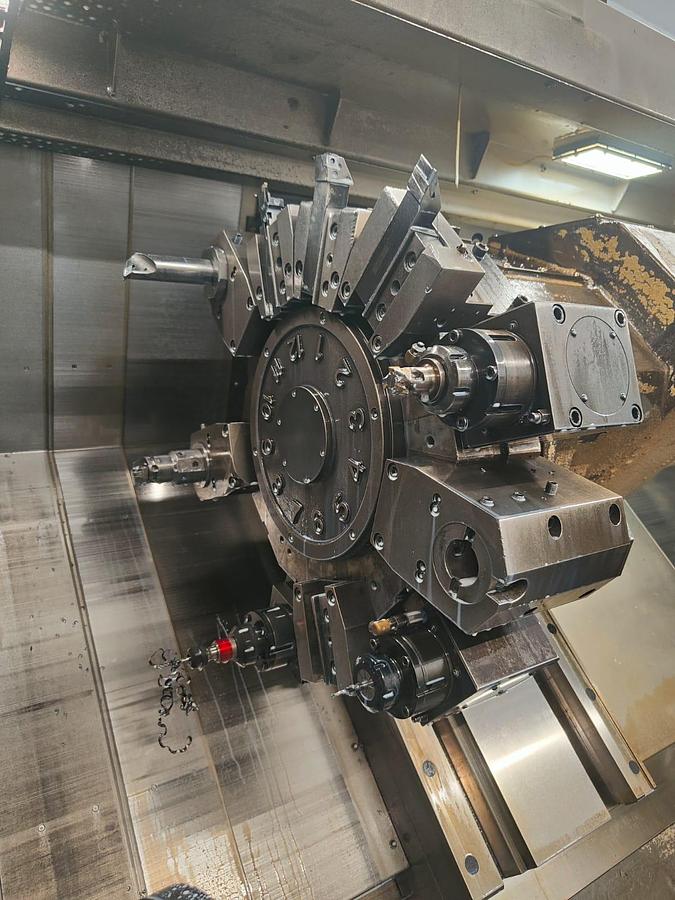

Year 2006 Maximum diameter above the pallet mm 1,030 Maximum diameter above the carriage mm 800 Maximum turning diameter mm 900 Maximum turning length mm 3,200 Bar capacity mm 164 Travels: X axis stroke mm 470 (450+20) Z axis stroke mm 3,235 C axis degrees 360° (0.001°) Feeds: Rapid feed X axis m/min 12 Rapid feed Z axis m/min 10 Turning feed X axis mm/rev 0.001 ~ 2.000 Turning feed Z axis mm/rev 0.001 ~ 2.000 Spindle speed field rpm 3~1500 Number of speed ranges 3 Motor power (30 min) kW 45 Turret: Turret positions 12 Rotary tools: Maximum tool spindle speed rpm 3,000 Motor power kW 11 Quill stroke mm 3,135 Barrel diameter mm 160 Quill stroke mm 150 NON-ASSUMPTIVE DATA TO BE VERIFIED
