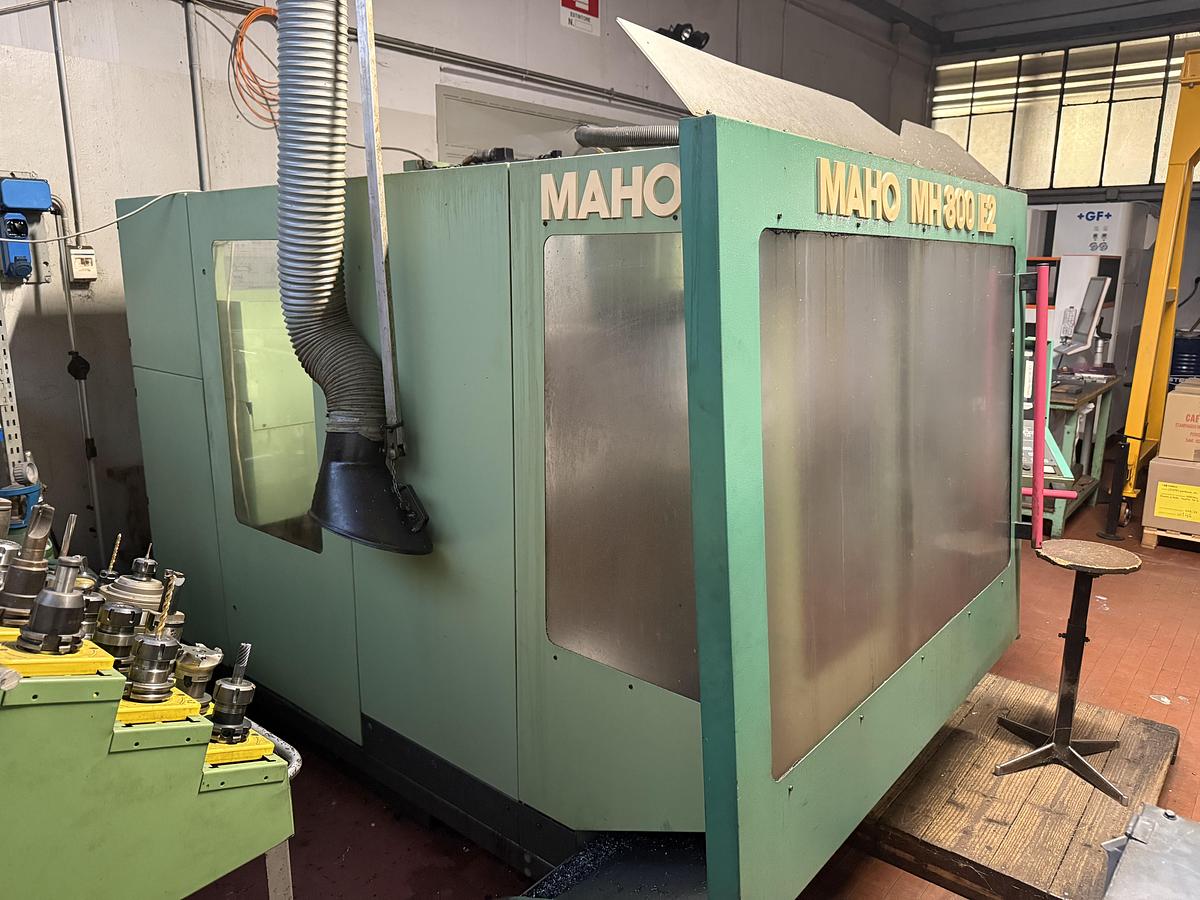

MAHO MH 800 E2 CNC Machining Center 800 x 550 x 500 mm ISO 40 Vertical & Horizontal Spindle

Robust and versatile CNC machining center MAHO MH 800 E2, designed for precision milling operations in both vertical and horizontal configurations. This machine is equipped with CNC 432 control, offering reliable performance for a wide range of machining applications including toolmaking, mechanical components, and general precision engineering.

The machine features a solid structure typical of MAHO machines, ensuring stability and accuracy. With dual spindle capability (vertical and horizontal), ISO 40 tooling, and a well-balanced working envelope, it provides flexibility for various machining requirements.

A complete turnkey service is available on request, including dismantling, transport preparation, reinstallation, commissioning, and operator training.

Technical Specifications

• Manufacturer: MAHO
• Model: MH 800 E2
• CNC: CNC 432
• Axis travel (X/Y/Z): 800 x 550 x 500 mm
•


Vertical Spindle

• Tool holder: ISO 40
• Quill stroke: 80 mm
• Max distance spindle nose – table: 514 mm
• Spindle speed: 20 – 5,000 rpm

Horizontal Spindle

• Tool holder: ISO 40
•


Composition / Included Equipment

• CNC 432 control system
• Vertical milling spindle
• Horizontal milling spindle
• Fully enclosed working area

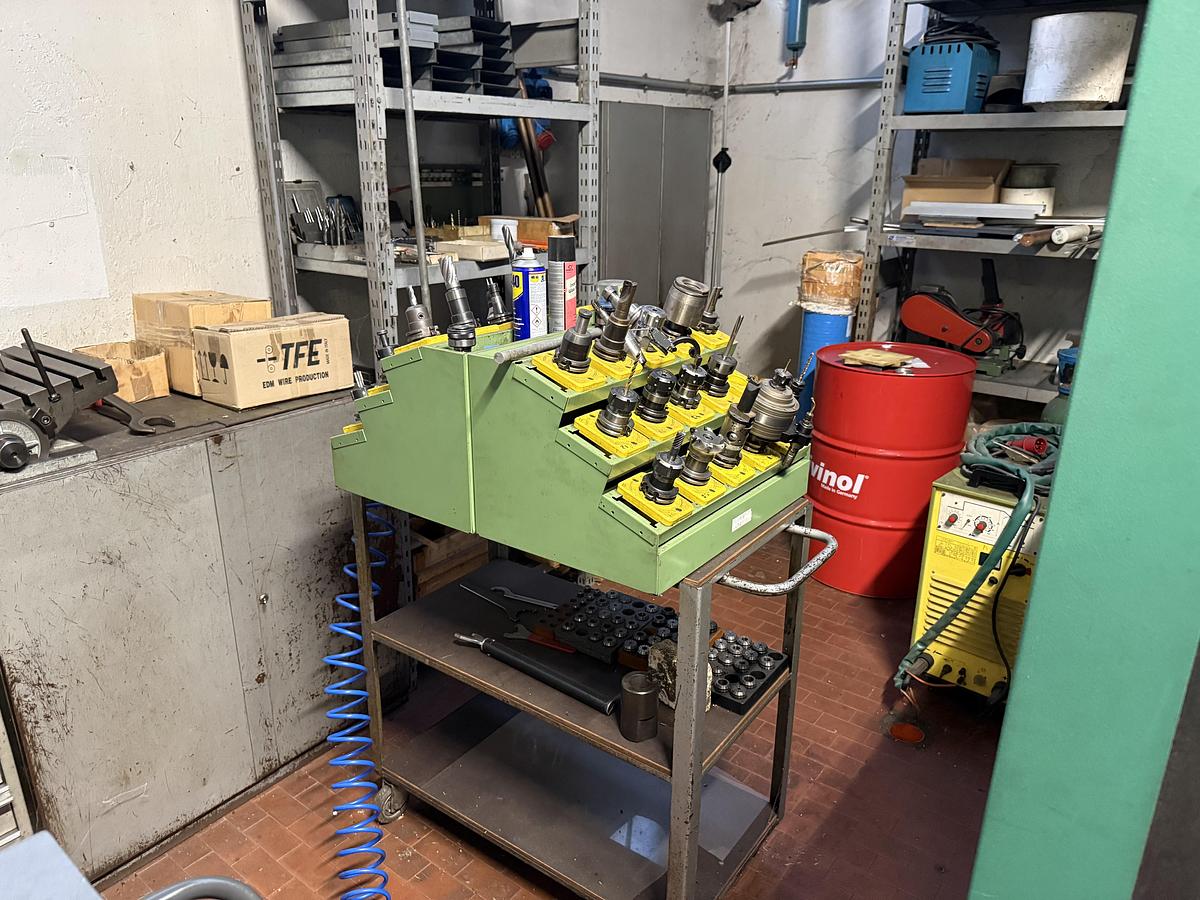

• Tool holders visible in photos

Additional Information

• Condition: Good working condition
• Turnkey service available (installation, training, relocation)
•


non-binding information to be verified at purchase
