2014 BEIJING AGIE CHARMILLES CUT E 350 Wire EDM

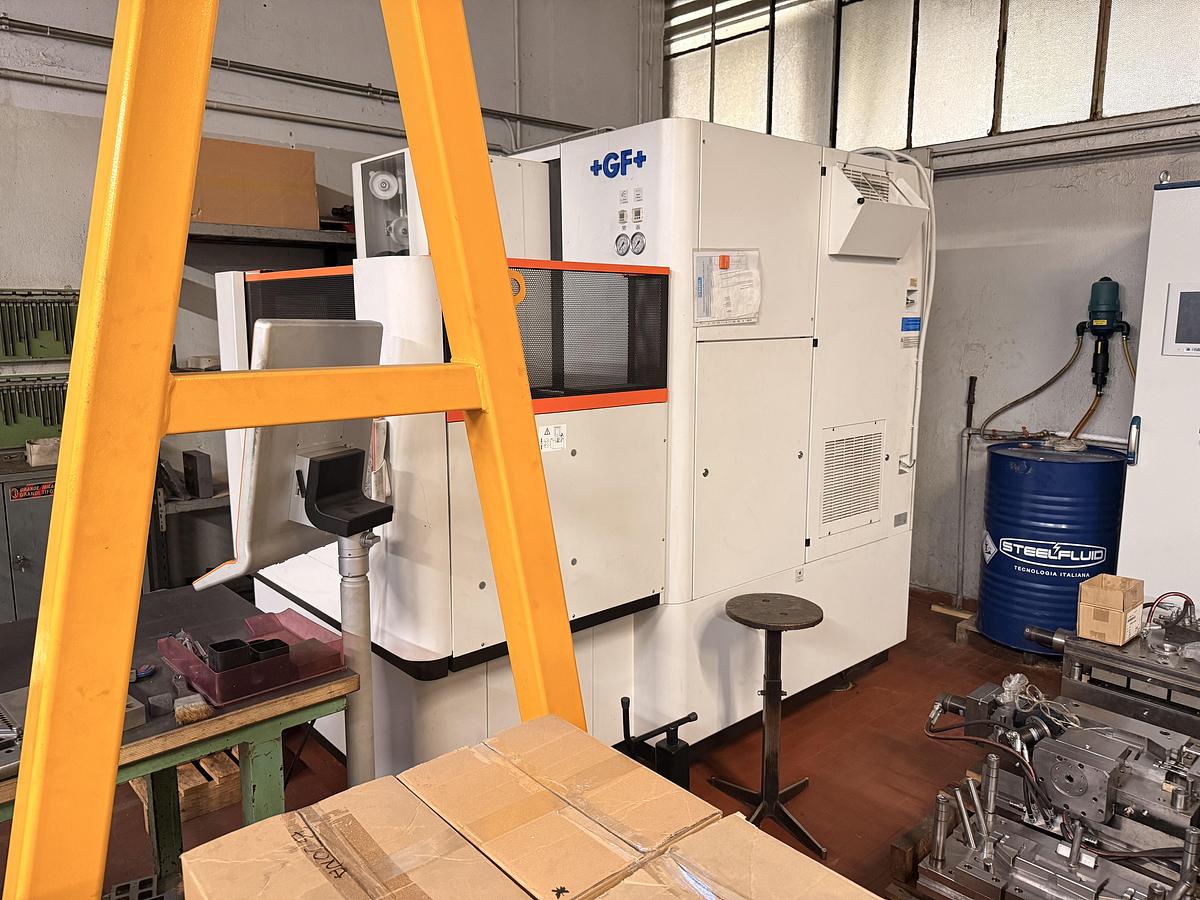

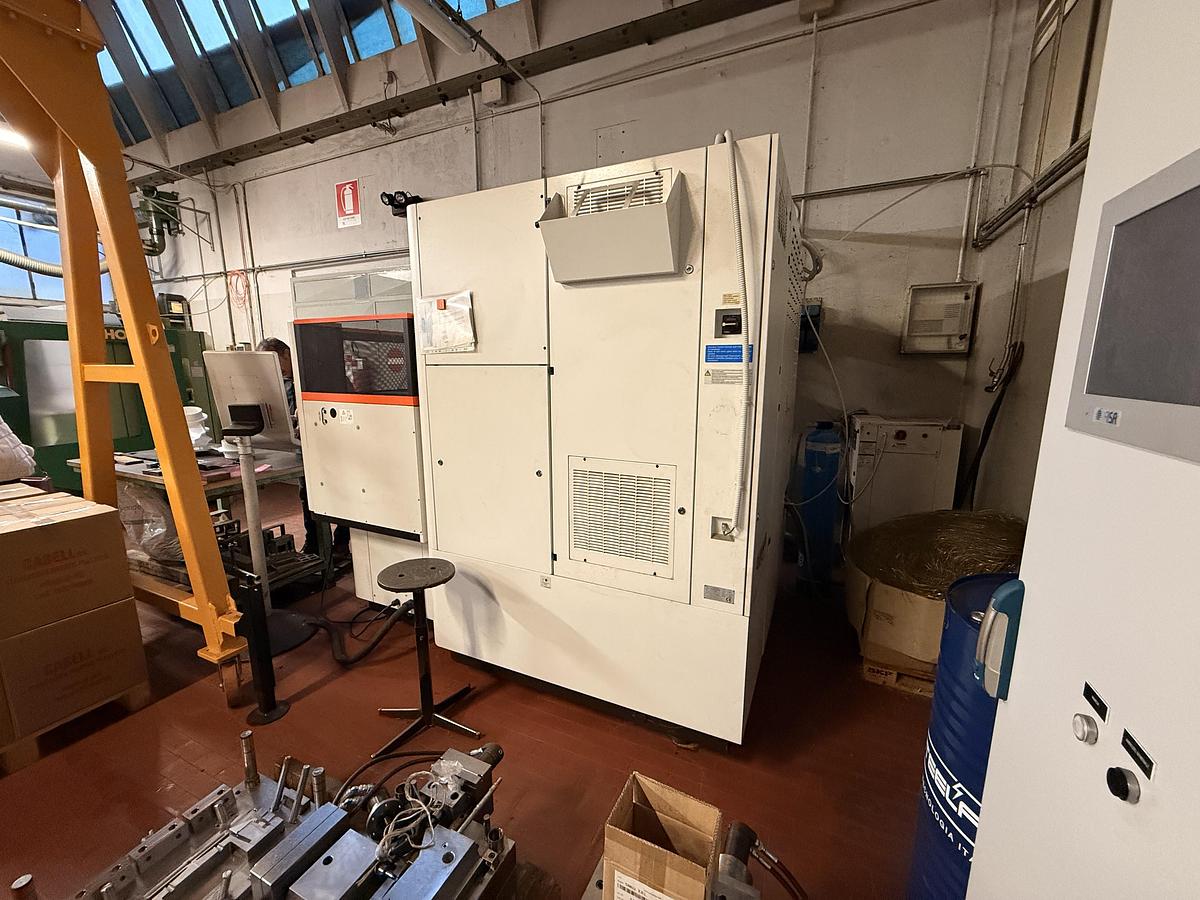

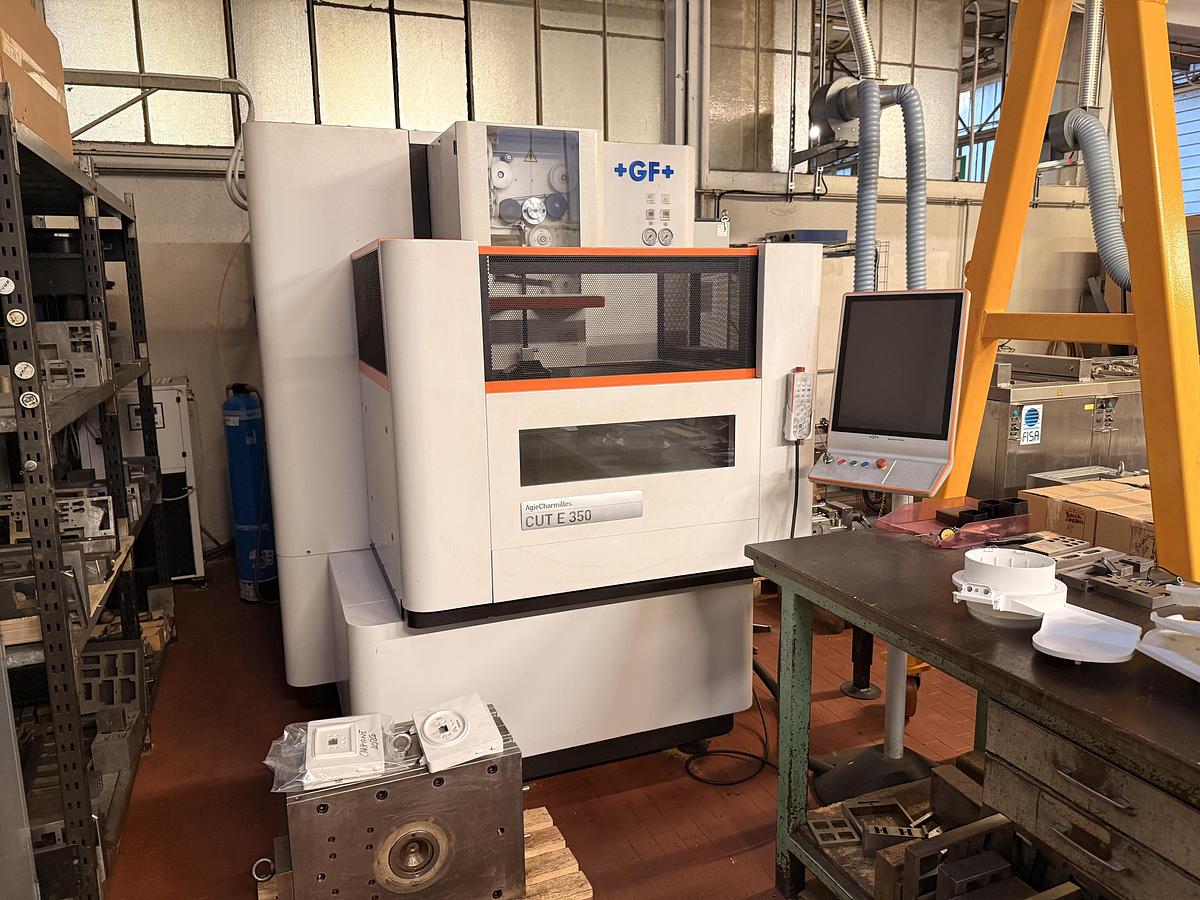

High-precision wire EDM machine BEIJING AGIE CHARMILLES CUT E 350, designed for accurate and reliable electro-discharge machining operations. This 2014 model is equipped with advanced control systems and automation features, making it ideal for precision tooling, mold & die manufacturing, and complex component machining.

The machine ensures stable performance thanks to its robust structure, glass scales, and anti-collision protection on all main axes. It supports submerged cutting and automatic wire threading, increasing productivity and reducing operator intervention.

A complete turnkey service is available on request, including dismantling, transport preparation, reinstallation, commissioning, and operator training.

Technical Specifications

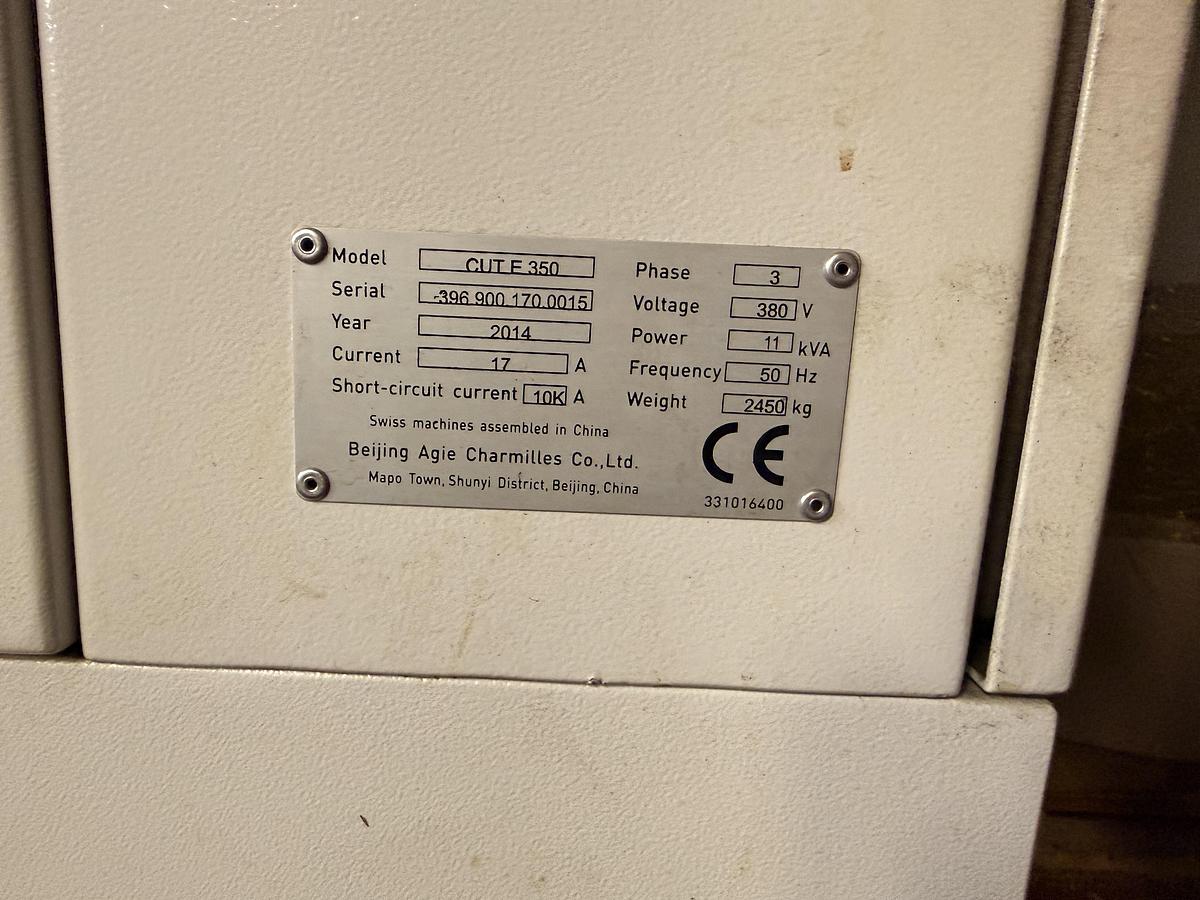

• Manufacturer: Beijing Agie Charmilles Co. Ltd
• Model: CUT E 350
• Year: 2014
• Axis travel (X/Y/Z): 350 x 250 x 250 mm
• U/V travel: ±45 mm
• Taper angle/height: ±30°
• Max workpiece dimensions: 820 x 680 x 250 mm
• Max workpiece weight: 400 kg
• Axis movement speed (XYZ): 6 mm/min
• Wire diameter: 0.1 – 0.3 mm
• Machine dimensions: 1750 x 2470 x 2200 mm
• Total weight (without dielectric): 2500 kg
• Voltage: 380 V
• Phase: 3
• Frequency: 50 Hz
• Power: 11 kVA

Composition / Included Equipment

• AC Cut HMI control with 19” touchscreen
• IPG-V generator with HMI2 control
• Automatic wire threading system
• Submerged machining capability
• Glass scales
• Chiller
• Transformer
• Anti-collision protection on X, Y, Z axes

Additional Information

• Condition: Good working condition, visible in operation
• Turnkey service available (installation, training, relocation)

non-binding information to be verified at purchase
