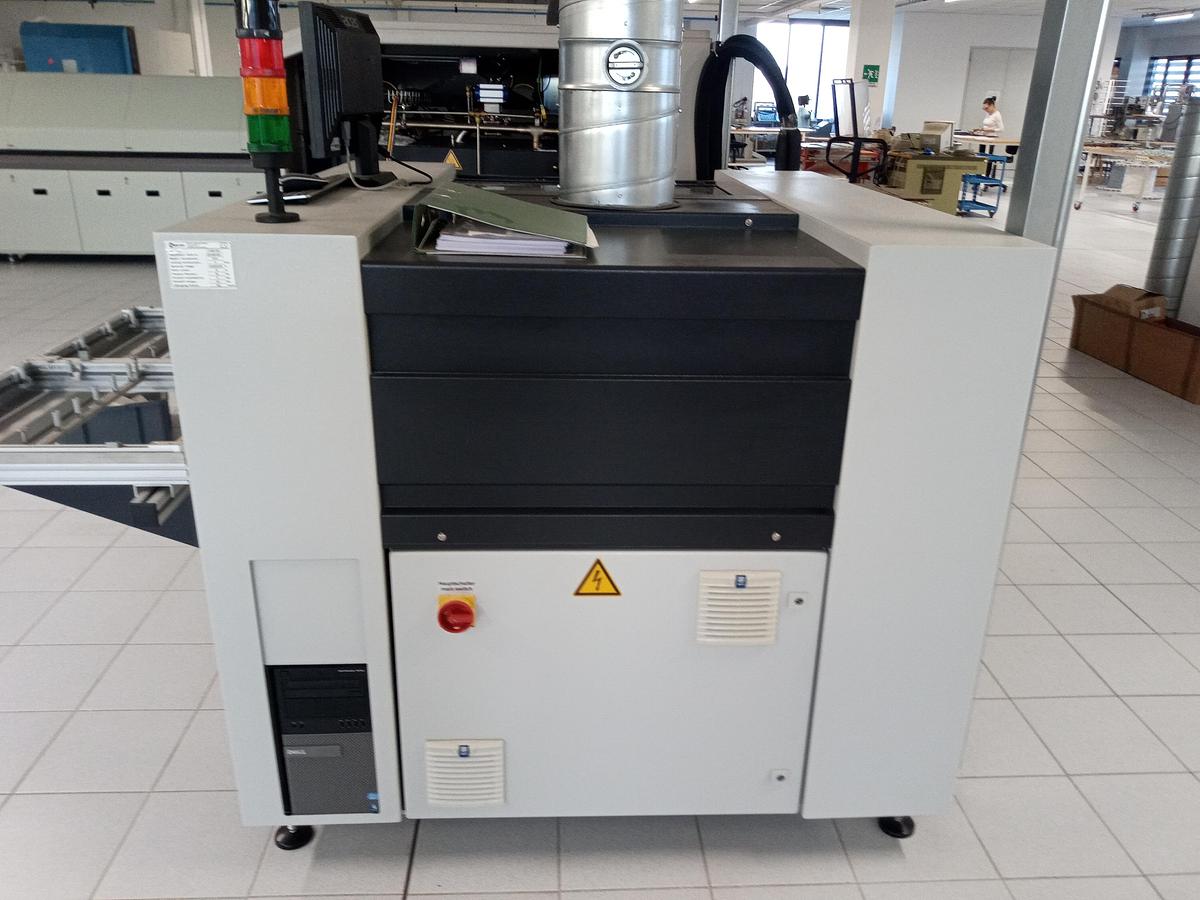

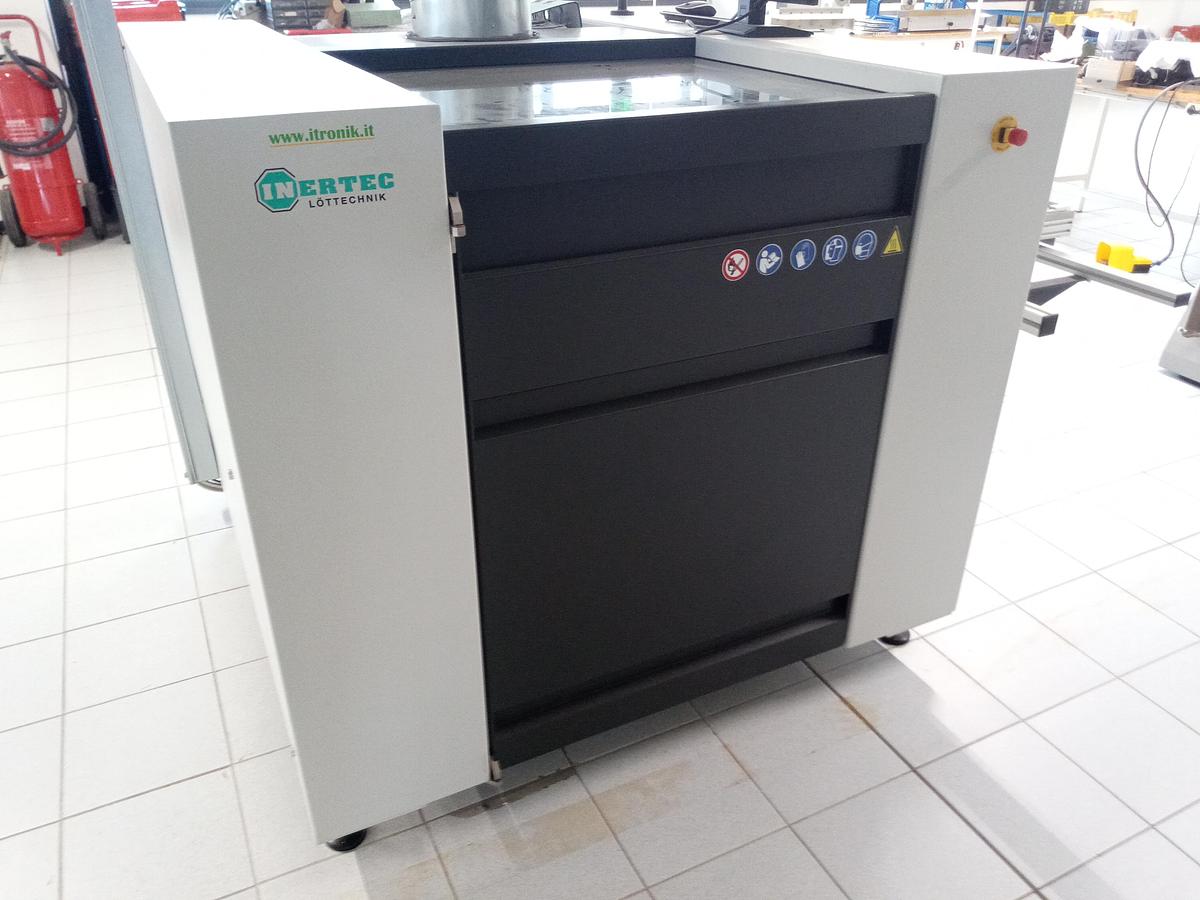

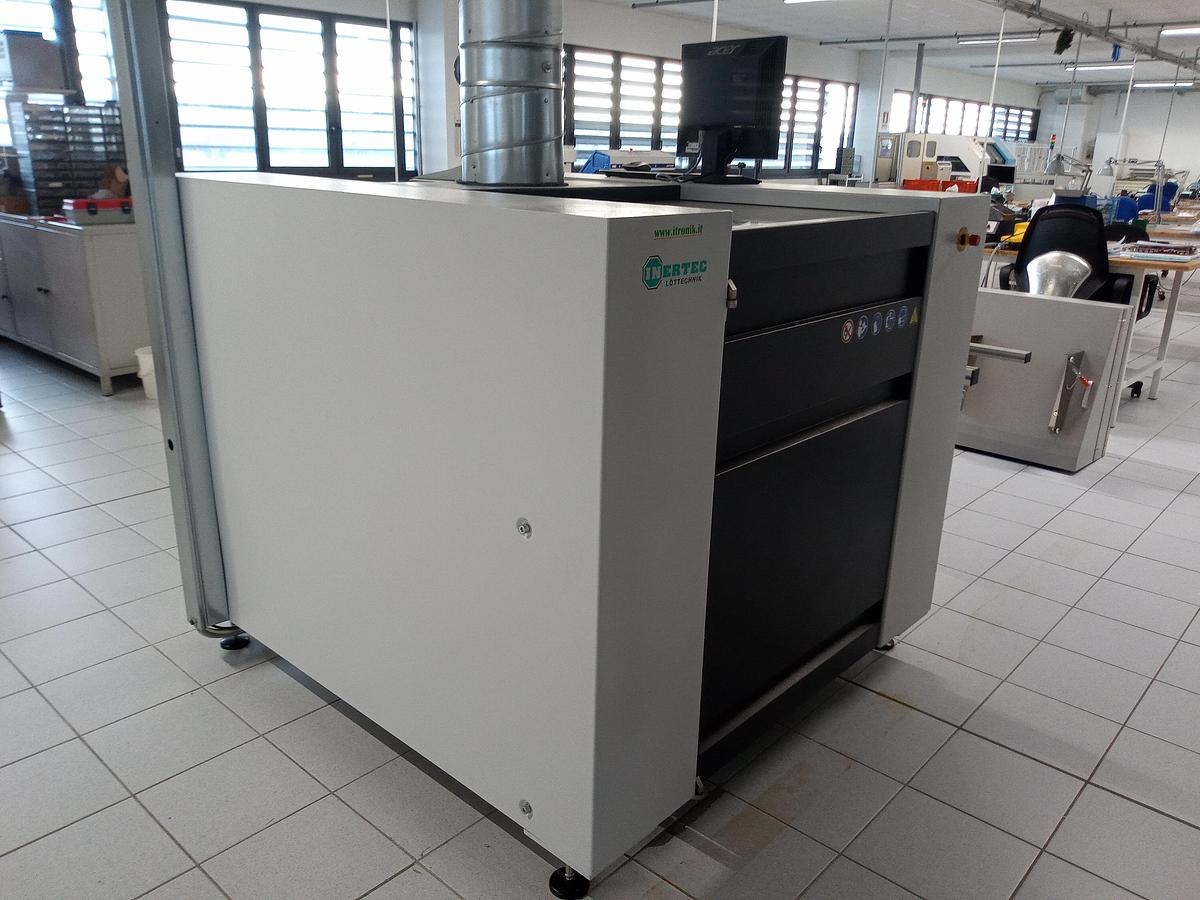

INERTEC CUBE 460 Selective Soldering Machine Nitrogen PCB up to 460 x 460 mm

INERTEC CUBE 460 selective soldering machine for PCB assembly, designed for precise and reliable soldering processes in electronics manufacturing. This nitrogen selective soldering system is ideal for high-quality PCB production, reducing oxidation and ensuring consistent solder joint quality.

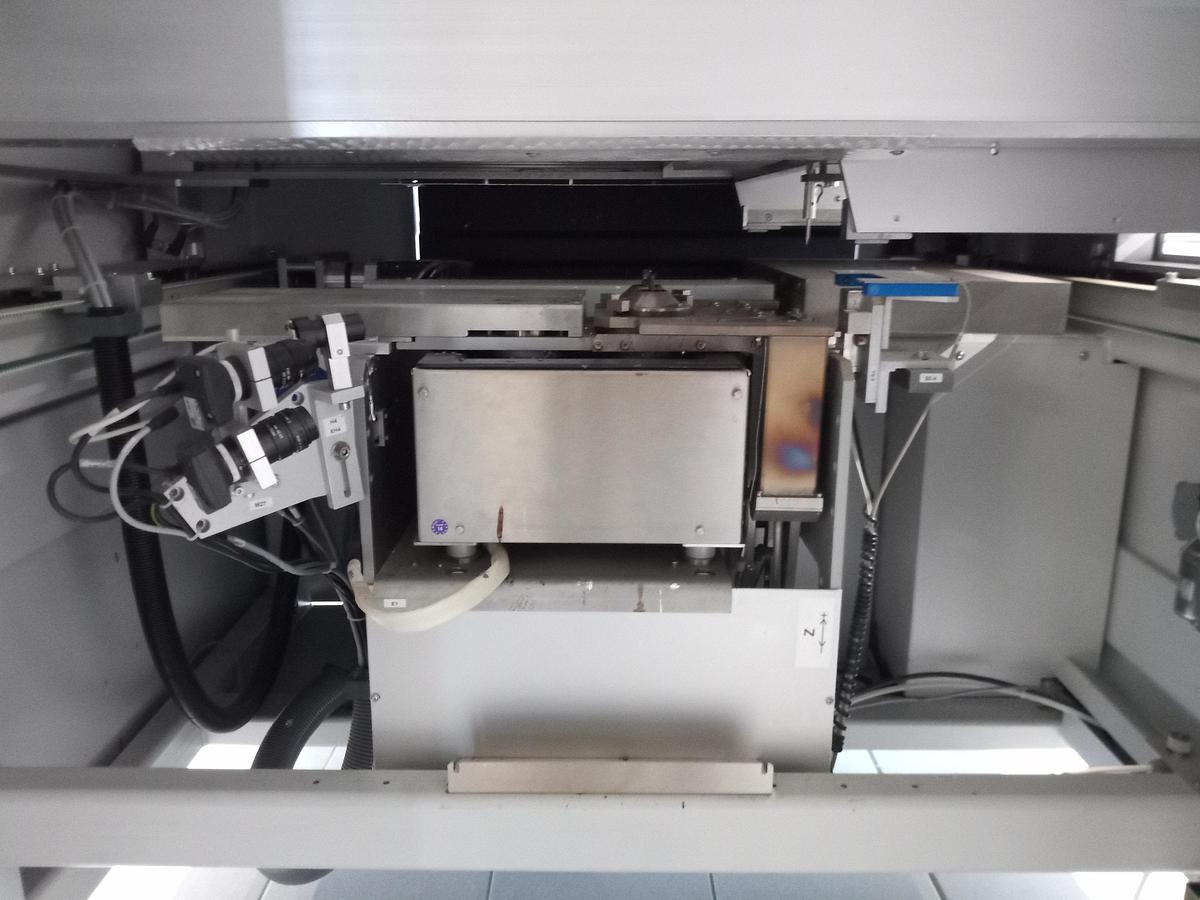

The machine is equipped with two independent soldering nozzles, allowing flexible operation and improved productivity in selective soldering applications. The nitrogen process enhances soldering performance, making it suitable for complex PCB layouts and high-reliability electronic components.

The integrated micro-drop fluxing system with optical sensor ensures accurate and controlled flux application, while the quartz preheating system provides efficient thermal management and reduced energy consumption. The wave height is continuously monitored and automatically adjusted via a titanium needle sensor, ensuring stable and repeatable soldering results.

An integrated camera system enables automatic fiducial recognition and PCB position correction, improving precision and reducing setup time. The intuitive graphical user interface allows easy programming of soldering points and process parameters, making the system suitable for both prototyping and medium-scale production.

Category

Electronics Manufacturing Equipment Selective Soldering Machine PCB Assembly

Technical Specifications

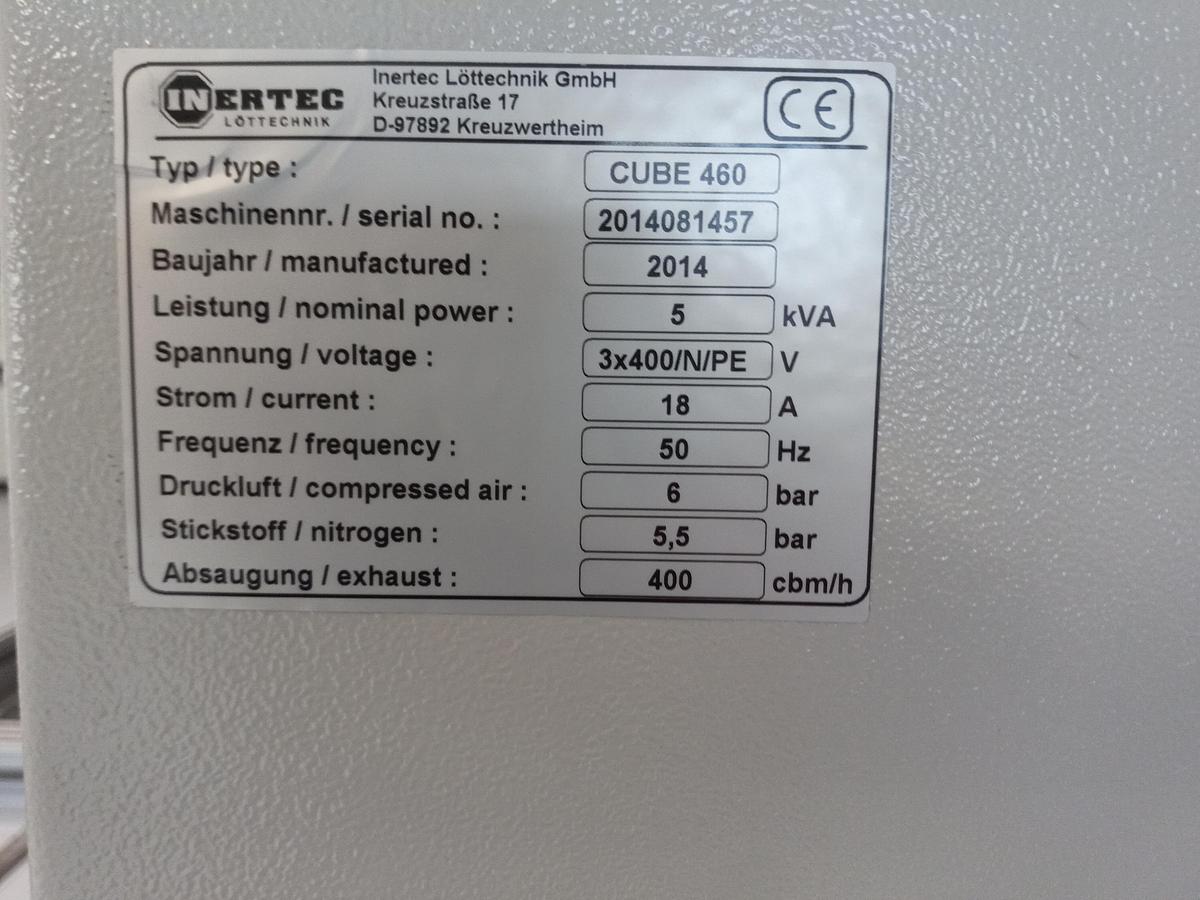

• Manufacturer: INERTEC Löttechnik GmbH
• Model: CUBE 460
• Machine type: Selective soldering machine (nitrogen)
• Year of construction: 2014
• PCB size: 20 x 20 mm to 460 x 460 mm
• Solder pot capacity: 45 kg
• Number of nozzles: 2 independent
• Power supply: 3 x 400 V
• Max current: 18 A
• Frequency: 50 Hz

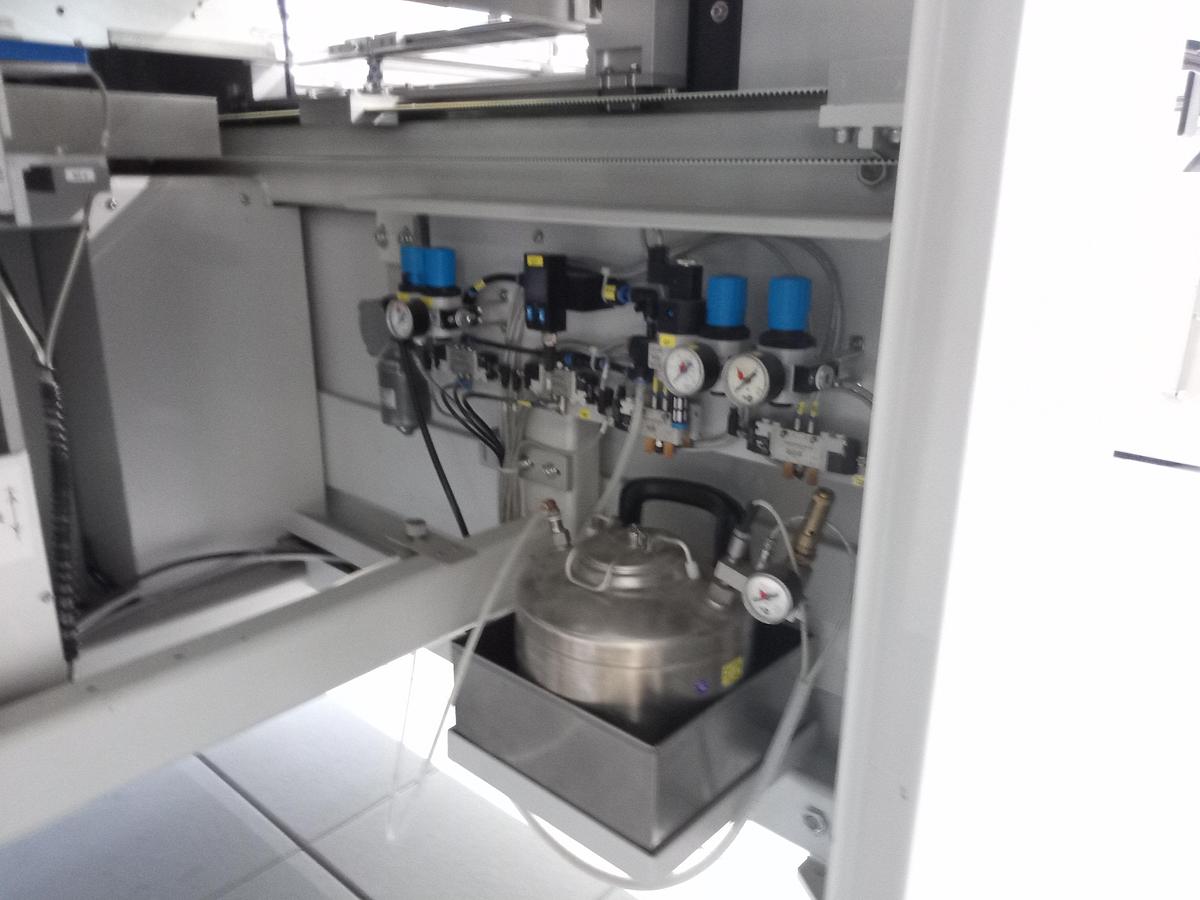

• Compressed air: 6 bar
• Nitrogen pressure: 5.5 bar
• Exhaust capacity: 400 cbm/h
• Machine dimensions: 2,000 x 1,550 x 1,250 mm
• Weight: approx. 800 kg

Composition / Included Equipment

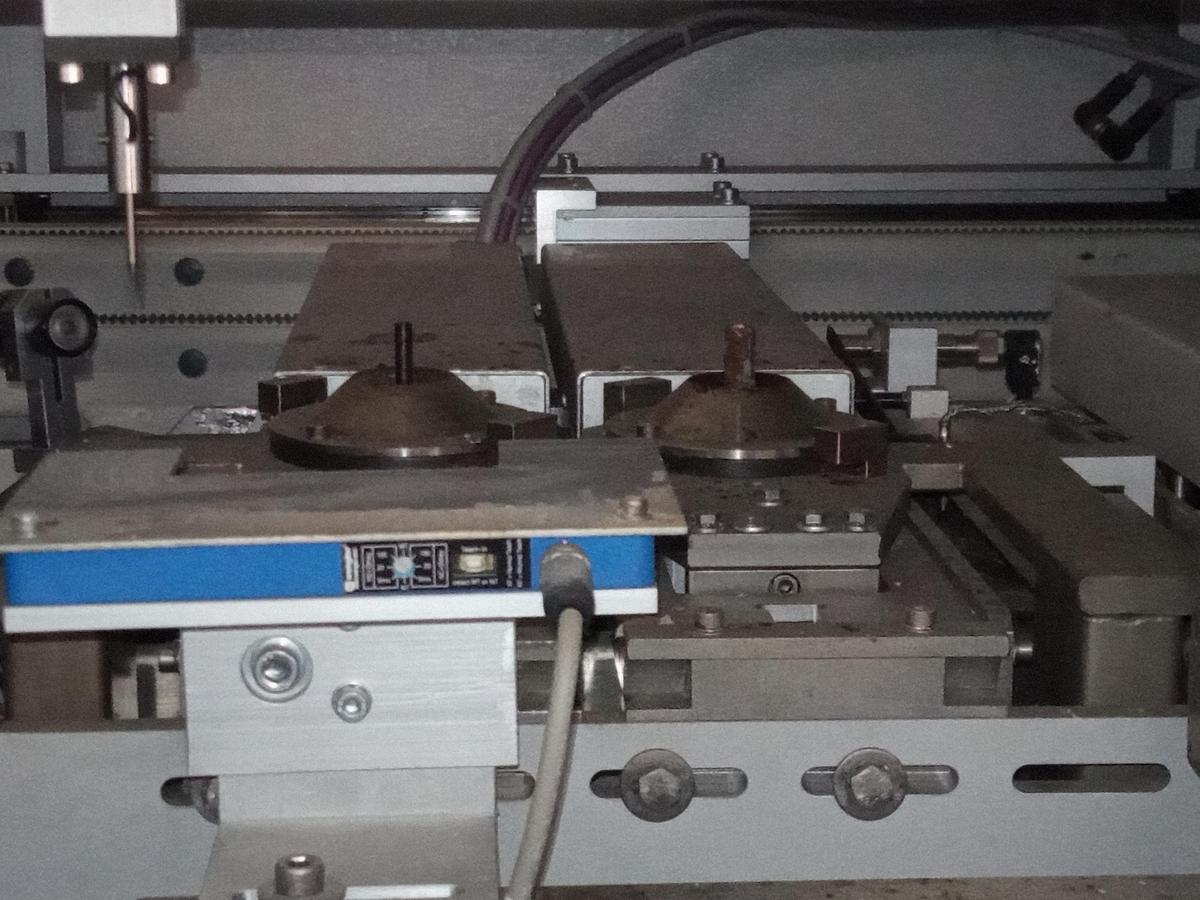

• Dual independent soldering nozzles
• Micro-drop fluxing system with optical sensor
• Quartz preheating system
• Titanium needle wave height control
• Integrated camera system for fiducial recognition
• Nitrogen soldering unit

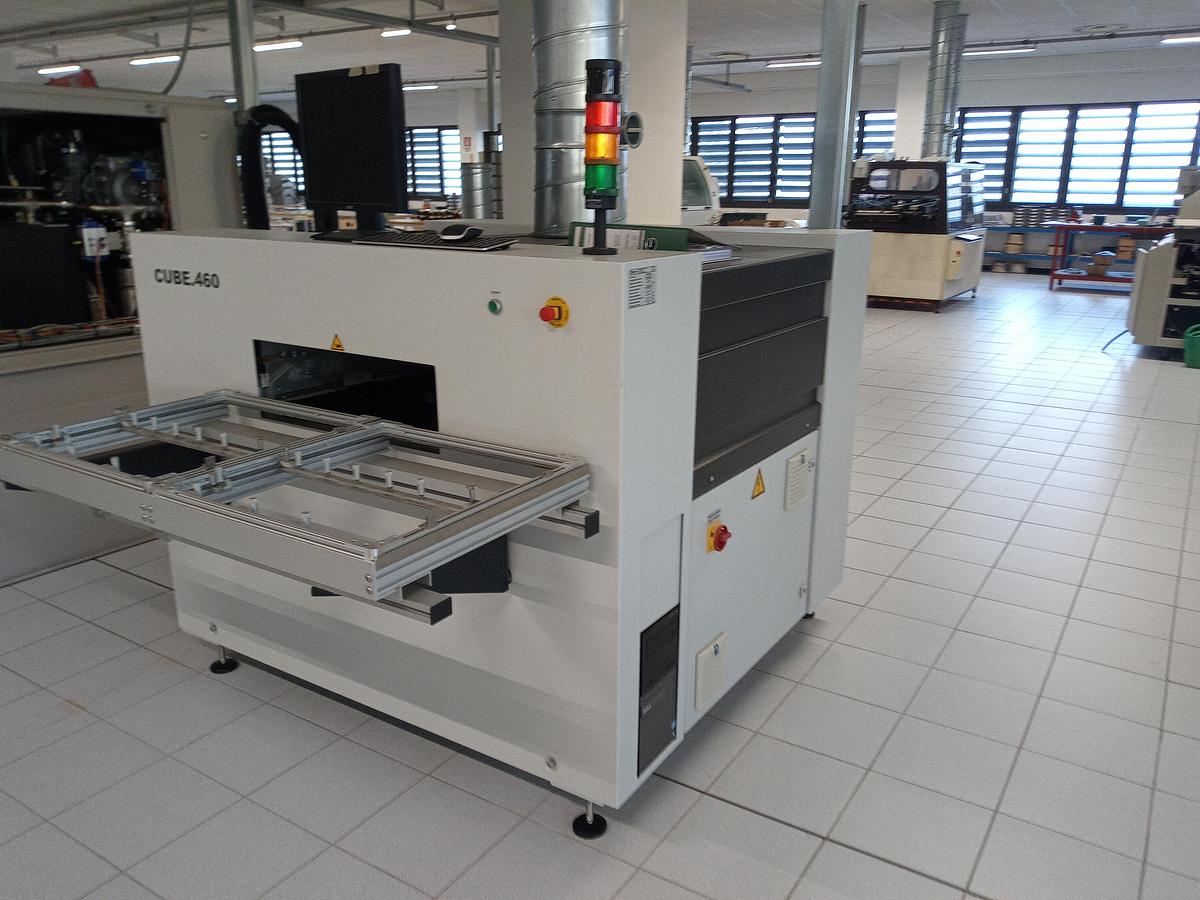

• PCB conveyor and handling system
• Industrial PC with graphical interface

Additional Information

• Condition: Used
• CE marked
• Location: Available on request
• Well-maintained machine suitable for immediate use

non-binding information to be verified at purchase
