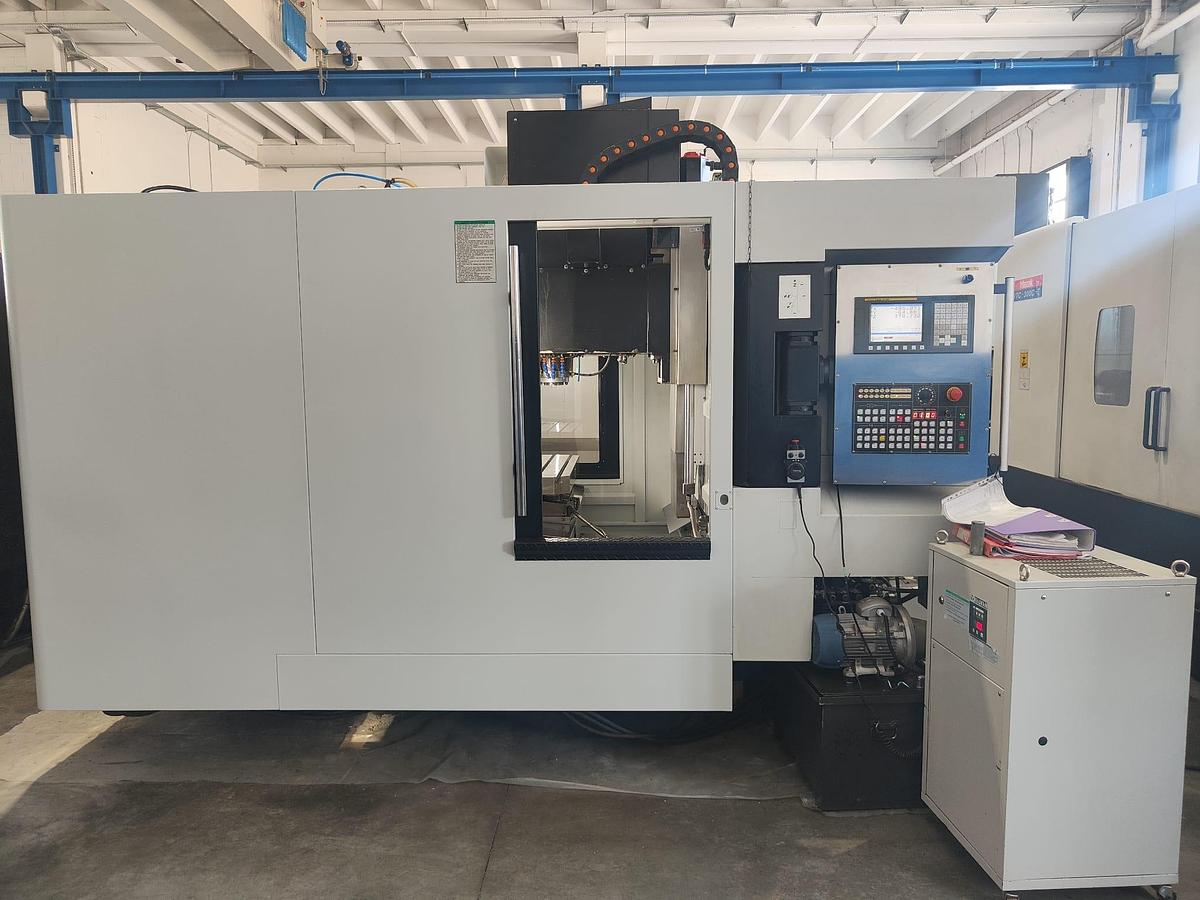

2011 SEIKITECH ISO 50 ONE-10 PALLET CHANGE MACHINING CENTER
2011 SEIKITECH ISO 50 ONE-10 PALLET CHANGE MACHINING CENTER
Contact us for price
Location:Bergamo, Italy
or
Call +39 02 9475 0001
Description
YEAR 2011
SERIAL NUMBER M01000516
Travel:
X-axis 1000 mm
Y-axis 500 mm
Z-axis 600 mm
Spindle nose-to-table distance 150-750 mm
Maximum spindle speed 7000 rpm
Spindle motor 11 kW
Tool change time 1.8 seconds
Maximum tool dimensions (diameter and length) 80/300 mm
Maximum tool weight 7 kg
Tool type DIN ISO 50
X/Y/Z servo motor FANUC 2.5 kW
X/Y/Z servo motor MITSUBISHI 2.0/2.0/3.5BS
Third-axis cutting speed 12000 mm/min
NON-BINDING DATA TO BE VERIFIED
Specifications
| Year | 2011 |
| Condition | Used |
| Stock Number | CV0006 |

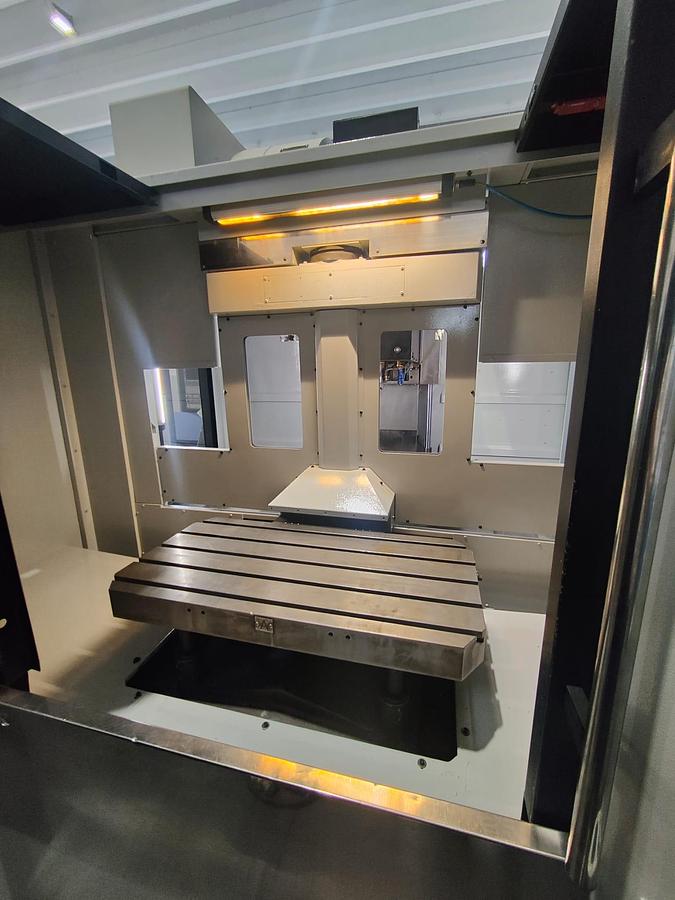

| Table | 1000 x 500 mm |
| Workable space | 1000 x 500 mm |

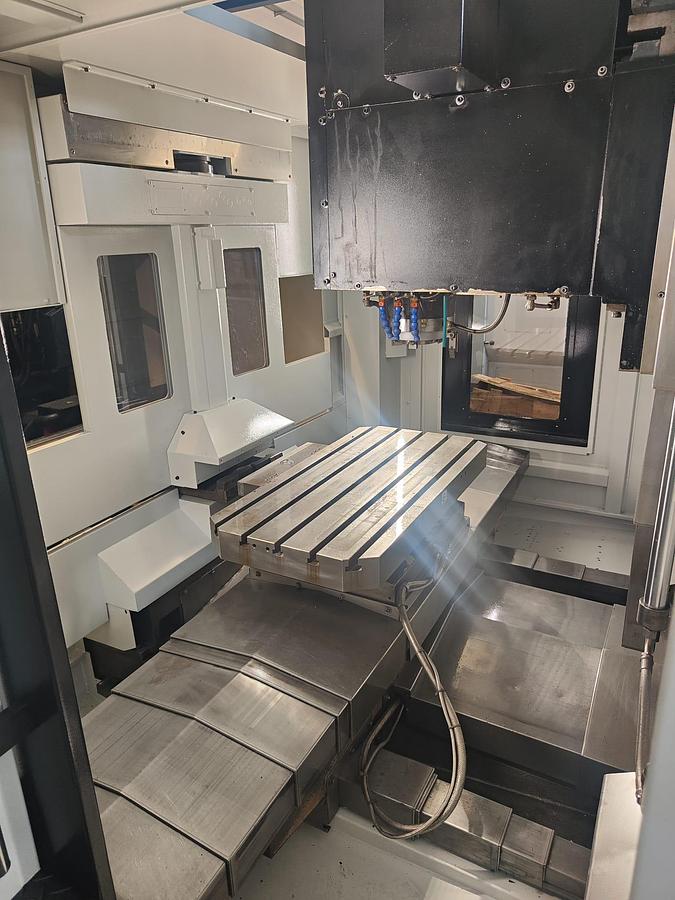

| Number of pallets | 2 |
| Pallet change time | 9 sec |
| Quarries at t | 100 x 18 x 5 mm |
| Permissible weight | 300 x 2 Kg |
| Spindle | ISO 50 |
| Tool magazine | 24 places |
| Encumbrances | 3156 x 3700 x 3300 x 2656 mm |
| Weight | 7500 Kg |
