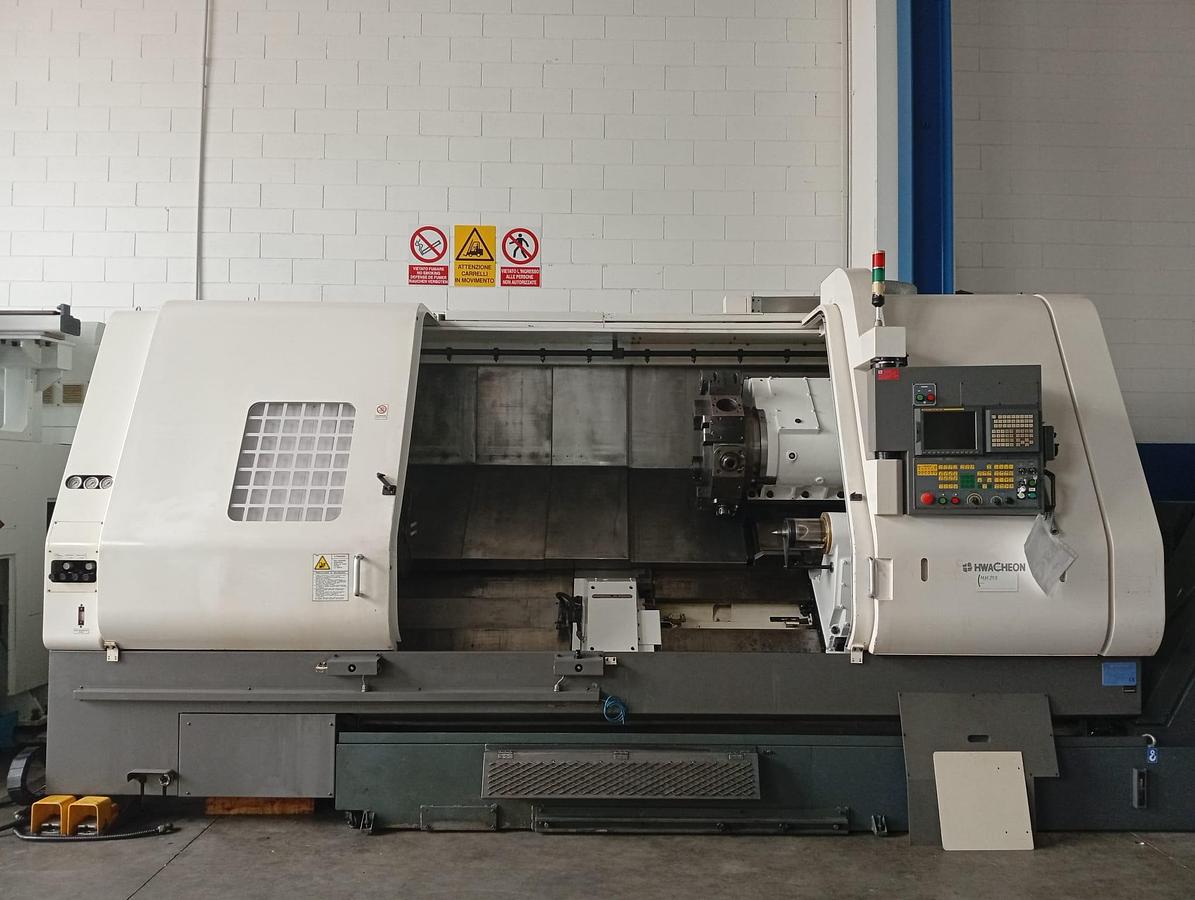

2005 HWACHEON LATHE MOD. HI-TECH 700
2005 HWACHEON LATHE MOD. HI-TECH 700
Contact us for price
Location:Bergamo, Italy
or
Call +39 02 9475 0001
Description
Complete with C-axis, motorized and support for hydraulic tailstock

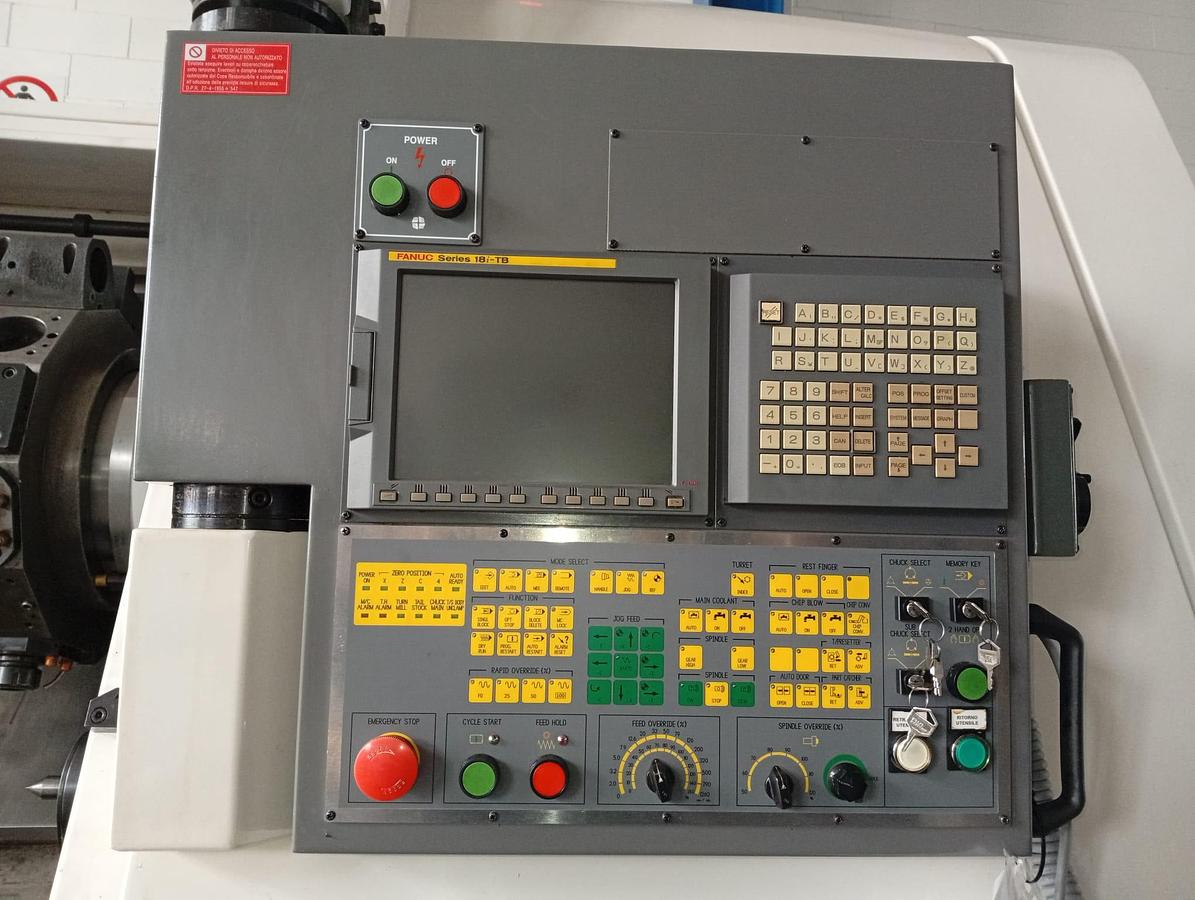

CNC Fanuc 18i

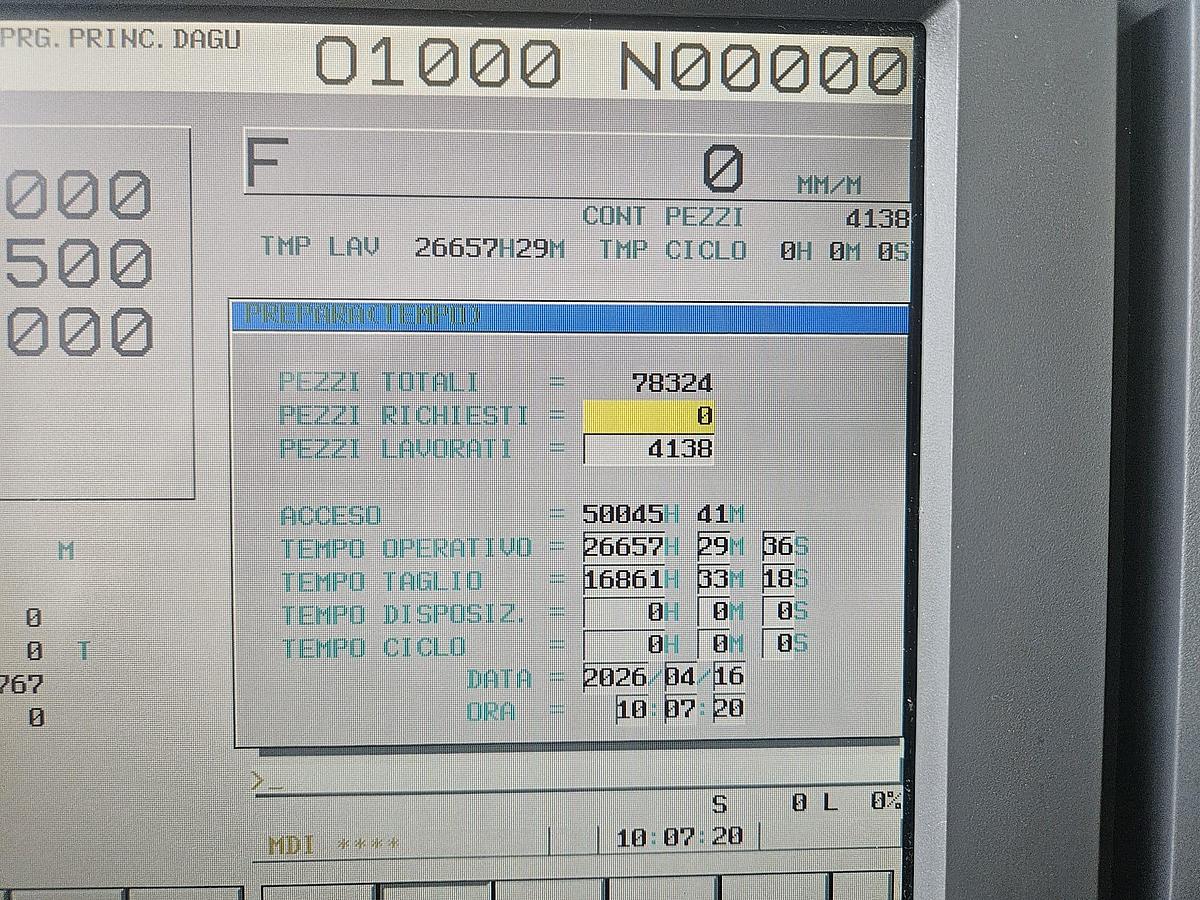

WORK HOURS 16860
⌀
max rotating on the table mm 900
⌀
max turning diameter mm 700
⌀
bar passage mm 115
X-axis rapid feed: M/Min: 24
Group no.2

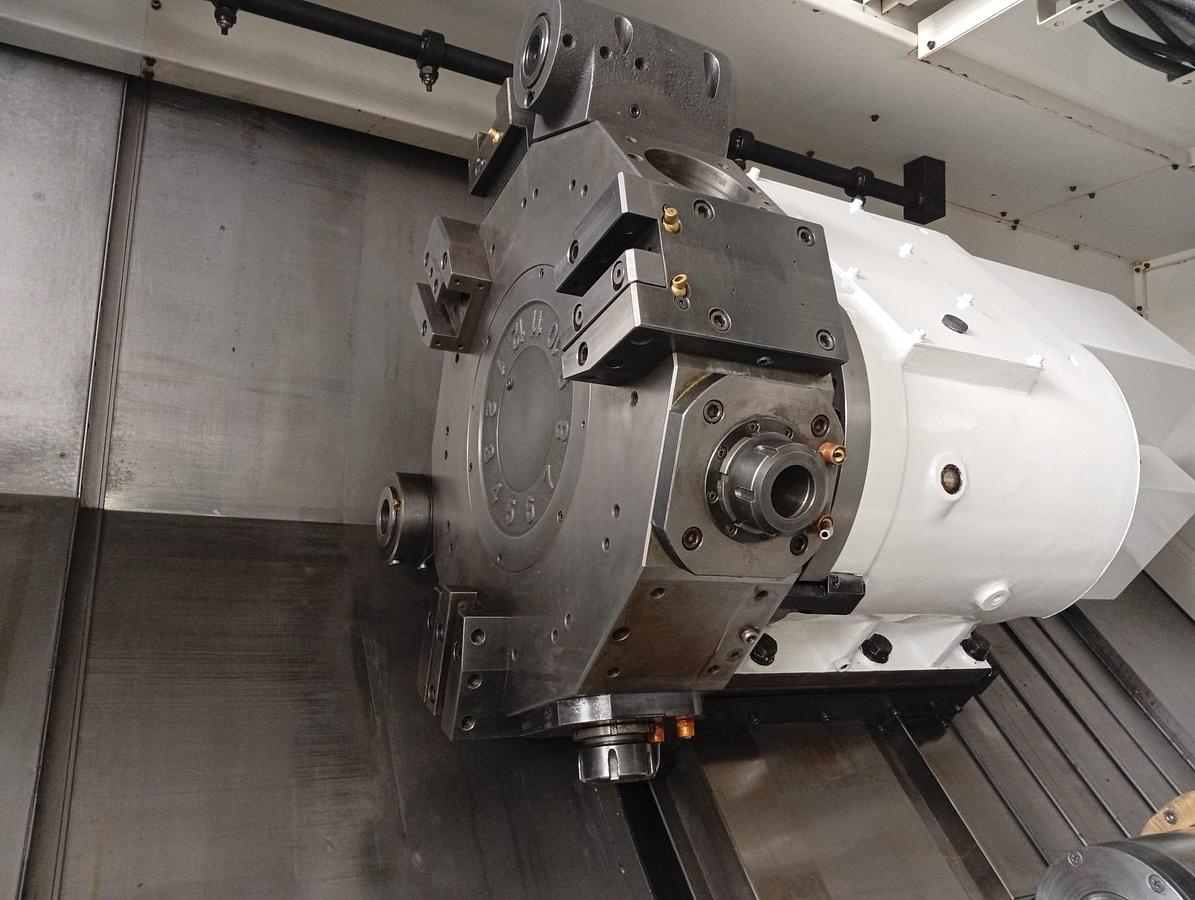

Tool positions no. 12
⌀
63
⌀
NON-ENGAGED DATA TO BE VERIFIED
Specifications
| Year | 2005 |
| Condition | Used |
| Serial Number | HI-TRCH700 |
| Stock Number | TC0069 |
| Max turning length | 2000 mm |
| Distance between the tips | 2000 mm |
| Stroke x axis | 385 mm |
| Travel axis z | 2070 mm |
| Rapid z-axis | M/Min 24 |
| Spindle rotation speed | RPM 1800 |
| Spindle nose attachment | Asa 11 |
| Spindle motor power kw | 37 |
| Max tool size | Mm 32 |

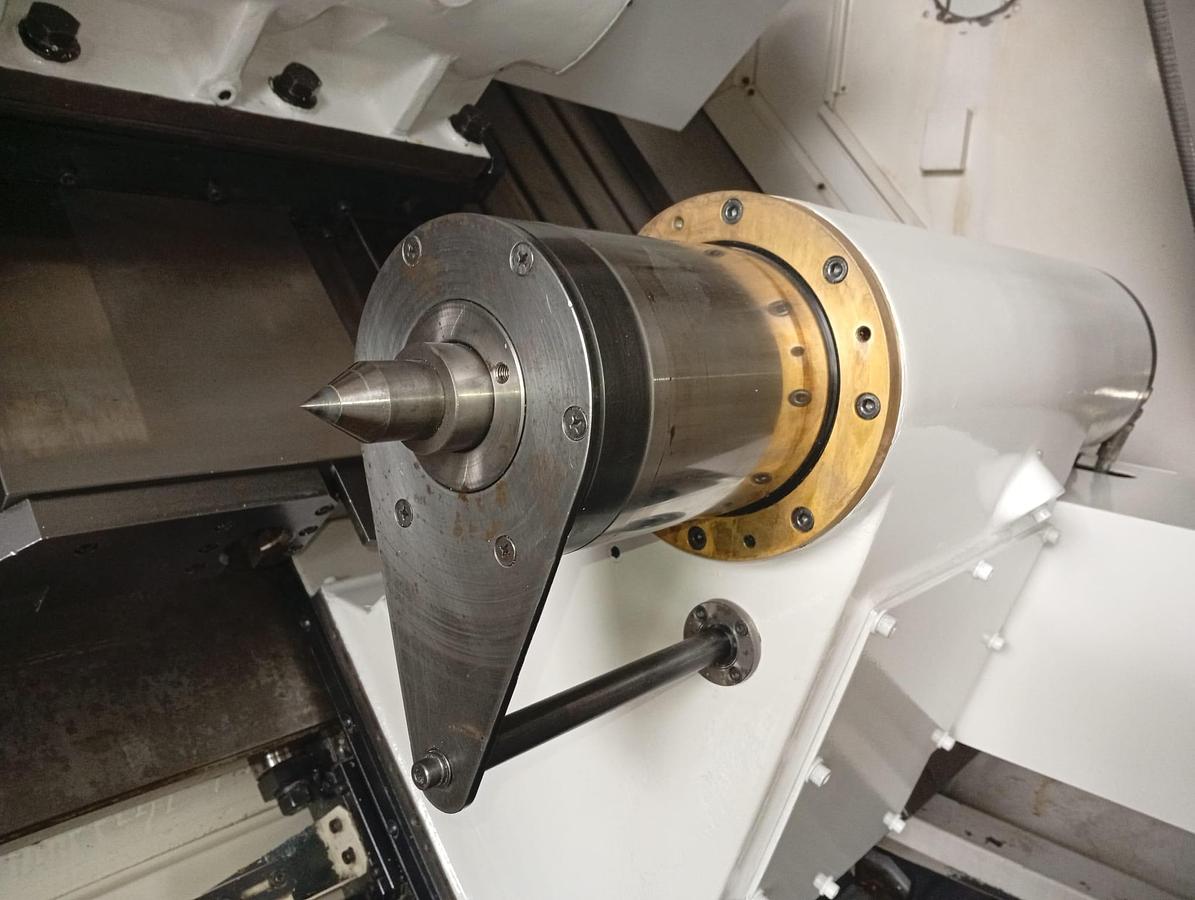

| Tailstock sleeve | 150 mm |
| Race dinghy | 150 mm |
| Tailstock cone type | 5 Mt |
| Self-centering autoblock | diameter 400 mm |
