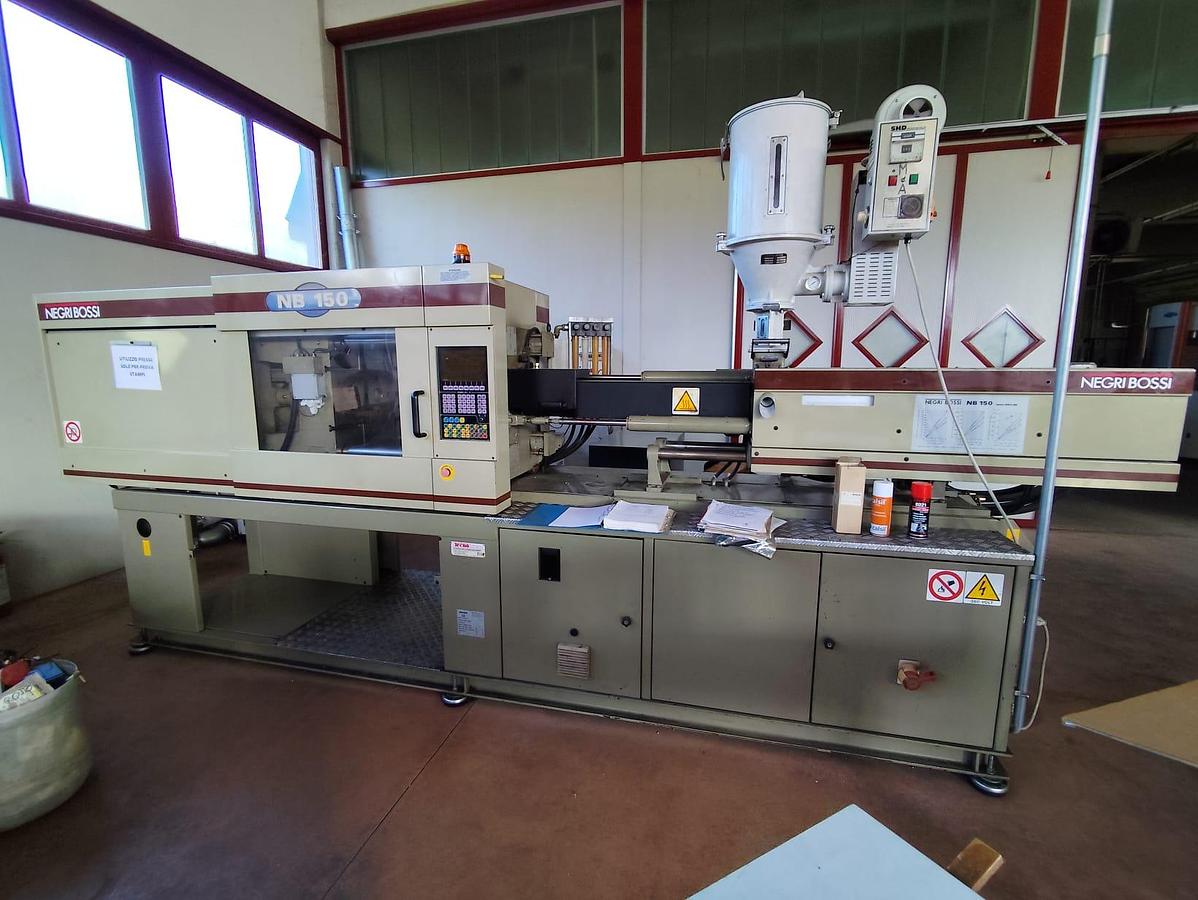

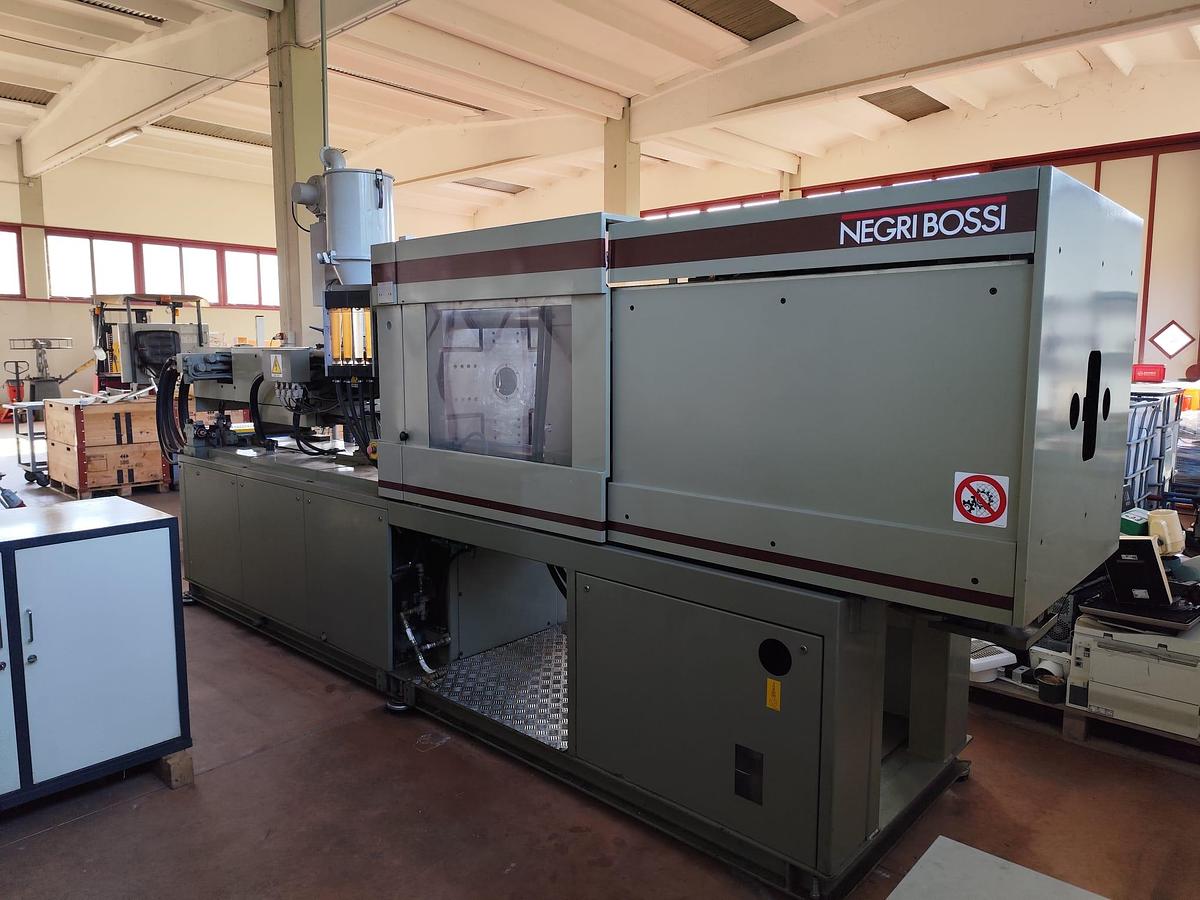

1997 NEGRI BOSSI INJECTION PRESS NB150

LIQUIDATION OF FOMAR-STAMP S.R.L. MACHINES READY FOR DELIVERY VISIBLE AND IN OPERATION AT FOMAR-STAMP S.R.L. IN MESENZANA (VA) YEAR 1997 N/S 52-808 Screw diameter mm 45 Screw length-to-diameter ratio L/D 20 Calculated injection volume cm3 353 Actual injection volume cm3 315 Effective injection capacity (PS) g 330 Injection flow cm 3/s 175 Max material pressure bar 1700 Plasticization capacity (PS) kg/h 105 Max screw rotational speed g/min rpm 310 Screw torque Nm 814 Heater zones cylinder n. 4 Installed heating power KW 11.2 Clamping force of injection unit kN 60 Mold closing force Kn 1500 Mold opening stroke mm 180/460 Mold thickness mm 170/525 Table dimensions mm 670×670 Spacing between columns mm 450×450 Hydraulic ejector force kN 41 Hydraulic ejector stroke mm 150 Total installed power kW 33.2 Weight Kg 5260 Overall dimensions 5230 x 1105 x 2105 NON-BINDING DATA TO BE VERIFIED
