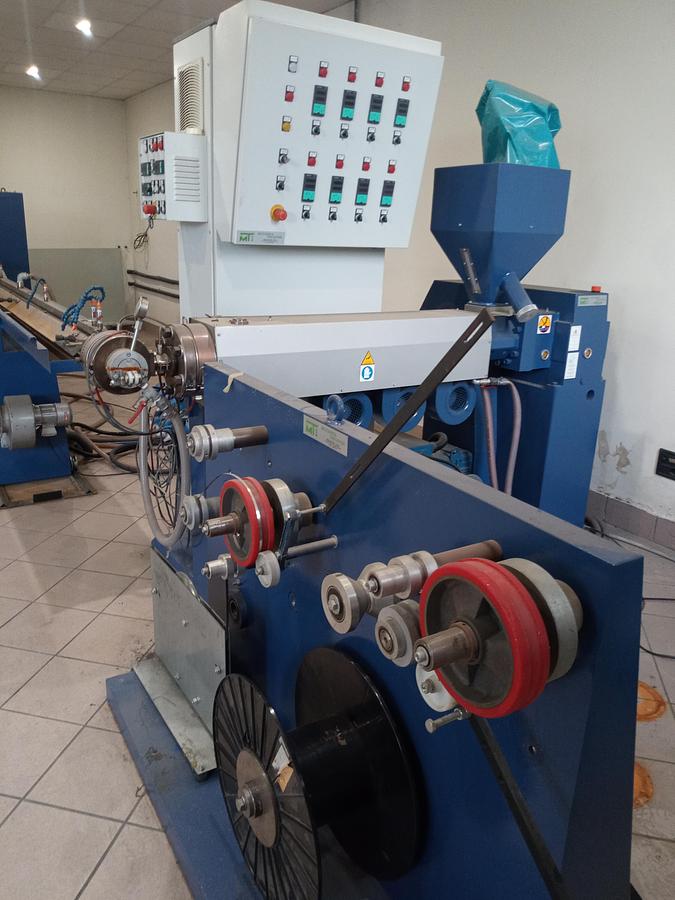

MT Plastics Ø60/25 Plastic Extrusion Line for Profiles & Pipes

Complete plastic extrusion line for the production of plastic profiles and pipes, manufactured by MT Plastics (Italy). The line includes extruder, cooling tank, and haul-off unit, making it ready for continuous production.

This system is ideal for processing thermoplastic materials and is suitable for applications in construction, technical profiles, and tubing production.

Line Composition

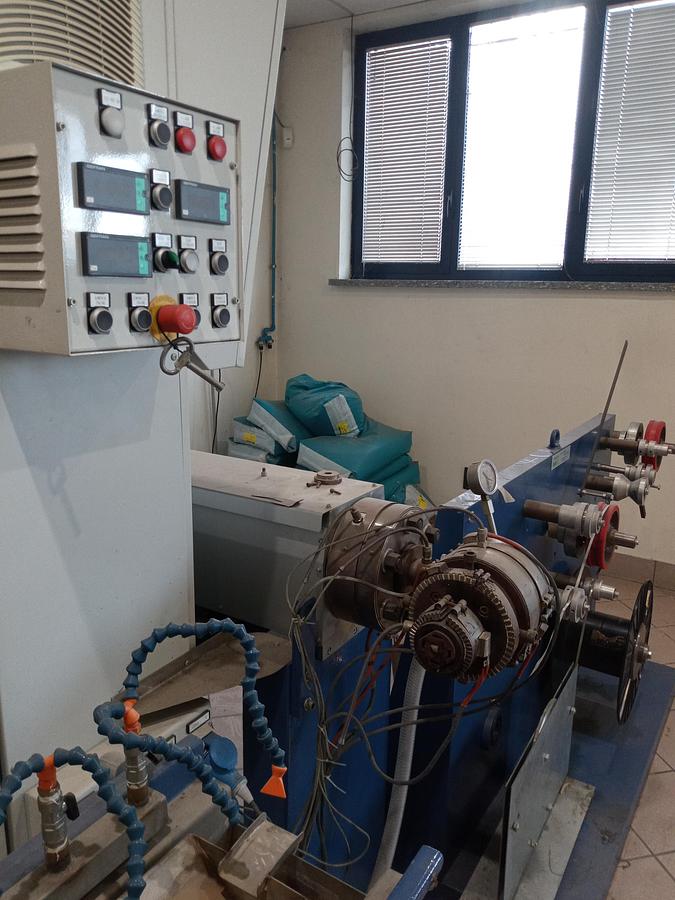

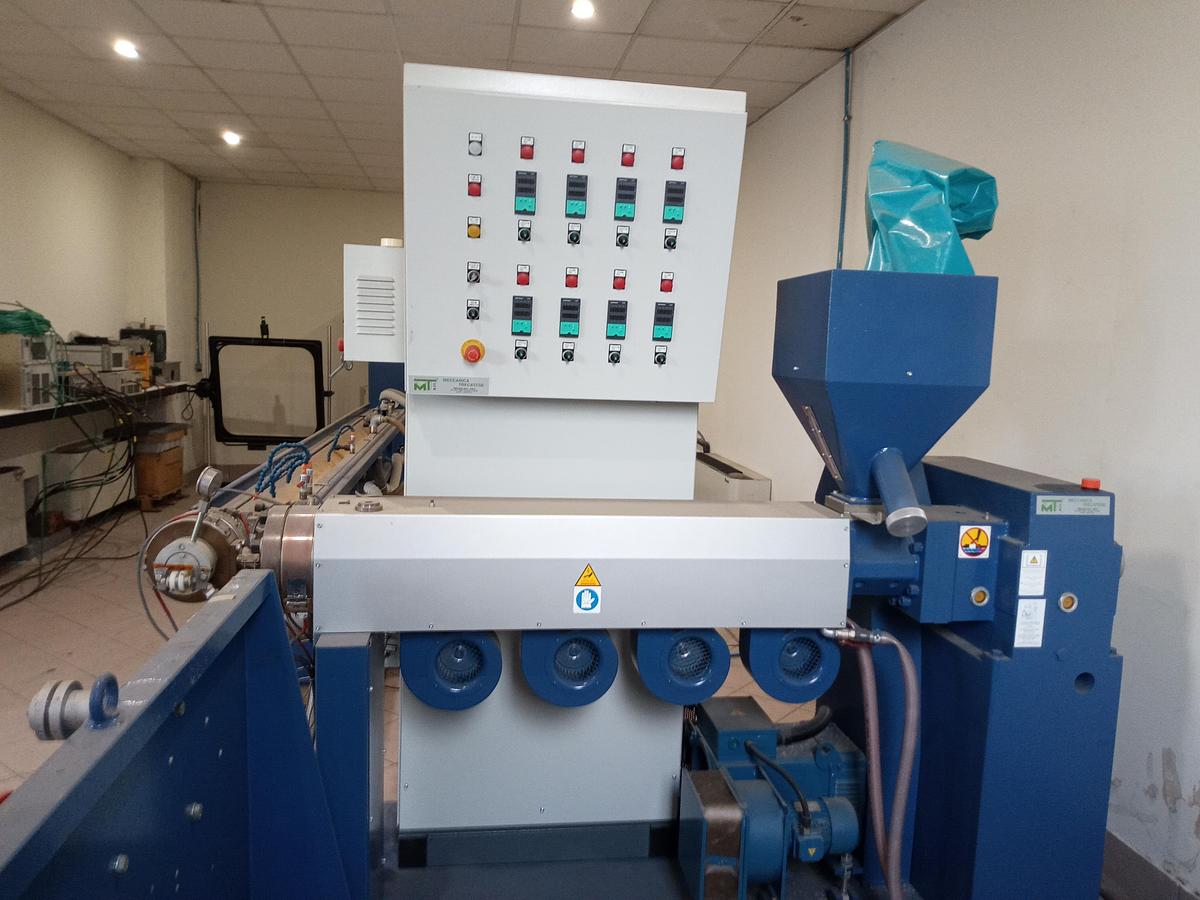

• Single-screw extruder MT.E 60/25
• Water cooling tank MTVP400

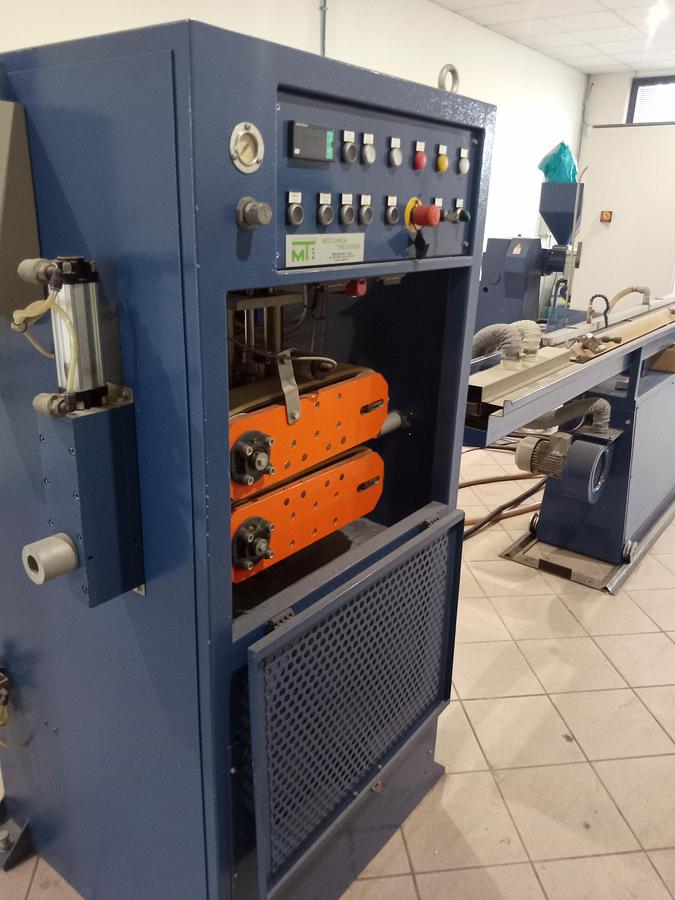

• Double-belt haul-off unit MT TC 400/2M

Technical Specifications

Extruder:

• Screw diameter: 60 mm
• L/D ratio: 25
• Motor power: 26 kW
• Heating power: 10.6 kW
• Cooling power: 1 kW
• Temperature control: 8 zones
• Dimensions:
• Length: 2026 mm
• Width: 1060 mm
• Height: 1785 mm (with hopper)

Electrical:

• Main power: 78 kW
• Voltage: 400 V
• Frequency: 50 Hz

Cooling Tank (MTVP400):

• Length: 4325 mm
• Water cooling system

Haul-Off Unit (MT TC 400/2M):

• Type: Double belt (caterpillar)
• Max speed: 20 m/min

Key Features

• Complete and integrated extrusion line
• 8-zone temperature control for precise processing
• Suitable for profiles and pipe extrusion
• Italian-built machine (reliable and robust construction)
• Compact layout with all main components included

Typical Applications

• Plastic pipes and tubing
• Technical profiles
• Construction profiles
• Extruded thermoplastic products

Condition

Used machine, available for inspection.

Additional Information

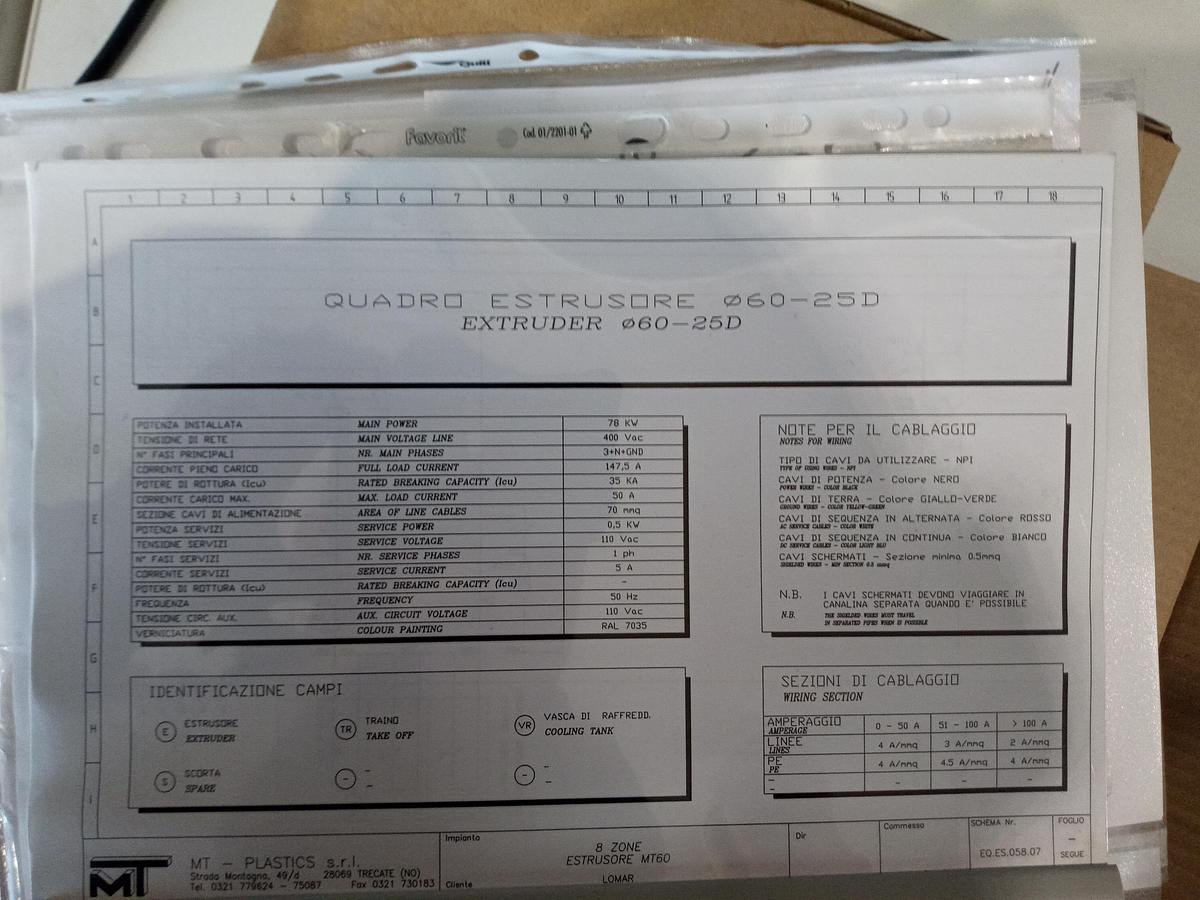

• Documentation available
• Can assist with dismantling and loading
• Located in Europe

MT Plastics Ø60/25 Plastic Extrusion Line for Profiles & Pipes – Complete Line with Cooling Tank and Haul-Off

Manufacturer: MT Plastics S.r.l. (Meccanica Trecatese)

Extruder Model: MT.E 60/25

Line Type: Plastic extrusion line for profiles and pipes

Configuration: Complete extrusion line

non-binding information to be verified at purchase
