ENGEL ES 200H/50V SOTR Vertical Injection Molding Machine with Rotary Table

Used ENGEL vertical injection molding machine equipped with a rotary table, ideal for overmolding (insert molding / co-molding) applications. This configuration allows efficient multi-station production, improving cycle times and operator safety.

The machine is particularly suitable for processing technical components requiring inserts, such as electrical parts, connectors, automotive components, and plastic-metal combinations.

Key Features

• Vertical clamping unit for precise insert positioning

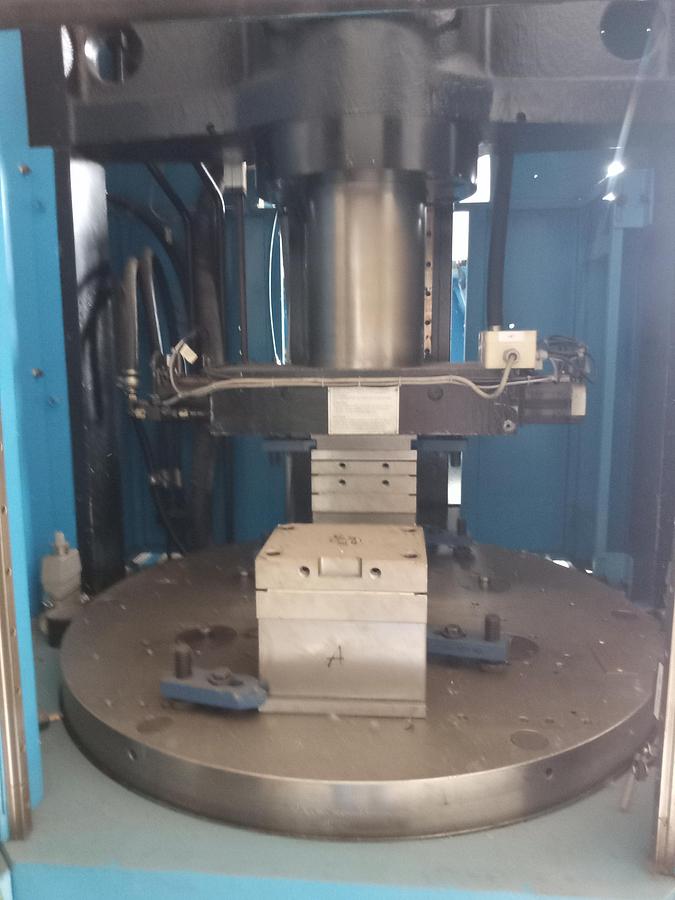

• Rotary table for multi-station production and higher productivity

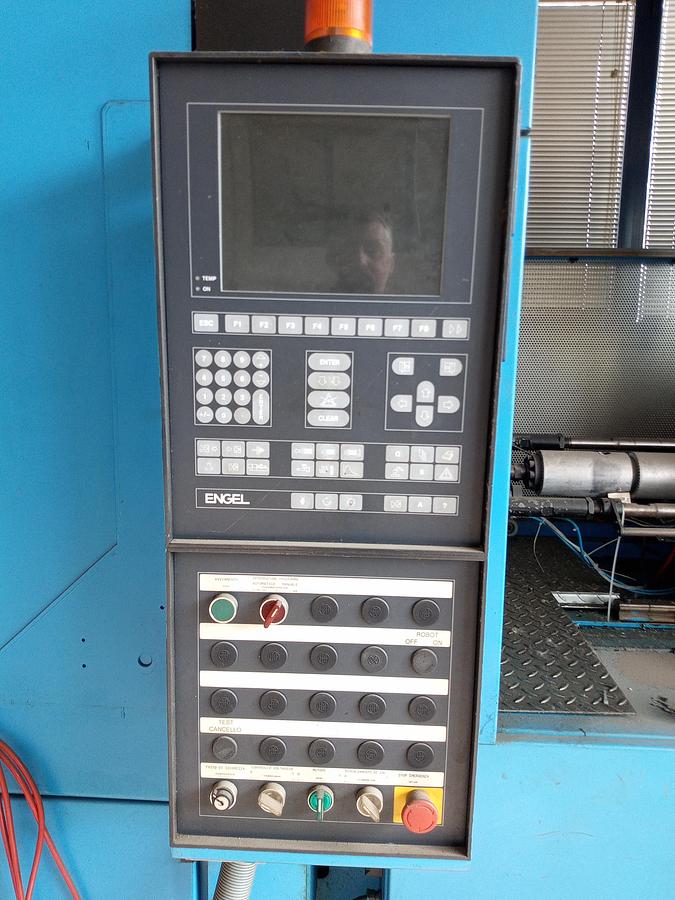

• ENGEL control system

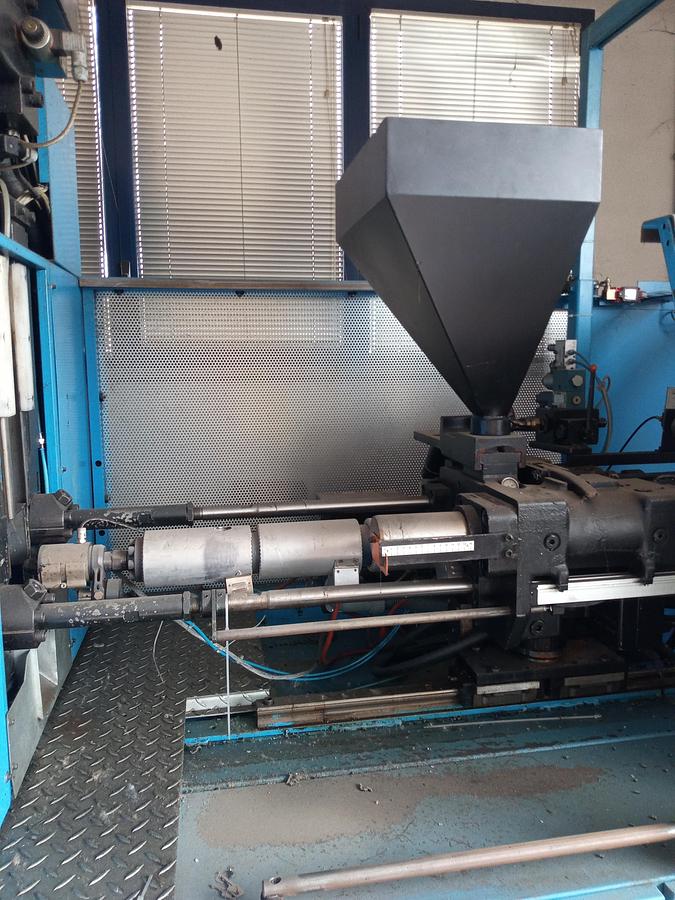

• Hydraulic injection unit
• Compact footprint with enclosed working area
• Suitable for overmolding and insert molding applications

Typical Applications

• Insert molding (metal + plastic components)
• Electrical and electronic components
• Automotive parts
• Technical plastic components

Condition

Used machine, available for inspection. In great working conditions, currently not under power anymore.

Additional Information

• Photos available upon request
• Can assist with loading and logistics

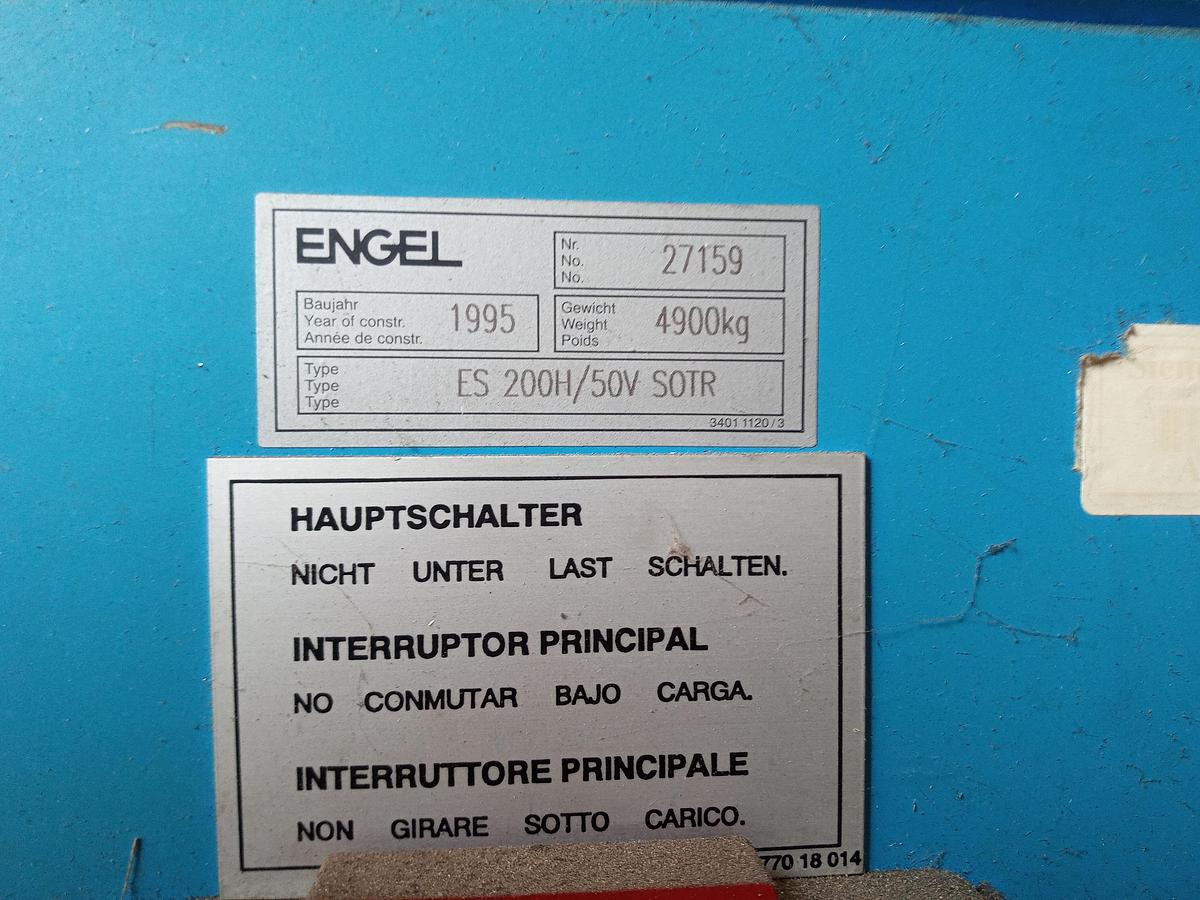

Manufacturer: ENGEL

Model: ES 200H/50V SOTR

Year: 1995

Serial Number: 27159

Machine Type: Vertical Injection Molding Machine

Configuration: Rotary Table (Indexing Table)

Weight: Approx. 4,900 kg

non-binding information to be verified at purchase
