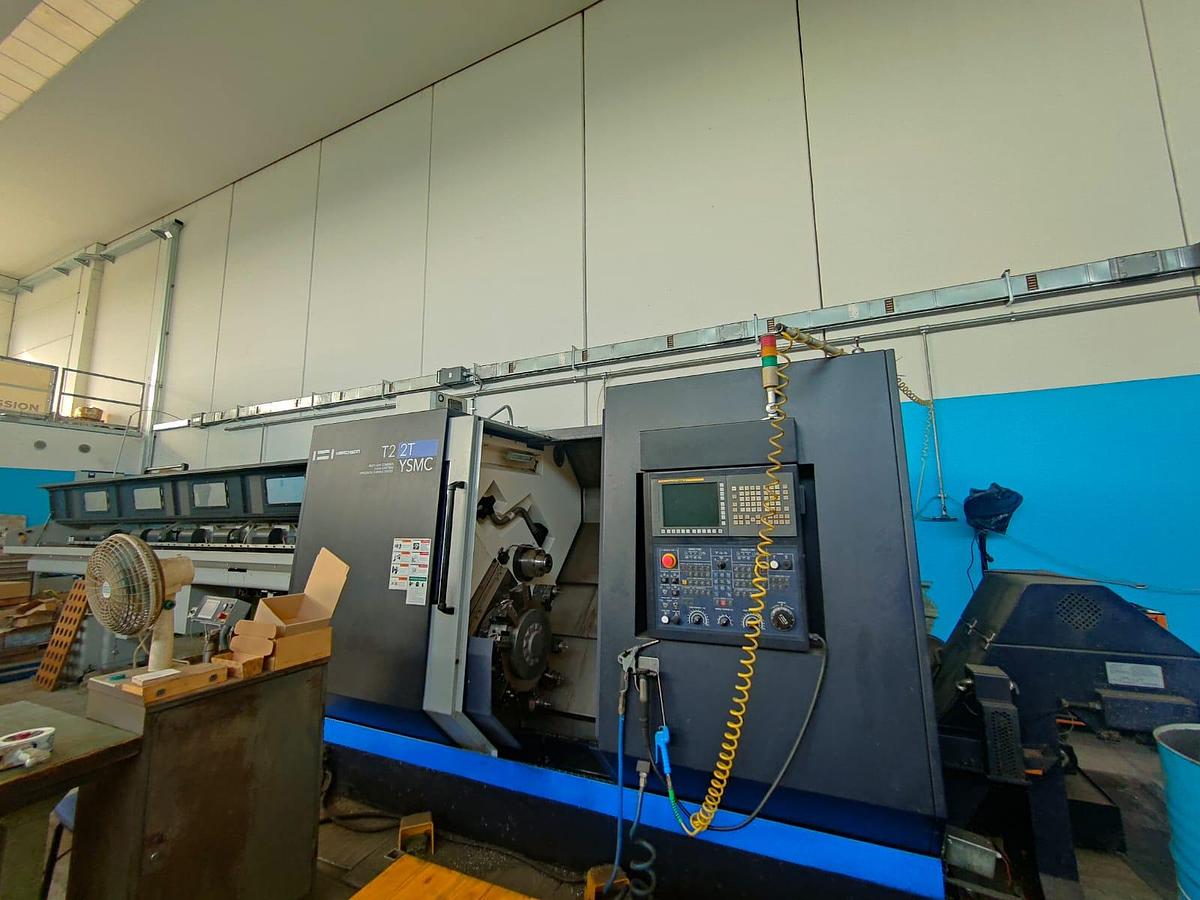

TORNIO HWACHEON mod.T2-2T YSMC
TORNIO HWACHEON mod.T2-2T YSMC
Contact us for price
Location:Bergamo, Italy
or
Call +39 02 9475 0001
Description
NONCOMMITTAL DATA TO BE VERIFIED
Specifications
| Condition | Used |
| Stock Number | TC0378 |
| Model t2-2t ysmc | |
| Year 2017 | |

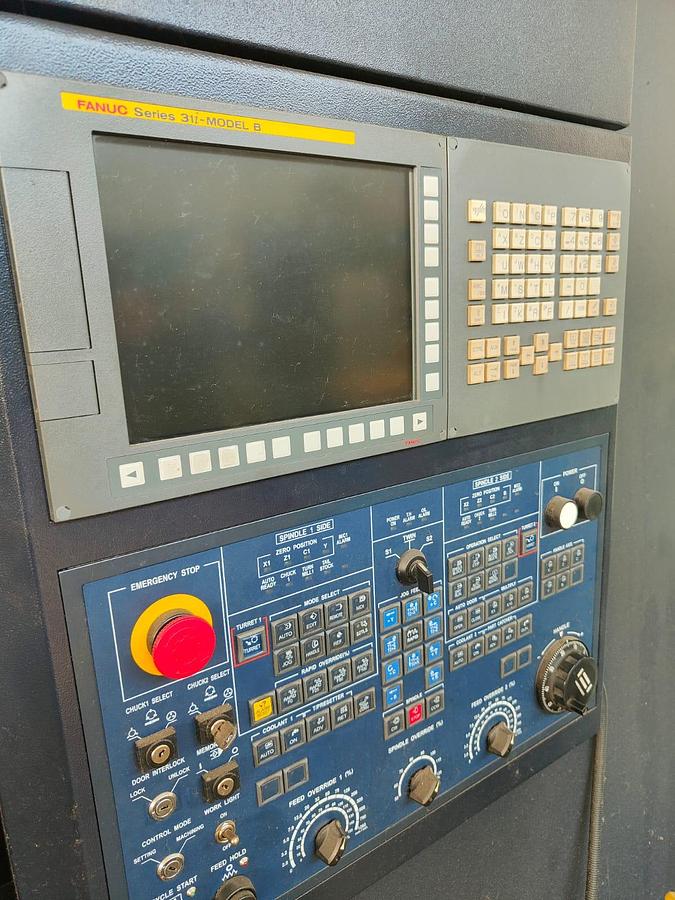

| Fanuc series 31i cnc control | |
| Max rotating diameter on the bench | Ø 880 mm |
| Maximum turning diameter on the spindle (main / counter-spindle) | Ø 460 mm / Ø 390 mm |
| Maximum turning length on the carriage (upper / lower) | 444 mm / 437 mm |
| Bar passage diameter on the spindle (main / counter-spindle) | Ø 65 mm / Ø 65 mm |
| X1 / x2 axis travel | 245 mm / 210 mm |
| Y axis travel | 100 mm (+/- 50 mm) |
| Z1 / z2 axis travel | 520 mm / 520 mm |
| B axis travel | 550 mm |
| Minimum controlled angle of c axis | 0,001° (360°) |
| Minimum controlled angle of a axis | 0,001° (360°) |
| Spindle speed | 50 ÷ 5,000 rpm |
| Spindle nose | ASA A2-6 |
| Spindle motor power (cont/30 min) | 11/15 kW |
| Self-centering counter spindle diameter | Ø 210 mm |
| Counter spindle speed | 50 ÷ 5,000 rpm |
| Counter spindle nose | ASA A2-6 |
| Counterspindle motor power (cont/30 min) | 11/15 kW |

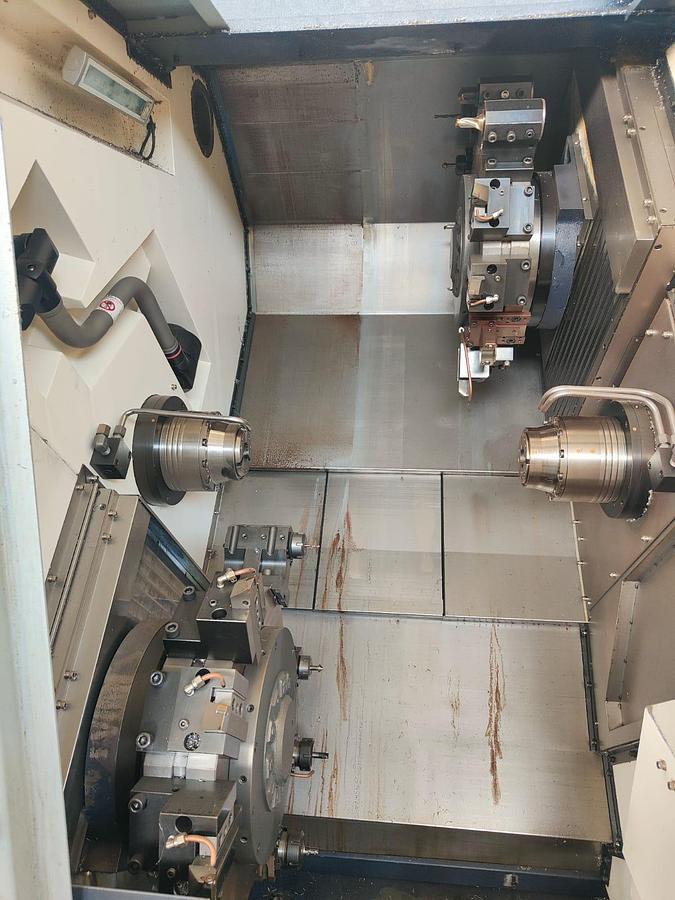

| turret stations (upper / lower) also motorized | 12 / 12 Stations |
| Tool carrier speed of motorized turret (upper / lower) | 6,000 rpm |
| Power of the motorized turret motors (cont/30 min) (upper / lower) | 5,5 / 7,5 kW |
| Tool dimensions for turning / boring | 25×25 mm / Ø 40 mm |
| Fast traverse x1/x2/z1/z2 | 30,000 mm/min |
| Rapid traverse y axis | 15,000 mm/min |
| Rapid traverse b axis | 30,000 mm/min |
