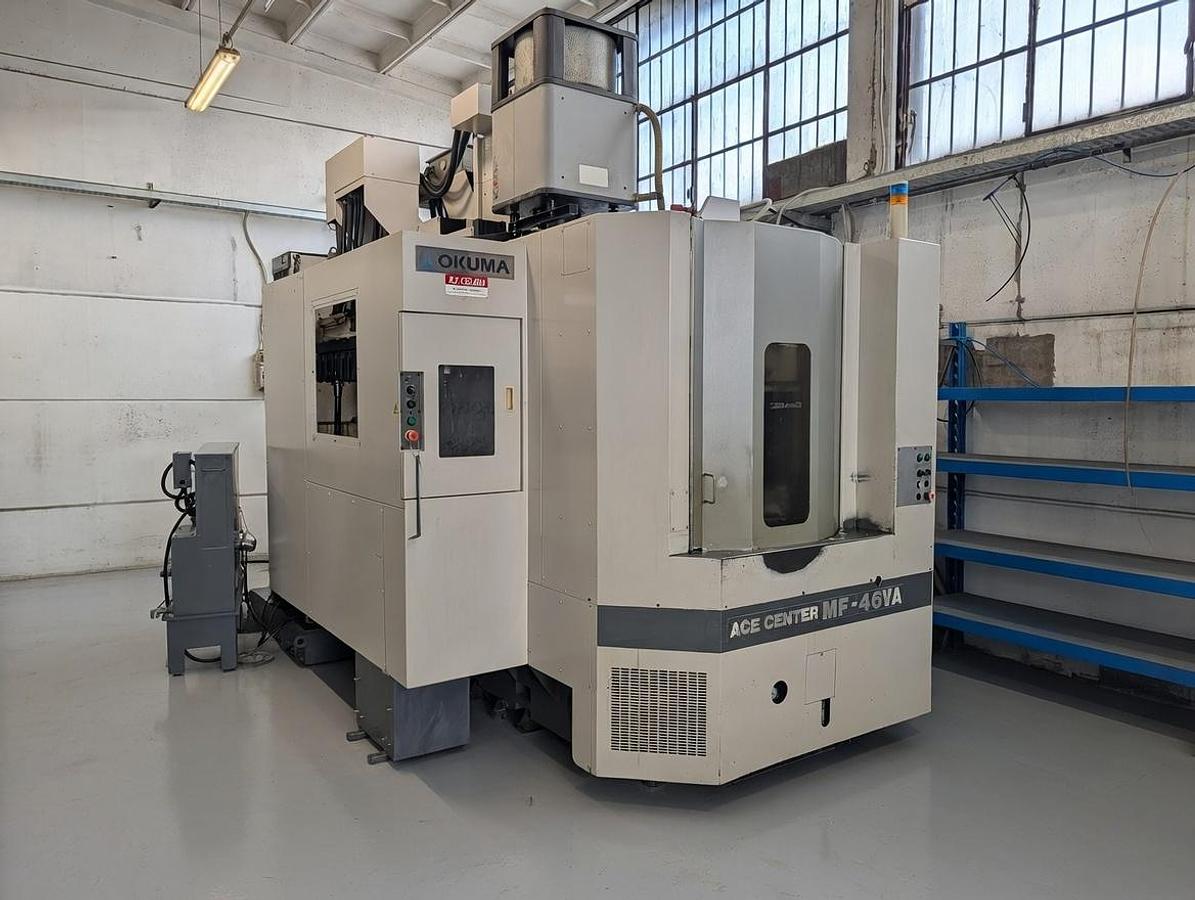

2006 Okuma Ace Center MF-46VA

High-precision Okuma Ace Center MF-46VA vertical machining center equipped with a two-pallet automatic pallet changer, designed for continuous production and improved machining efficiency.

The machine features Okuma OSP-P200M CNC control, high-speed 15,000 rpm BT40 spindle, and a 32-tool automatic tool changer, making it suitable for high-speed machining, precision components production, and general CNC milling operations.

Thanks to the twin pallet system, one pallet can be loaded while the other is being machined, significantly reducing downtime and increasing productivity.

The machine also includes chip conveyor, tool breakage detection probe, and thermal stabilization systems, ensuring reliability and machining accuracy.

Travels

• X-axis: 762 mm
• Y-axis: 460 mm (+100 mm pallet change movement)
• Z-axis: 460 mm

Distance table to spindle nose:

180 – 640 mm

Rapid feed rates:

• X / Y: 40 m/min
• Z: 32 m/min

Positioning accuracy: ±0.004 mm

Repeatability: ±0.0015 mm

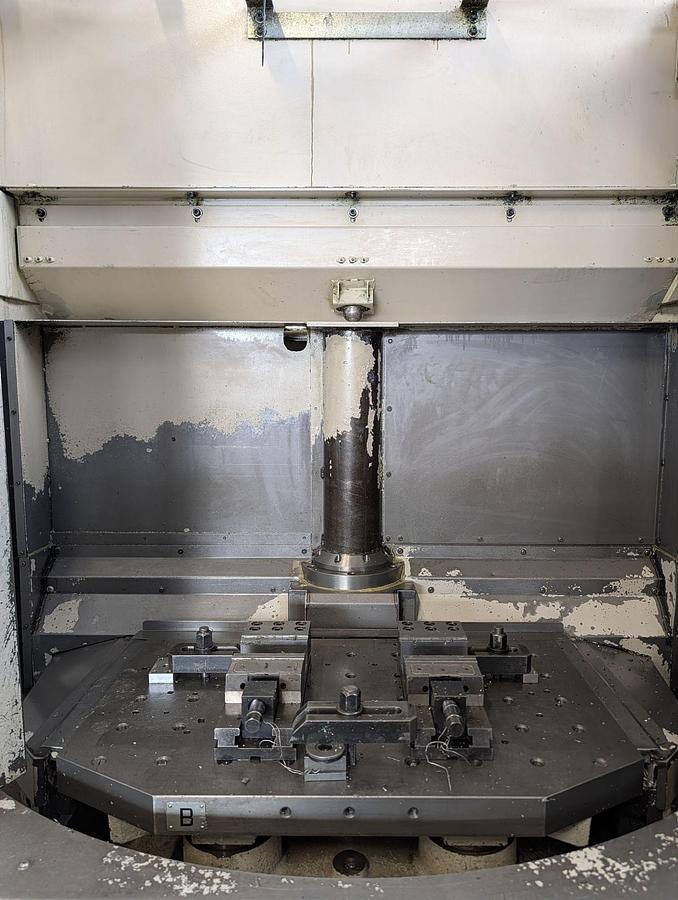

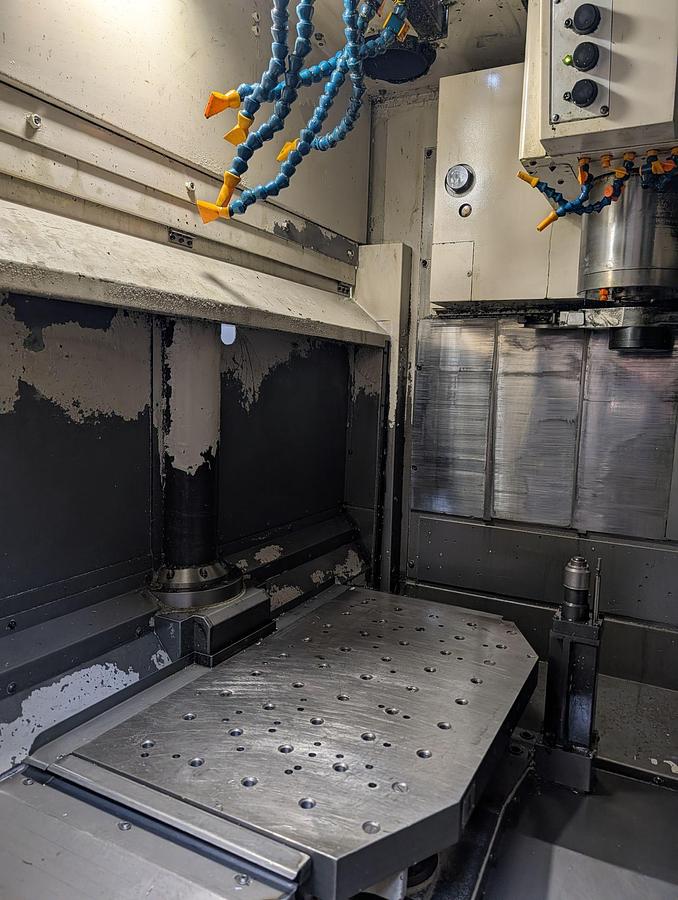

Pallet System

• Number of pallets: 2
• Pallet size: 760 × 460 mm
• Maximum pallet load: 400 kg
• Pallet change time: 6 seconds
• T-slots: 3 slots, 18 mm depth

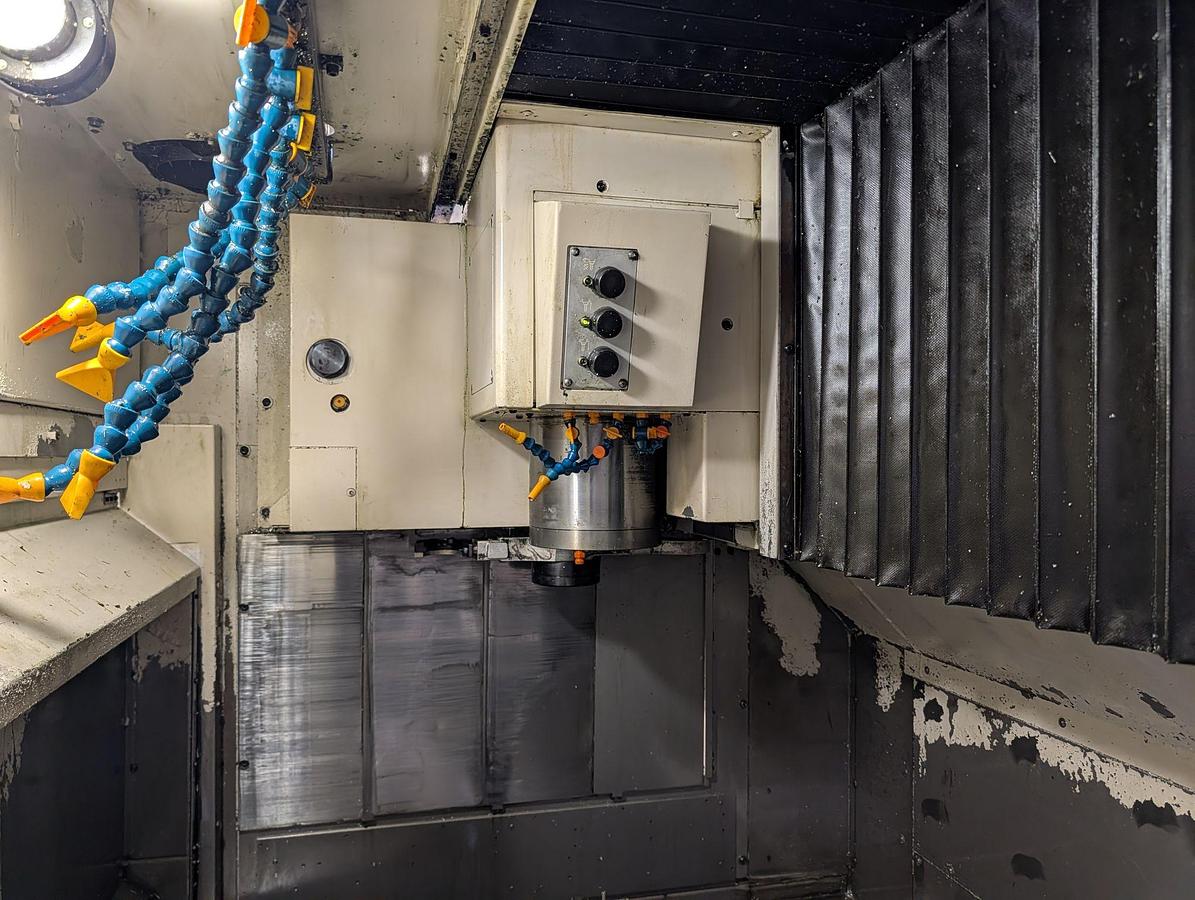

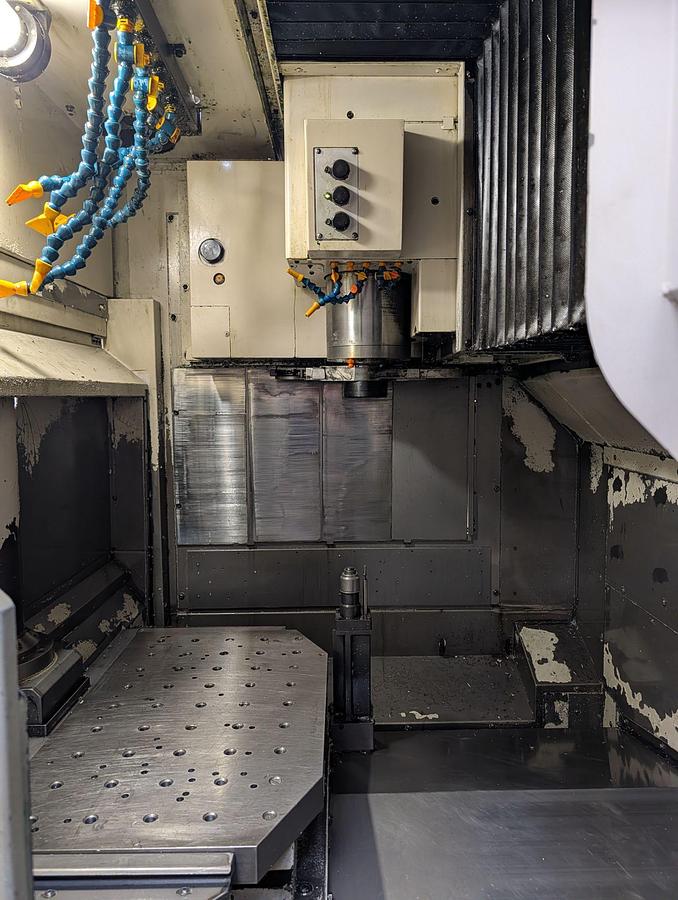

Spindle

• Spindle taper: BT40
• Maximum speed: 15,000 rpm
• Motor power: 22 / 18.5 kW
• Maximum torque: 199 Nm
• Thermal stabilization system (TAS-S)

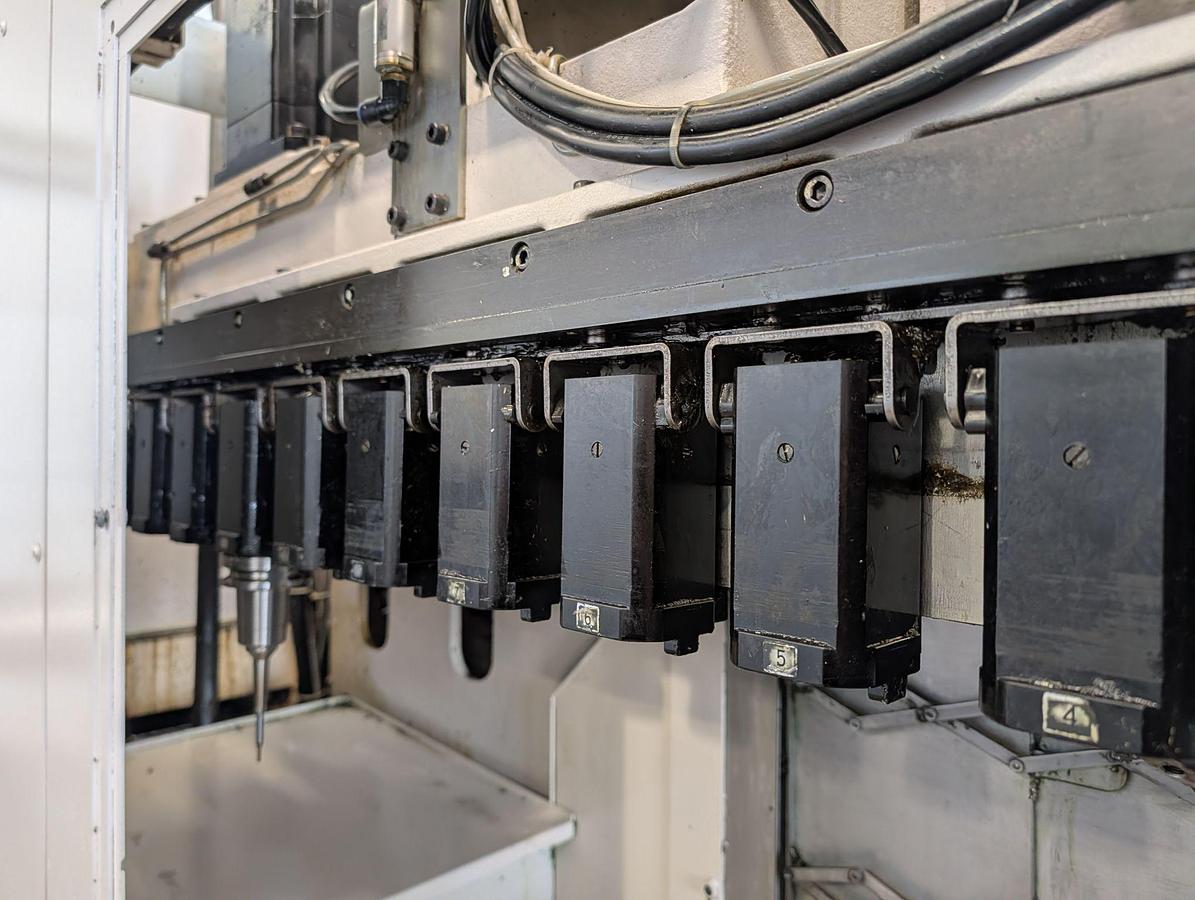

Tool Magazine

• Tool capacity: 32 tools
• Tool change type: Random
• Tool-to-tool time: 1.2 seconds
• Maximum tool diameter: 90 mm (125 mm with adjacent pocket free)
• Maximum tool length: 300 mm
• Maximum tool weight: 8 kg

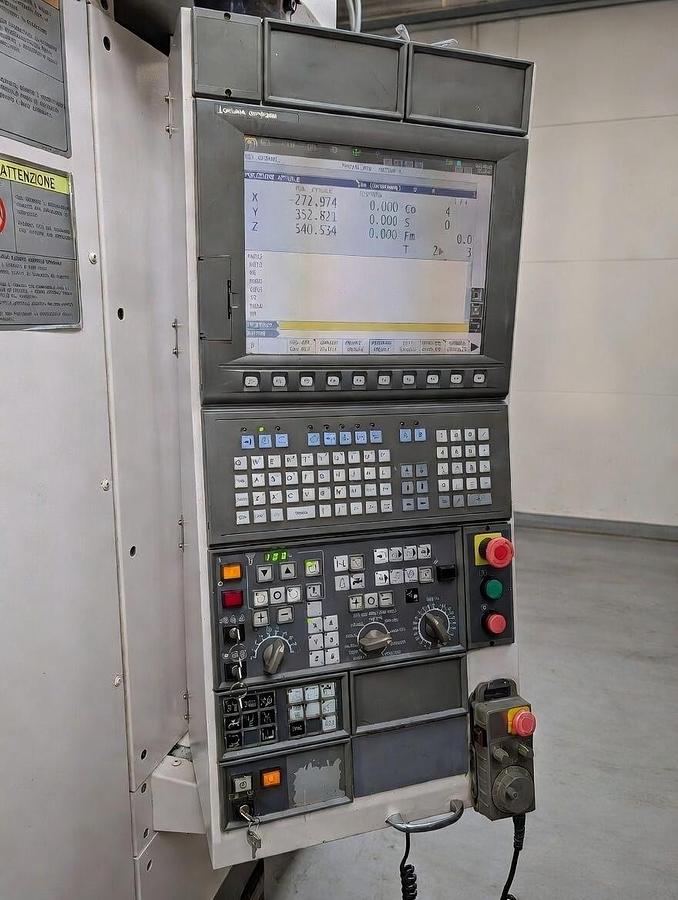

CNC Control

• Okuma OSP-P200M CNC system
• Conversational programming (IGF)
• High-speed machining functions (Hi-2 NC with NURBS)
• Cutting force monitoring
• Rigid tapping and helical interpolation

Equipment and Accessories

• Twin pallet automatic pallet changer

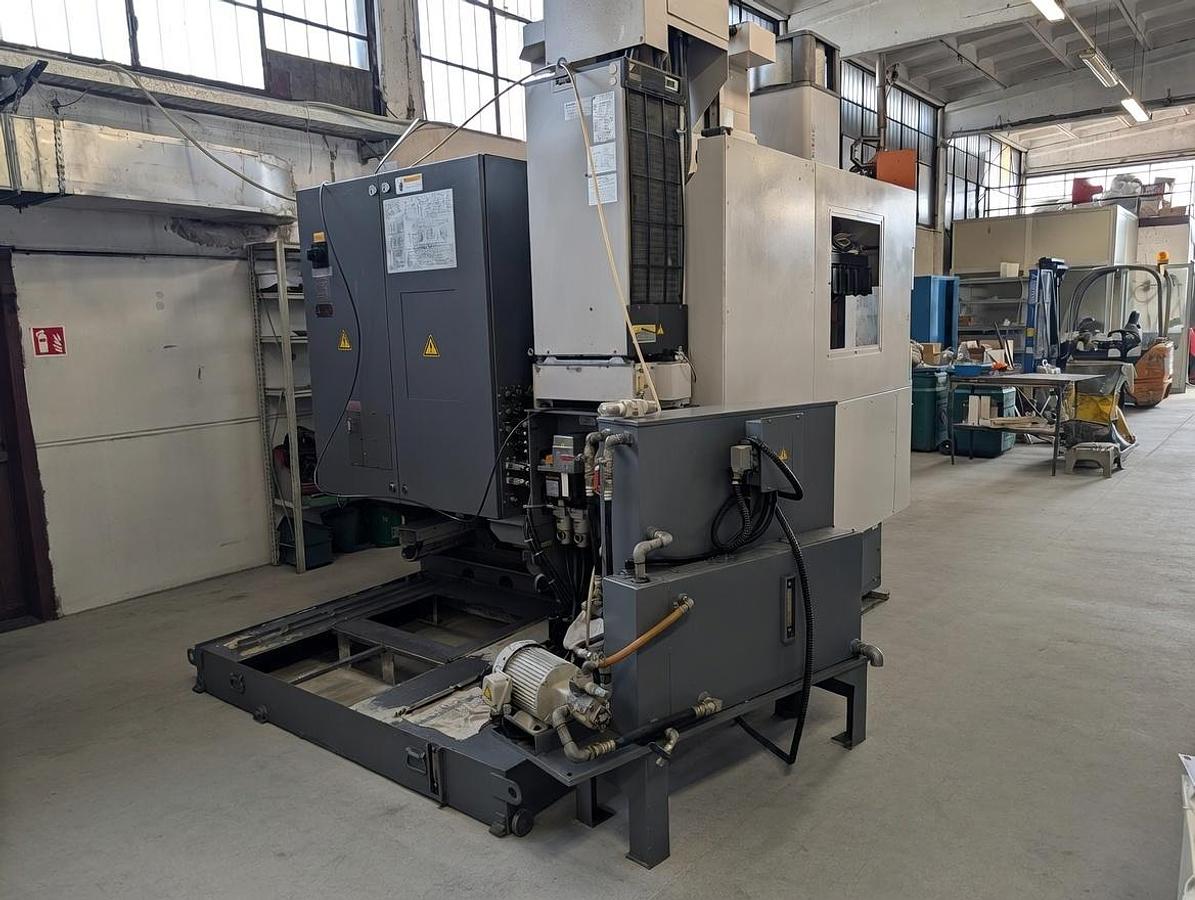

• Belt-type chip conveyor
• Tool breakage detection probe
• Work-area washing system
• Thermal stabilization system (TAS-C)
• Provision for 4th axis installation

Dimensions

• Footprint: 2.10 × 3.27 m
• Height: 3.00 m
• Machine weight: approx. 8,000 kg

Condition

Used machine in good operating condition. Available for inspection.

non-binding information to be verified at purchase
