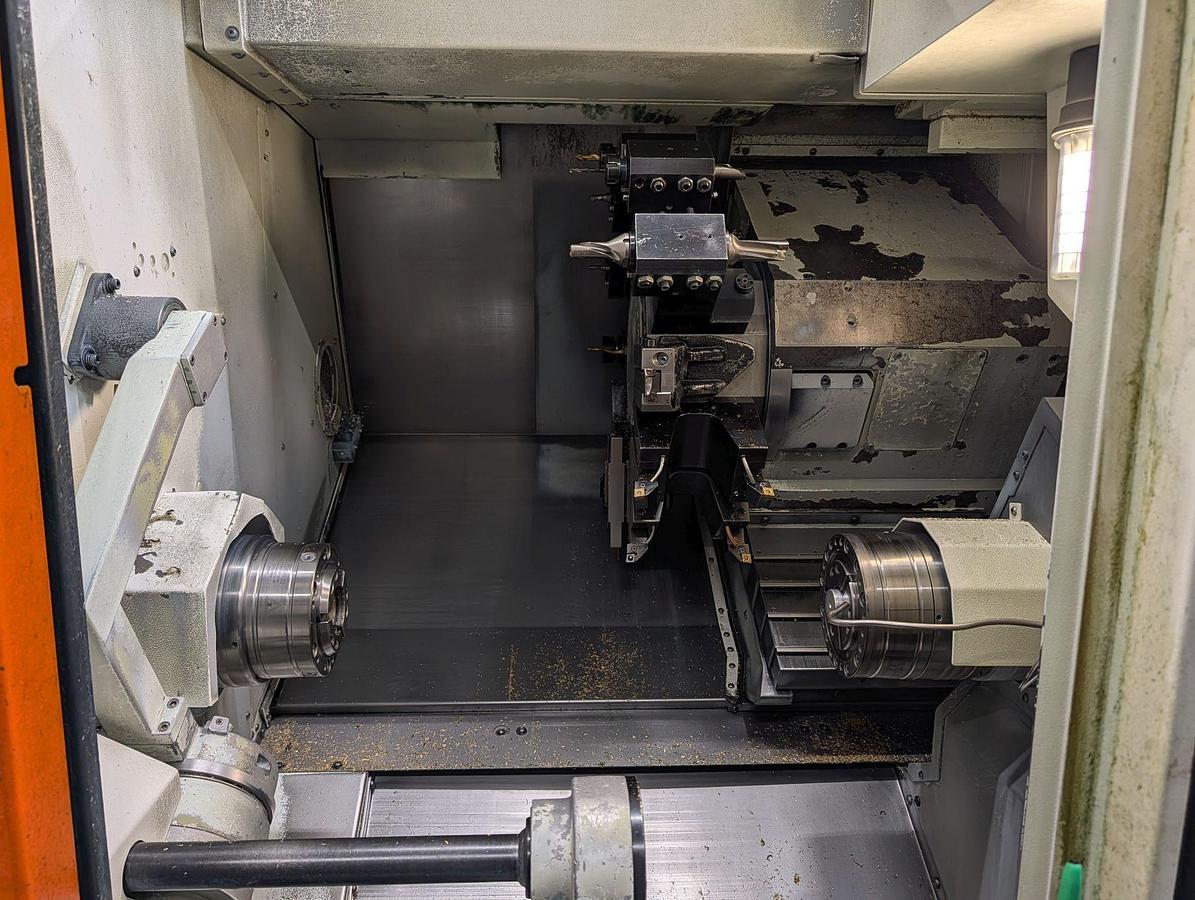

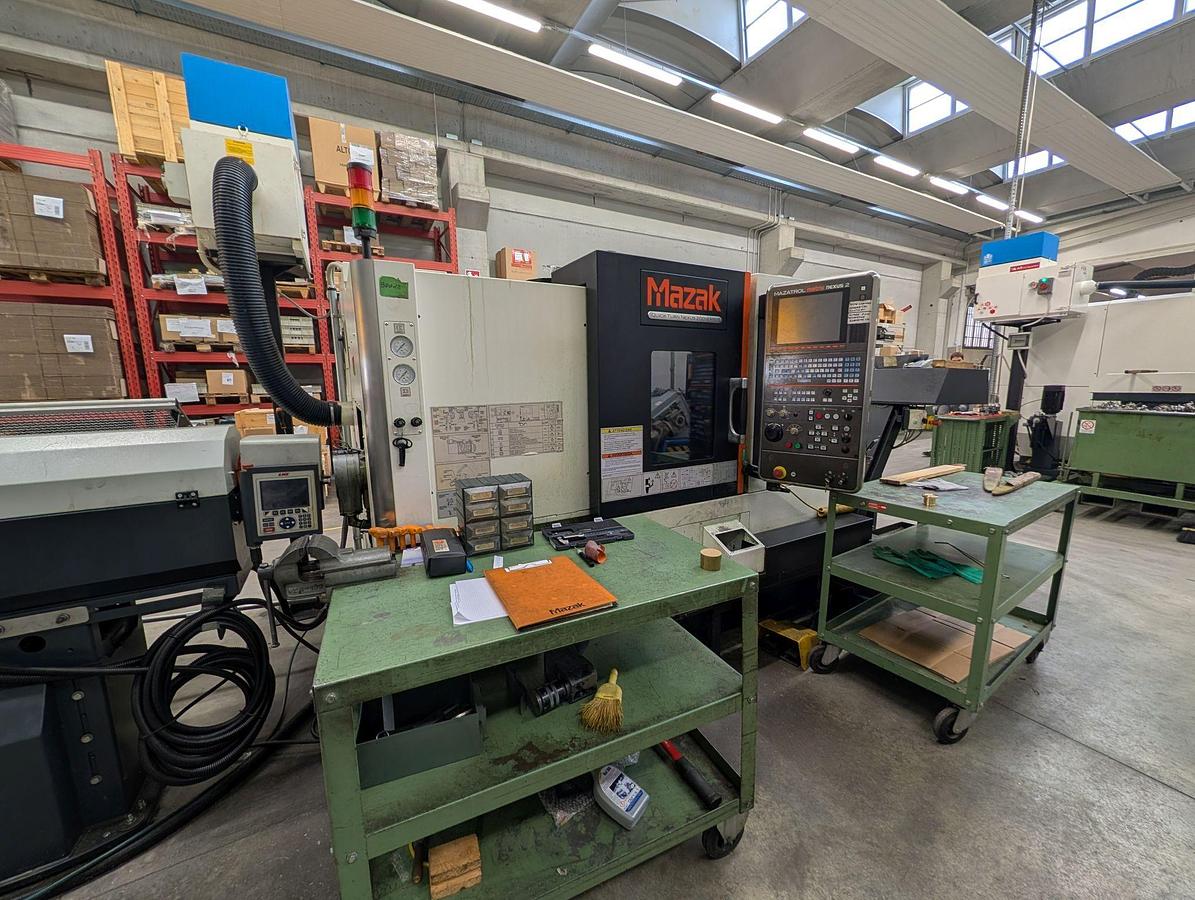

2015 Mazak Quick Turn Nexus 200-II MSY CNC Turning Center with Sub-Spindle and Y-Axis

This multitasking lathe combines turning, milling, Y-axis machining and a sub-spindle, allowing parts to be fully machined on both sides without manual repositioning. Equipped with Mazatrol Matrix Nexus II control, high-speed spindles, driven tools, and bar feeder interface, the machine is ideal for precision components, automotive parts, aerospace machining, and high-volume production environments.

The machine includes live tooling, continuous C-axis, chip conveyor, enhanced coolant system, and bar feeder, making it ready for efficient production.

Working Capacity

• Maximum swing diameter: 695 mm
• Maximum diameter over bed: 350 mm
• Maximum turning diameter: 380 mm
• Maximum bar capacity: 65 mm
• Distance between spindles: 580 mm

Axis Travels

• X-axis: 230 mm
• Y-axis: 100 mm (+/- 50 mm)
• Z-axis: 575 mm

Rapid feeds:

• X: 30 m/min
• Y: 21 m/min
• Z: 33 m/min
• W: 30 m/min

Main Spindle

• Chuck size: 8" Kitagawa BB208
• Maximum speed: 5,000 rpm
• Spindle nose: ASA 6
• Spindle bore: 76 mm
• C-axis positioning: 0.0001°
• Motor power: 26 kW (30 min) / 22 kW continuous

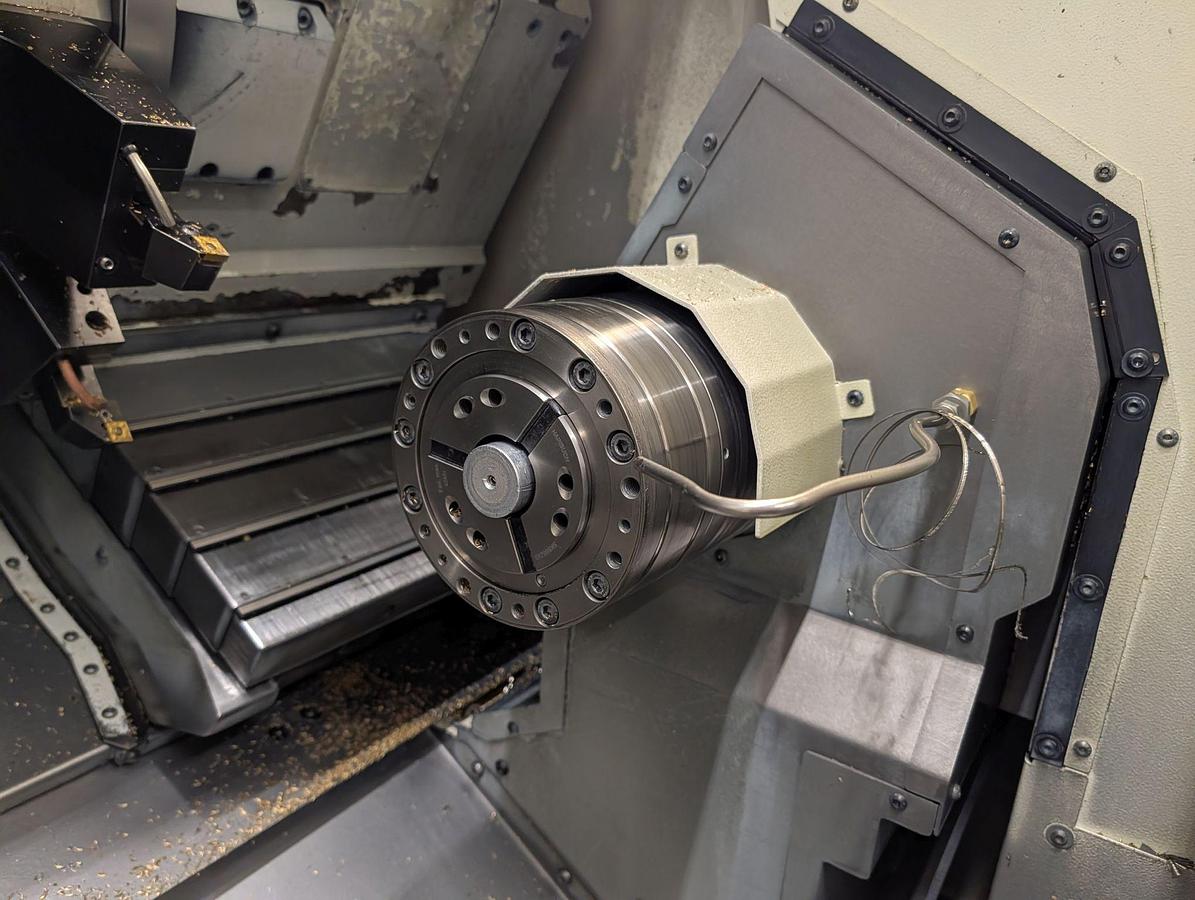

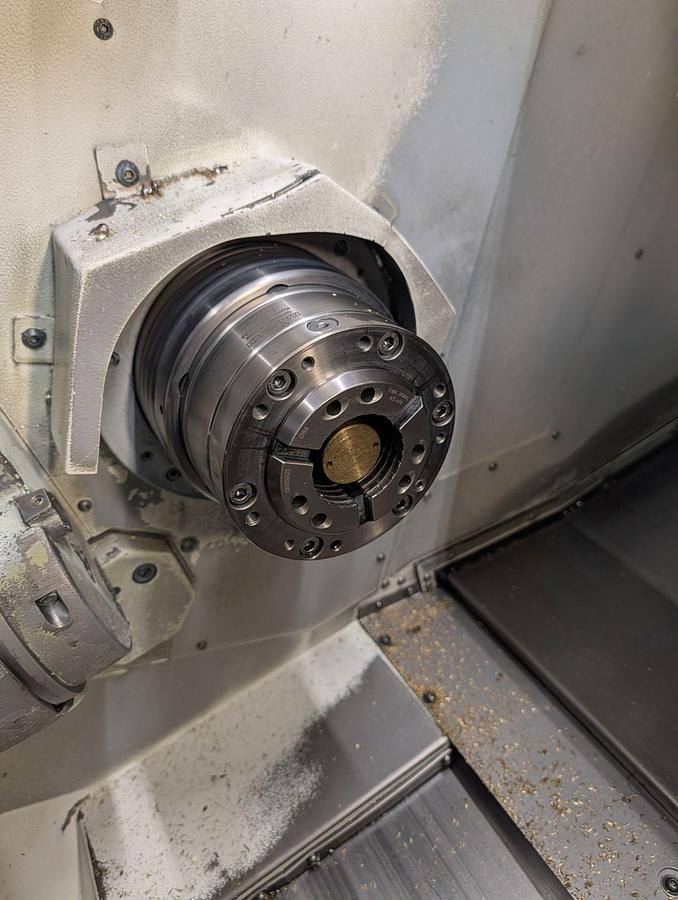

Sub-Spindle

• Chuck size: 6" Kitagawa B206
• Maximum speed: 6,000 rpm
• Spindle nose: ASA 5
• Spindle positioning accuracy: 0.001°
• Motor power: 11 kW

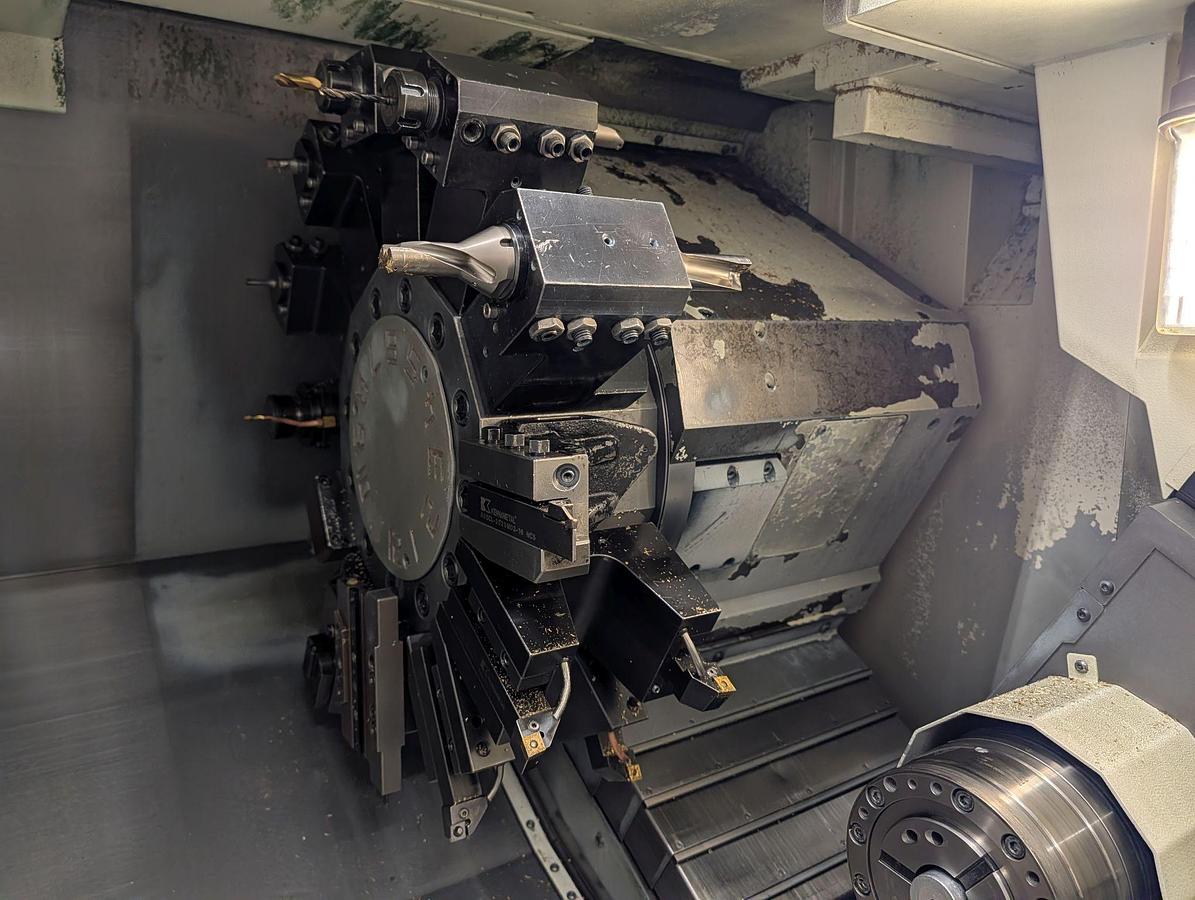

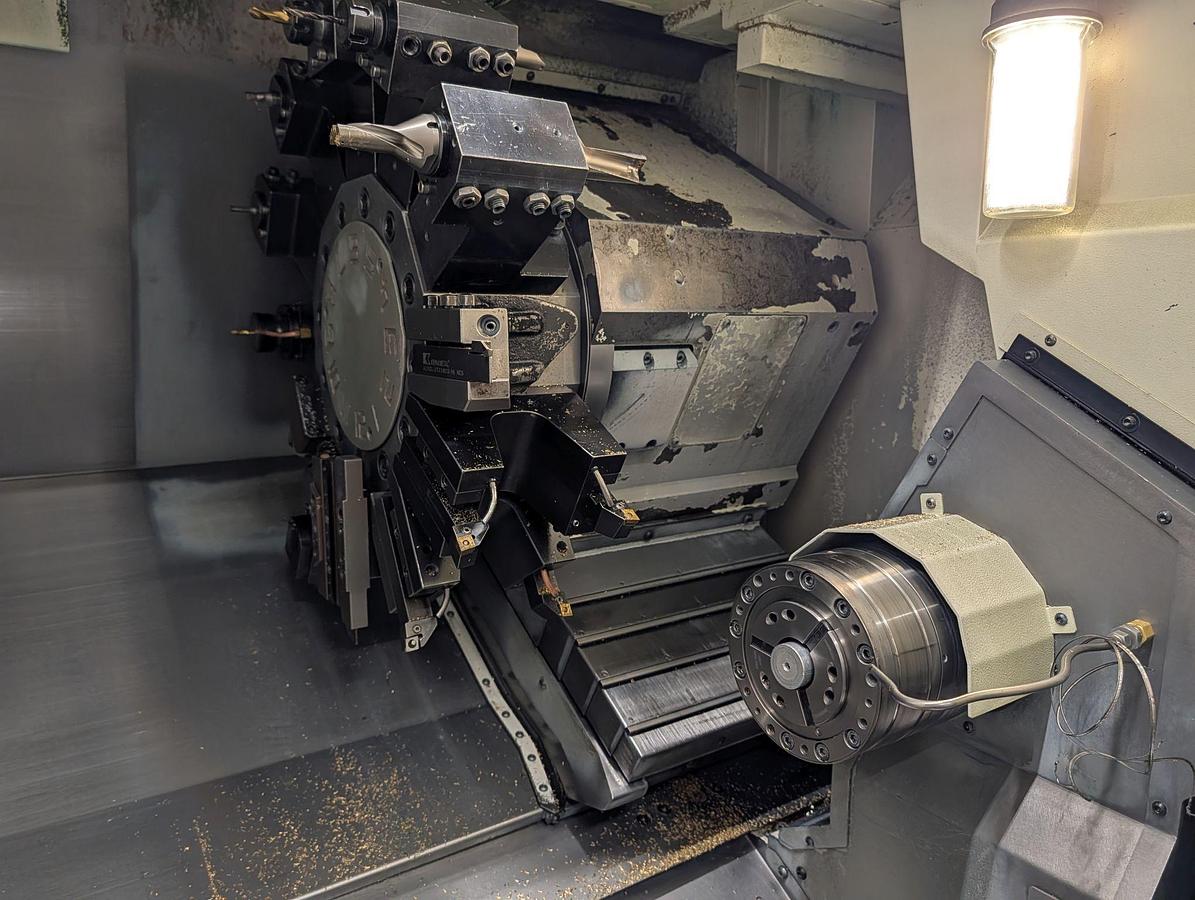

Turret and Tooling

• Turret positions: 12
• Tool system: Mazak VDI
• Tool size: 25 × 25 mm
• Boring bar capacity: Ø 40 mm
• Driven tools: 12 positions
• Driven tool speed: 4,500 rpm
• Driven tool power: 5.5 kW

Turret indexing time:

• 1 step: 0.2 seconds
• Full revolution: 0.6 seconds

Equipment and Accessories

• Continuous C-axis (3,600,000 positions)
• Driven tools for milling operations
• Automatic tool presetting (Tool Eye)
• Automatic workpiece catcher

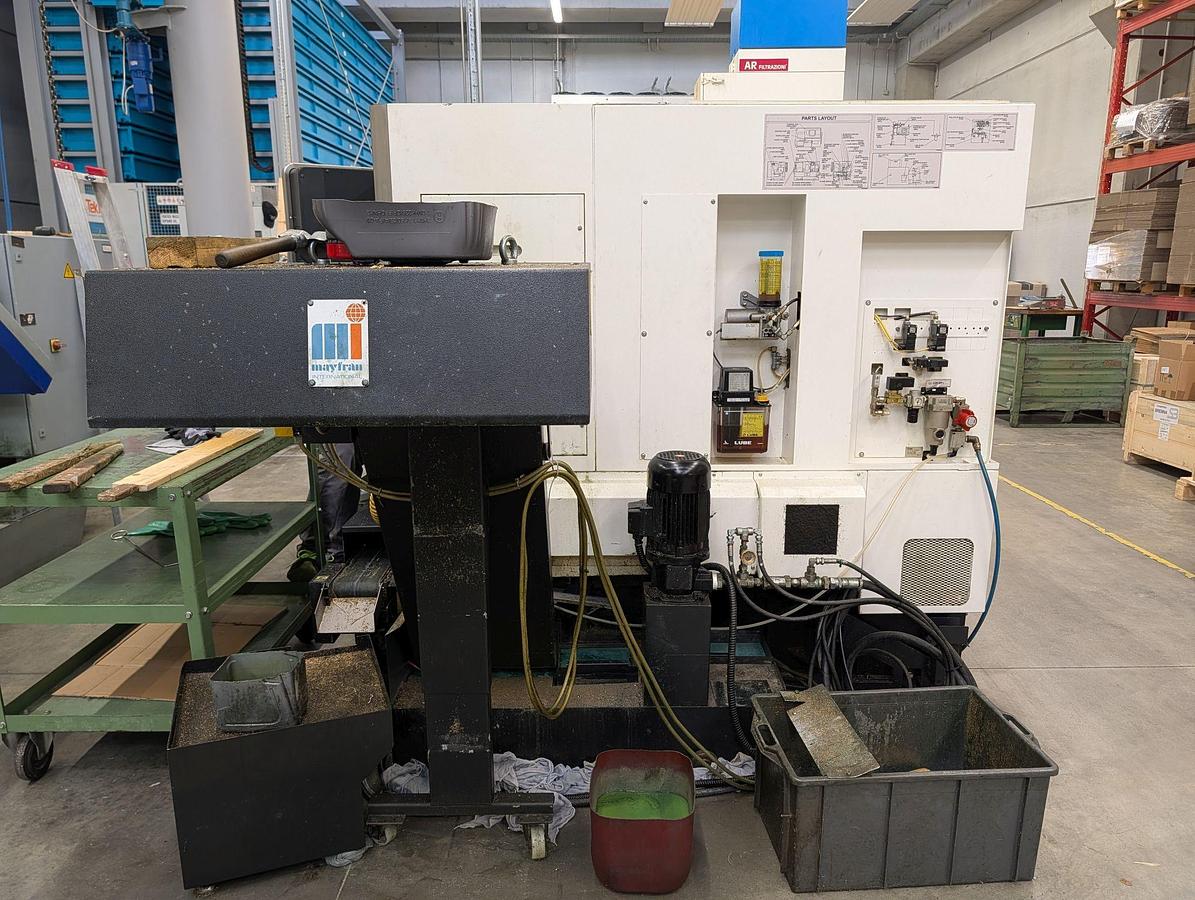

• Side chip conveyor (Mayfran)
• Enhanced coolant system – 15 bar
• Bar feeder interface

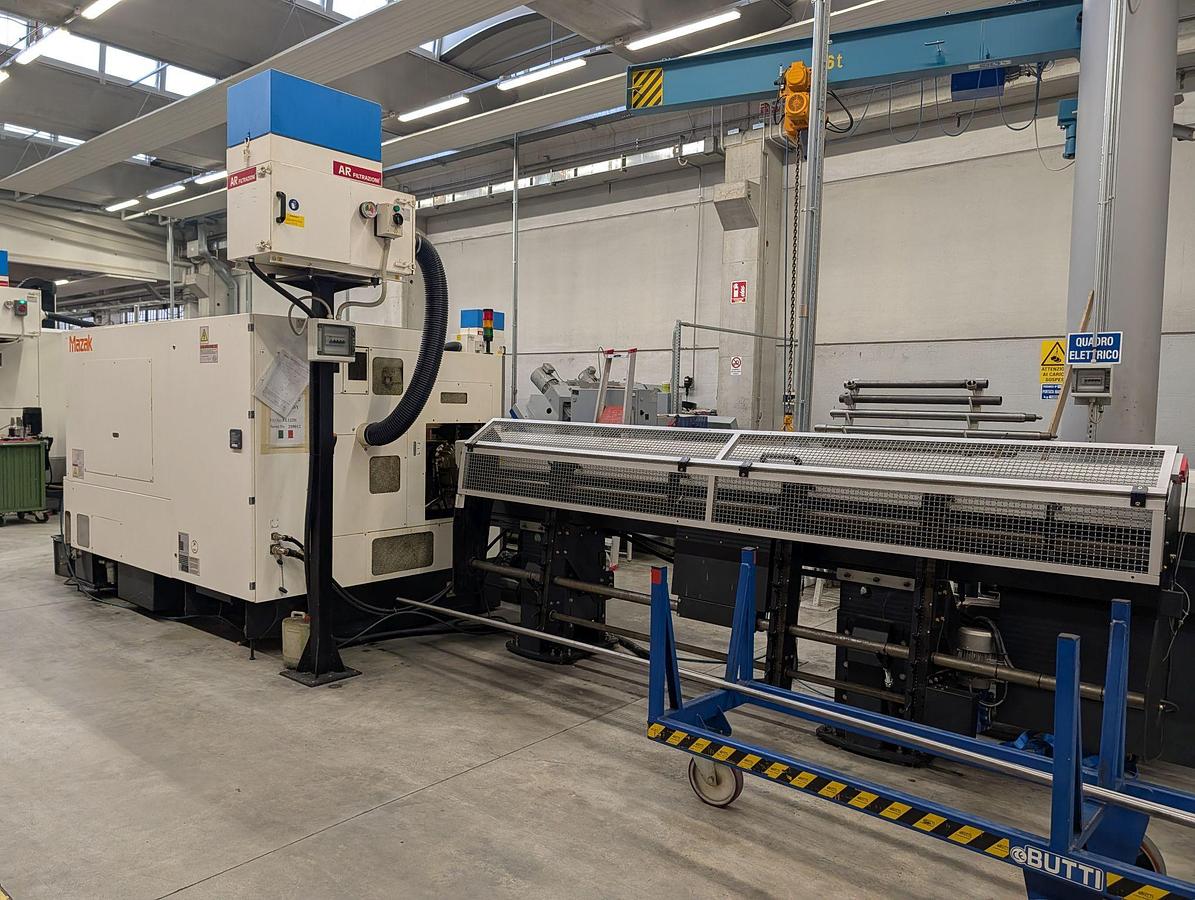

• LNS Quick Load Servo 80 S2 bar feeder
• Double pedal for chuck operation
• Motor overload detection system

Dimensions

• Length: 2,800 mm
• Width: 2,058 mm
• Height: 1,857 mm
• Weight: 5,500 kg

Manufacturer: Mazak

Model: Quick Turn Nexus 200-II MSY

Year: 2015

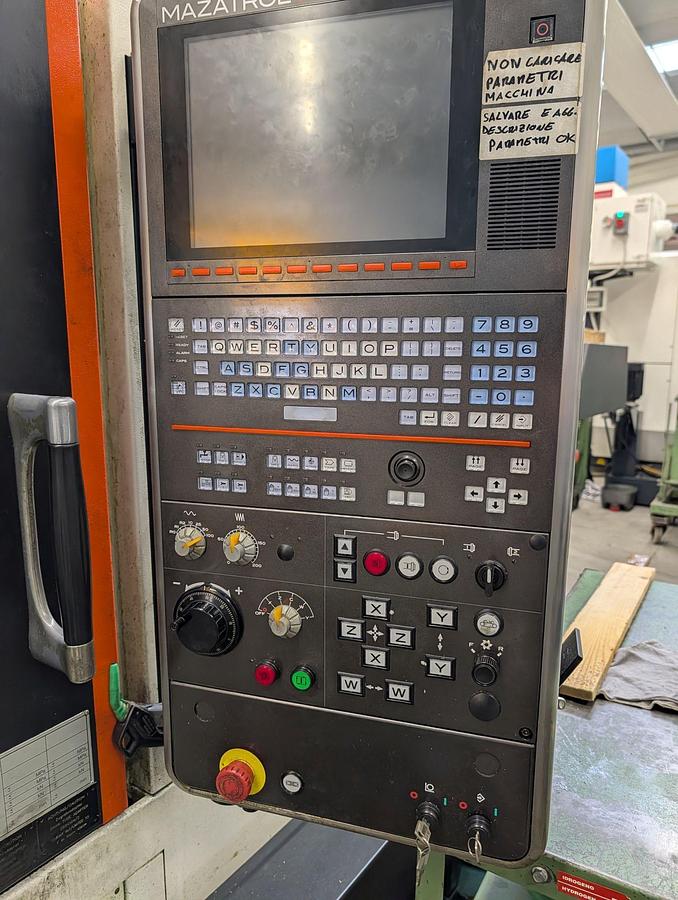

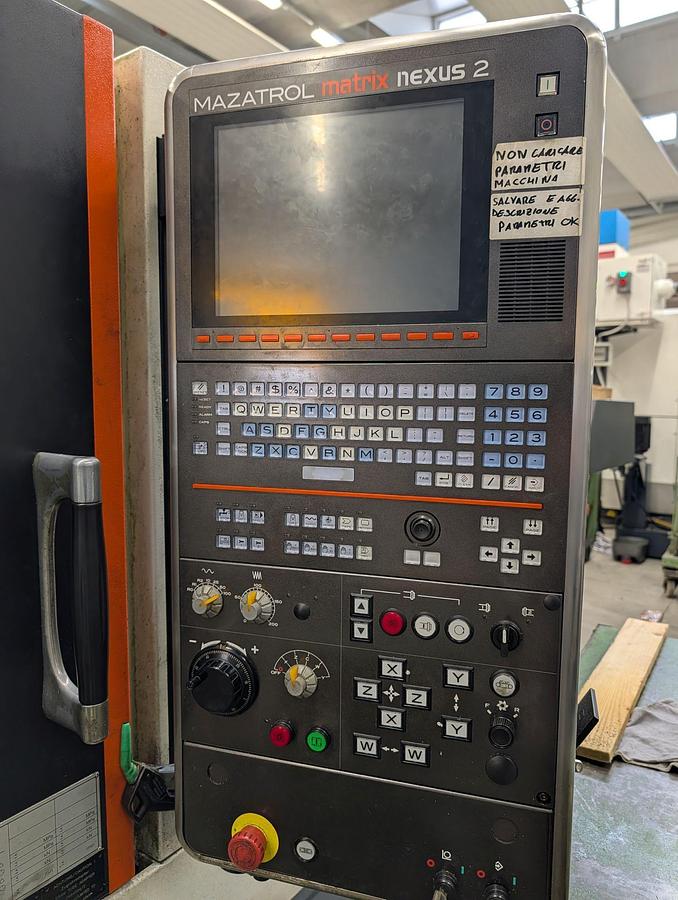

Control: Mazatrol Matrix Nexus II

Machine Type: CNC Turning Center with Milling, Sub-Spindle and Y-Axis

Condition

Machine in very good condition. Available for inspection.

non-binding information to be verified at purchase
