2018 Doosan VC 3600 Twin Pallet Vertical Machining Center – Fanuc Control

High-productivity Doosan VC 3600 vertical machining center equipped with a twin pallet automatic pallet changer (APC) designed for continuous production and minimal downtime.

The machine combines high-speed linear roller guides, a 12,000 rpm BT40 spindle, and a servo-driven pallet changer, allowing one pallet to be machined while the other is loaded. This configuration significantly increases productivity and reduces idle time, making the machine ideal for automotive parts production, precision milling, subcontract machining, and high-volume manufacturing.

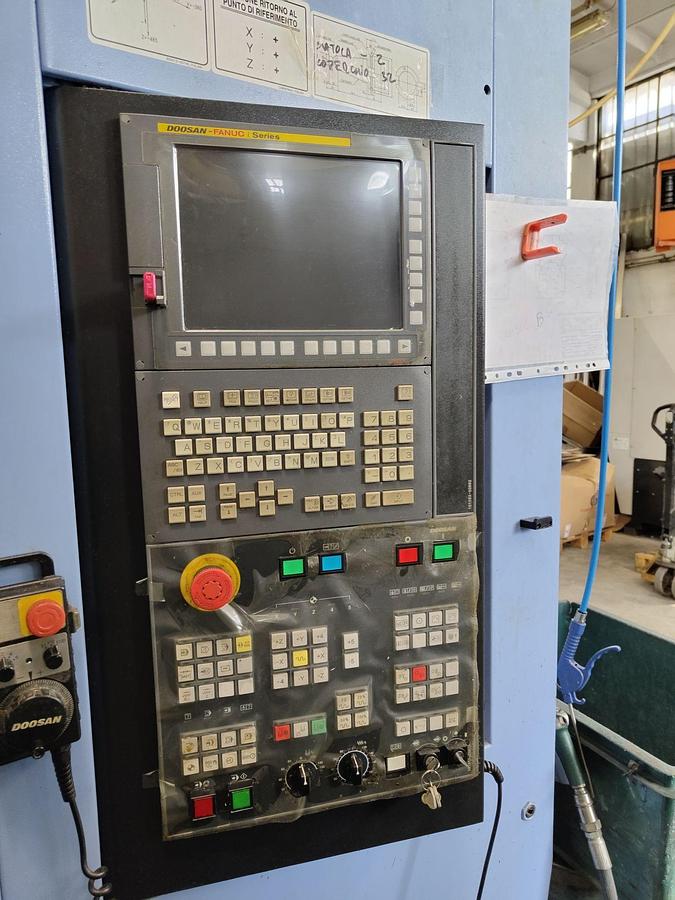

The machine is equipped with a Fanuc i-Series control, ensuring reliability, ease of programming, and compatibility with a wide range of CAD/CAM systems.

Travels

• X-axis: 520 mm
• Y-axis: 360 mm
• Z-axis: 465 mm
• Distance spindle nose to table: 150 – 615 mm

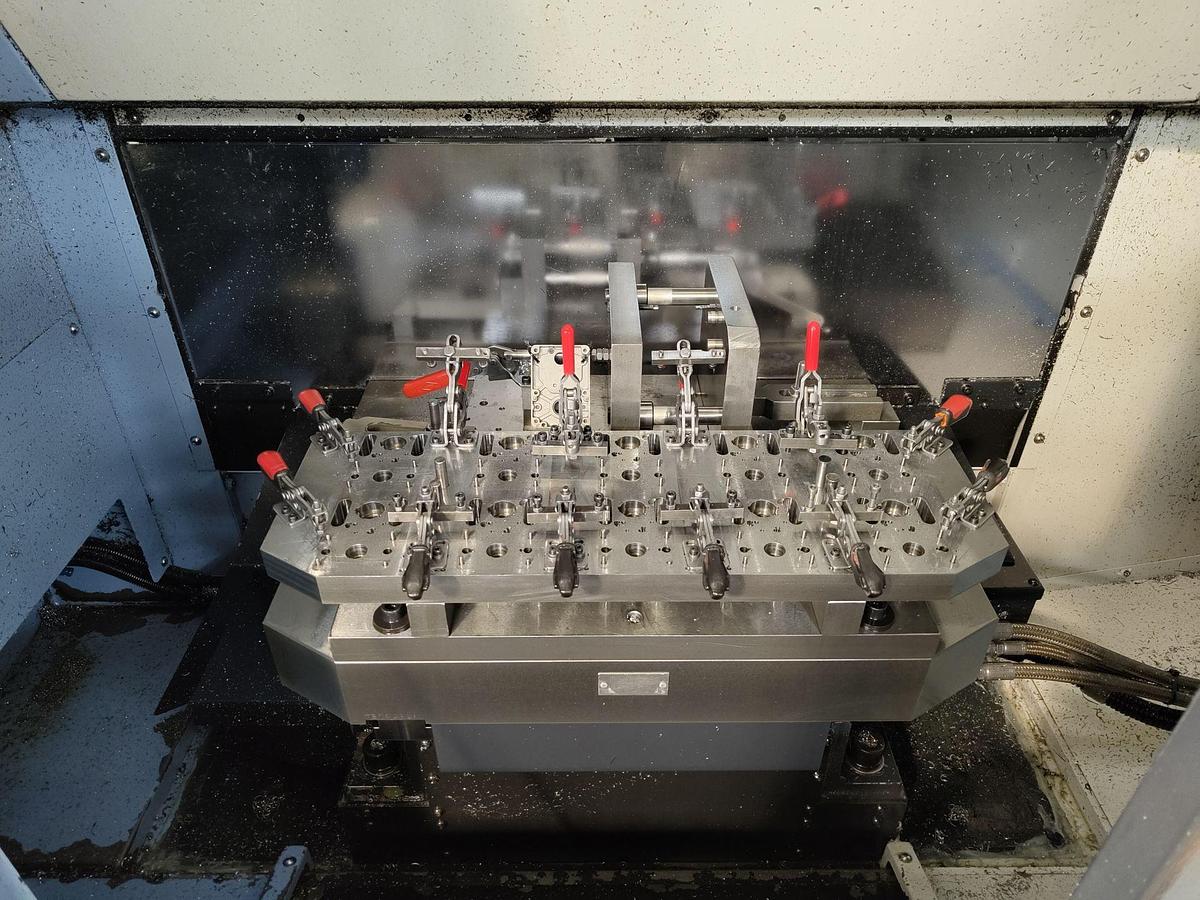

Twin Pallet System (Automatic Pallet Changer)

• Number of pallets: 2
• Table size (per pallet): 650 × 375 mm
• Maximum load: 200 kg
• Pallet change time: 2.9 seconds
• Servo-motor driven pallet rotation system

Spindle

• Maximum spindle speed: 12,000 rpm
• Spindle taper: BT40
• Motor power: 5.5 / 7.5 kW
• Maximum torque: approx. 95 Nm
• Direct-drive spindle with dual contact system for increased rigidity and reduced vibration

Tool Changer

• Automatic tool changer capacity: 20 tools
• Tool change type: Servo-driven exchange arm
• Tool-to-tool time: 1.3 seconds
• Chip-to-chip time: 2.6 seconds
• Maximum tool diameter: 90 mm (125 mm with adjacent pockets empty)
• Maximum tool length: 200 mm
• Maximum tool weight: 8 kg

Feed Rates

• Rapid traverses (X / Y / Z): 48 m/min
• Guideways: Linear roller guides on all axes for high rigidity and speed

Machine Dimensions

• Length: 3,330 mm
• Width: 1,900 mm
• Height: 2,657 mm
• Weight: approx. 5,100 – 5,400 kg

Included Accessories

• D’Andrea TRM/50 precision boring head with holder
• Gerardi precision vise (345 × 120 mm)
• Instruction manuals (operation, maintenance, Fanuc CNC programming)

Key Features

• Twin pallet automatic pallet changer (APC)
• High-speed machining center for production environments
• Fanuc CNC control system
• Grease lubrication system reducing maintenance costs
• Fast tool change and rapid axis movement for minimized idle time

Ideal Applications

• Precision CNC milling
• Automotive components machining
• Aerospace subcontracting
• High-volume production machining
• Precision aluminum and steel parts manufacturing

Manufacturer: Doosan

Model: VC 3600

Year: 2018

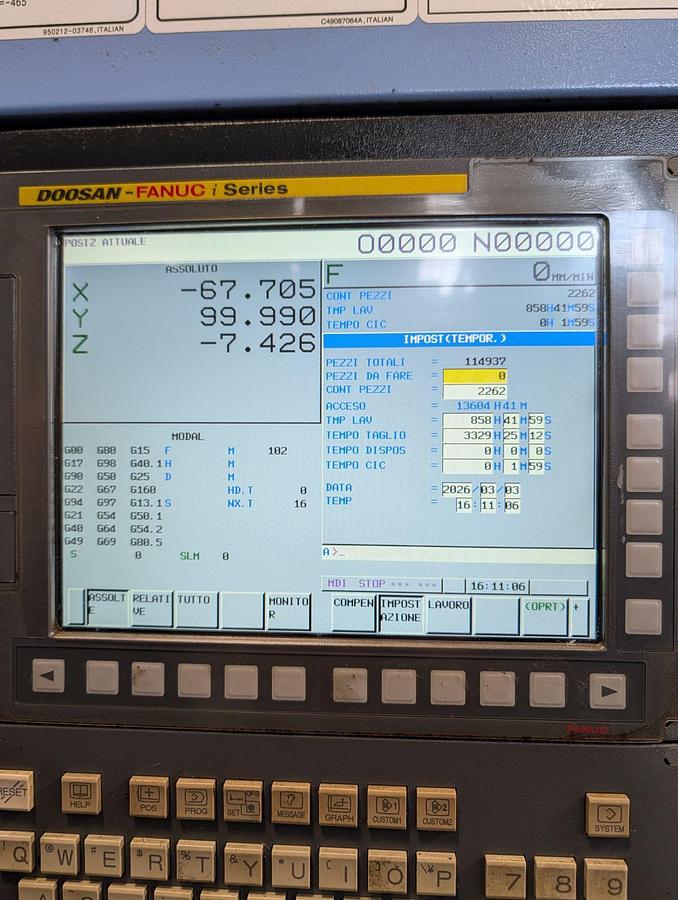

Control: Fanuc i Series (Doosan Fanuc i-Plus / 0i-M)

Machine Type: Vertical Machining Center with Twin Pallet System (APC / Rotopallet)

Condition

Used machine in good operating condition. Available for inspection.

non-binding information to be verified at purchase
