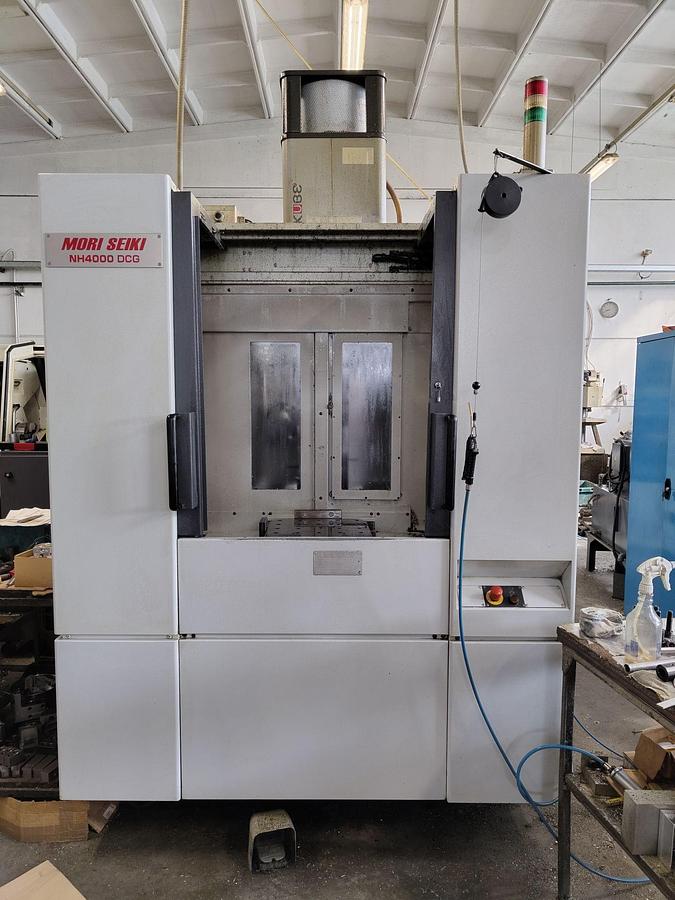

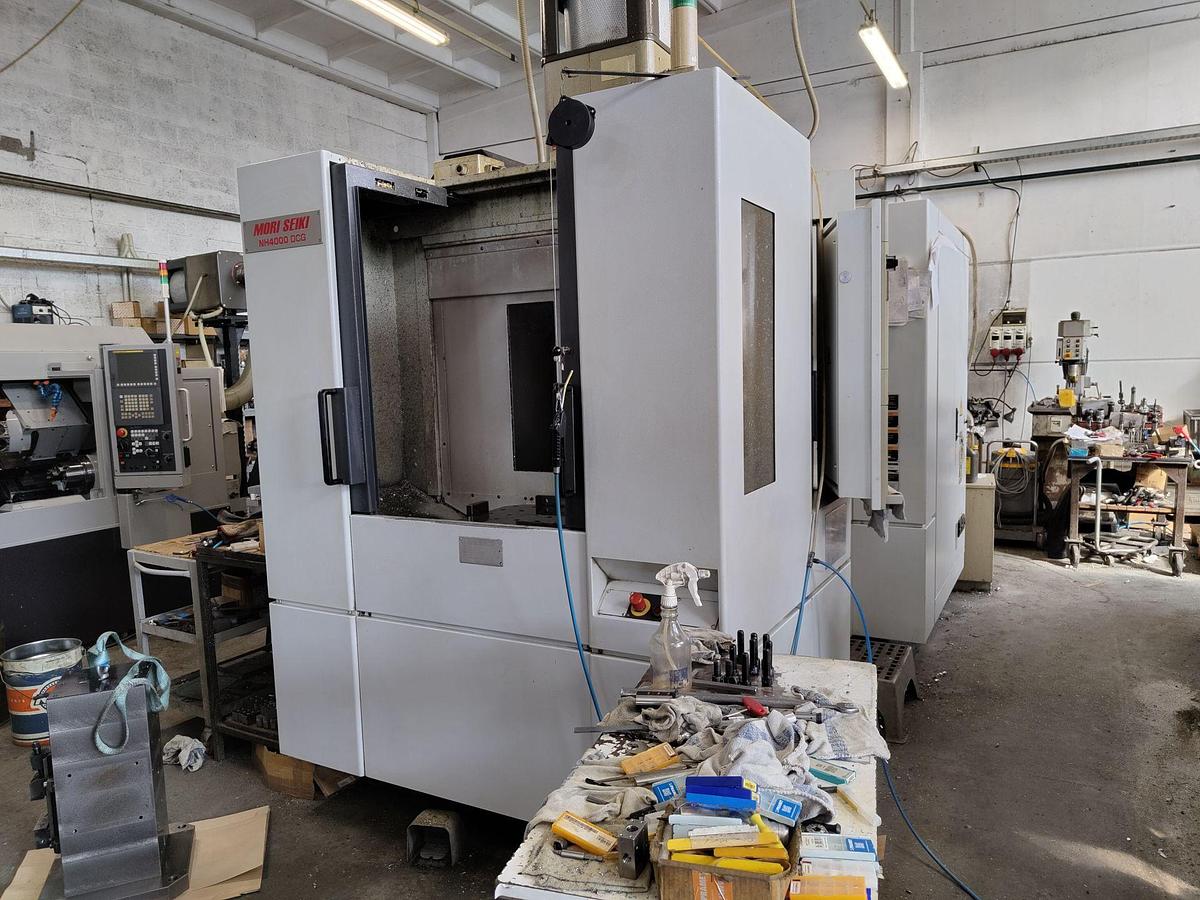

2010 Mori Seiki NH4000 DCG Horizontal Machining Center with Pallet Changer

The machine features DCG (Driven at the Center of Gravity) technology, which improves rigidity, thermal stability, and positioning accuracy. Combined with a dual-pallet automatic pallet changer (APC) and 60-tool automatic tool changer, this machining center is ideal for continuous production operations.

Equipped with a 14,000 rpm BIG-PLUS spindle, high-speed rapid feeds, and integrated high-pressure coolant system, the machine is well suited for machining steel, aluminum, and complex multi-face components.

Travels

• X-axis: 560 mm
• Y-axis: 560 mm
• Z-axis: 630 mm
• Distance spindle center to table: 80 – 640 mm
• Distance spindle nose to table center: 100 – 730 mm

Working Capacity

• Maximum workpiece diameter: 630 mm
• Maximum workpiece height: 900 mm
• Maximum pallet load: 400 kg

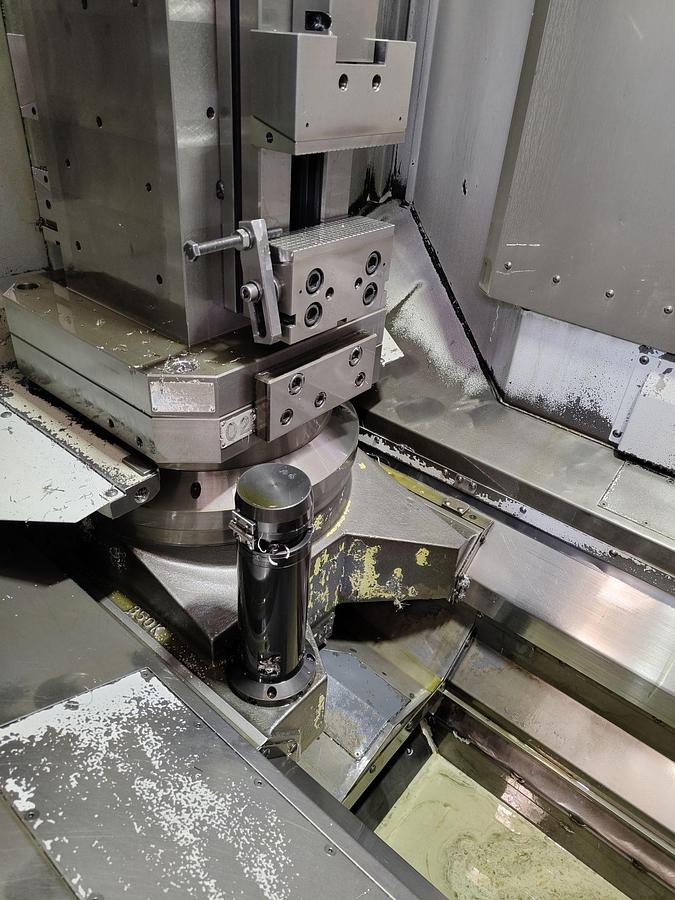

Pallet System

• 2-pallet automatic pallet changer (APC)
• Pallet size: 400 × 400 mm
• Table indexing: 360,000 positions (0.001° resolution)
• Pallet change time: 6 seconds

Spindle

• Maximum spindle speed: 14,000 rpm
• Spindle taper: BT-40 BIG PLUS double-contact
• Motor power: 11 kW / 18.5 kW
• Maximum torque: 120 Nm

Tool Changer

• Tool magazine capacity: 60 tools
• Chain-type magazine
• Tool holder: BT-40
• Maximum tool diameter: 70 mm (140 mm with adjacent empty pockets)
• Maximum tool length: 400 mm
• Maximum tool weight: 8 kg

Feed Rates

• Rapid feeds (X / Y / Z): 50 m/min
• Cutting feed rate: 0 – 50,000 mm/min
• Incremental feed: 0 – 1,260 mm/min

CNC Control

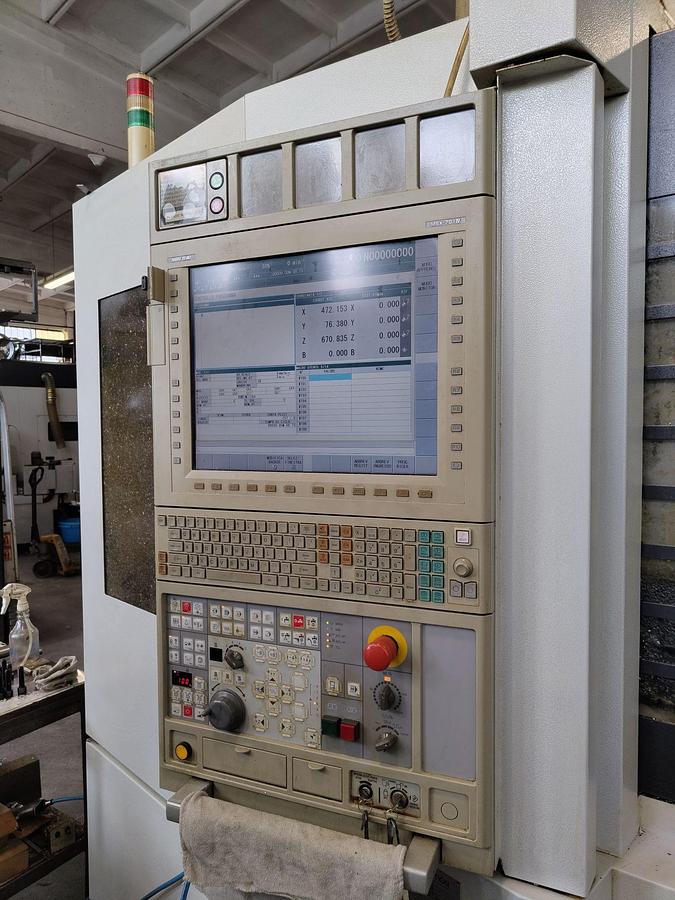

• Mori Seiki MSX-701 IV control with MAPPS interface
• Rigid tapping
• Helical interpolation
• Cutting force power monitoring

Equipment & Accessories

• High-pressure coolant interface 50 bar
• Rear chip conveyor with filtering drum
• Tool breakage detection probe
• Part and pallet washing system
• Alarm and cycle completion signal tower

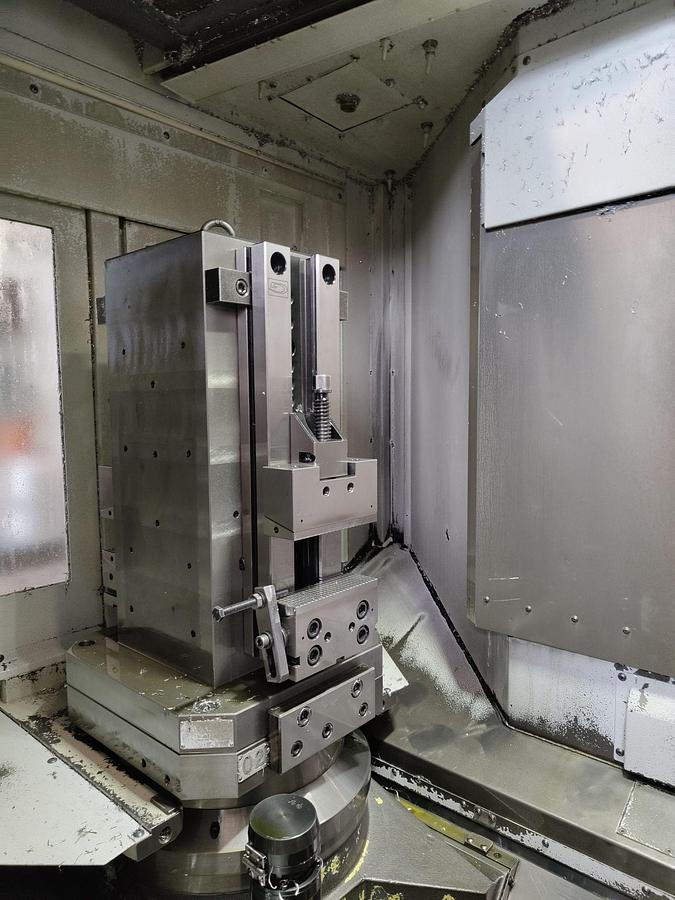

• 4 pallet cubes included:
• 2 × 250 × 250 × 600 mm
• 2 × 400 × 150 × 600 mm

Manufacturer: Mori Seiki

Model: NH4000 DCG

Year: 2010

Control: Mori Seiki MSX-701 IV (MAPPS)

Condition

Used machine in good working condition. Available for inspection.

non-binding information to be verified at purchase
