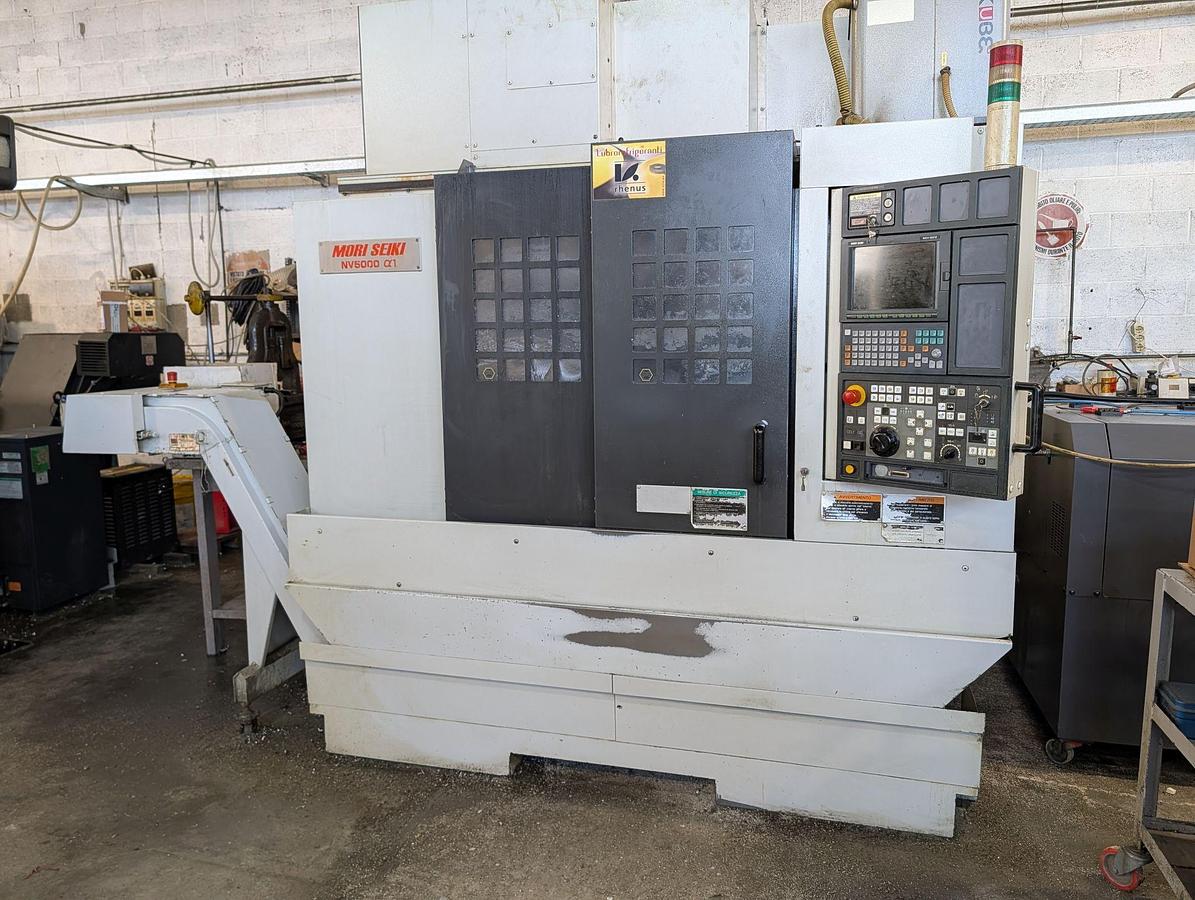

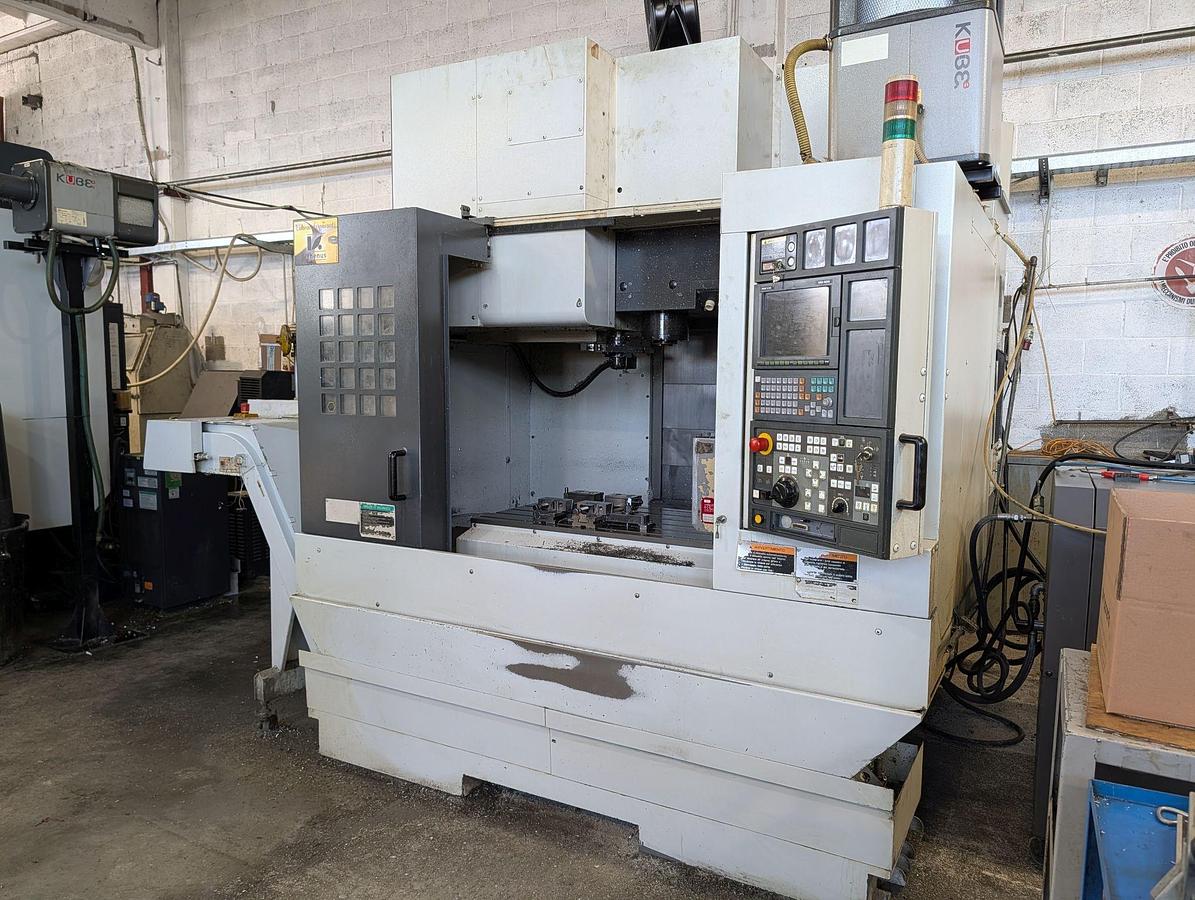

2006 Mori Seiki NV5000 A1 Vertical Machining Center with 4th Axis

High-precision Mori Seiki NV5000 α1 vertical machining center equipped with a Tsudakoma 4th axis rotary table, designed for complex multi-side machining and high productivity operations.

The NV5000 series is known for its rigid construction, high-speed spindle, and excellent positioning accuracy, making it suitable for aerospace, automotive, precision engineering, and general machining applications.

This machine features a 14,000 rpm spindle, 30-tool automatic tool changer, and high-speed rapid feeds up to 42 m/min, enabling efficient machining of aluminum, steel, and other materials.

The machine is also equipped with through-spindle coolant with high-pressure pump, chip conveyor, and transformer, making it ready for installation in a variety of industrial environments.

Travels

• X-axis: 800 mm
• Y-axis: 510 mm
• Z-axis: 510 mm
• Distance table to spindle nose: 150 – 660 mm

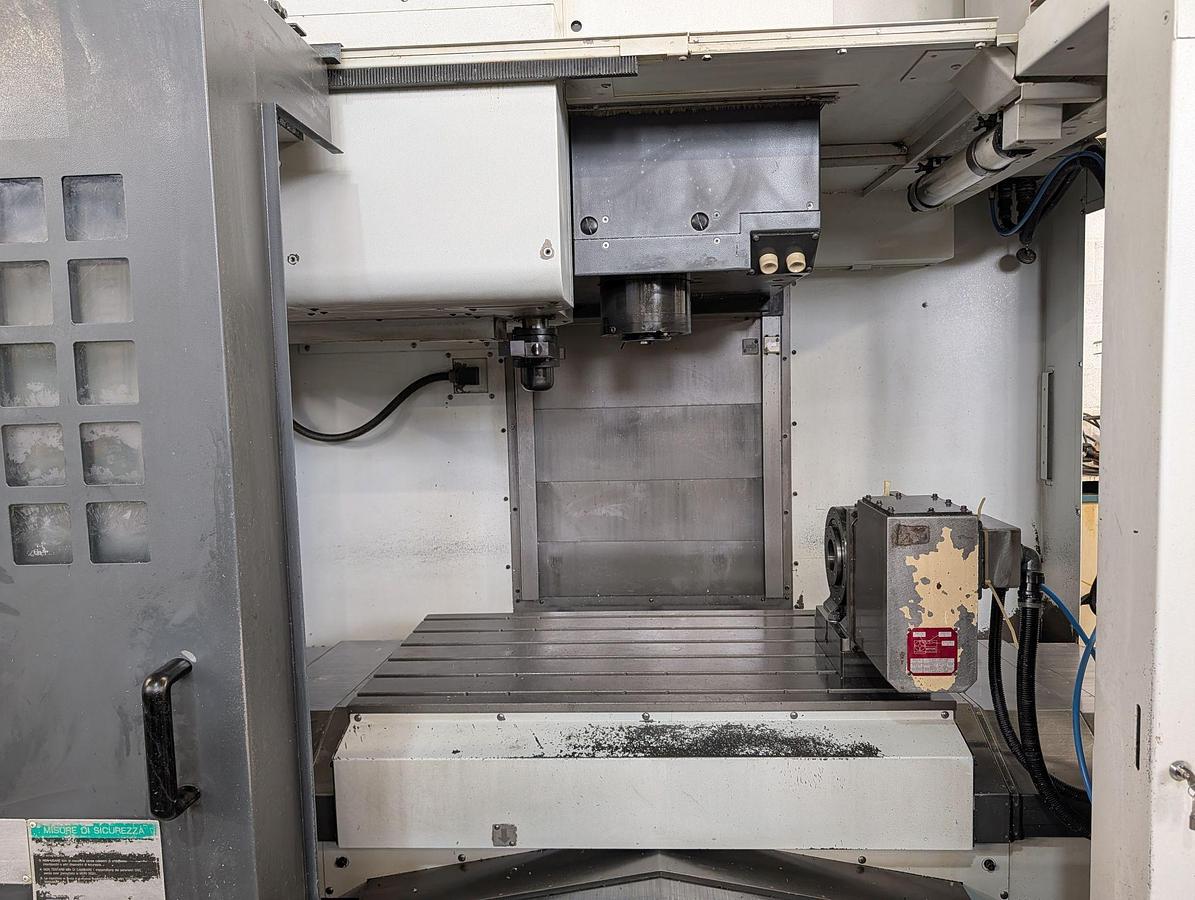

Table

• Table size: 1100 × 600 mm
• Maximum load: 1000 kg
• T-slots: 6 × 18 mm

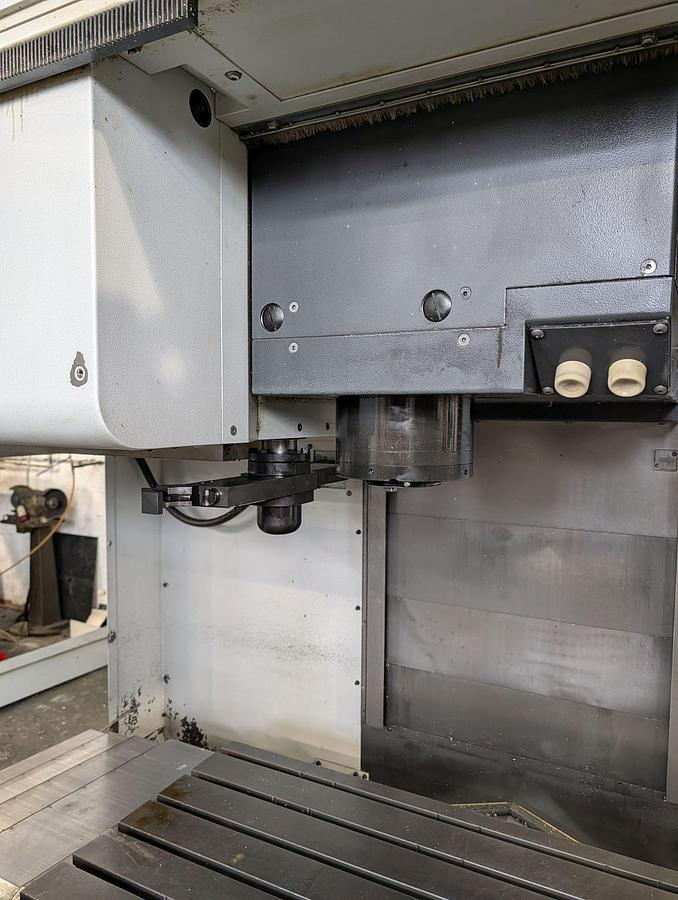

Spindle

• Spindle speed: 14,000 rpm
• Spindle taper: BT-40 (MAS 7/24)
• Spindle motor power: 22 kW / 18.5 kW
• Integrated spindle cooling chiller

Feed Rates & Accuracy

• Rapid feed: 42,000 mm/min
• Jog feed: 0 – 1,260 mm/min
• Positioning accuracy: 0.005 mm
• Repeatability: ±0.001 mm

Tool Changer

• ATC capacity: 30 tools
• Maximum tool diameter: 80 mm (125 mm with adjacent empty slots)
• Maximum tool length: 300 mm
• Maximum tool weight: 8 kg
• Tool change time: 2.6 sec (chip-to-chip)

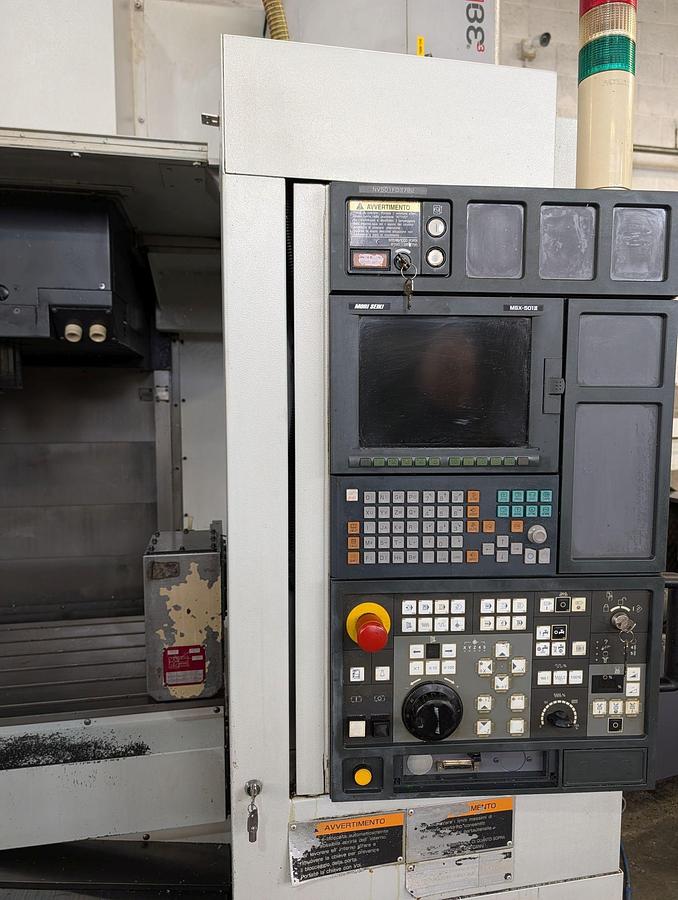

CNC Control Features

• Mori Seiki MSX-501 control
• 10.4″ color TFT monitor
• LOOK-AHEAD (G08) high-speed contour control
• Rigid tapping
• Helical interpolation
• Load monitor for cutting force control
• RS-232 and PCMCIA interfaces

Equipment & Accessories

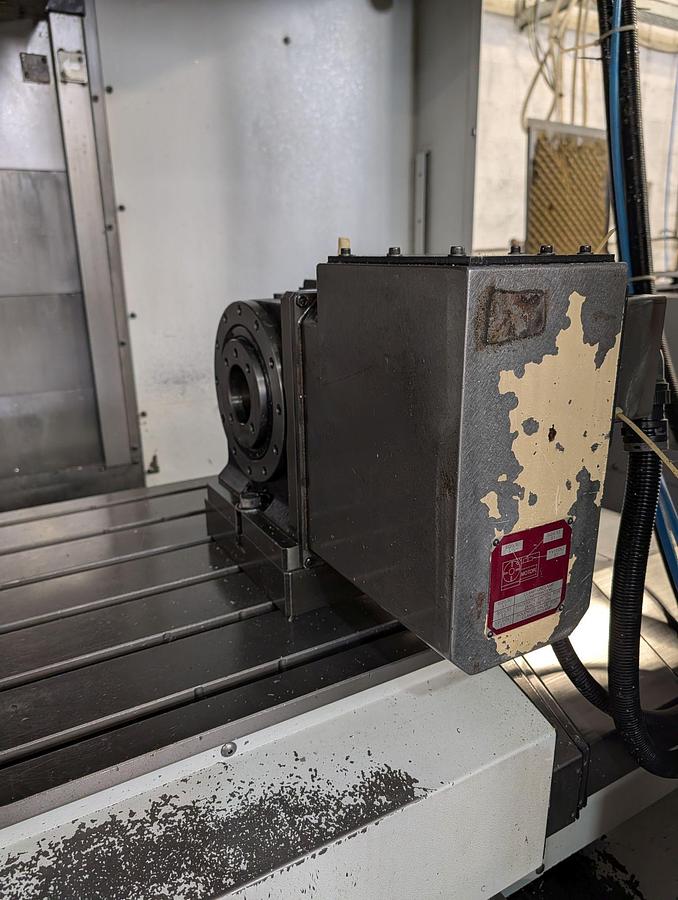

• Tsudakoma 4th axis rotary table (Ø200 mm)
• Chip conveyor (left-hand side belt type)

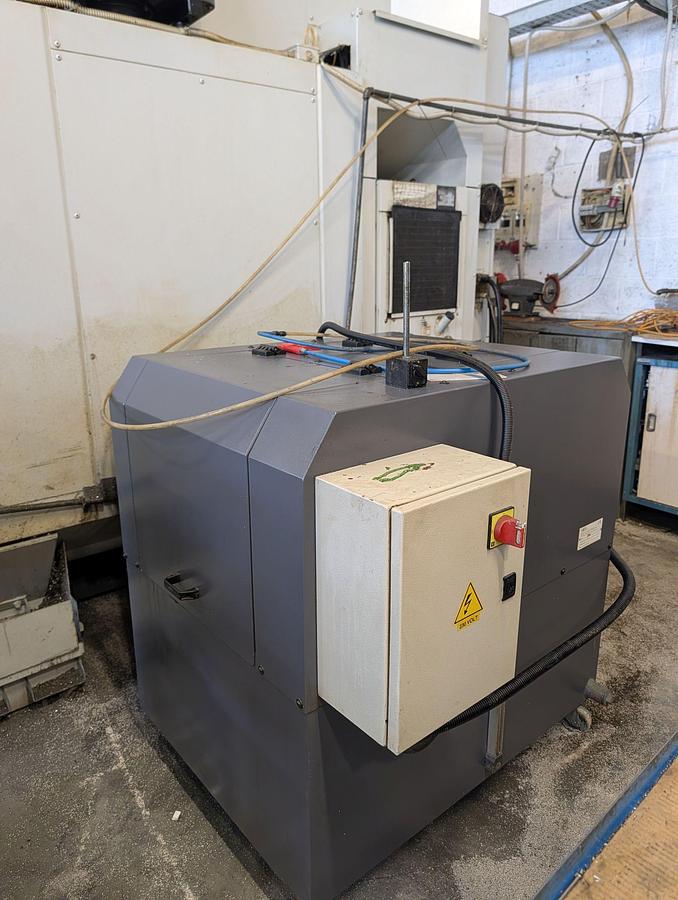

• Through-spindle coolant system with 50 bar high-pressure pump
• Dual coolant filtration system
• Pneumatic cleaning system
• Light and acoustic end-of-cycle signal
• Transformer 380V / 50Hz → 200V / 60Hz
• Programming and maintenance manuals
• CE conformity documentation

Dimensions & Weight

• Machine height: 2603 mm
• Installation area: 2788 × 2710 mm
• Machine weight: 6,960 kg
• Installed power: 50.5 kVA
• Coolant tank capacity: 275 L



Condition

Used machine in good operating condition. Available for inspection.

non-binding information to be verified at purchase
