Flowserve Centrifugal Pumps – 2HPX10 – API 610

Typical Application

These API 610 Flowserve HPX process pumps are suitable for a wide range of refinery, petrochemical and hydrocarbon processing services, including for example:

·      Crude oil transfer

·      Condensate service

·      Naphtha and light hydrocarbons

·      Refined petroleum products

·      Petrochemical process liquids

·      Chemical process applications compatible with pump materials

·      Tank farm transfer and pipeline service

Description

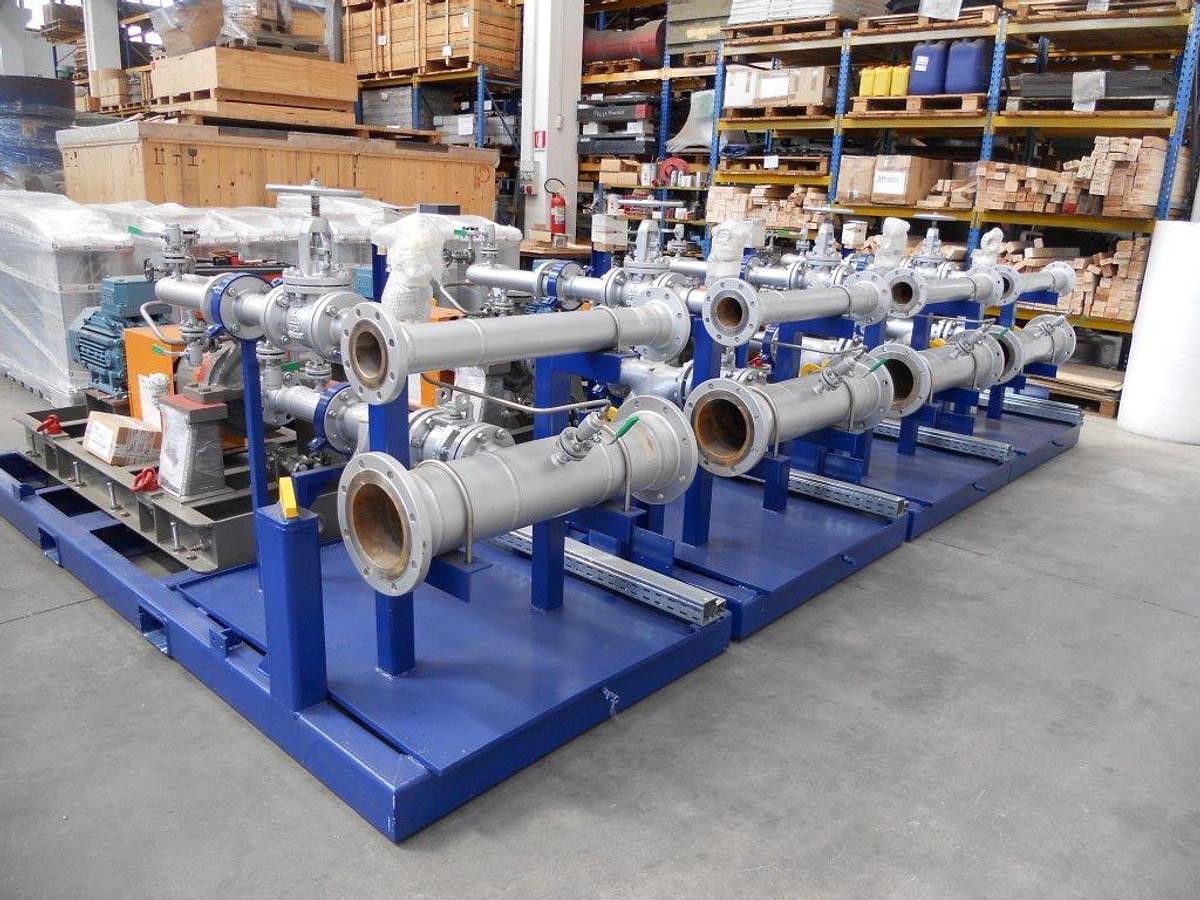

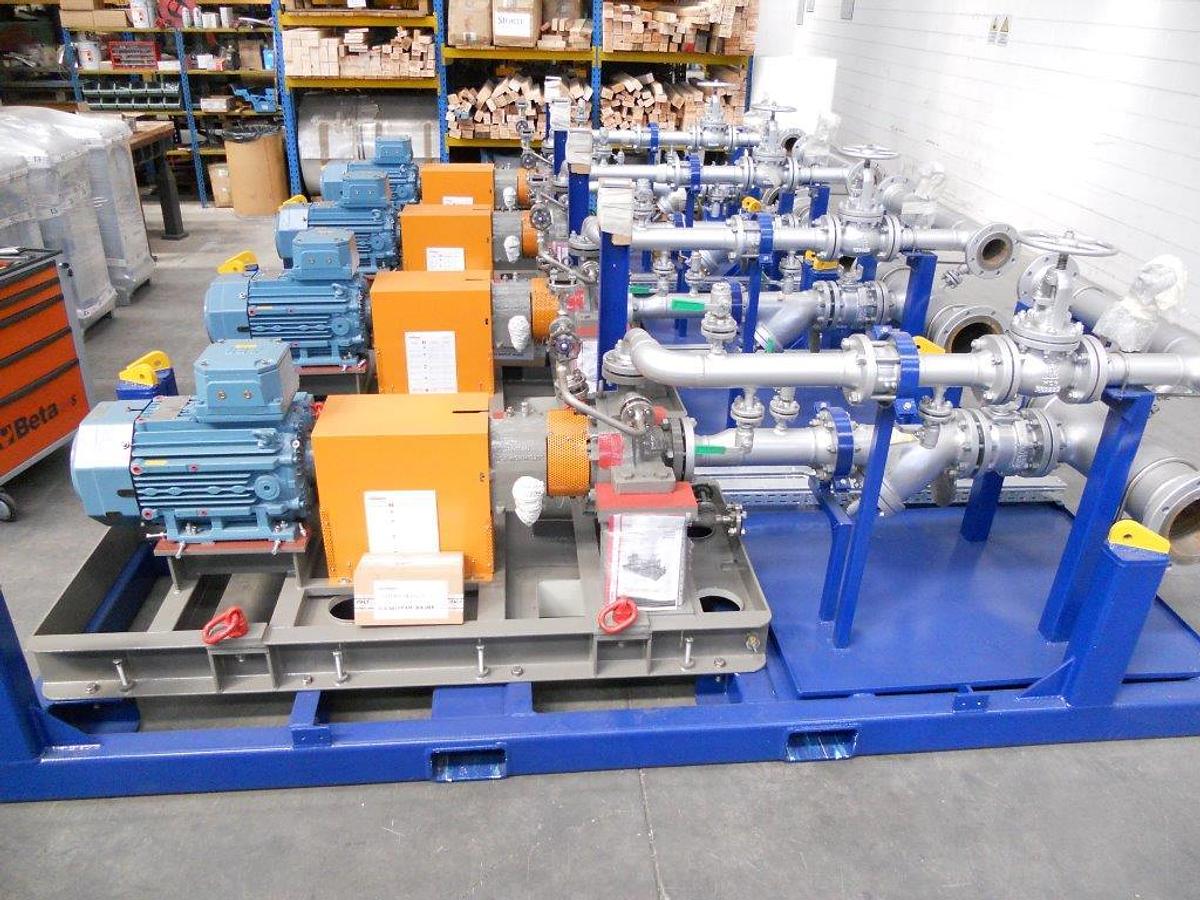

Complete API 610 centrifugal pump packages including pump, electric motor and baseplate.

Main specifications:

·      Pump type: Flowserve HPX process pump

·      Design standard: API 610 – 10th Edition

·      Material: C6 with NACE certification

·      Mechanical Seal: Single seal – Plan 11

·      Driver: ABB Explosion Proof Motor

·      Motor classification: ABB EExd IIB T4 Gb

·      Power: 30 kW

·      Pump speed: 2950 rpm

·      Capacity: 5,000 – 10,000 US bbl/day

·      Specific gravity: 0.9

·      Head: approx. 96 psig (see datasheet curve)

·      Test tolerance: API 610 – 10th Edition

The pumps were purchased in 2015 but never installed nor operated.

They have been stored in warehouse in very good preservation conditions.

Sale conditions: AS IS – WHERE IS

Year: 2015

Brand: Flowserve

Model: 2HPX10A C6 – API 610

Quantity available: 3 units
