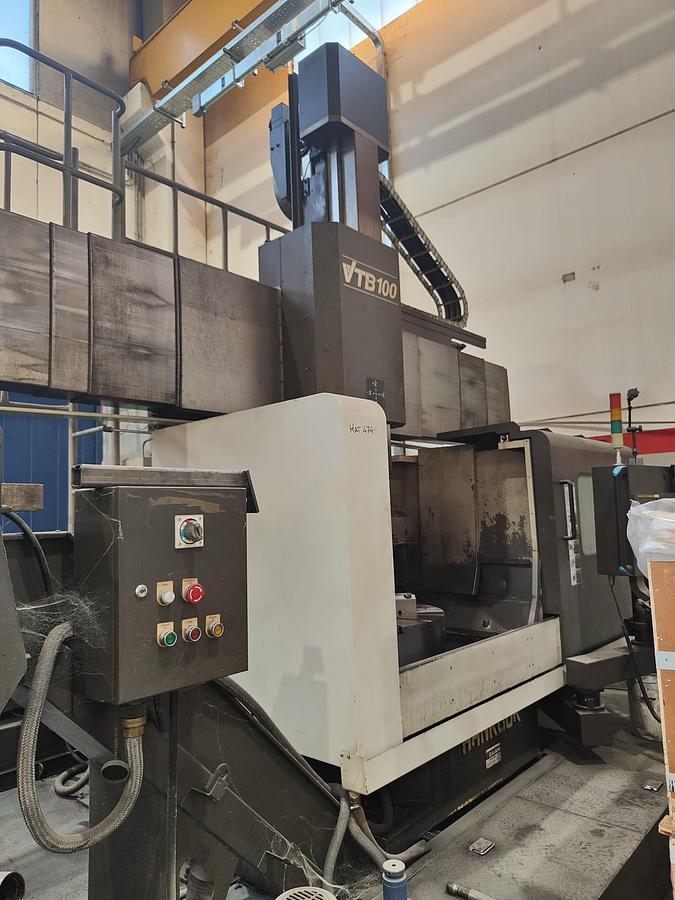

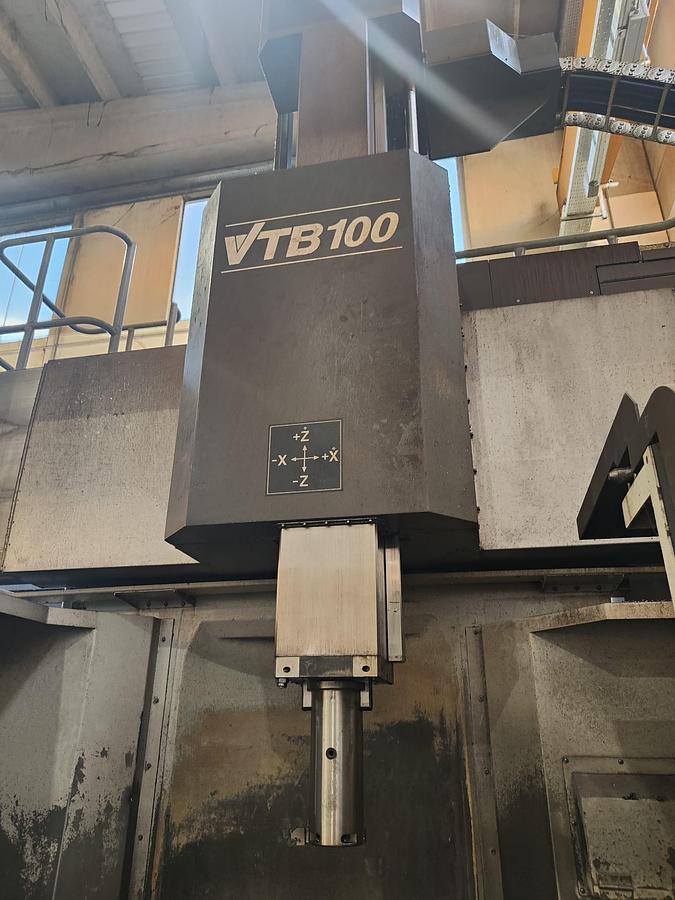

2018 VERTICAL LATHE HANKOOK model.VTB 100

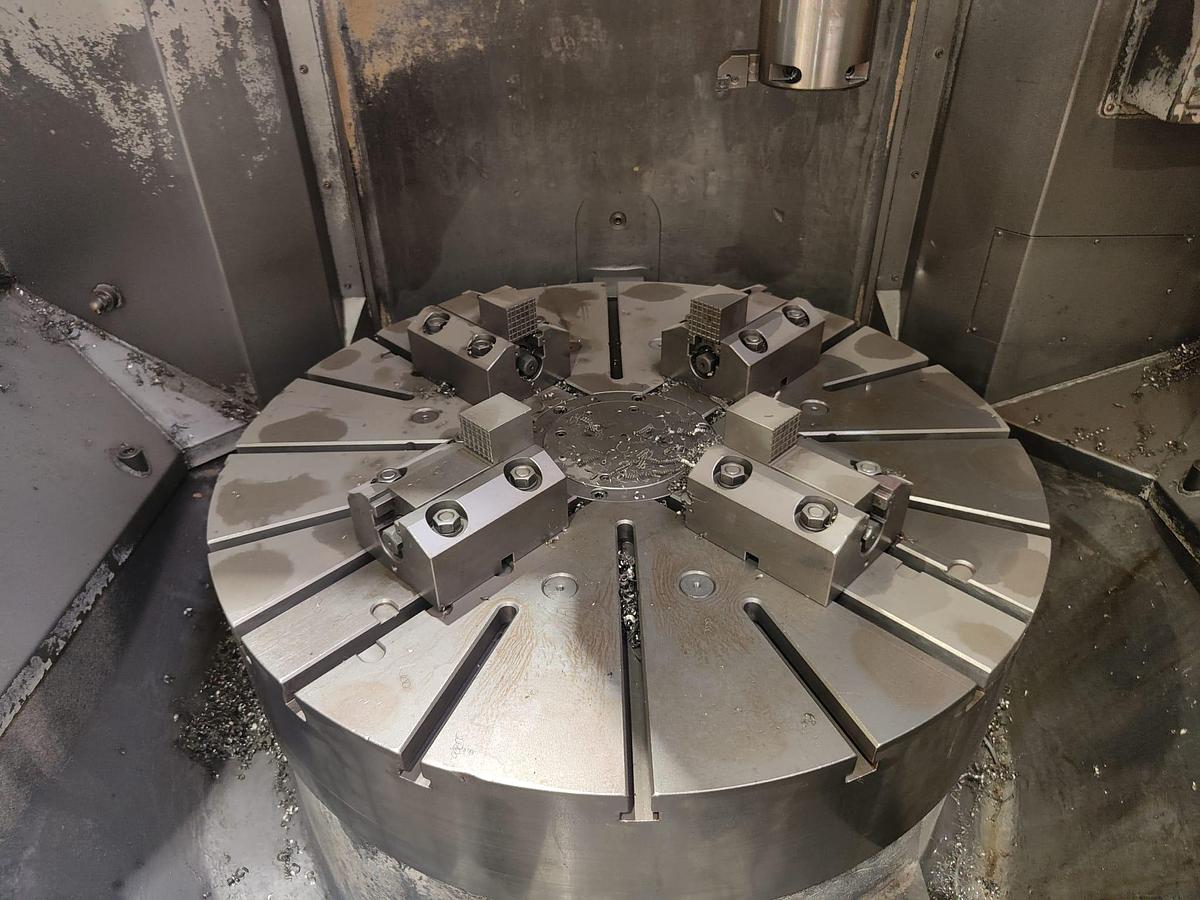

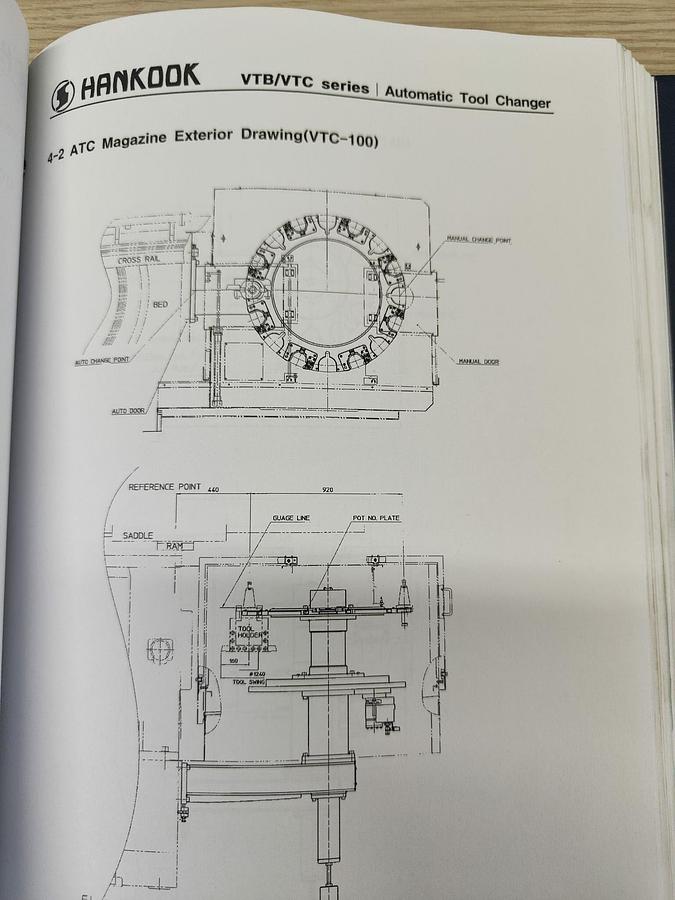

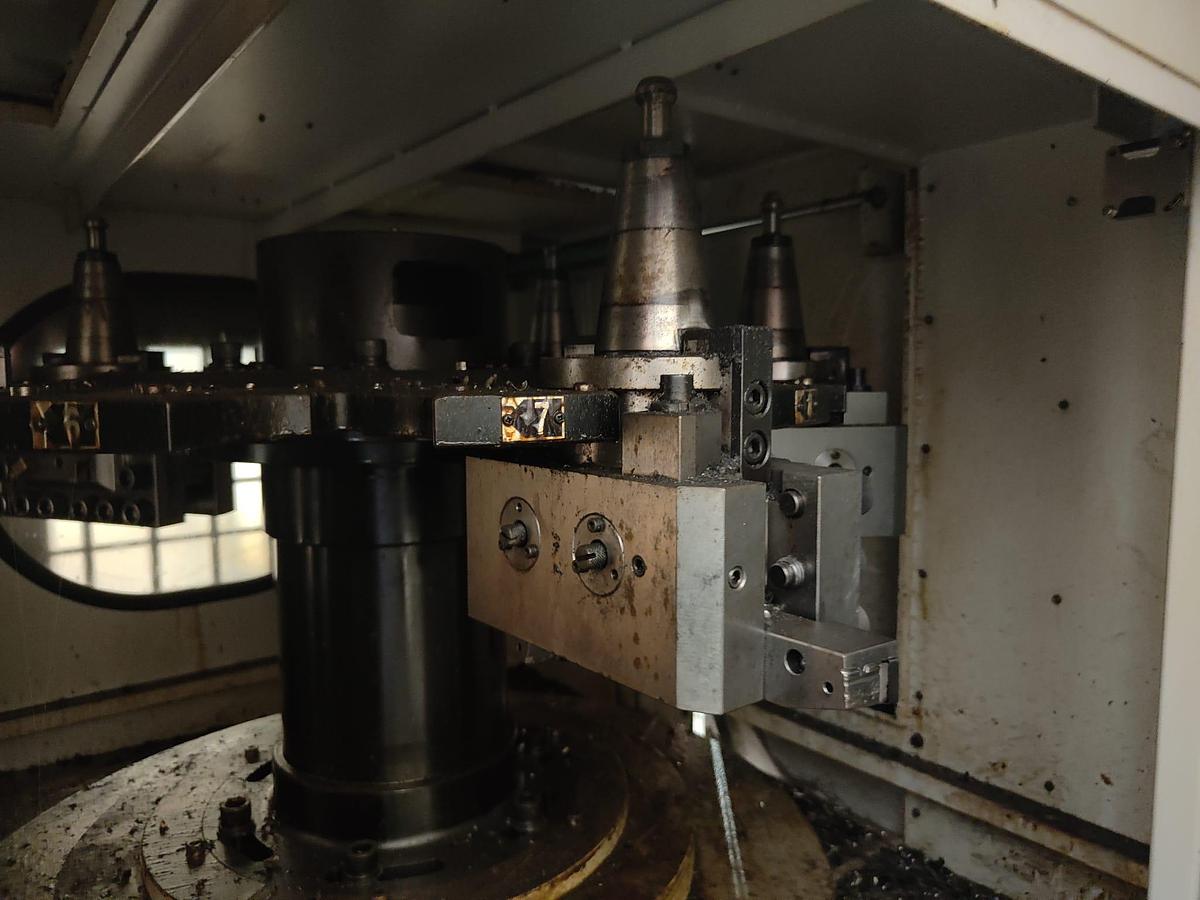

YEAR 2018 N/S 42K09365 CNC Fanuc 32i Manual platform Ø 1000 Maximum stroke 1250 mm Maximum turnable diameter 1250 mm Maximum cutting height 800 mm Maximum cutting force 2000 Kg.f Maximum workpiece weight 4000 Kg Gamme n.02 Tool changer with 7 positions ISO 50 spindle taper Tool size 32×32 mm Strokes: X axis 1300 mm Z axis 800 mm Maximum cutting feed 7500 Table motor AC30/37 kW X axis servo motor AC4 kW Z axis servo motor AC 4 kW Hydraulic pump motor 3.7-4p Lubrication pump motor 50-4p Coolant pump motor 0.25 KW OVERALL DIMENSIONS 4700x3900x4500 (h) MACHINE WEIGHT 17500 Kg NON-BINDING DATA TO BE VERIFIED
